Car Camera AHD/CVBS Three-switch Rear View Camera Starlight Night Vision Android Large Screen Reversing Image

Product Description:

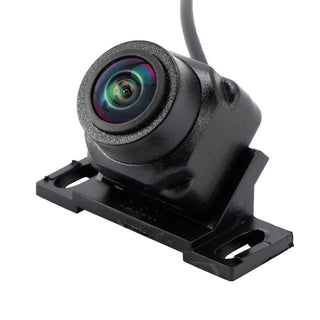

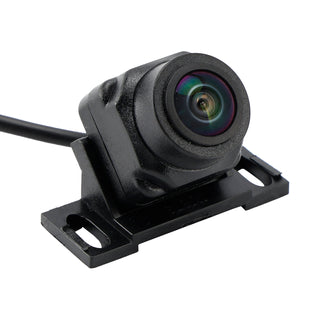

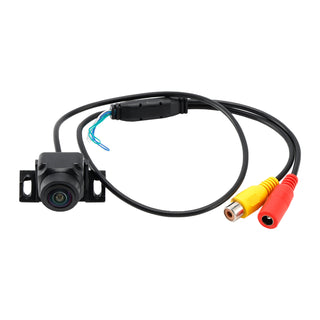

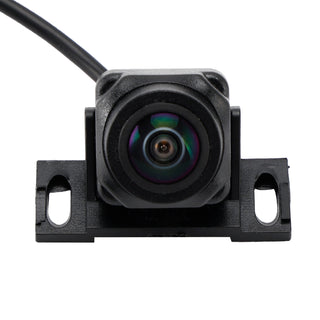

Large Angle Waterproof Car Universal Rear View Camera Camera

Features:
1.Replace the license light holder or universal installation of the same original size accessories
2.Smart size for hidden installation
3.1/3" CCD
4.Lens: 170 degrees
5.Waterproof and dustproof (IP68) CCD camera
6.CCD camera with car reversing reference line (optional).
7.Permit light available on some models.
8.Night vision available and HD CCD camera.
9.Day/night sensor for automatic adjustment, automatic fill light at minimum illumination.

Specifications:
Image sensor: AHD720P/CVBS / AHD1080P/CVBS
Image format: NTSC 50HZ / PAL 50HZ
Effective pixels: 1280x720/1920x1080
Sensing Area: 5.961mm x 4.276mm
Sync System: Internal
Horizontal Resolution: 720TVL/1080TVL
Min lllumination: 0.2Luxor0.0lLux
Viewing angle: 170 degrees
Viseo Qutput: RCA,1.0Vp-p,750hm
SNR: Better than 48db
Waterproof Grade: IP68K
Current Consumption: max200NA
Nominal Voltage: DC12V
Minimum illumination: 0.1Lux
Storage temperature: -40ºC-85ºCRH95%MAX
Wording Environment: -30°C~80°C,RH95%MAX
Operating humidity: 0%-90%
Resolution: 520 TV lines
Power supply: DC12V + 10%
Current consumption: No more than 150mA
Synchronization system: internal
Scanning system: 2:1 interlaced scanning
Horizontal synchronization frequency: 15625KHZ
AGC: AUTO
BLC: AUTO
Video output: 1.0Vp-p, 75Ω
Other: Auto White Blance,AGC,Backlight Compensation

Installation Steps:
1) Take out the license;
2) Pass the rearview lens line through the original position of the license plate light;
3) Fix the camera with the buckles on both sides of the camera;
4) Connect the lens built-in license light power line to the original license light power line;
5) Connect the reverse lens switching line;
6) Connect the camera's signal line to the signal extension line;
7) Connect the car's reverse light line to the camera's video line;
8) Check if all lines are connected correctly;
9) Debug the working effect of the camera and license light;
10) Cover the car trunk. Finished product.

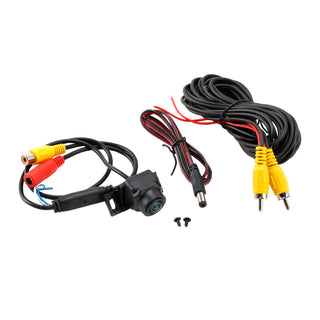

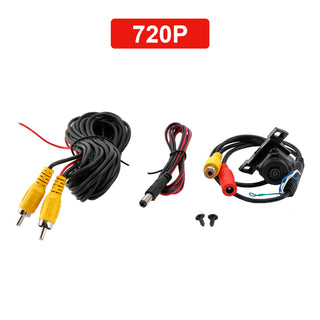

Package Included:
1 x Car camera

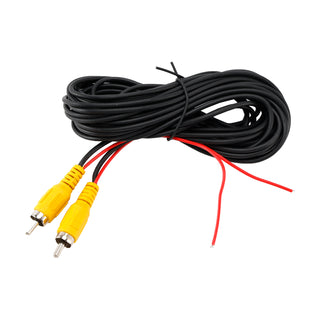

1 x 6m control line and
1 x 1 meter power cord
1 x User manual installation instructions
1 x Neutral English packaging box

Shipping Information:
Free Quick Shipping to USA.
Estimated Time of Arrival: within 3-8 working days.
Warranty:
1.Customers have the right to request a return within 60 days from the date of product receipt.
2.At Itopteng, we offer prompt customer service to assist with product usage inquiries and facilitate returns or refunds.
