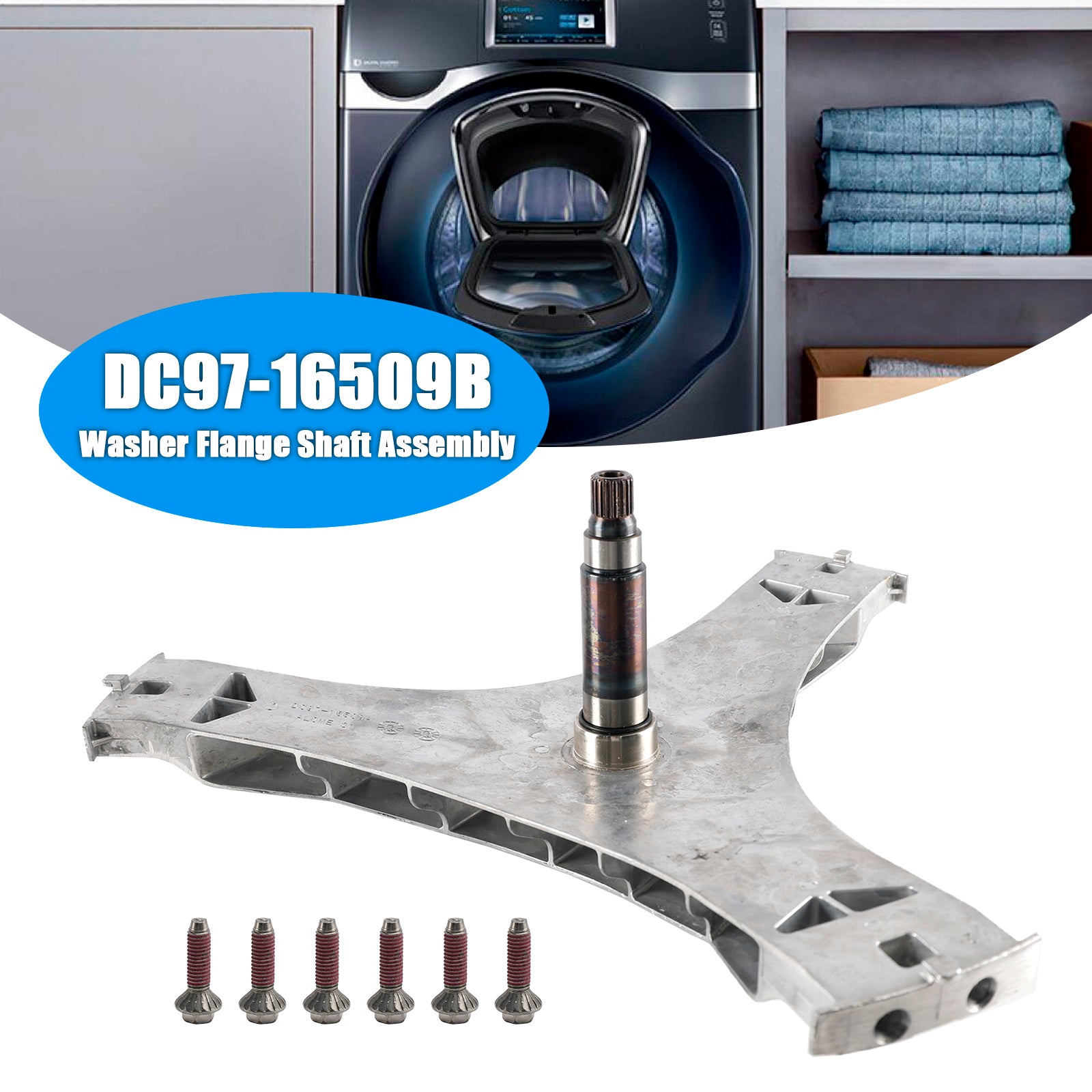

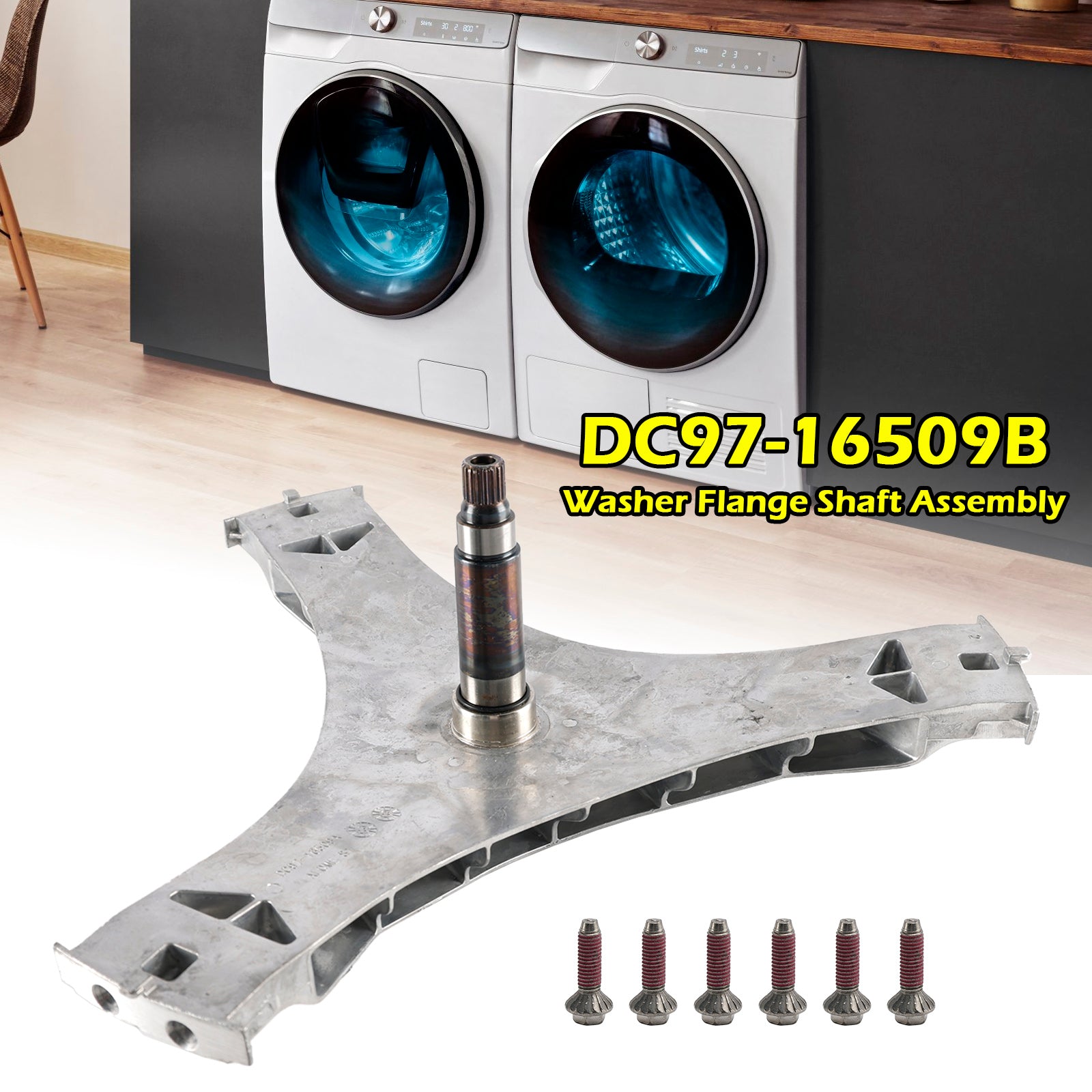

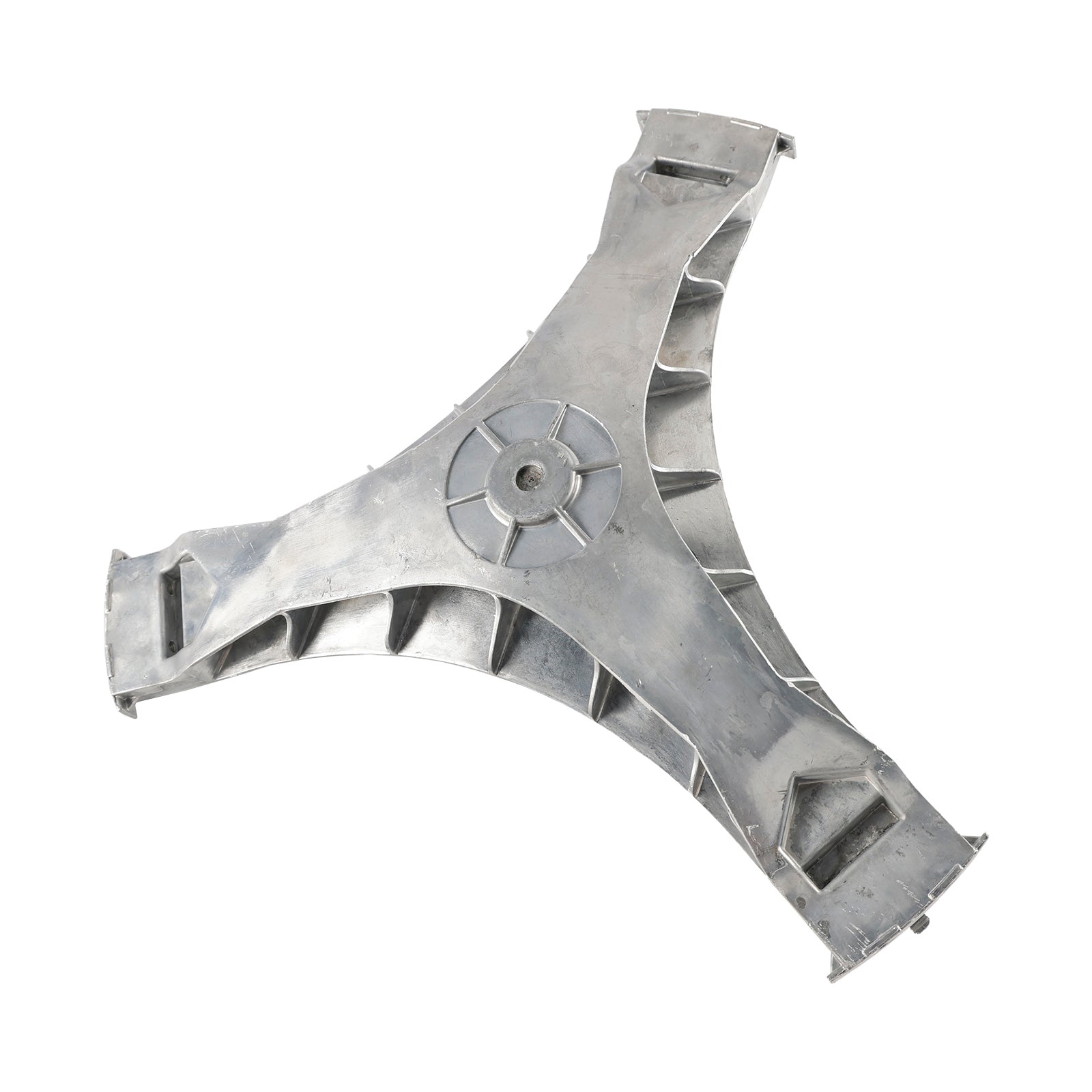

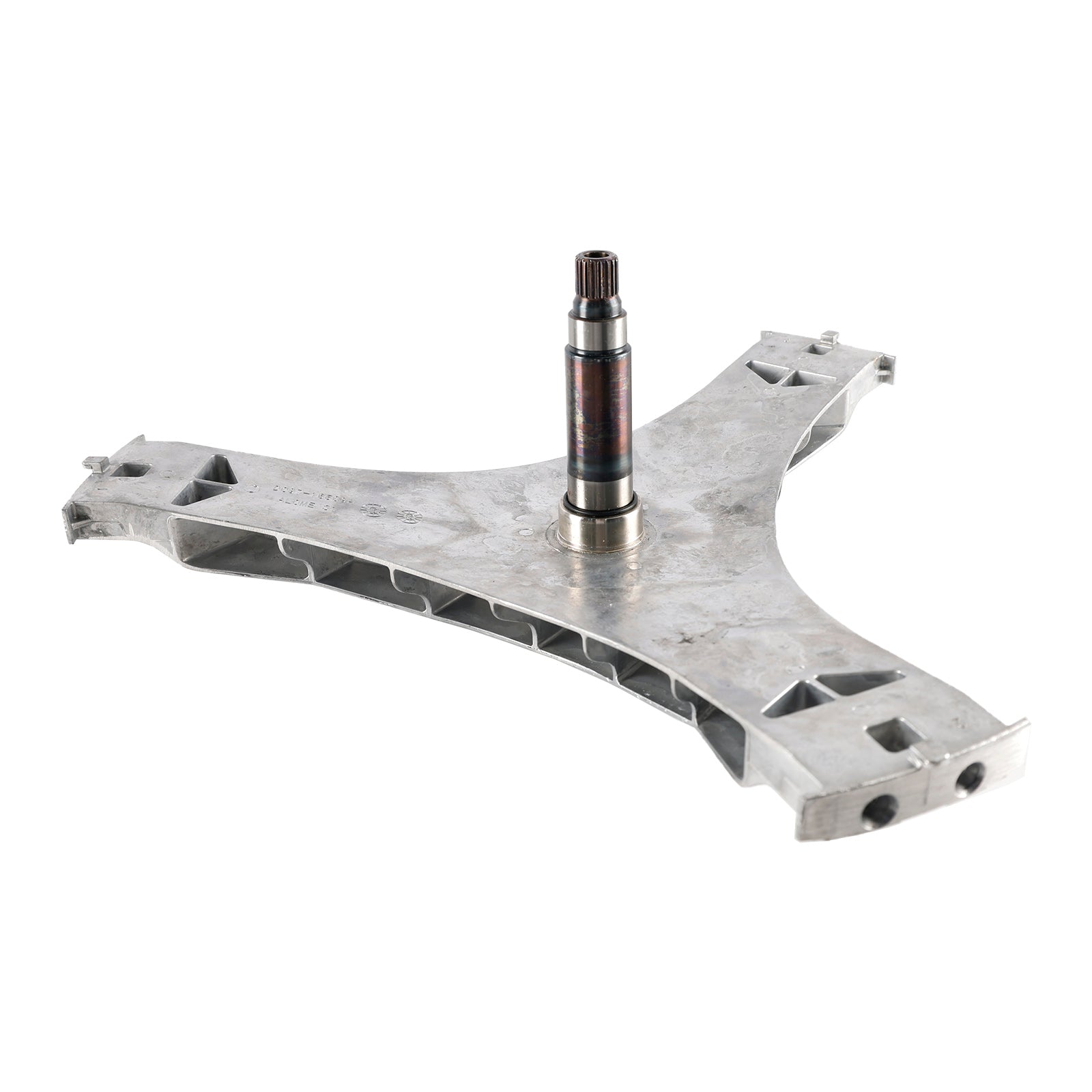

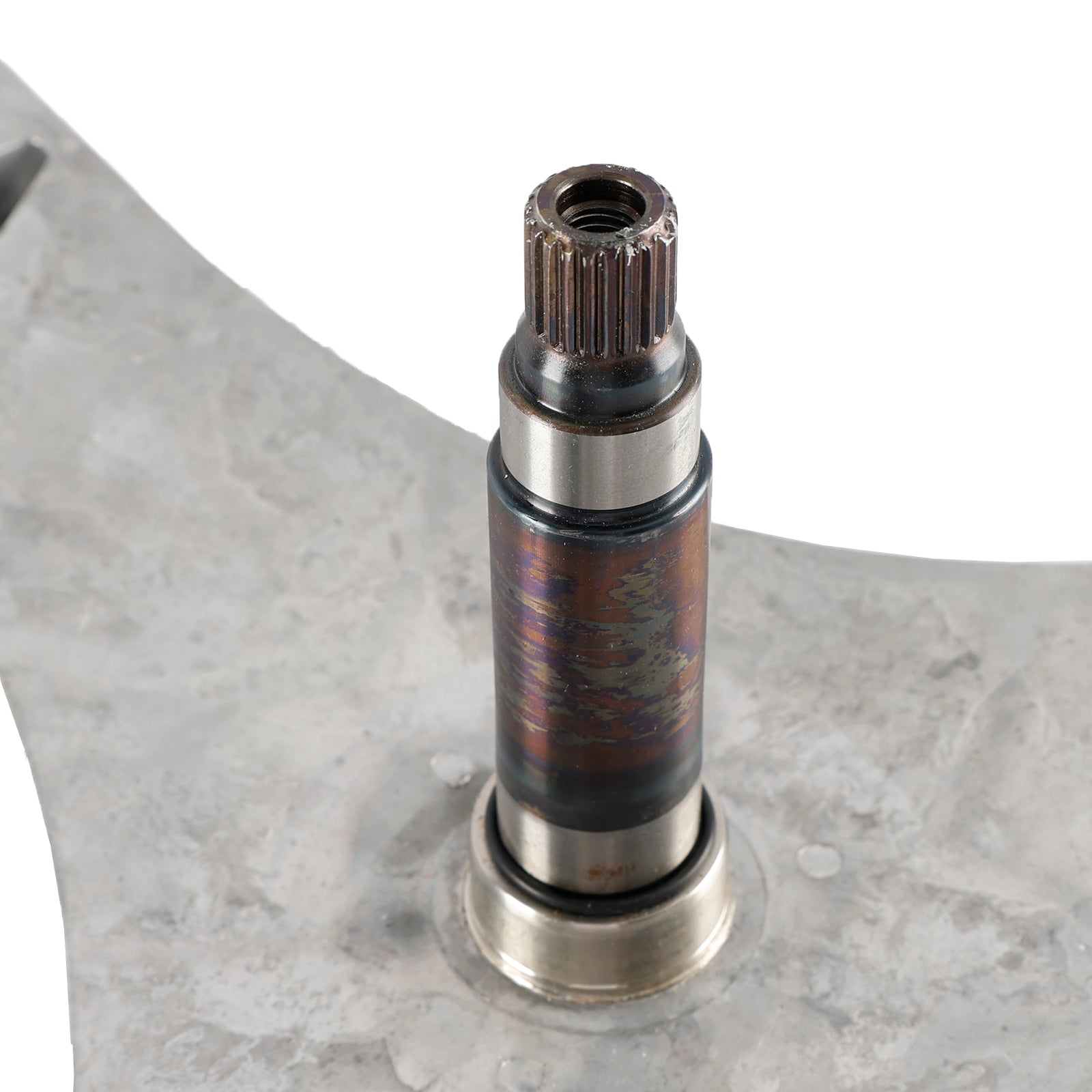

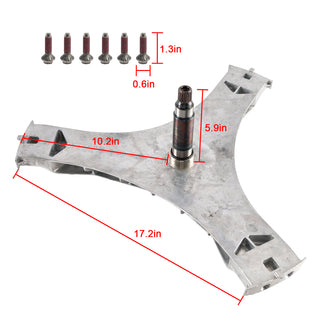

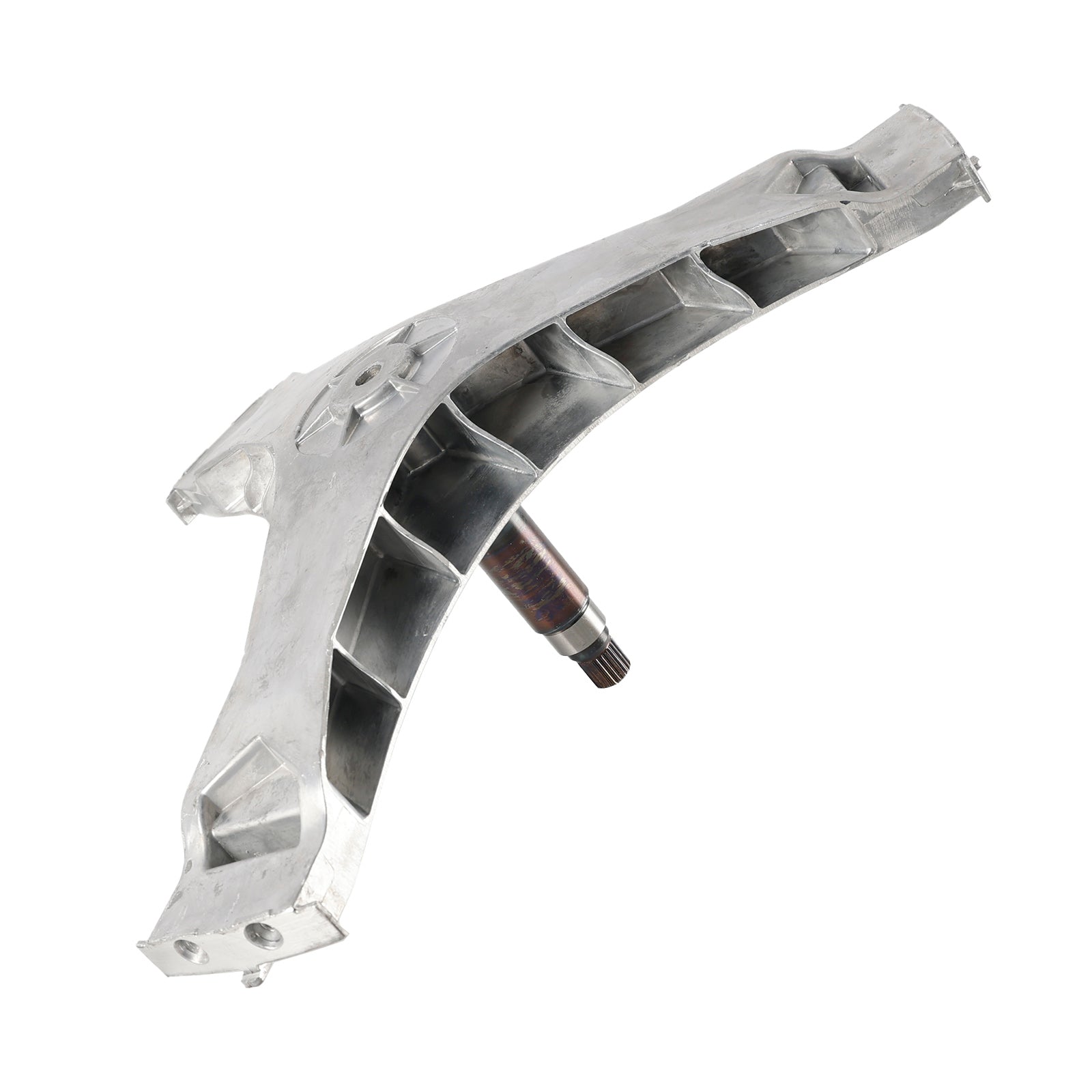

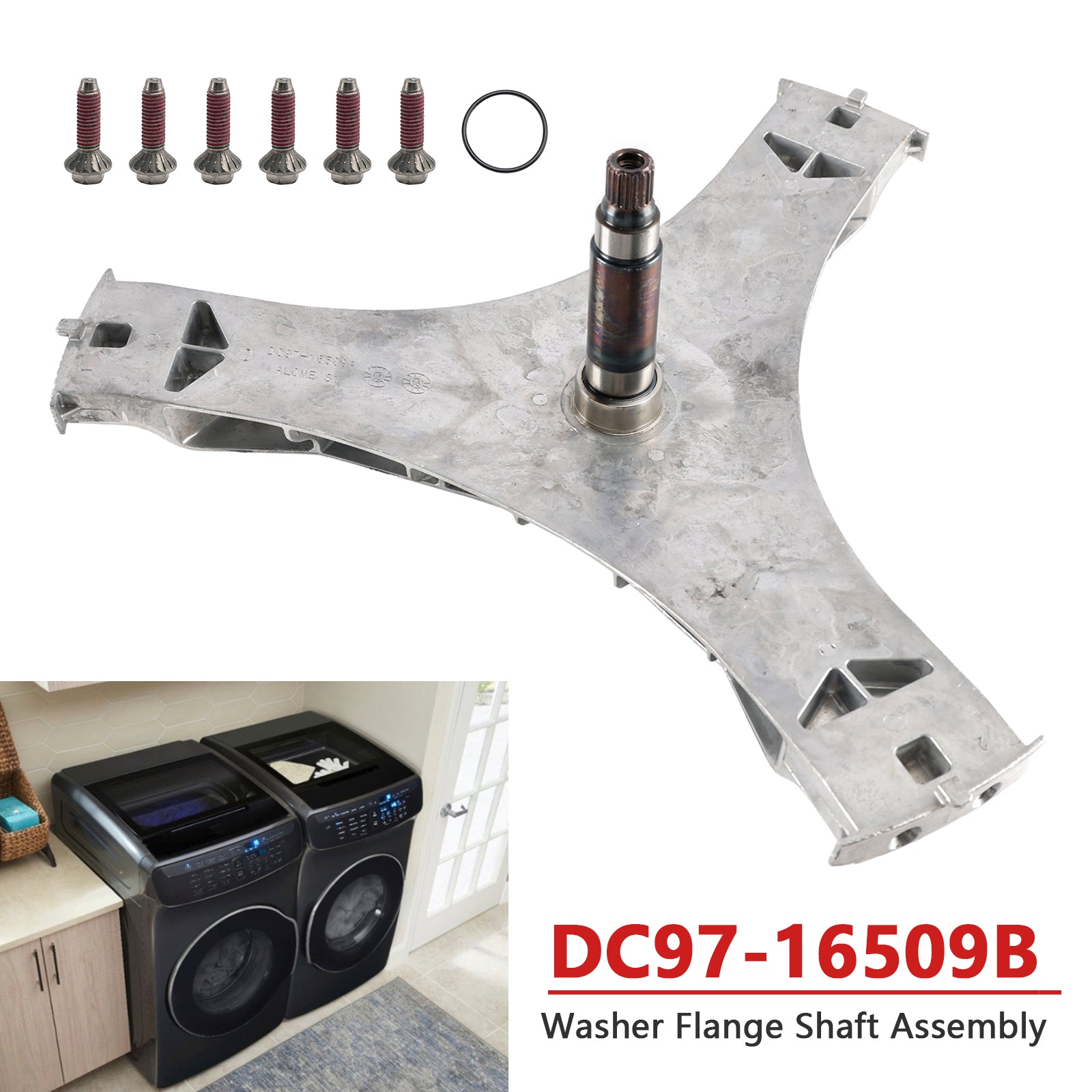

Washer Flange Shaft Assembly Kit — DC97-16509B
For Samsung front‑load washers | Includes DC60‑40137A spider bolts ×6 & DC69‑00804A tub gasket
🔧 Complete kit, ready to install 🛠️ Fixes drum shake & spin noise ✅ Replaces: DC97‑16509A / AP5582195 / PS4221666 / 3282591 💧 Upgraded sealing to reduce leaks

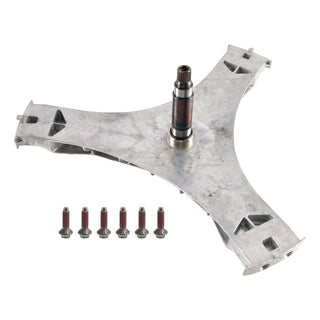

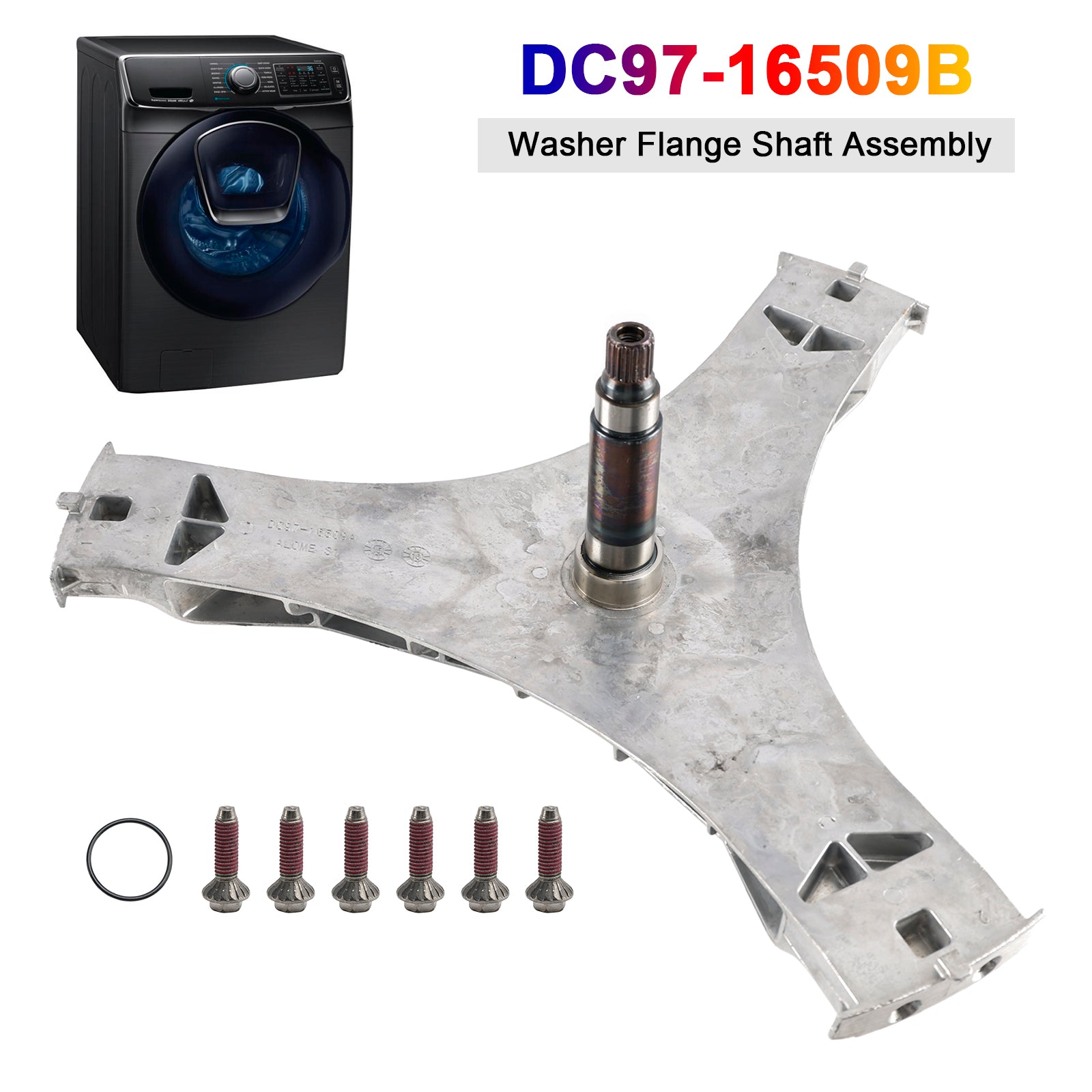

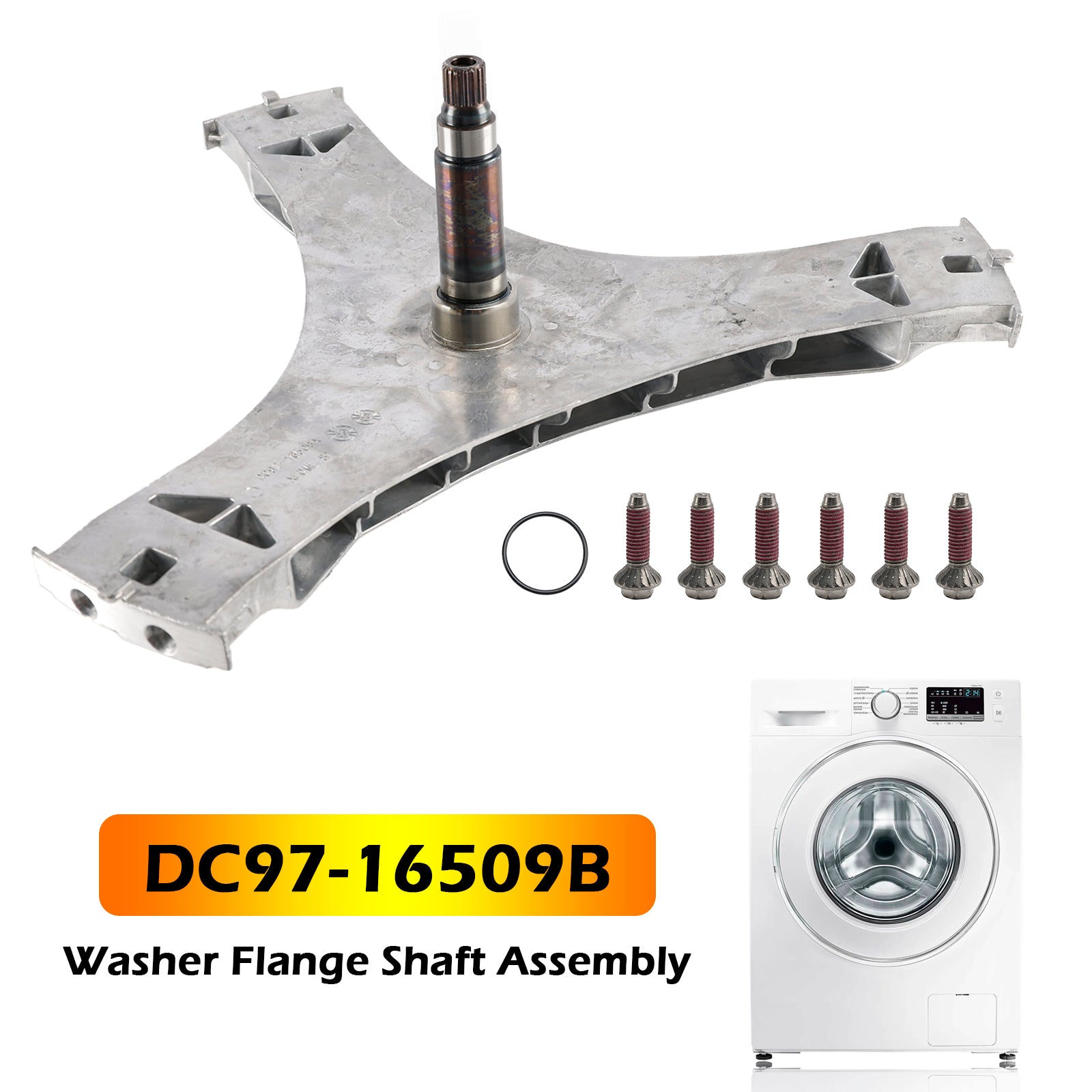

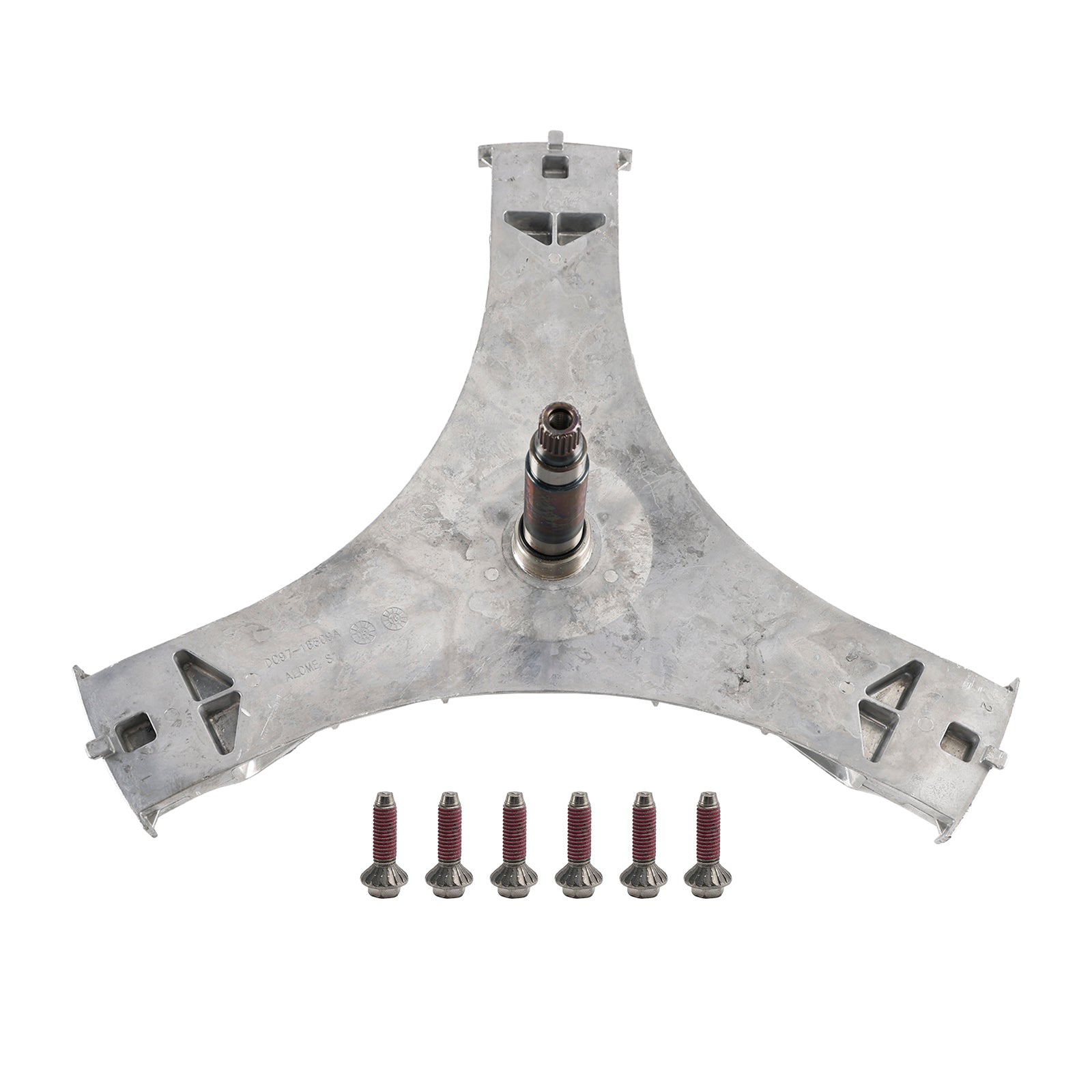

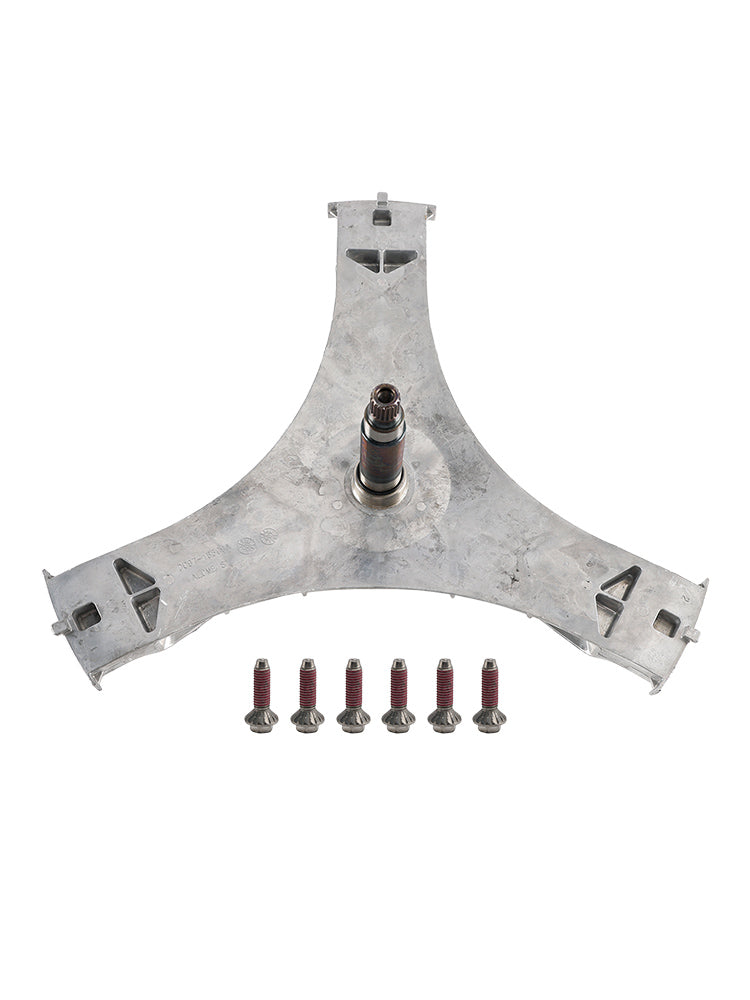

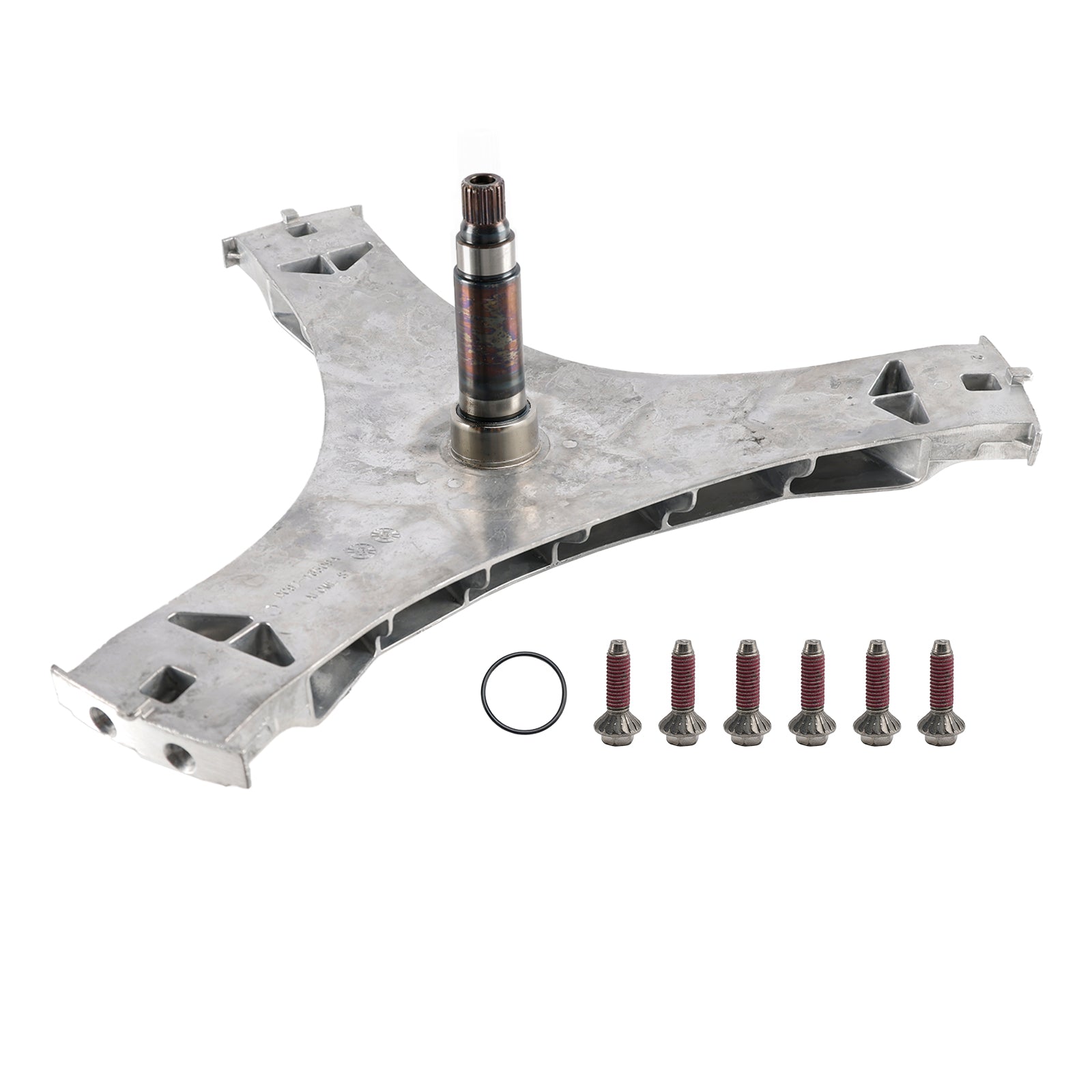

📦 In the box: DC97‑16509B flange shaft ×1 | DC60‑40137A bolts ×6 | DC69‑00804A gasket ×1
Precise Fit · Hassle‑Free
- Designed to match the original mounting geometry.
- Includes bolts and gasket—fewer last‑minute hardware runs.
Fixes Common Symptoms
- Loud noise during spin
- Excessive drum wobble or vibration
- Loose drive connection between drum and motor
Anti‑Corrosion Tips
- Light anti‑rust coating on the flange before assembly.
- Keep shaft and seal lip clean; apply a thin film of lubricant.
Compatibility & Cross‑Reference (Match by Part Number)
Tip: For home appliances, part numbers are the source of truth. Compare with your old part or the service manual.
| Part in This Kit | Replaces / Cross‑Refs | Role |
|---|---|---|

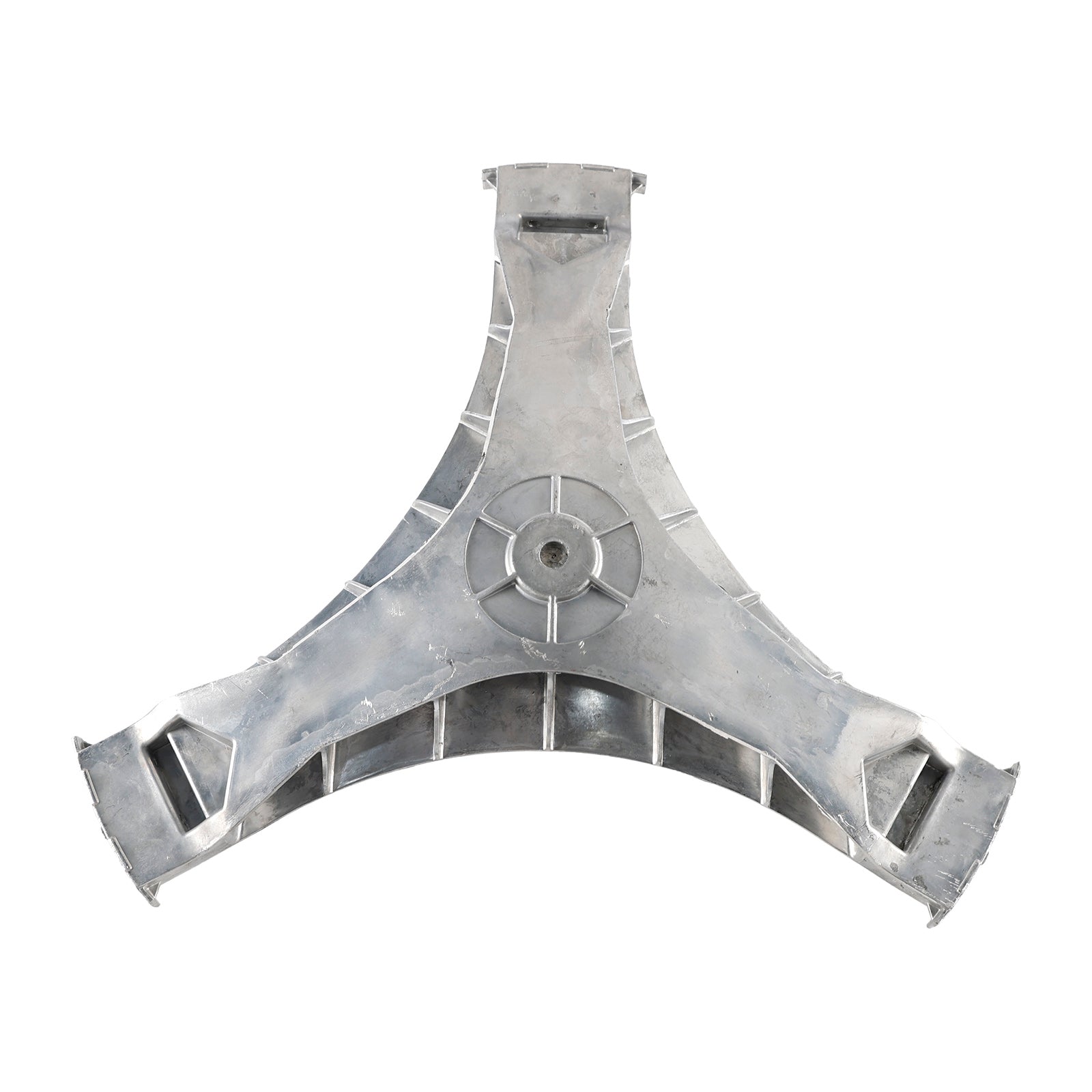

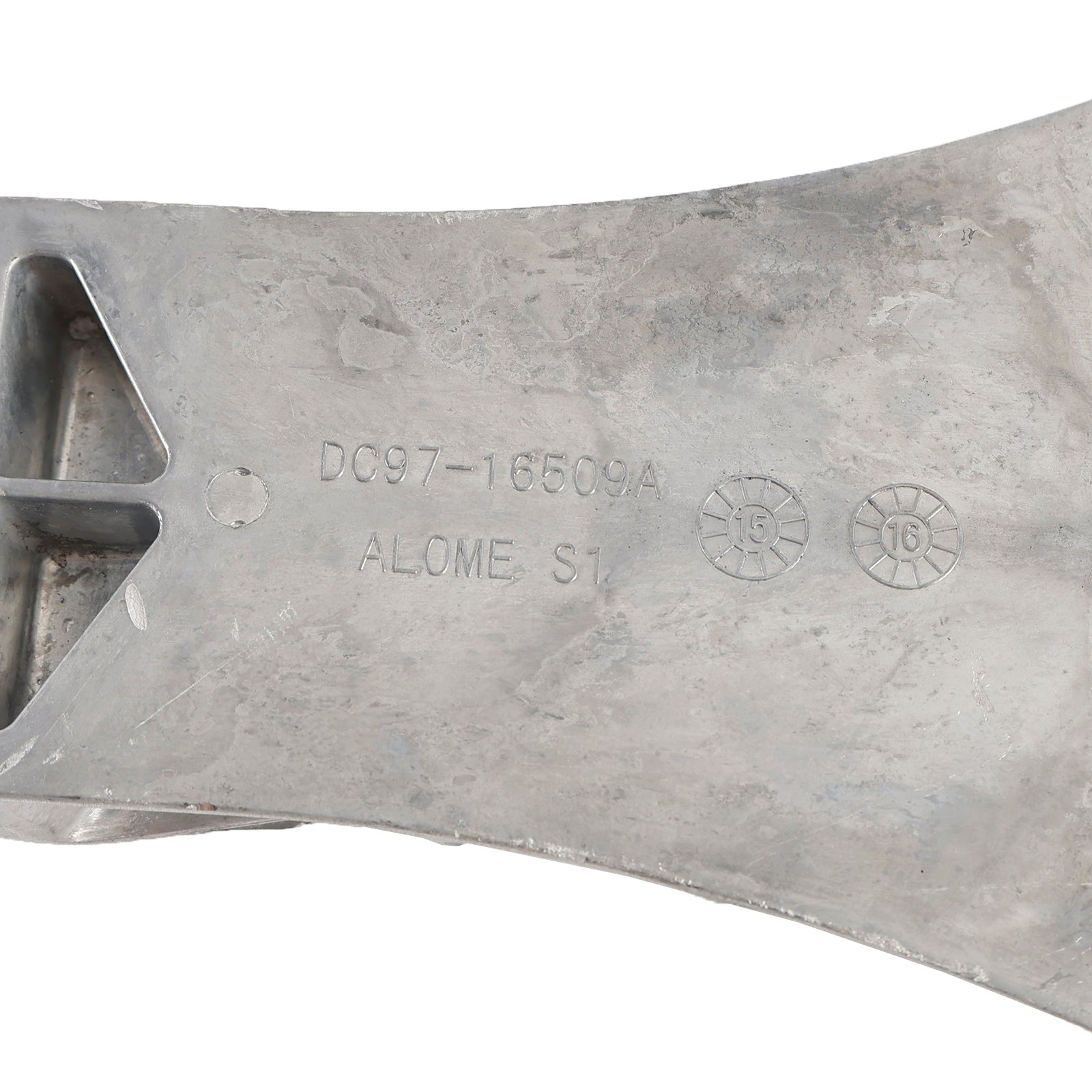

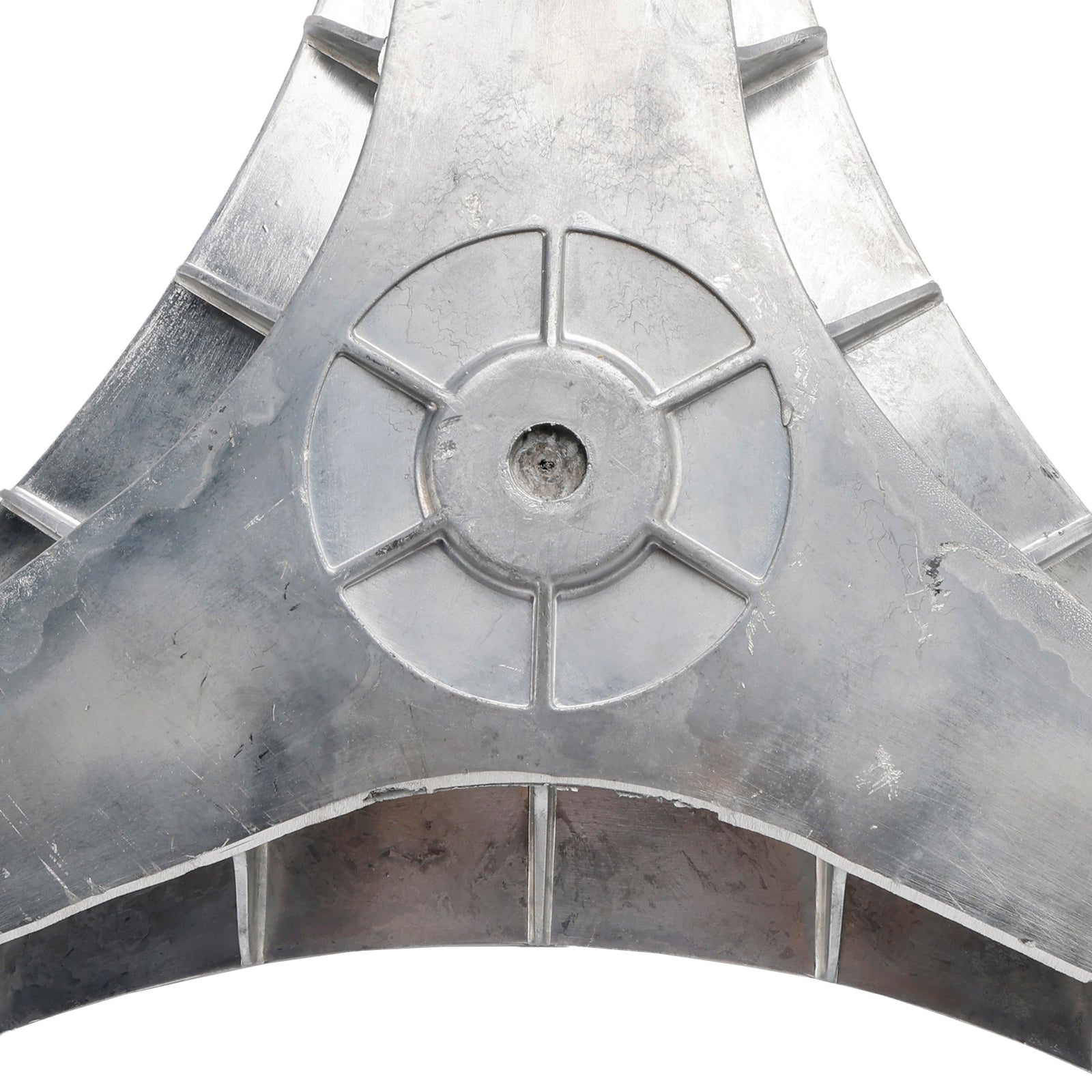

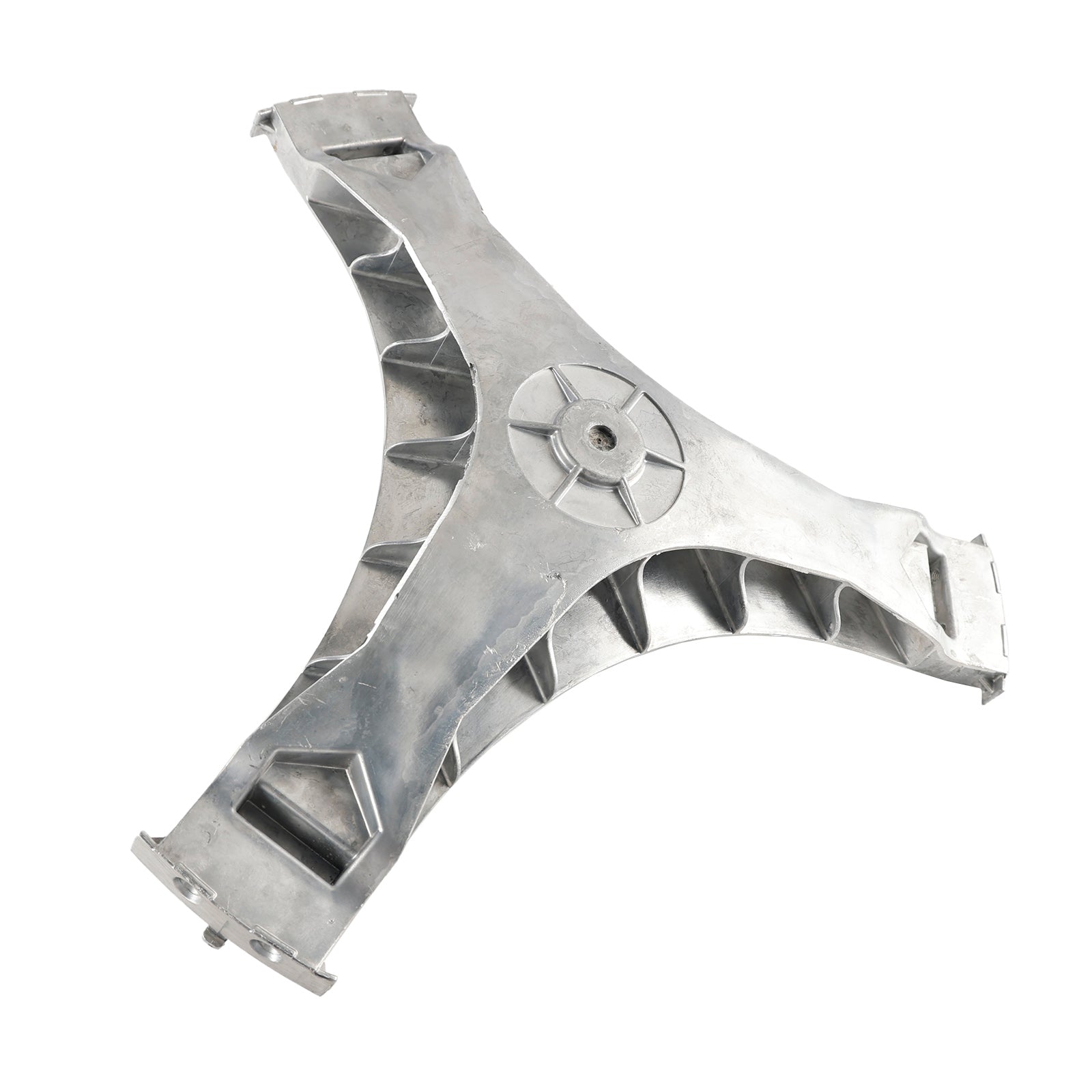

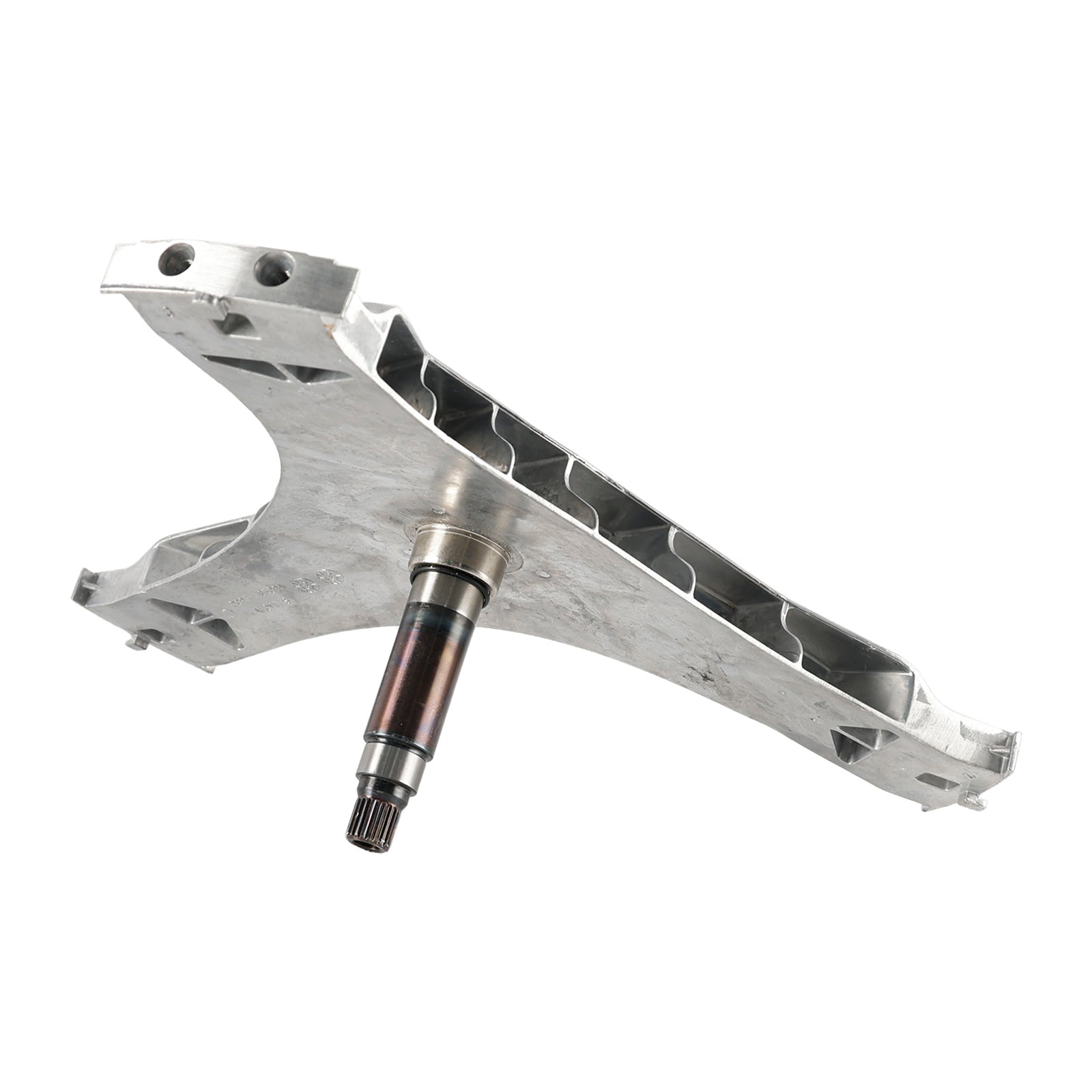

| DC97‑16509B (Flange Shaft Assembly) | DC97‑16509A, DC97‑16509B, AP5582195, PS4221666, 3282591 | Couples inner drum to drive; addresses wobble/noise |

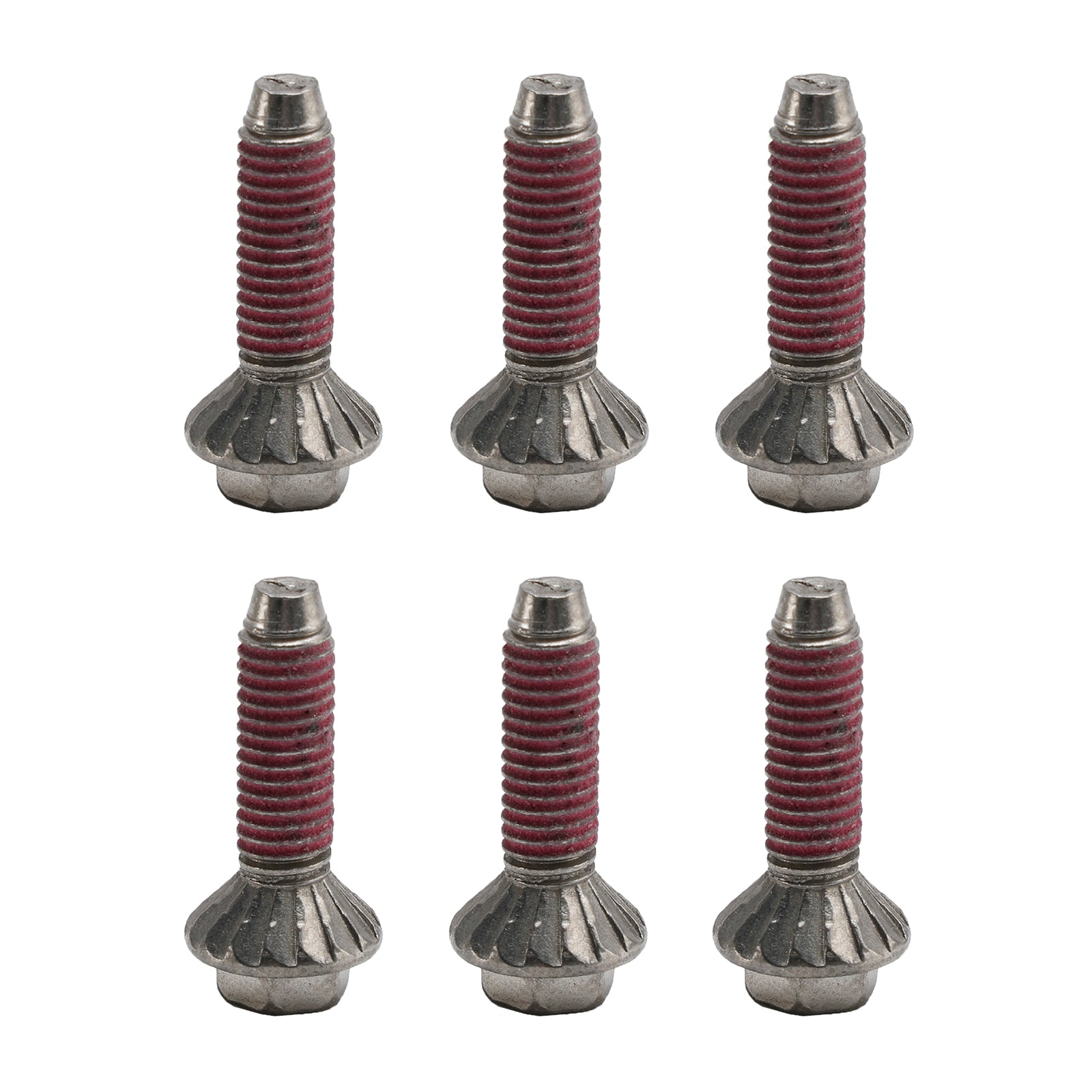

| DC60‑40137A (Spider Bolts ×6) | AP4203183, 2068605, PS4205366 | Secures flange/drum assembly |

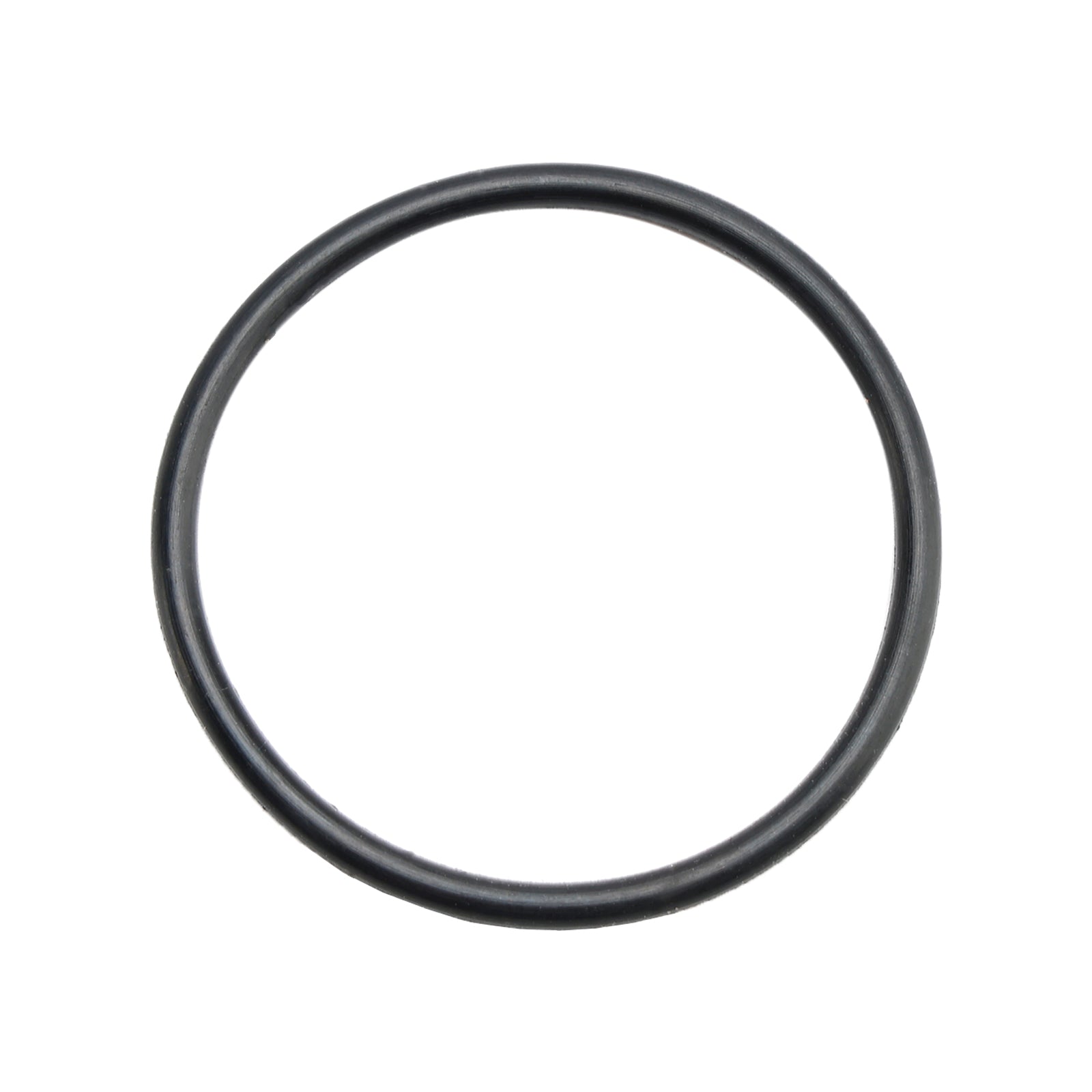

| DC69‑00804A (Tub Gasket) | — | Improves water seal & dust protection |
⚠️ Brand/model names are used for compatibility reference only and do not imply OEM affiliation.
When to Use
- Metallic knocking or howling noise during spin
- Visible inner‑drum looseness or uneven wear
- Corroded flange/stripped splines or aged seal with moisture traces

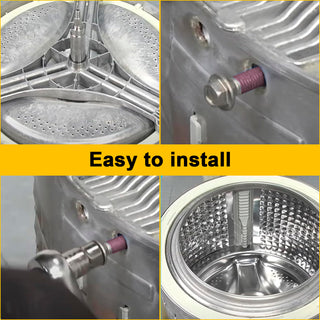

Install Tips (Professional Service Recommended)
- Disconnect power and water; remove the top and rear covers. Take off the belt and unplug the motor.
- Separate inner/outer tubs (follow your model’s service flow). Record bolt locations and torque values.
- Remove the old flange; clean all mating surfaces and the bore. Inspect the spider arm.
- Install DC97‑16509B; tighten DC60‑40137A bolts in a criss‑cross pattern in stages.
- Replace the DC69‑00804A gasket; re‑assemble belt, motor, and covers. Test for leaks and abnormal noise.
🧰 Suggested tools: Phillips/flat screwdrivers, socket & ratchet, pliers, flashlight; penetrating oil & torque wrench as needed.
FAQ
- How do I confirm compatibility?
- Match the part number on your old part or in your service manual. If unsure, contact us with your washer model and a photo of the old part.
- Can I replace only the flange?
- If the spider arm, bearings, or seal show wear/corrosion, inspect and replace as needed to avoid a second teardown soon after.
- Why apply anti‑rust coating?
- Moisture and detergents can accelerate corrosion. A light protective film can extend service life.
Support
30‑day hassle‑free support (unused/undamaged). Before installing, compare appearance and part numbers; keep photos of the process for warranty verification.
Need help verifying fitment? Send us your washer model and a clear photo of the old part, and we’ll confirm before you buy.
