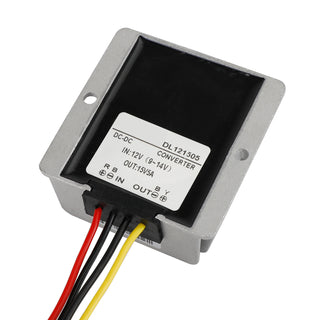

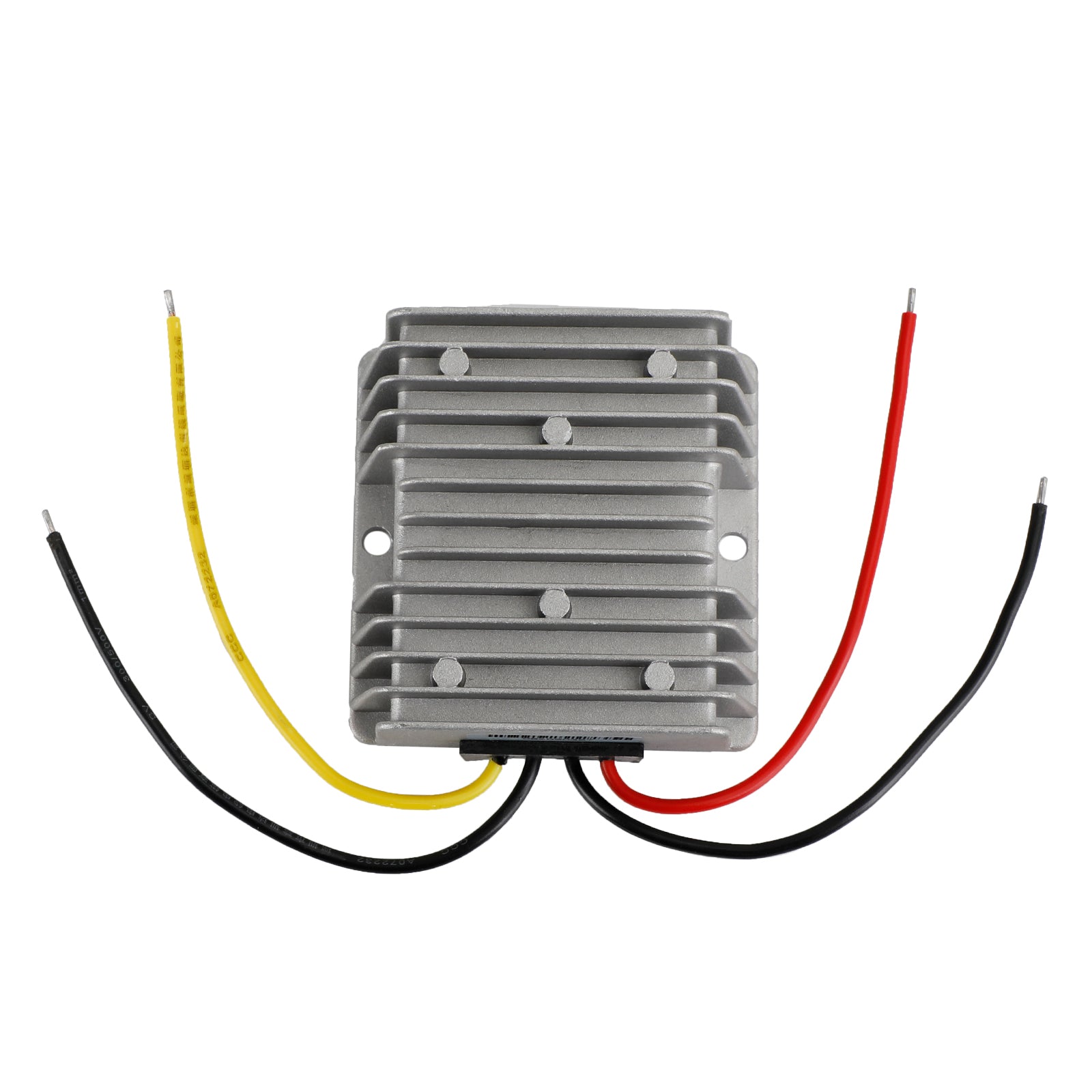

DC12V To 15V 5A 75W Step Up Power Supply Converter Regulator Module

Feature:
1:High quality thermal silica potting, waterproof, dust-proof, shockproof effect
2:Aluminum Outer Case material, long term stable and reliable.
3:With overvoltage,overcurrent overheating protection
4:Waterproof, Shockproof Design.

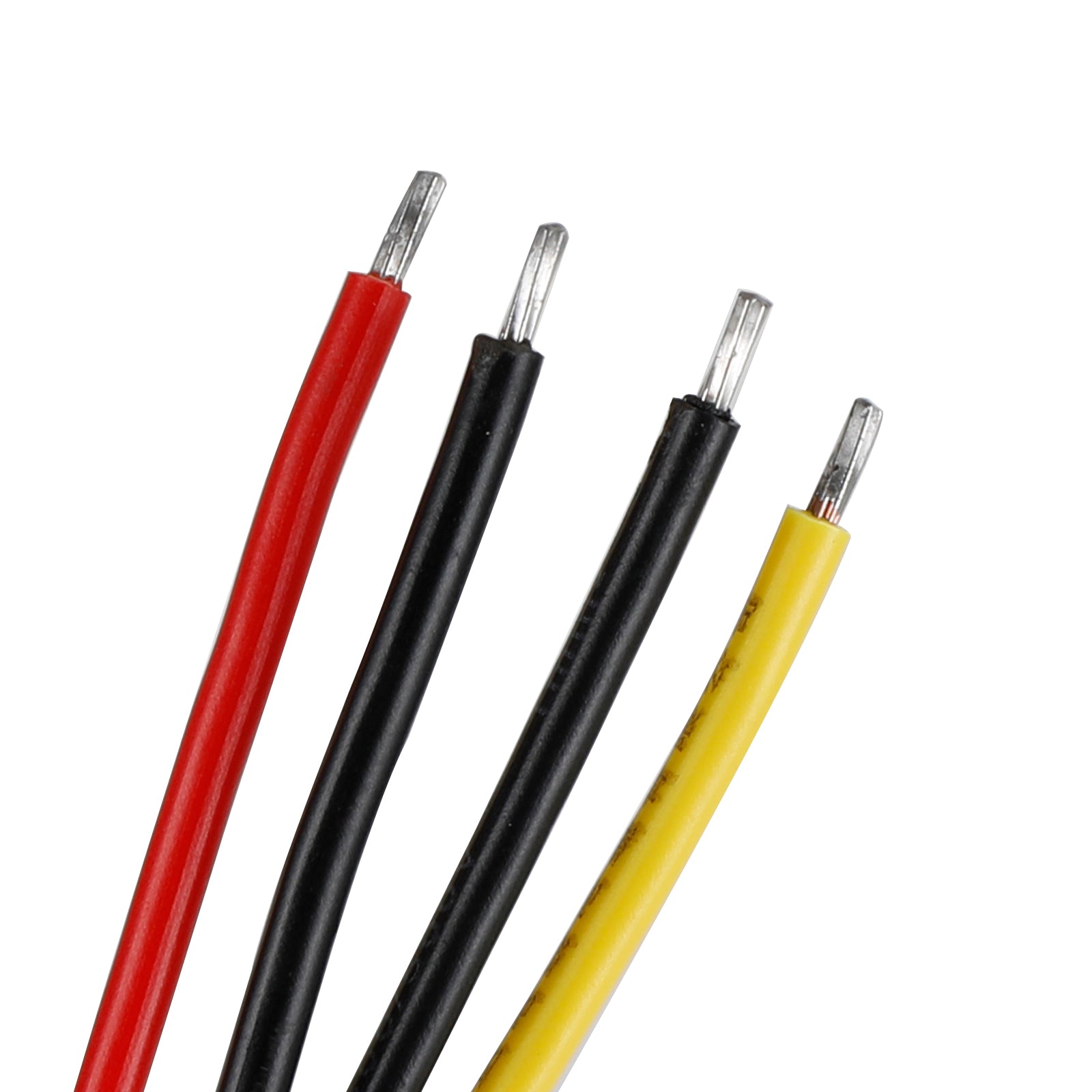

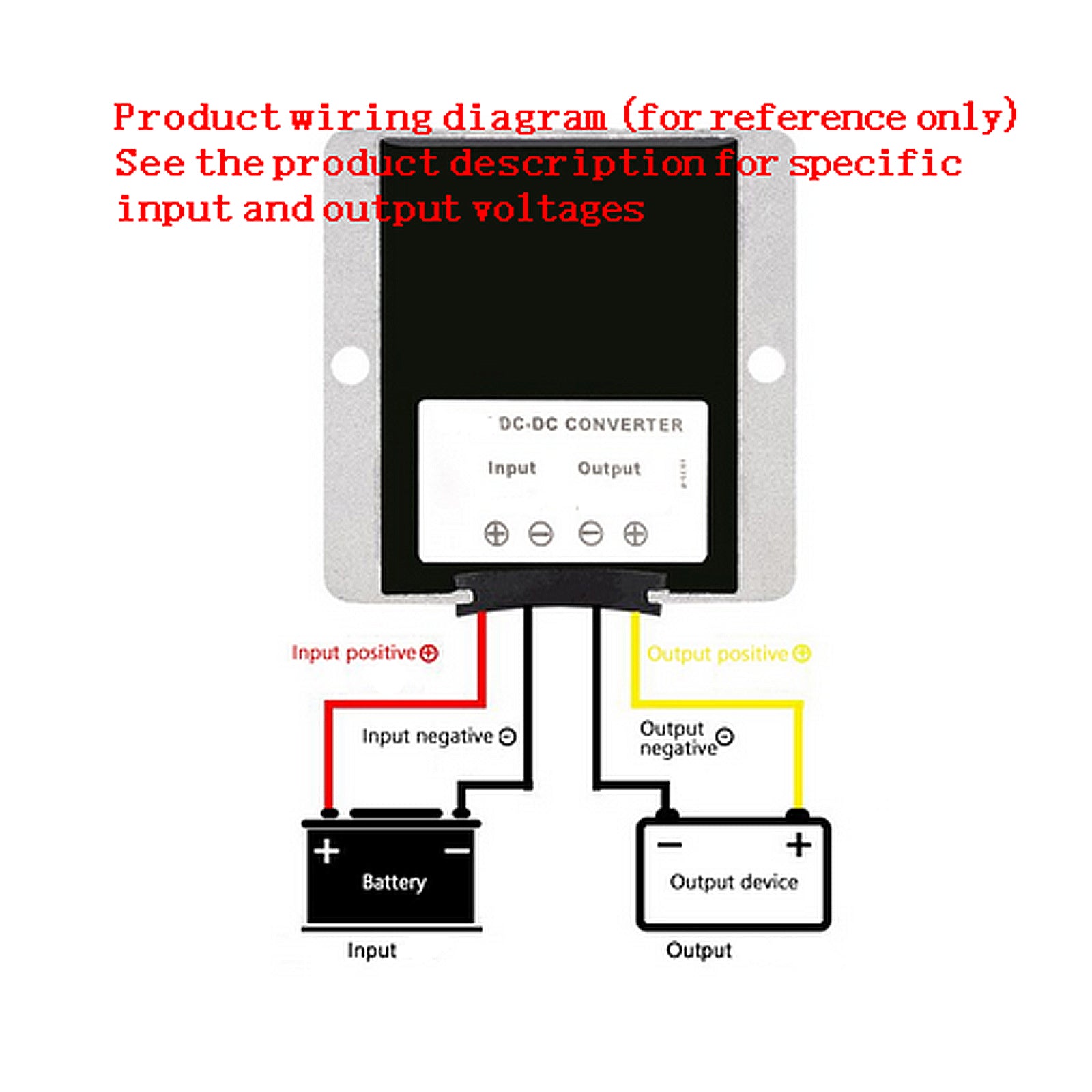

5:Easy to install,Input wire color : (+)Red, (-)Black.Output wire color : (+)Yellow, (-)Black.

Specifics:
Condition: 100% Brand New
Shell Material: Die-cast aluminum alloy
Input voltage: 12V DC
Input voltage range: 9 ~ 14V DC
Output voltage: 15V DC
Output current: 5A (max), 75W
Operating temperature: -40°C ~ +80°C
Waterproof Rating: Ip68
Wire lengths: 130mm/5.12inches

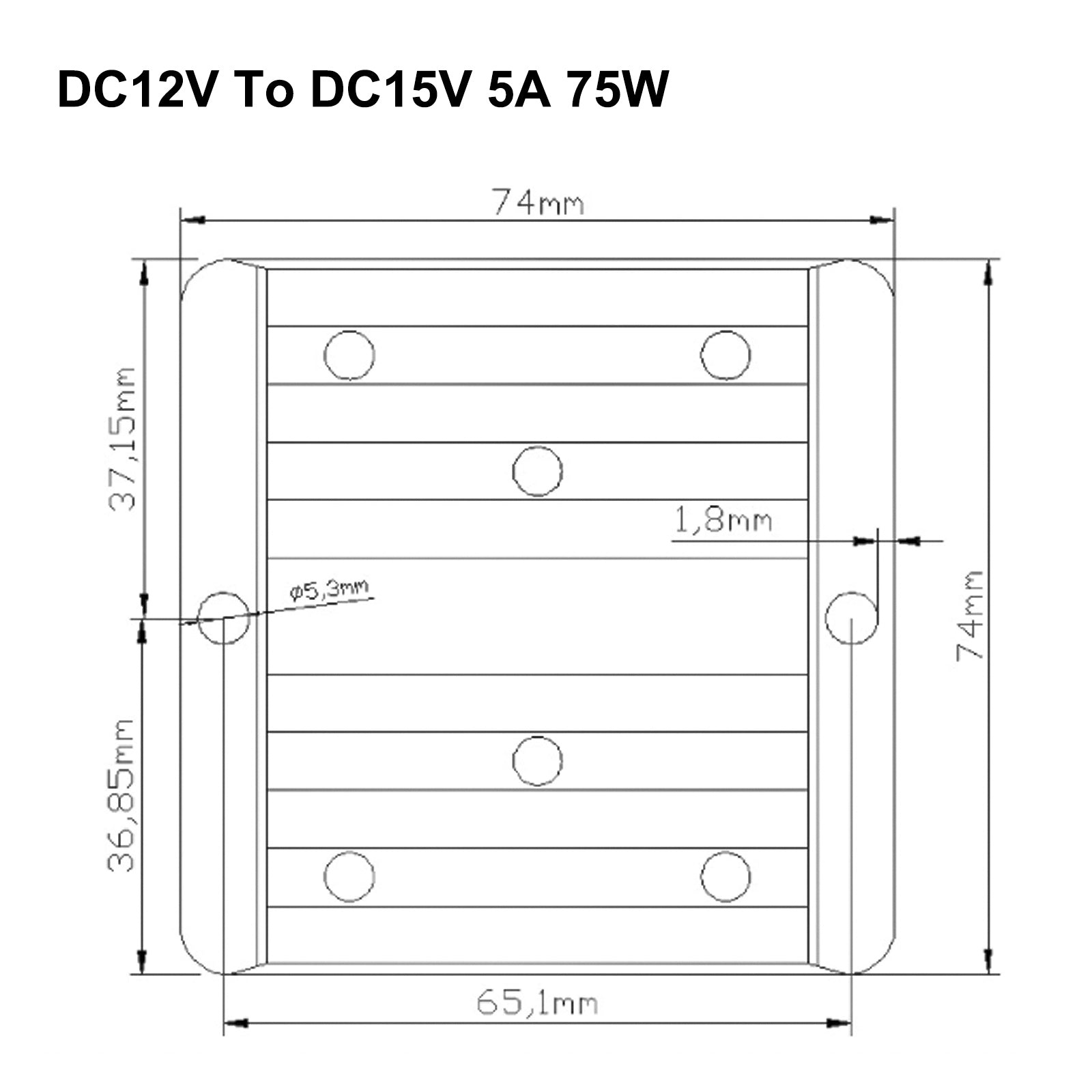

Size: 74 x 74 x 32 mm/2.91inches*2.91inches*1.26inches
Weight:approx.270g

Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment

Package Included:
1x DC/DC Converter Regulator
