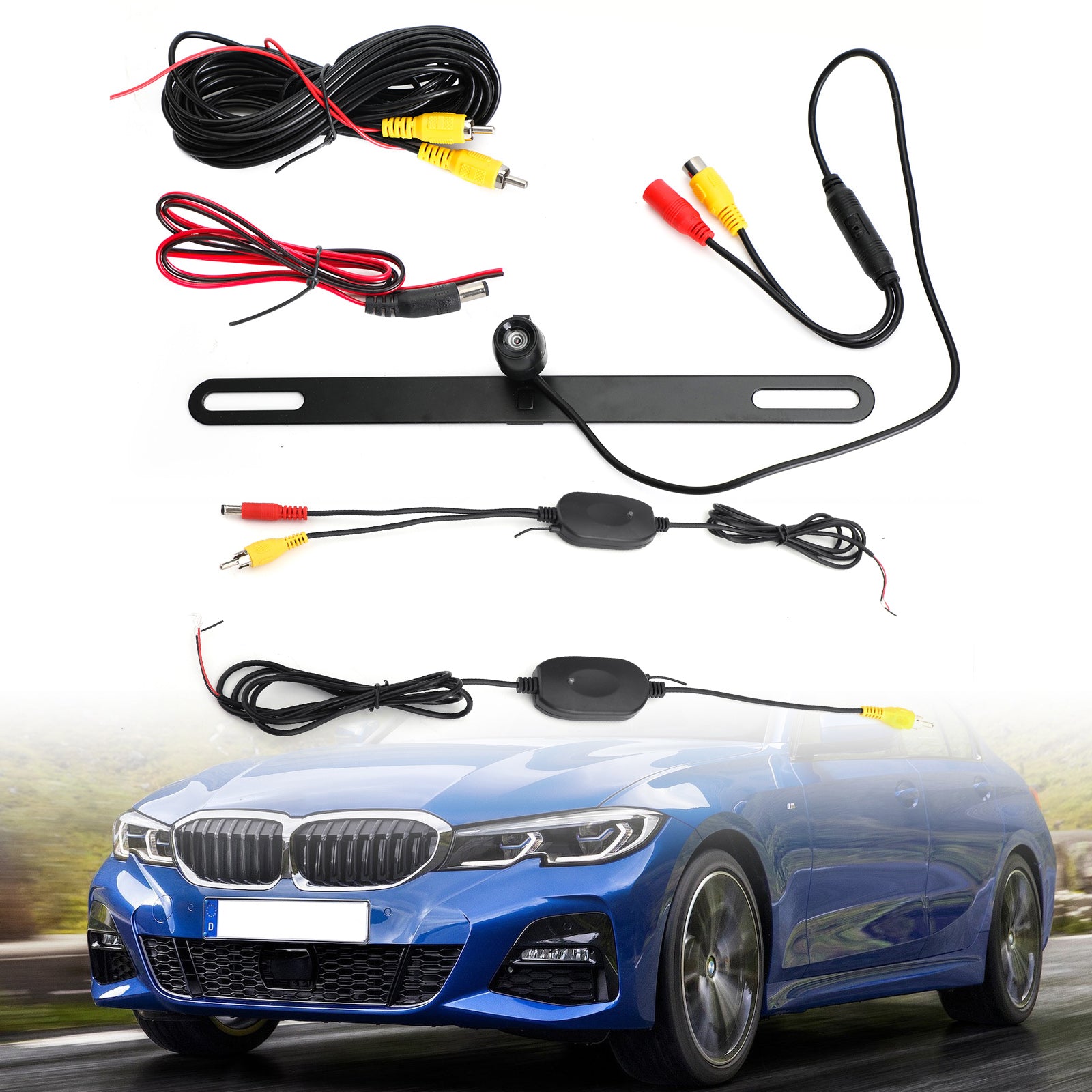

120° HD License Plate Car Reverse Backup Night Vision Camera Rear View Parking Cam Waterproof + 2.4GHz Wireless Video Transmitter and Receiver kit

Note:
The Car Rear View Camera and Wireless Transmitter/Receiver kit Not all-in-one,They are two separate parts, you only need to connect the two parts to achieve the wireless effect.

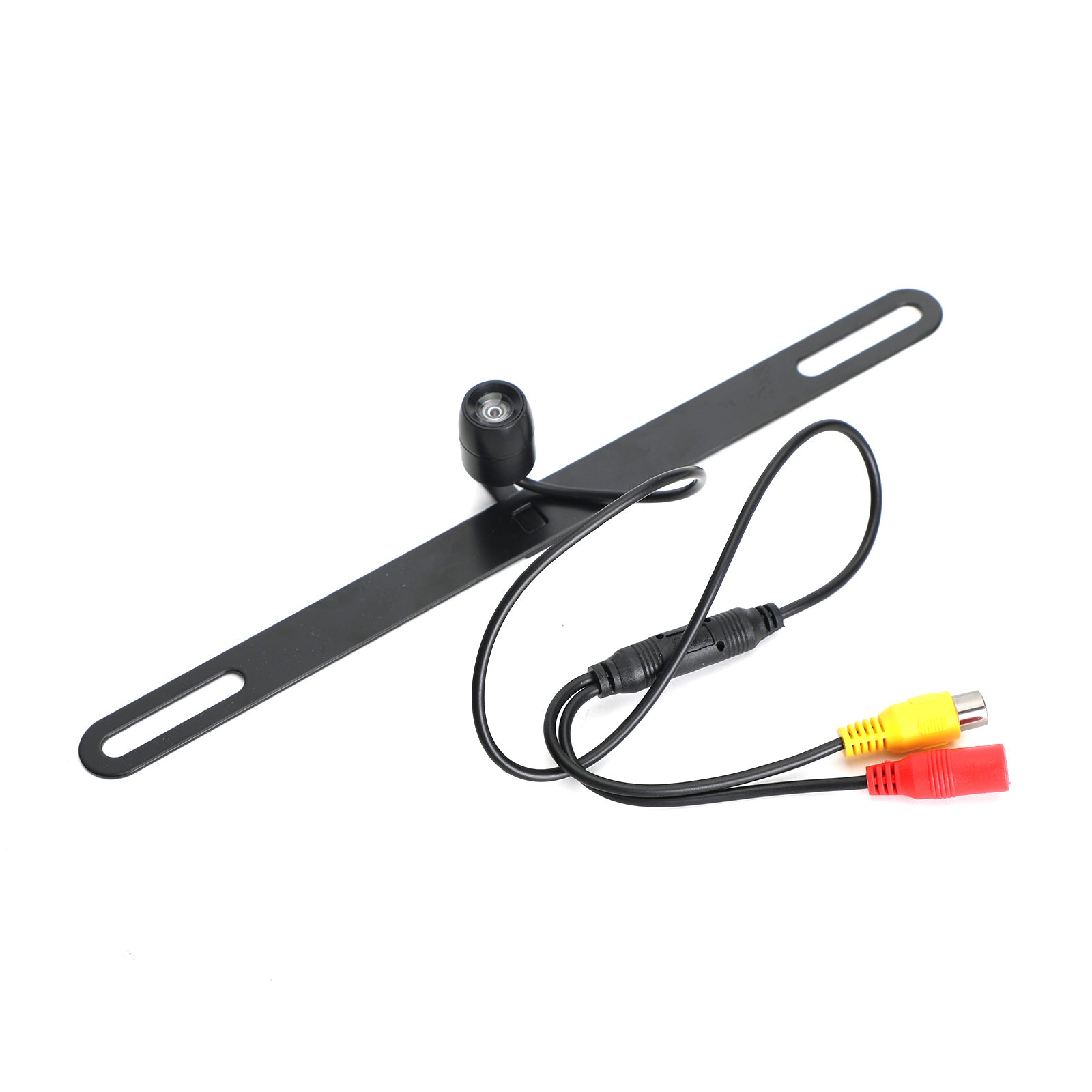

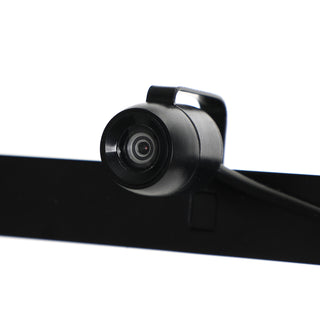

Car Rear View HD camera Specifications:
Feature:
1.Replacement license light stand or original accessories for universal installation
2.Smart size for hidden installation.
3. 1/3" CCD
4.Lens: 120 degrees
5. Waterproof and dustproof (IP68) CCD camera
6.With car reversing reference line (optional) CCD camera.
7.License light available on some models.
8.Night vision available and HD CCD camera.
9.Day/night sensor for automatic adjustment, minimum illumination automatic fill light.

Specification:
Image sensor:1/3 color digital sensor
Image format: NTSC 50HZ / PAL 50HZ
Effective pixels: 728 * 520
Waterproof index: IP67
Viewing angle: 120 degrees
Minimum illumination: 0.1Lux
Storage temperature: -40ºC-85ºCRH95%MAX
Operating temperature: -30ºC-80ºCRH95%MAX
Working humidity: 0%-90%
Resolution: 520 TV lines
Power: DC12V + 10%
Current consumption: does not exceed 150mA
S/N radio: over 48dB
Sync system: internal
Scanning System:2:1 Interlaced Scanning
Horizontal synchronization frequency: 15625KHZ
AGC:AUTO
BLC: AUTO
Video output: 1.0Vp-p, 75Ω

Installation Steps:
1.Take out the license;
2.Pass the rear view lens line through the original position of the license plate light;
3.Secure the camera with the buckles on both sides of the camera;
4.Connect the lens built-in license light power cord to the original license light power cord;
5.Connect the reverse lens switching line;
6.Connect the signal cable of the camera to the signal extension cable;
7.Connect the reverse light wire of the car to the video wire of the camera;
8.Check if all lines are connected correctly;
9.Debug the working effect of camera and license light;
10.Cover the trunk of the car. finished product.

2.4GHz Wireless Video Transmitter and Receiver Specifications:
1. Frequency: 2370MHz
2. Power output: 100Mw
3. Voltage: dc=12v
4. Video in/out: PAL/NTSC composite video signal
5. Signal range: 100m (in jam-free open areas)
6. Working temp: -20 degree- +80 degree
7. Receiver Sensitivity: -85dBm
8. Working current: dc=12v 200mA
9. GPS power out: dc=5v 1.5a
10. AV out interface: RCA jack

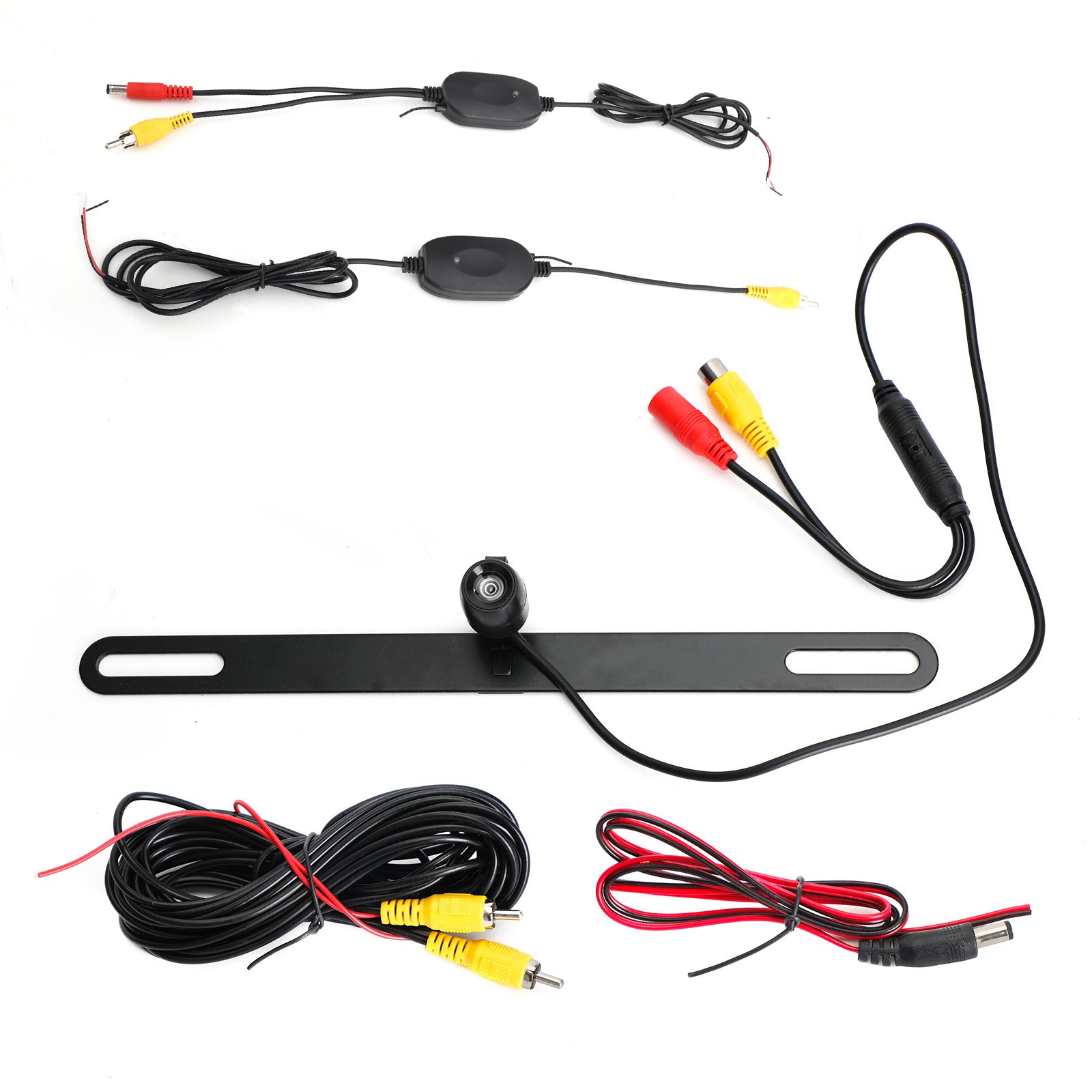

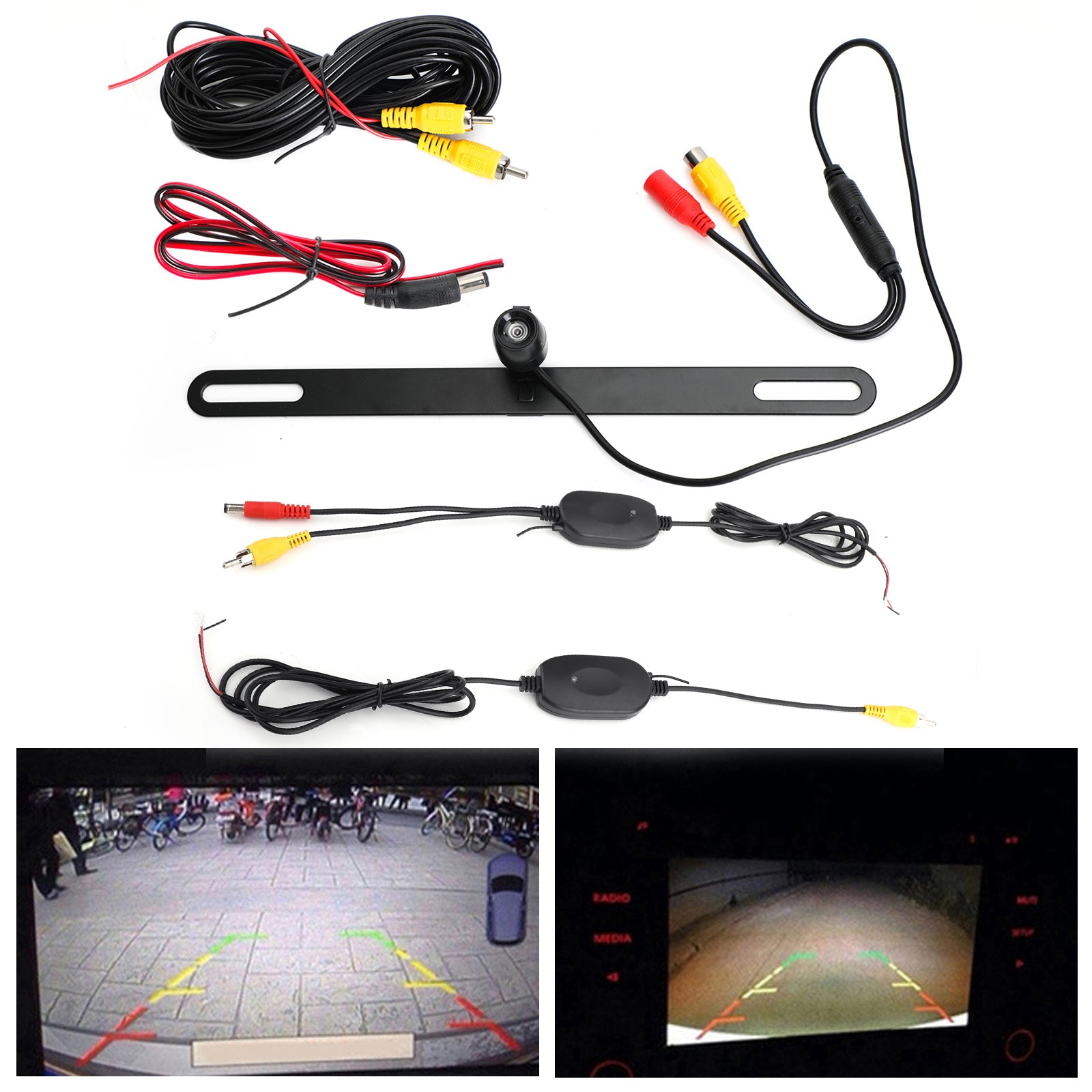

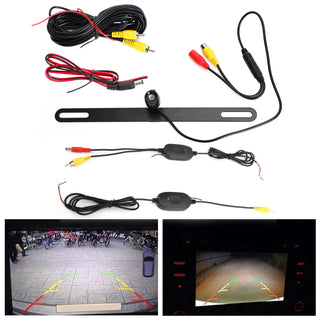

Package Included

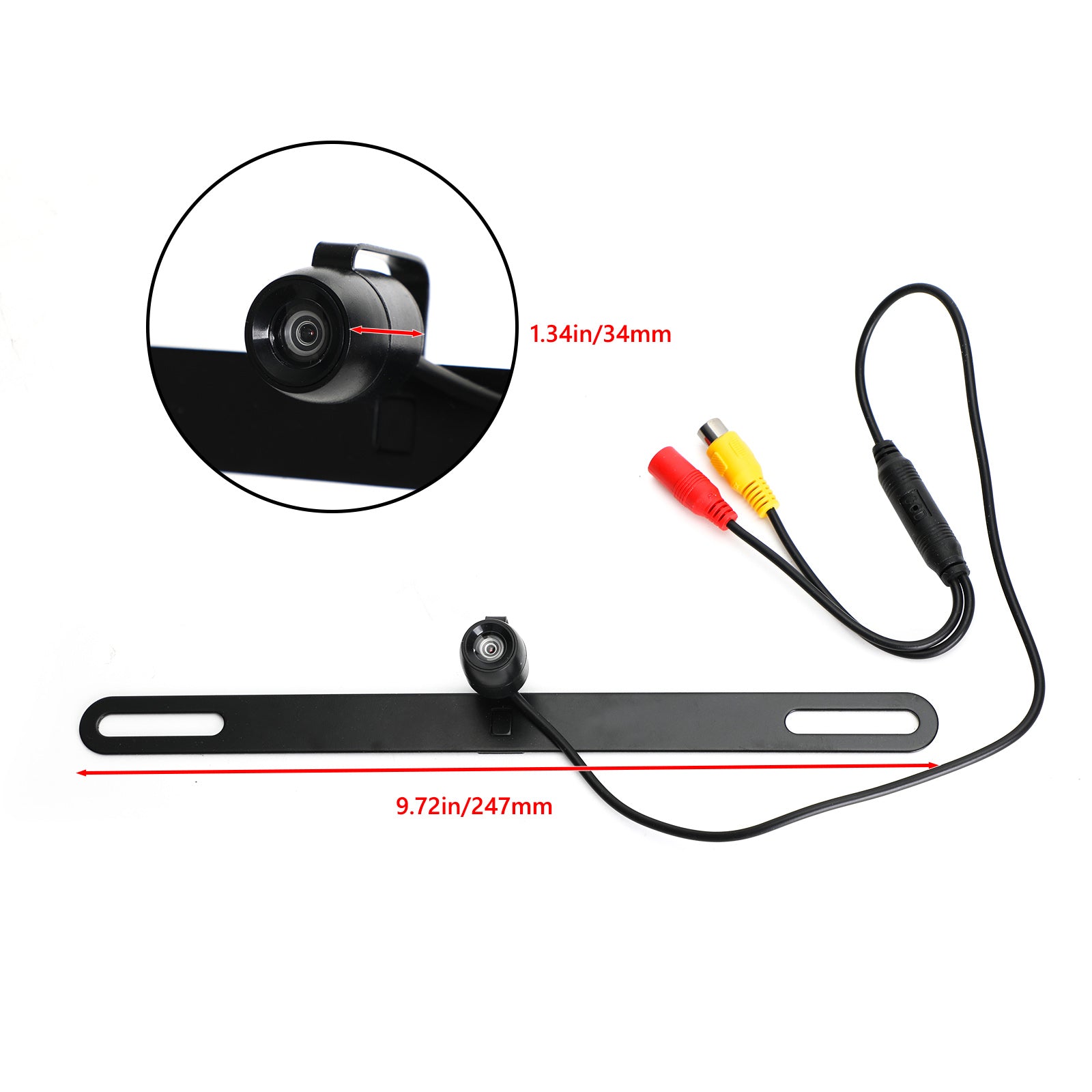

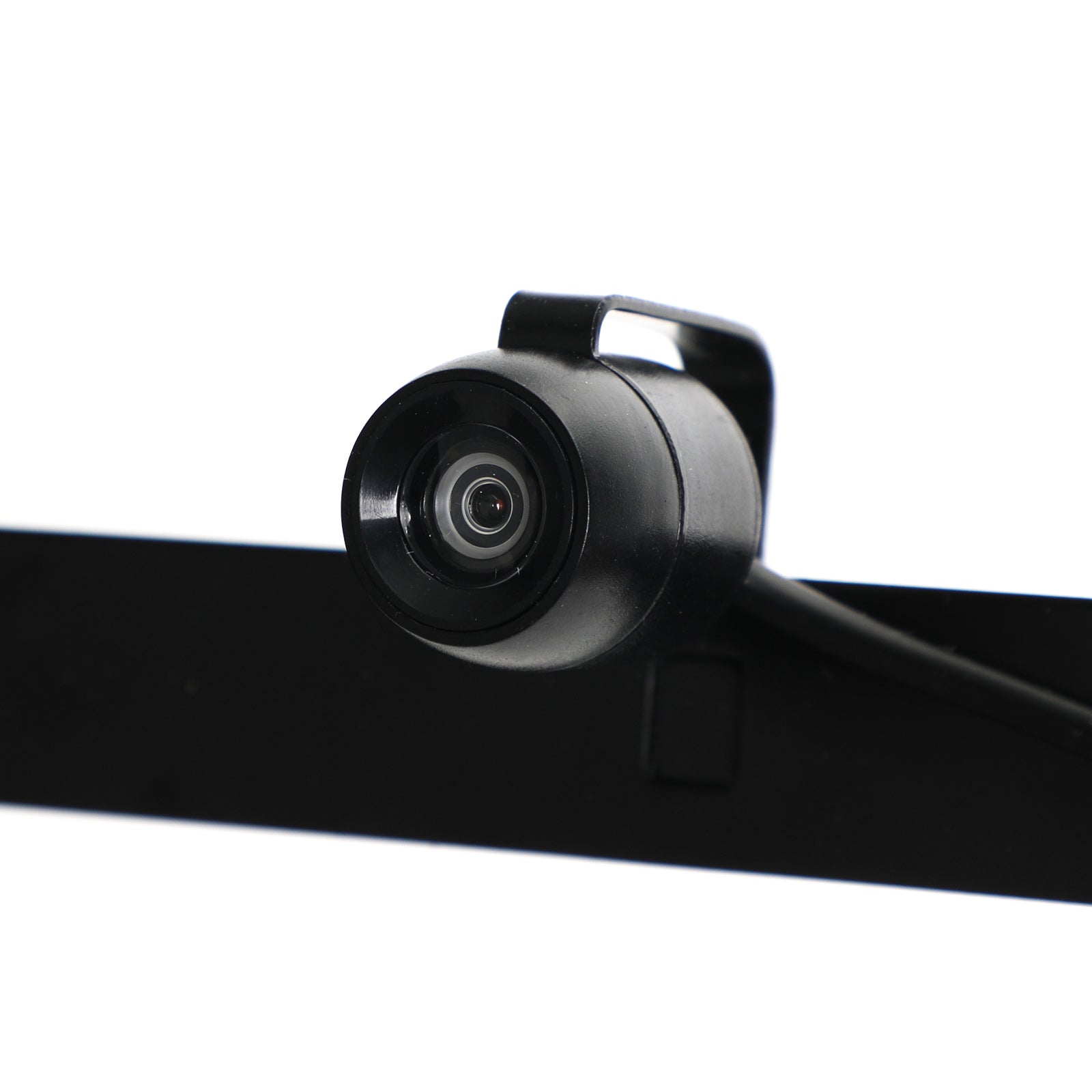

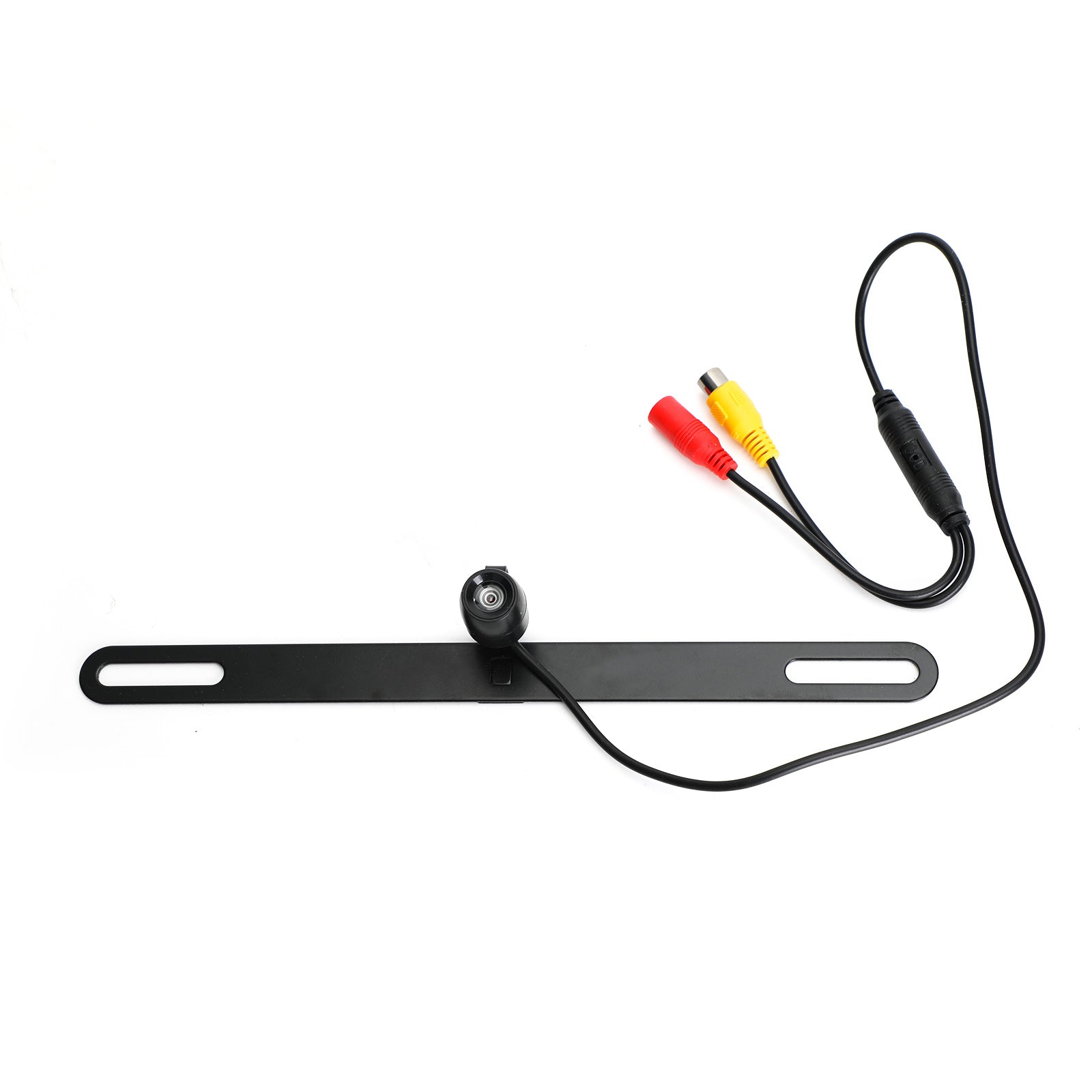

1 x Parking Rearview Camera

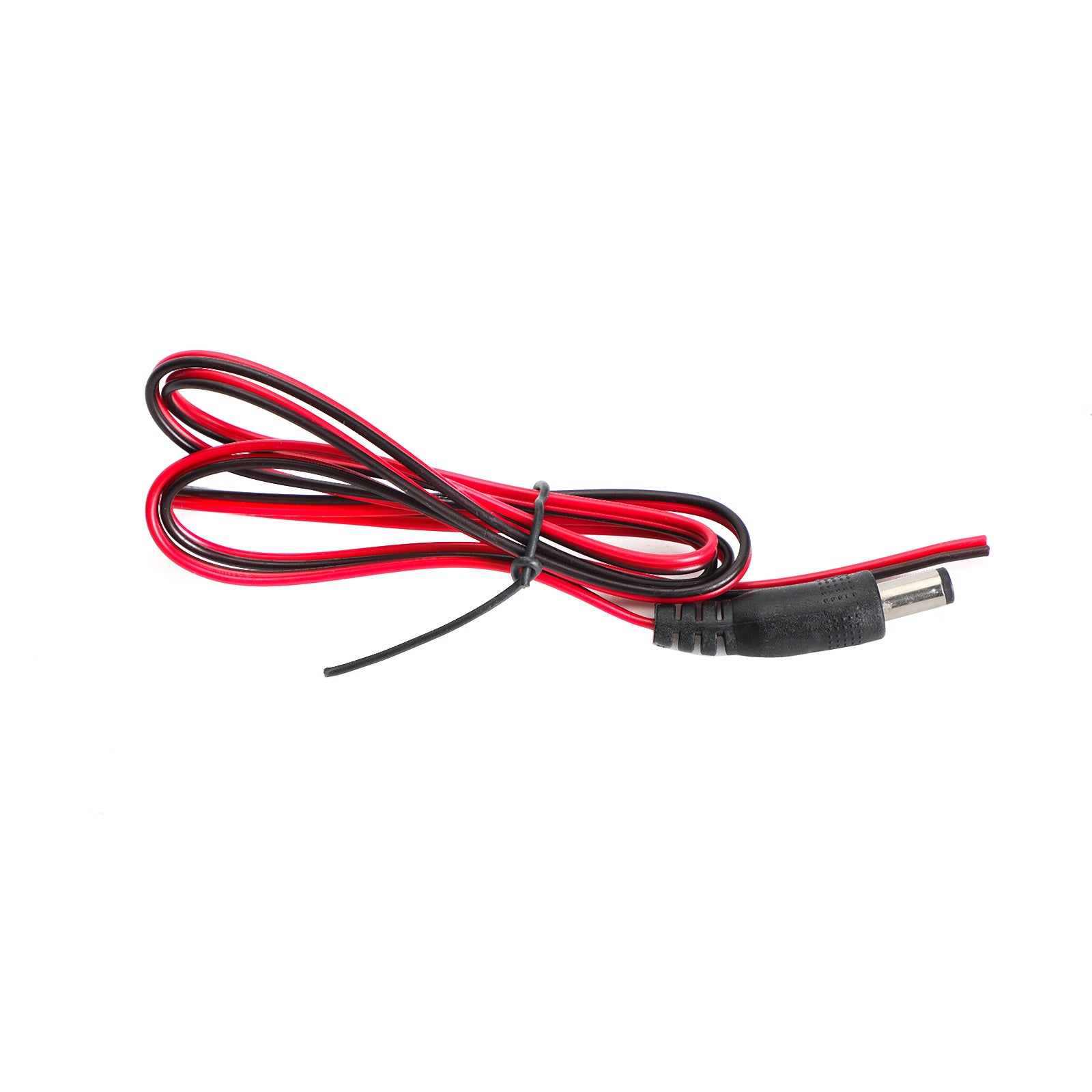

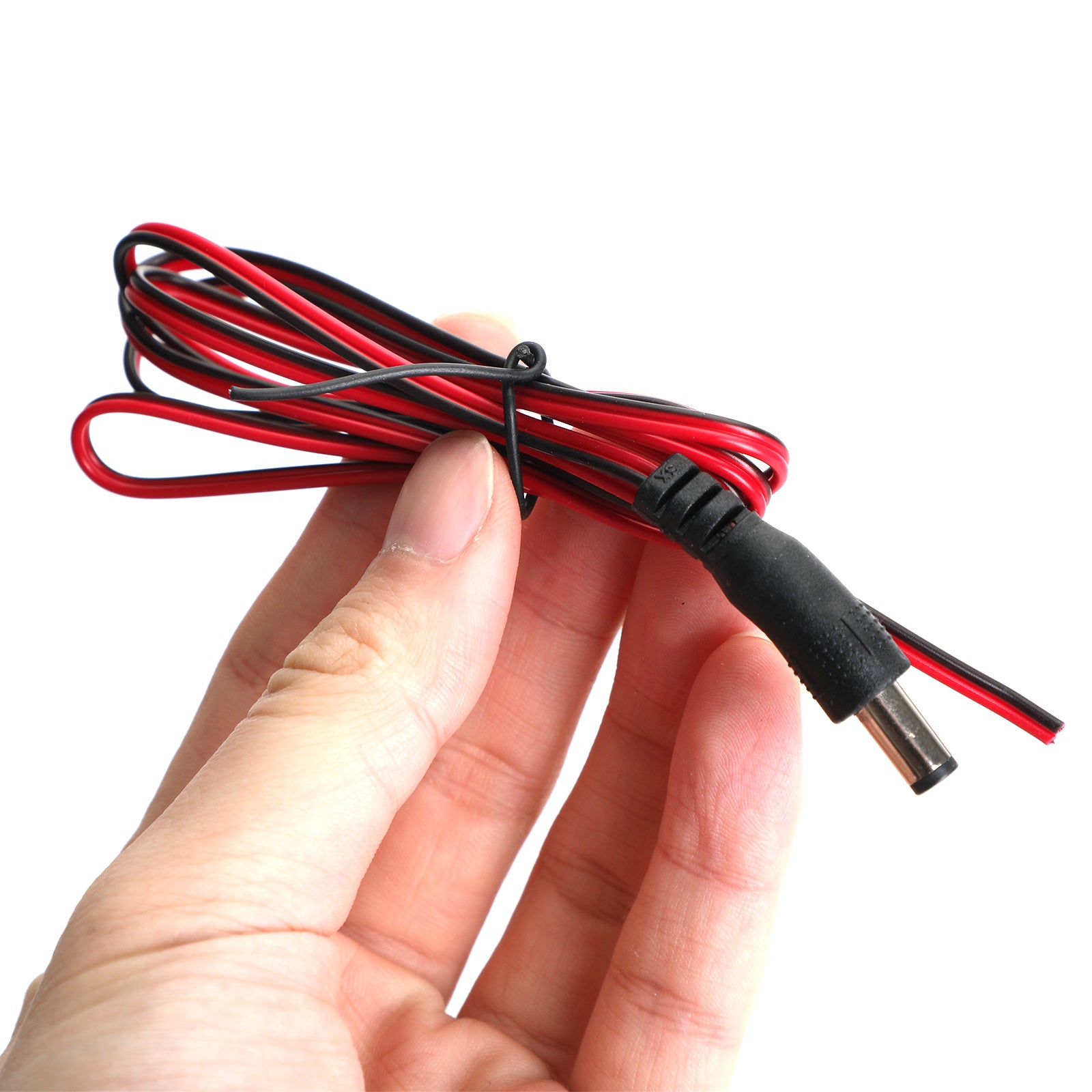

1 x Power Cable

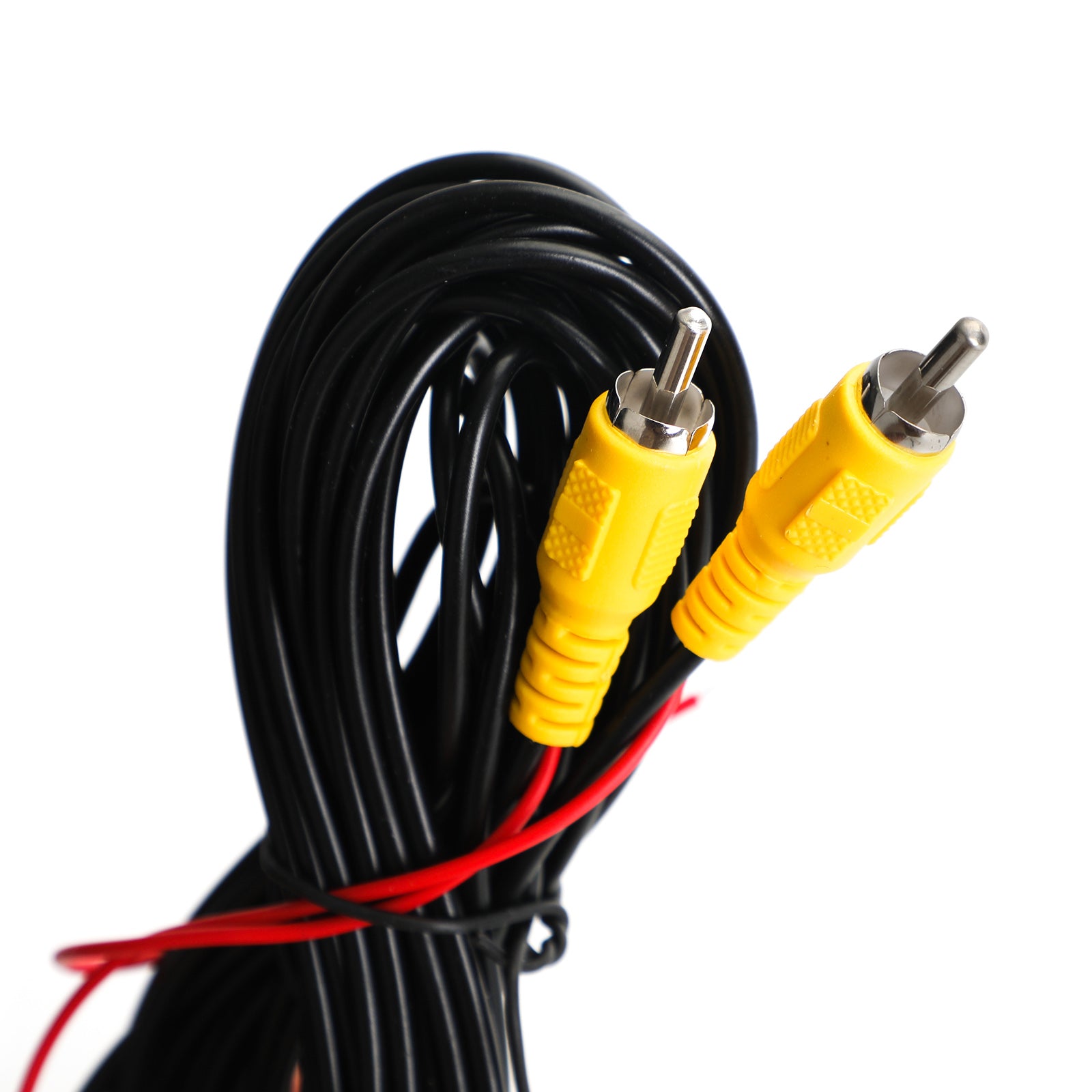

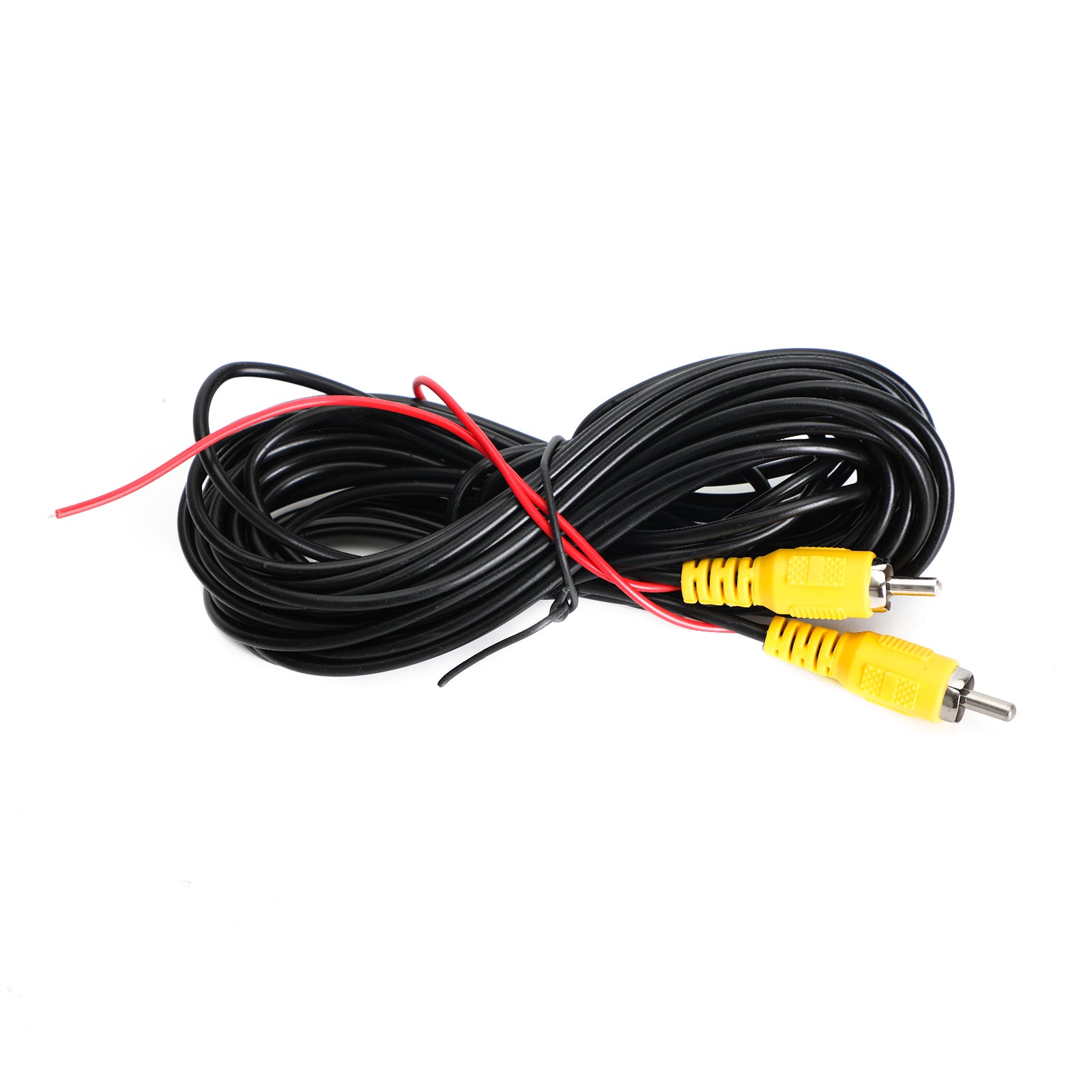

1 x RCA Video Cable
1 x wireless receiver
1 x wireless transmitter
1 x User Manual

Shipping Information:
Free Quick Shipping to USA.
Estimated Time of Arrival: within 3-8 working days.
