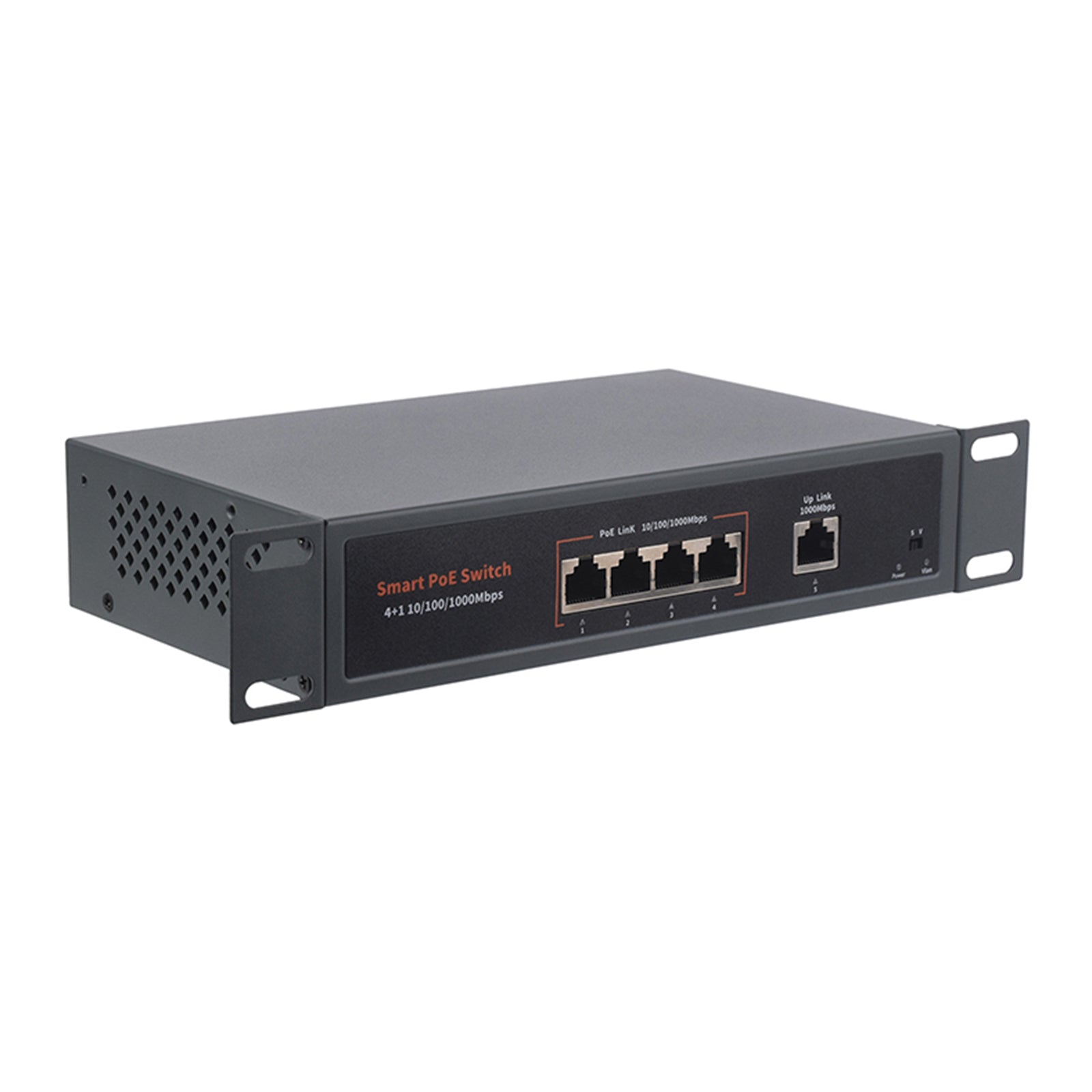

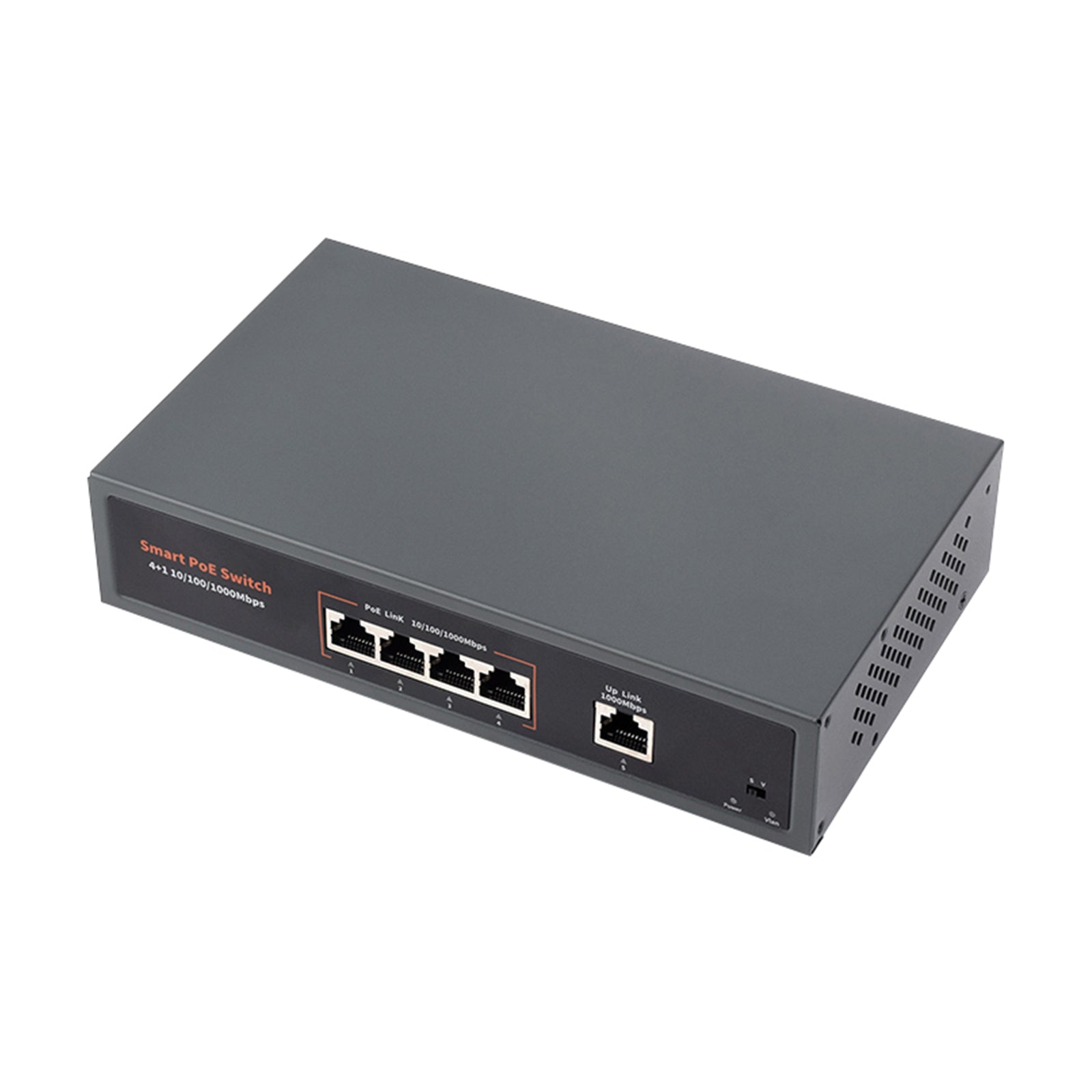

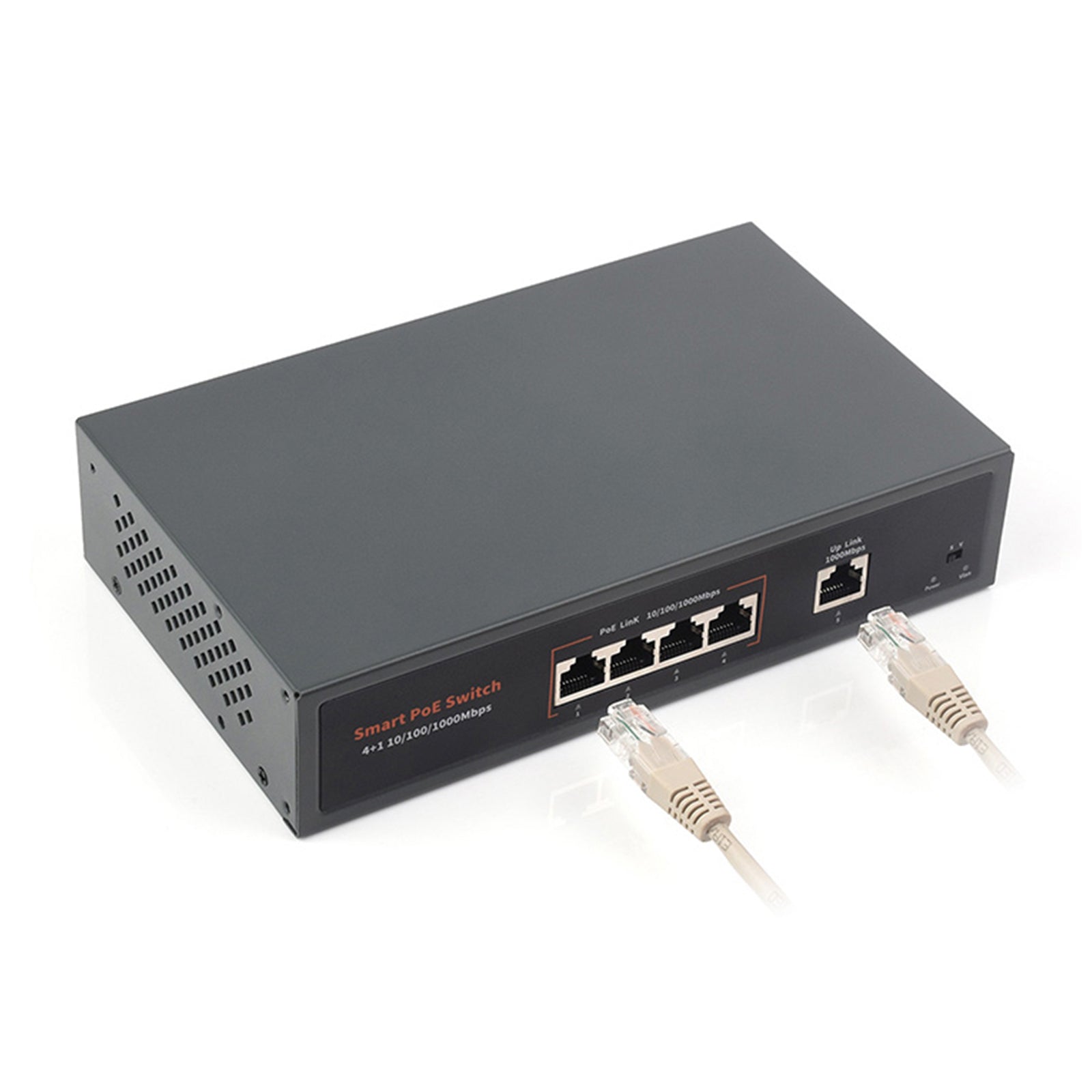

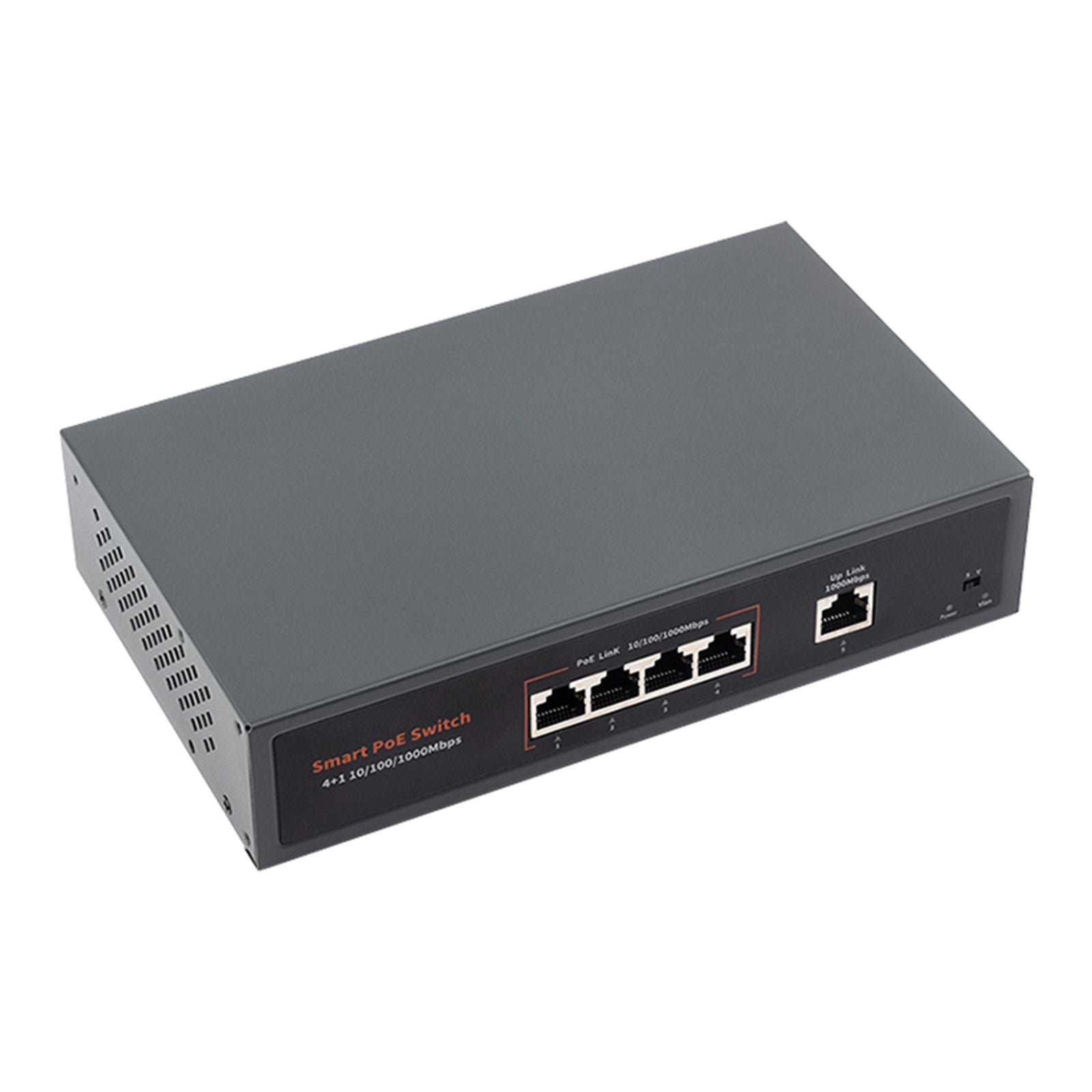

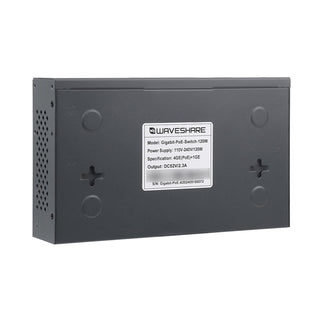

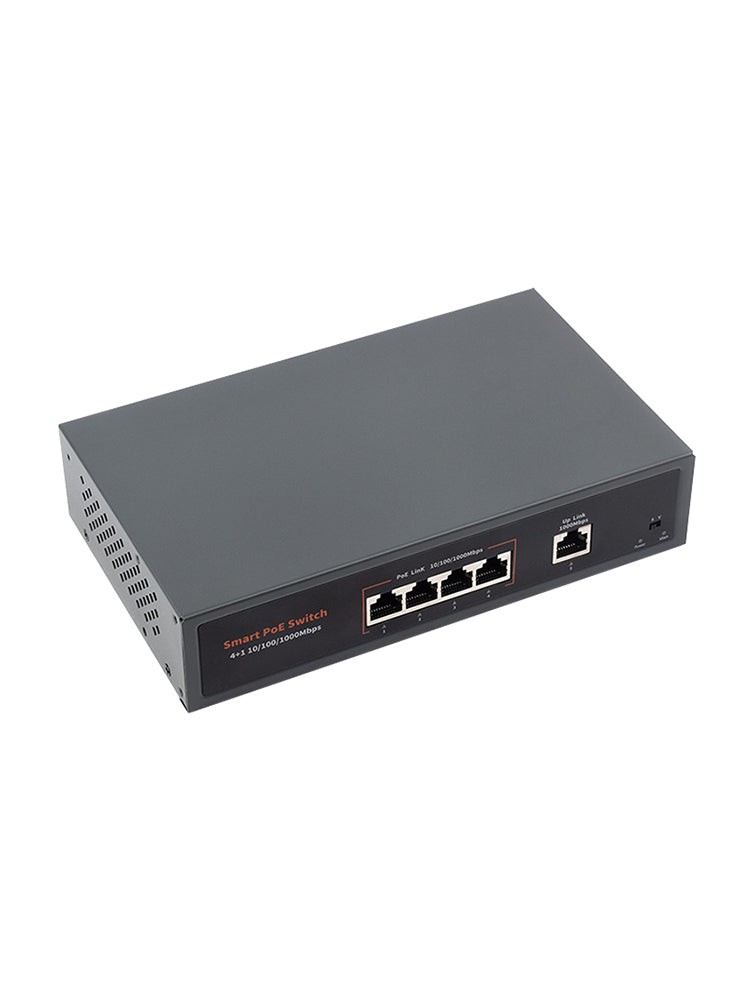

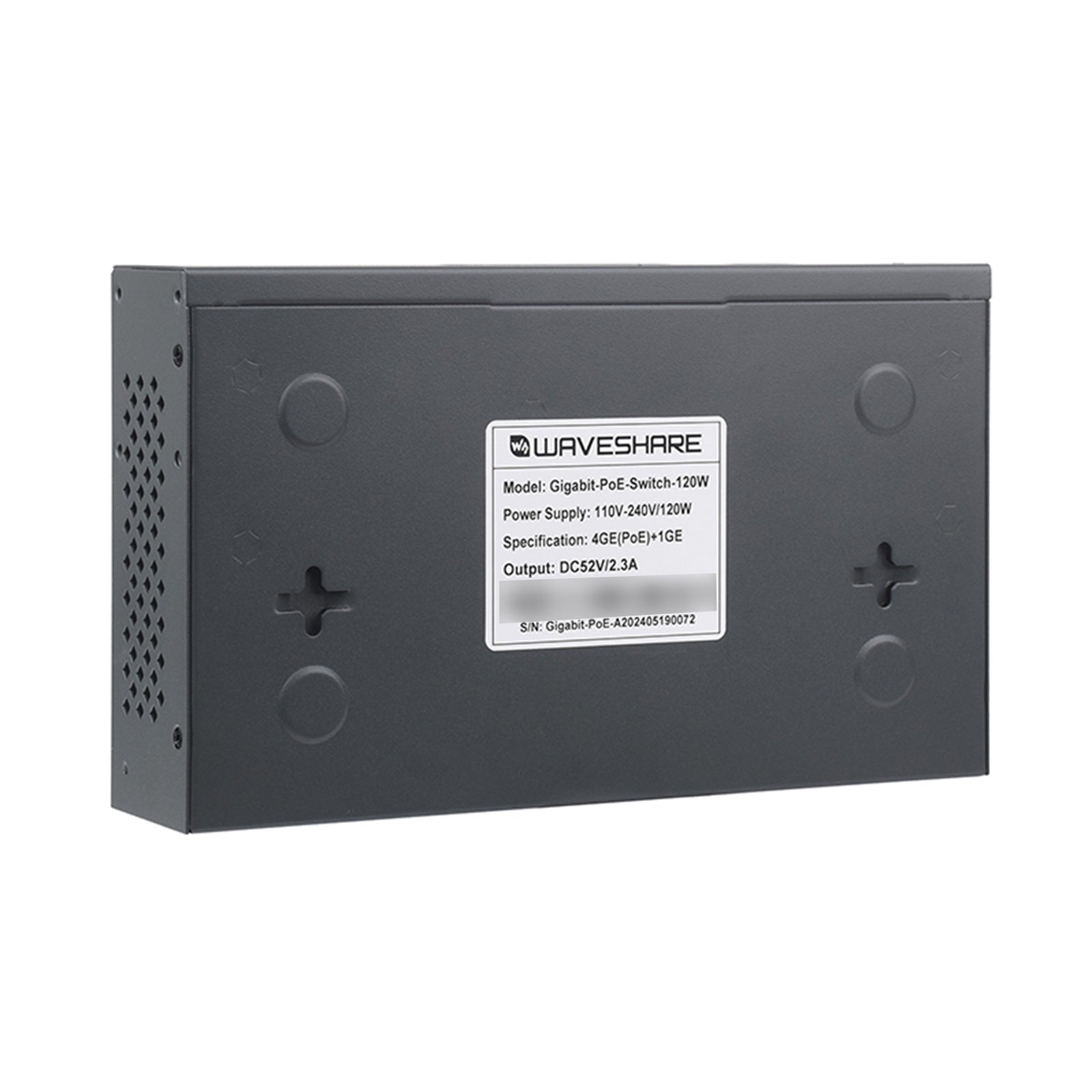

120W Gigabit Ethernet Poe Switch 10/100/1000M Port Adaptive Plug and Play 4 Network Ports

Description:
Designed and independently developed to meet PoE power supply needs, it adopts a new generation of high-speed Ethernet switching chips and a high backplane bandwidth (also known as switching bandwidth) design. It has extremely fast data processing capabilities and improves data transmission performance. It is equipped with four PoE-powered RJ45 downlink ports and one RJ45 uplink port. The power supply power of a single port can reach 30W peak, and the peak power of the whole machine is 120W. It can automatically detect and identify powered devices that comply with the IEEE 802.3af/at standard, and give priority to power supply through the network cable.

Features:
4 10/100/1000Mbps RJ45 PoE ports (support PoE+ power supply)
1 10/100/1000Mbps RJ45 uplink port
The PoE power supply power of the whole machine reaches 120W peak, and the PoE power supply power of a single port is 30W peak
The PoE power supply port supports a priority mechanism, automatically detects and identifies and gives priority to power supply through the network cable without damaging non-PoE devices

Specifications:
Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ports: 4 10/100/1000Mbps RJ45 PoE ports, 1 10/100/1000Mbps RJ45 uplink port
PoE power supply: 4 10/100/1000Mbps RJ45 ports support PoE+ power supply, the whole machine power supply power is 120W peak, single port power supply power is 30W peak
PoE connection: support 1/2+, 3/6-pair and 4/5+, 7/8-pair end spanning method
Performance: store and forward, support 2K MAC address table depth, 12Gbps backplane bandwidth
Forwarding rate:
10BASE-T: 14880pps/port
100BASE-tx:148800pps/port
1000BASE-tx:1488000pps/port
Port function: power supply priority mechanism, fast forwarding, MAC automatic learning and aging, IEEE802.3x full-duplex flow control and back pressure half-duplex flow control
Use environment: Working temperature:-20℃~55℃ Storage temperature:-20℃~75℃
Power supply and power:
Built-in baseboard power supply

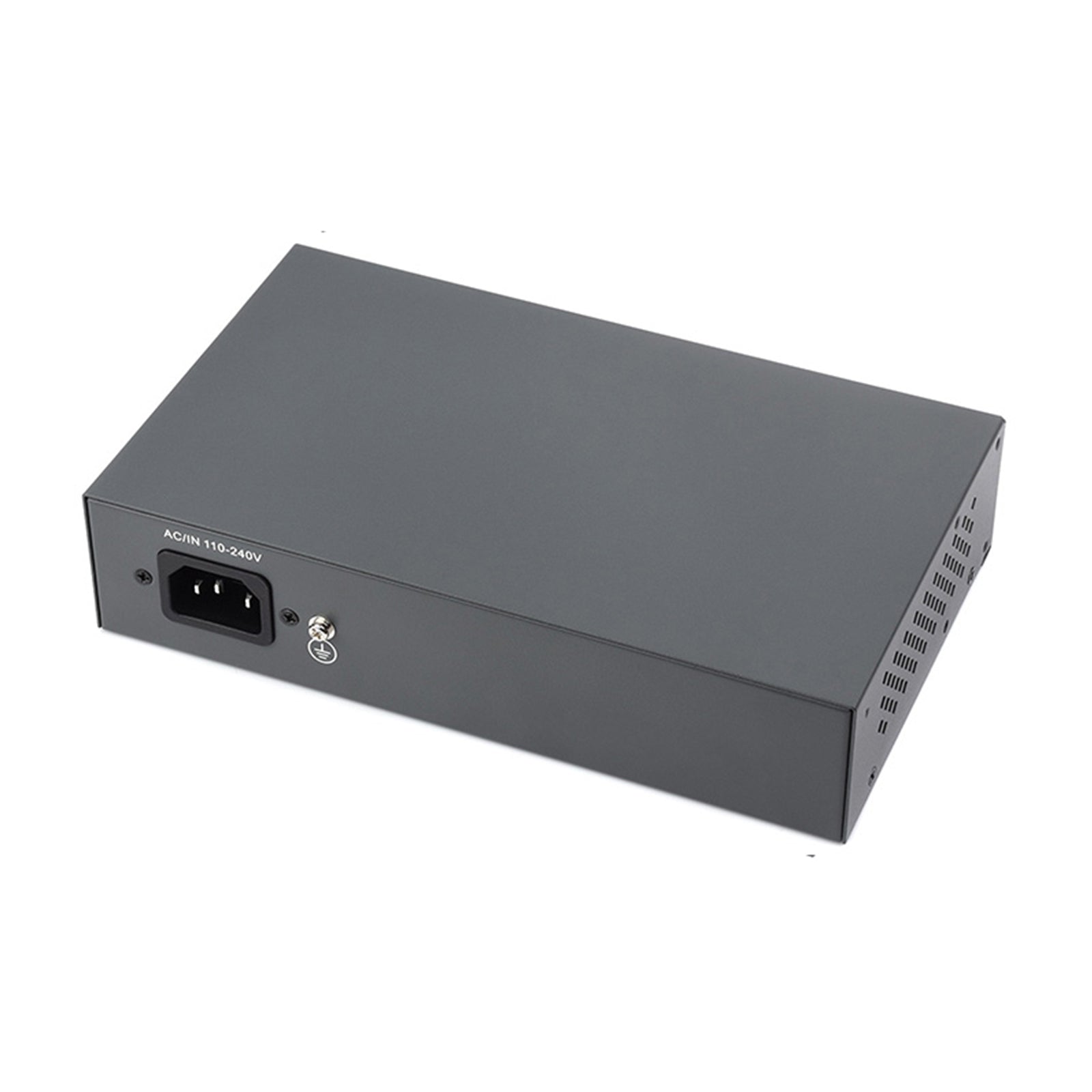

Input:AC/IN 110V~240V
Output:DC 52V±5%2.3A,≤120w
Casing material: Metal material
Weight: 1KG
Dimensions: 200mm x 118mm x 44mm(LxWxH)

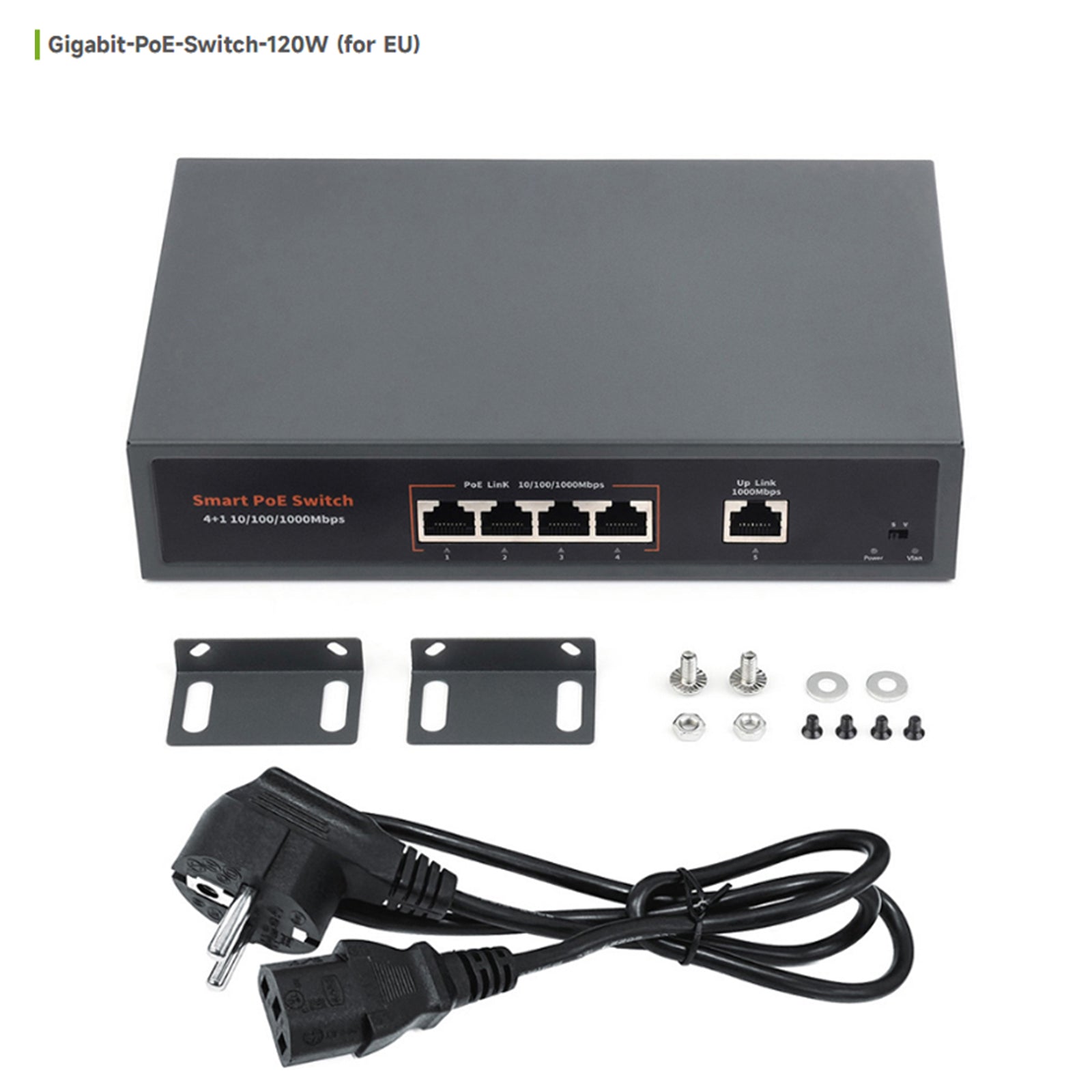

Package Include:
1x Gigabit PoE Switch 120W
1x Power supply
2x Fixer
1x Screw pack
