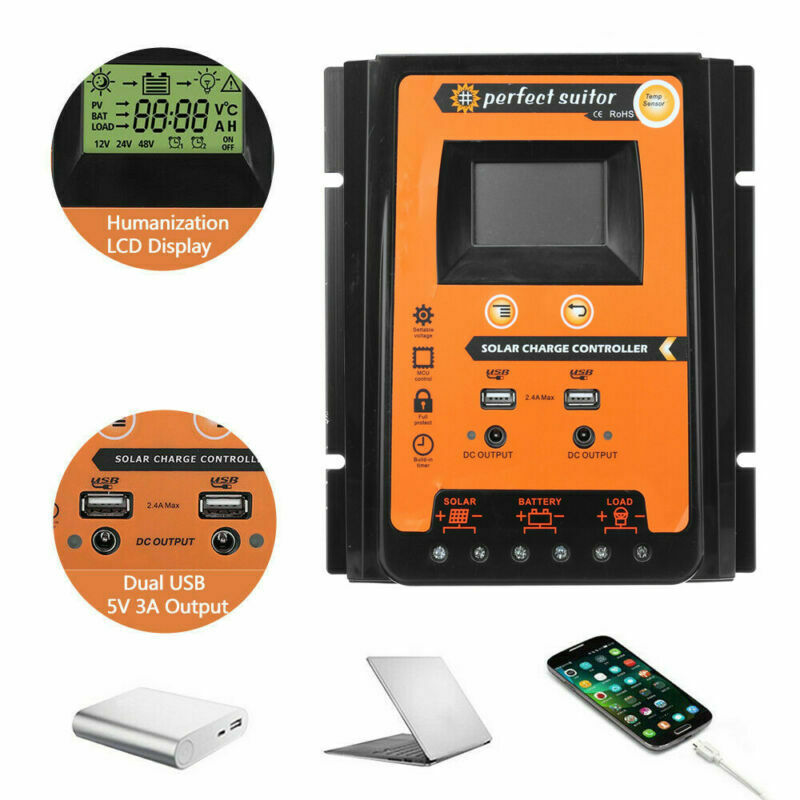

12/24V 70A Solar Charge Controller Panel Battery Regulator Dual USB

Specification:

Material: Plastic

Model: PVSC70A

Voltage: 12/24V

Current: 70A

Max.pv voltage: 50V

USB Output: 2.4A *2

Over Charge Current(V): 13.7V/*2 24V

Over Discharge Current(V): 10.5-11V/*2 24V

Temperature Compensation: -3mv/℃/cell

Empty Load Wastage: <45mA

Loop Voltage Drop: <200mv

Display: LCD Display

Size: 22.6*20*4.8cm(70A)

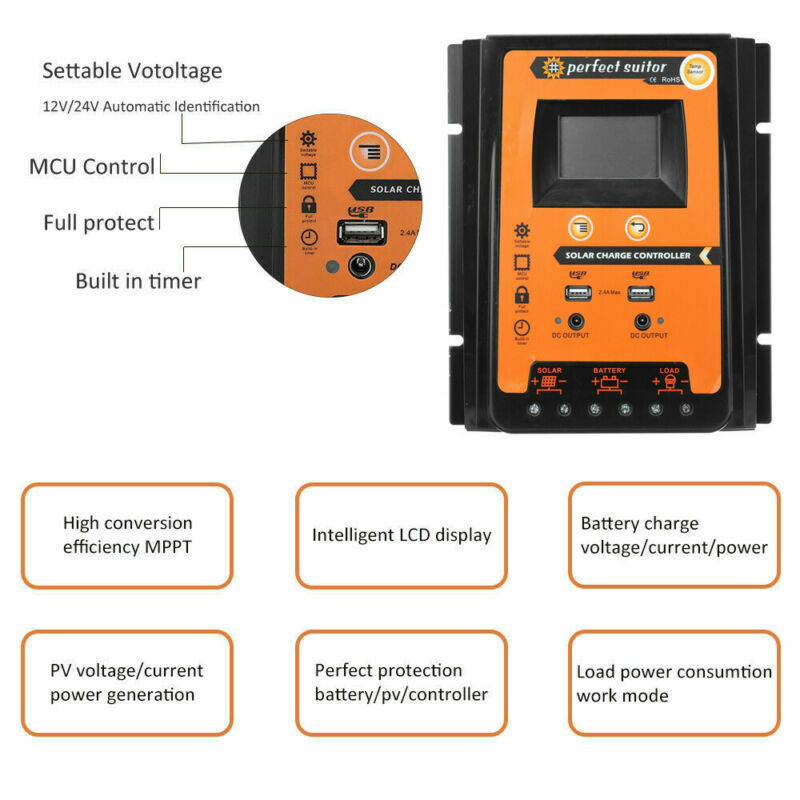

Features:

LCD Display

PWM Battery charging

All necessary protections equipped.

With 12/24V automatically adapt.

The control parameters can be adjusted to a variety of battery parameters work,easy to adapt to different characteristics

of the battery.

The load control mode can be selected, the timer function can be reset for street light at night.

Overcurrent,short circuit,automatic recovery after protections.

Has a strong charge,constant current,floating three intelligent control.

Accurate temperature compensation, correcting the charging and discharging voltage automatically, improving the battery lifetime.

Note：

The machine can only be used in LEAD-ACID Battery.

50A 70A controller will display PV and load parameters, which is not available in 30A

This product is a simple controller, the price is cheap, not high-end multifunctional controller, please think twice before purchase!The product doesn't have communication interface temporarily

Package included:

1x Solar Charge Controller

USE INSTRUCTIONS

1. The function of the controller is to protect voltage overshoot and overplay.

2. When the battery voltage is too low, the controller stops the output; after the solar panel is charged, the cell recovers to 12.6V.

3. 12.6V is the recovery discharge voltage.

4. The normal voltage of the controller is 10.7V to 13.7V. These two voltage fluctuations can be set manually.

If you have trouble in use, try adjusting the float voltage to 13.7V:

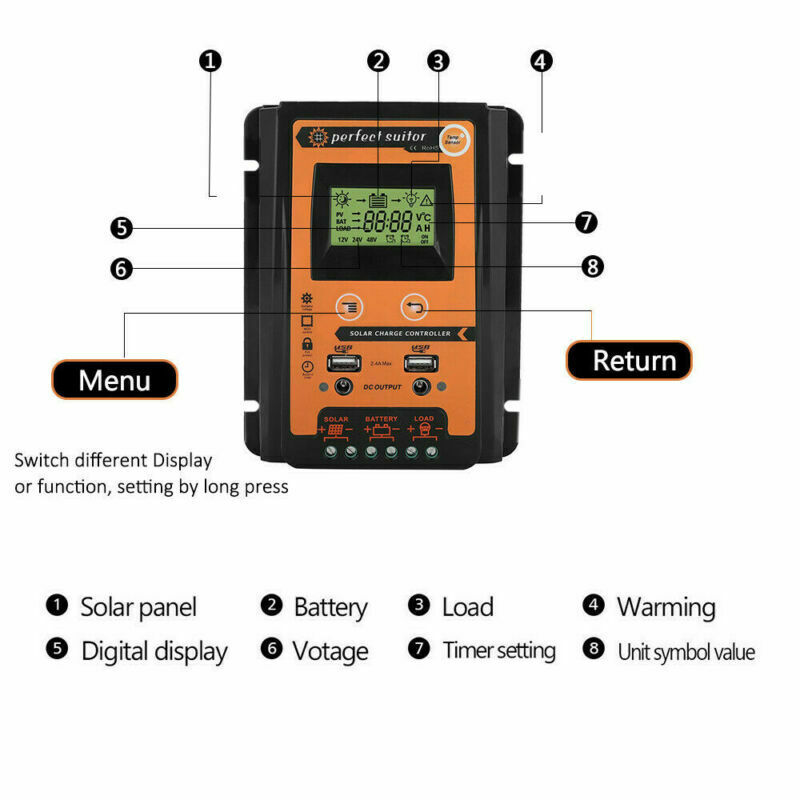

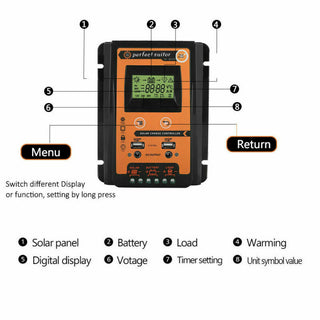

First, you need to press the MCU control button for about 3-4 seconds, and then there will be a management interface on the screen.

Second, you must press the add button on the screen until the voltage reaches 13.7V.

Finally, you need to press the MCU control button again, which will save the controller record data when the display does not flicker.
