Raspberry Pi CM5 PoE Expansion Board Compute Module 5 Computing Module Baseboard Supports M.2 NVMe
Features:

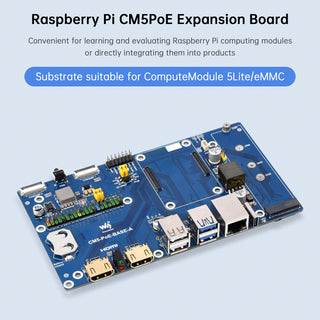

Raspberry Pi CM5 POE expansion board, convenient for learning and evaluating Raspberry Pi computing modules or directly integrated into products Compute Module 5 Lite/eMMC suitable baseboard

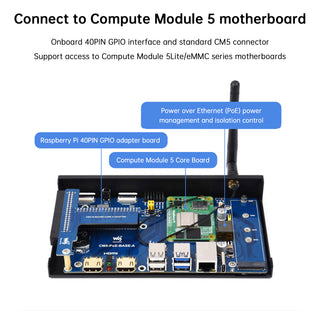

Access to Compute Module 5 motherboard, onboard 40PIN GPIO interface and standard CM5 connector support access to Compute Module 5 Lite/eMMC series motherboards
Support PoE Ethernet power supply, only one network cable is needed to connect to the PoE device to enable the Raspberry Pi to connect to the Internet and power it
More abundant interfaces, equipped with MIPI/ M.2/HDMI/ USB/ETH/ Micro SD card and other interfaces
More convenient to use, detailed hole design
Ensure that each interface can fit the motherboard highly, and the interface is clearly marked with silk screen for easy viewing

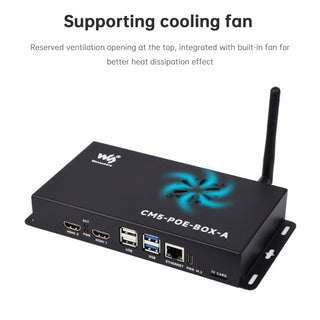

Matching cooling fan
The top has a reserved vent, and the built-in fan is integrated, which has a better heat dissipation effect

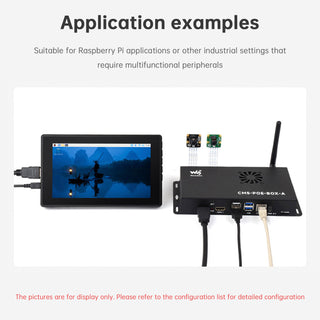

Application examples: Suitable for Raspberry Pi applications or other industrial occasions requiring multi-function peripherals
Note: Only supports NVMe hard disk protocol
Specifications:
Applicable scope: Applicable to all versions of Compute Module 5
Networking: Gigabit Ethernet RJ45 interface, integrated 802.3af/at network standard PoE circuit (5V/5A)
Connector: Raspberry Pi 40PIN GPIO interface
USB: USB 3.2 Gen1 interface x2, USB 2.0 interface x2
MIPI: 4-lane MIP| interface x2 (22pin 0.5mm FPC connector)
Video: HDMI interface x2, support 4K output
Package Included:

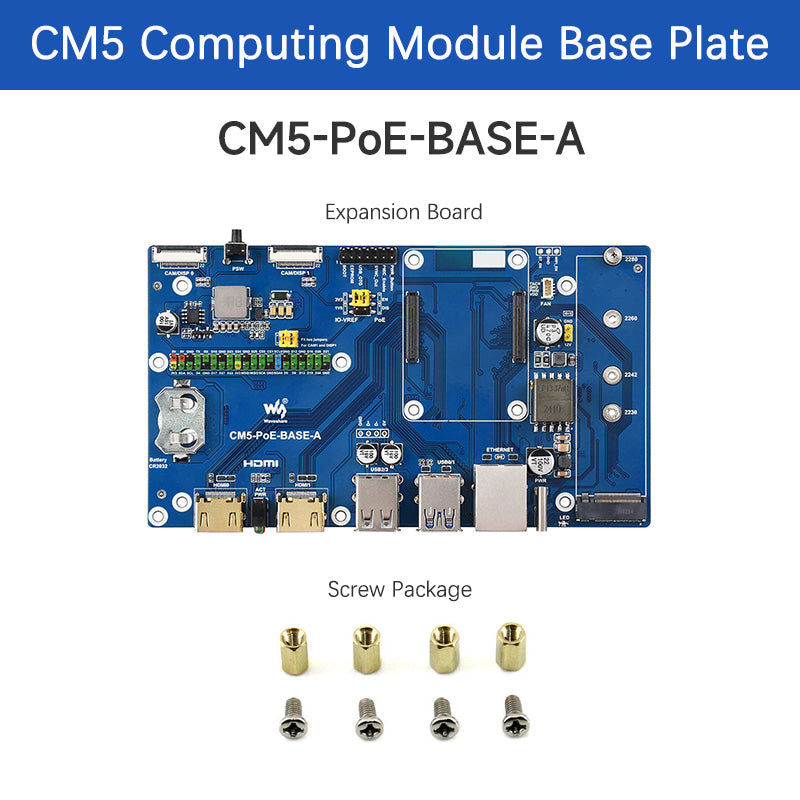

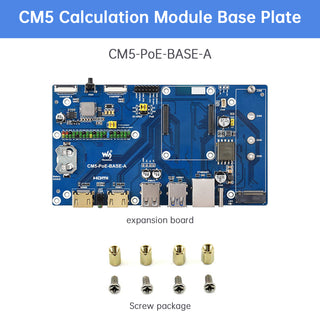

Option1:
1x CM5-POE-BASE-A
1x Screw package

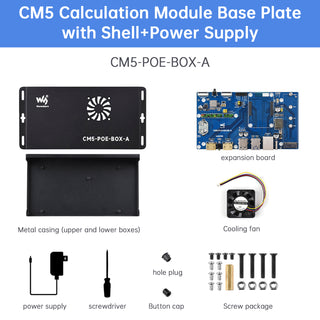

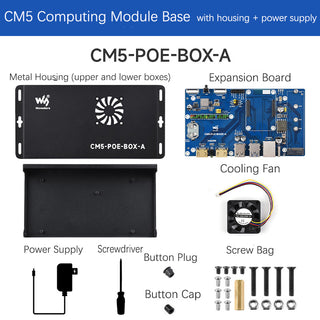

Option2:
1x Metal shell (upper and lower boxes)
1x CM5-POE-BASE-A
1x CM4-10-BOARD-CASE-A-ADAPTER
1x CM5-FAN-4010-5V
1x 27W power supply
1x screwdriver
1x snap-on plug
1x button cap
1x screw pack
Shipping Information:
Free Quick Shipping to USA.
Estimated Time of Arrival: within 3-8 working days.
Warranty:
1.Customers have the right to request a return within 60 days from the date of product receipt.
2.At Itopteng, we offer prompt customer service to assist with product usage inquiries and facilitate returns or refunds.
