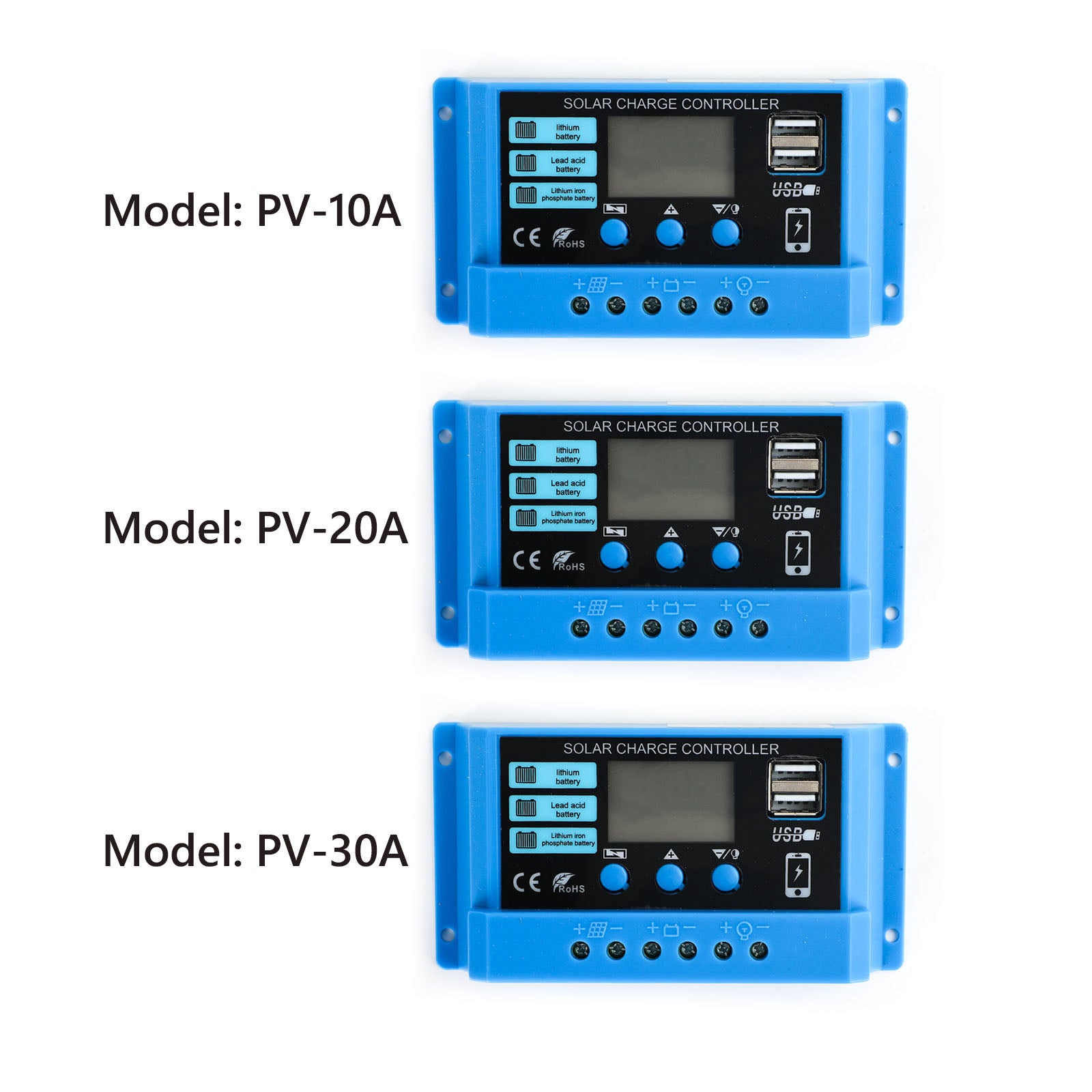

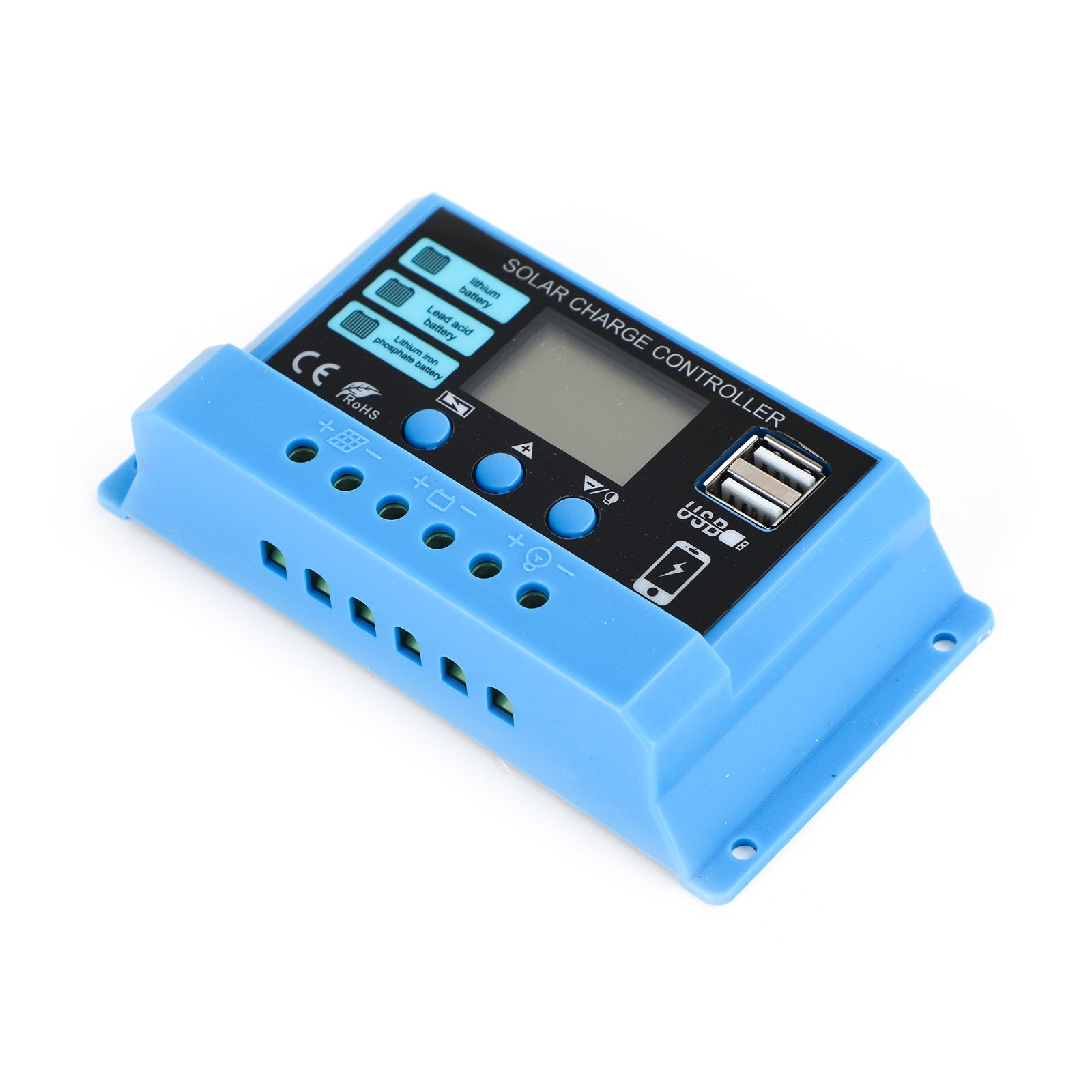

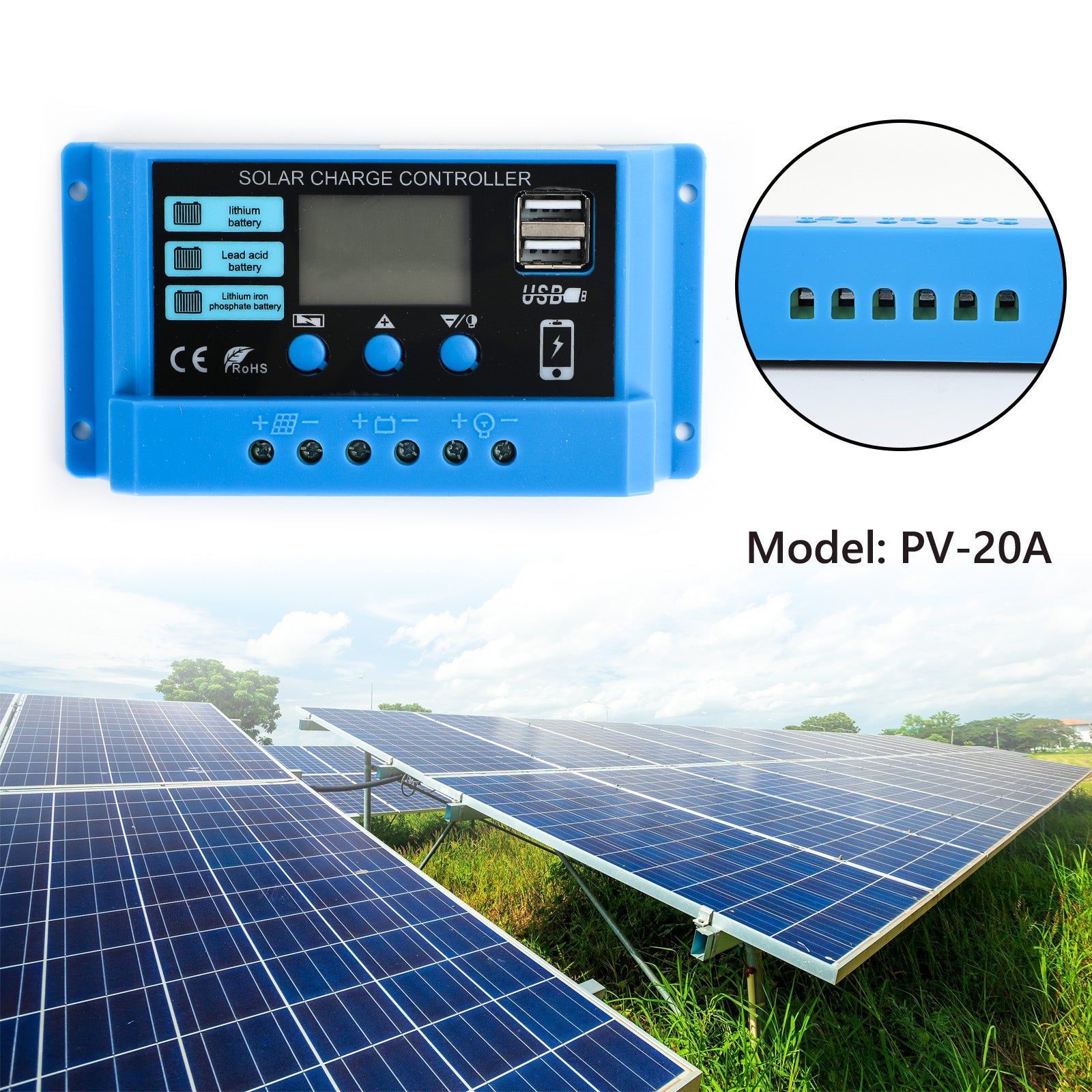

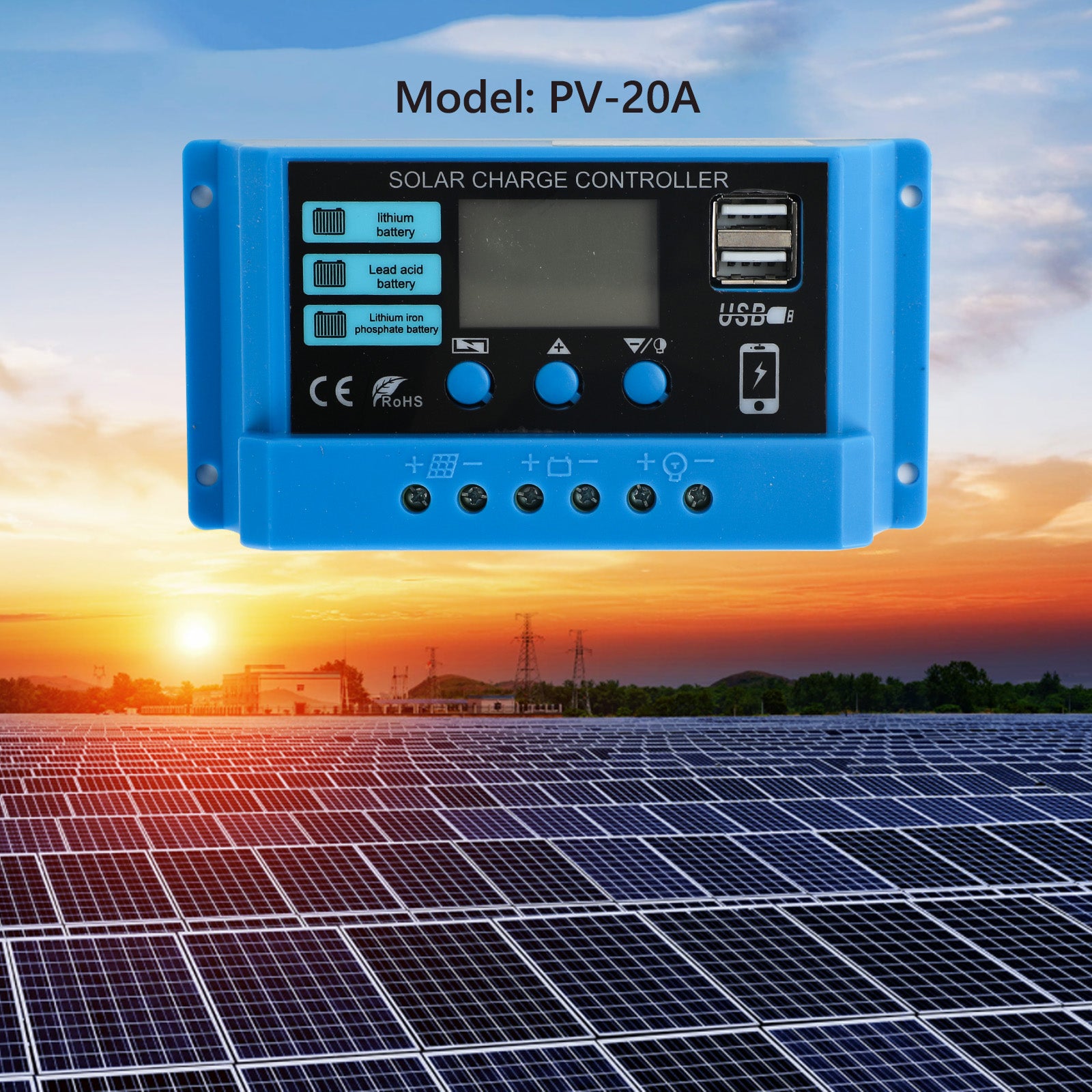

PWM 10A 20A 30A Solar Charge Controller 12V 24V PV Regulator For Lifepo4 Lithium Lead Acid Gel For 100W 200W 300W Solar Panel
Description:
This controller is an intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very user-friendly interface is used in this product; Various control parameters can be flexibly adjusted, fully satisfy your various application requirements.
This is the new solar controller, it can fully meet your home PV system requirements (including home lighting system). It can recognize 12v and 24v lead acid, gel battery, nickel metal hydride, lthium ions, lifepo4 or other batteriesautomatically.
Features:
1. Build-in industrial micro controller.
2. Large LCD display, all parameters adjustable.
3. Fully 4-stage pwm load management.
4. Build-in short circuit protection, open circuit protection, reverse protection, over-charge protection.
5. Dual MOSFET reverse current protection, low heat production.
Specifications:
Charging Current: 10A/20A/30A
Max.Solar Power Input:100W/200W/300W
USB output:5V2AMAX
Current Stand-by:<10Ma
Product Size:133*70*35mm
Weight:132g
Temperature:-35℃~60℃
10A:
If your battery is 12v, solar panel max input is 25v 120w
If your battery is 24v, solar panel max input is 50v 240w
20A:
If your battery is 12v, solar panel max input is 25v 240w
If your battery is 24v, solar panel max input is 50v 480w
30A:
If your battery is 12v, solar panel max input is 25v 360w
If your battery is 24v, solar panel max input is 50v 720w
Package Included:
1 * Solar controller unit
1 * Detailed User manual
Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days
Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
