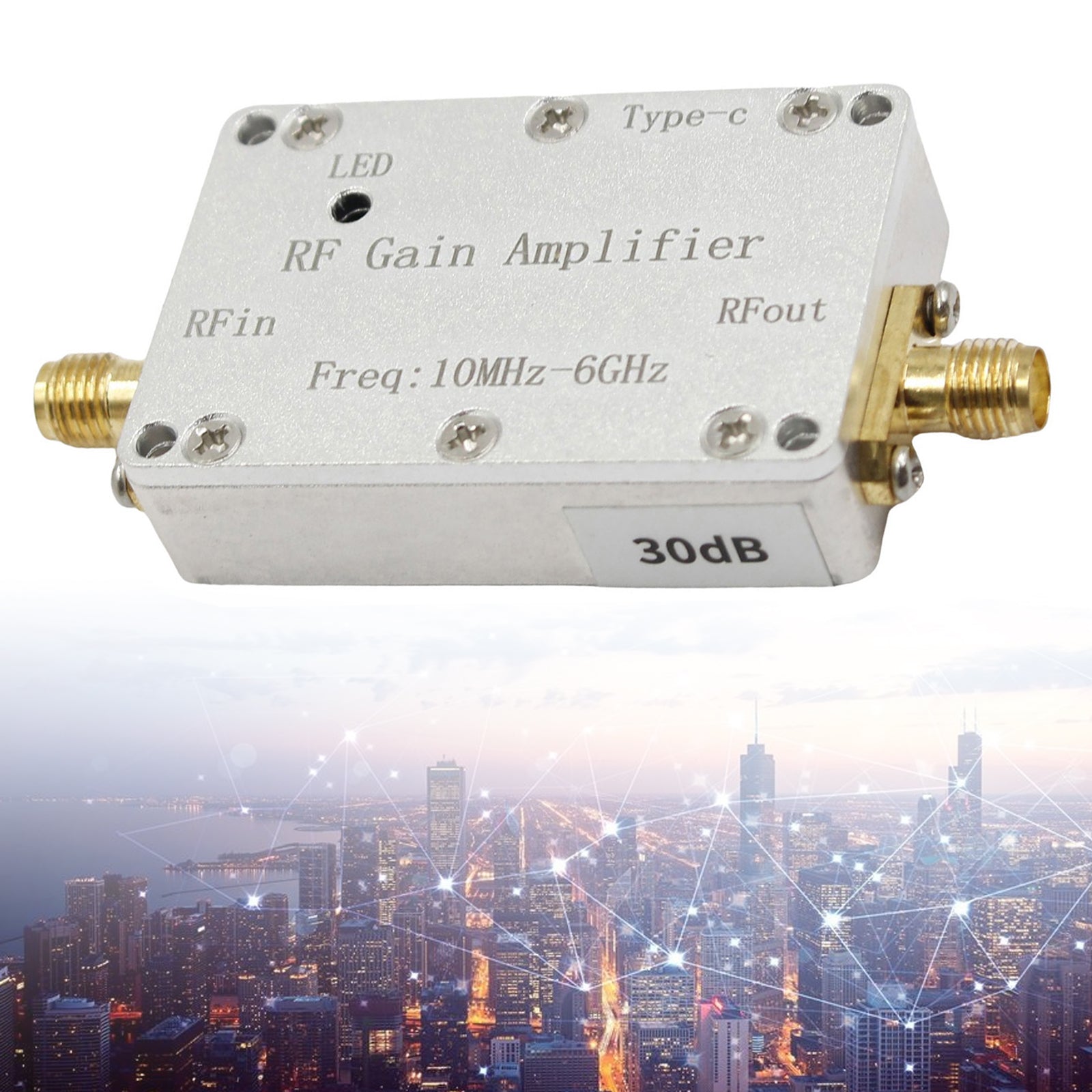

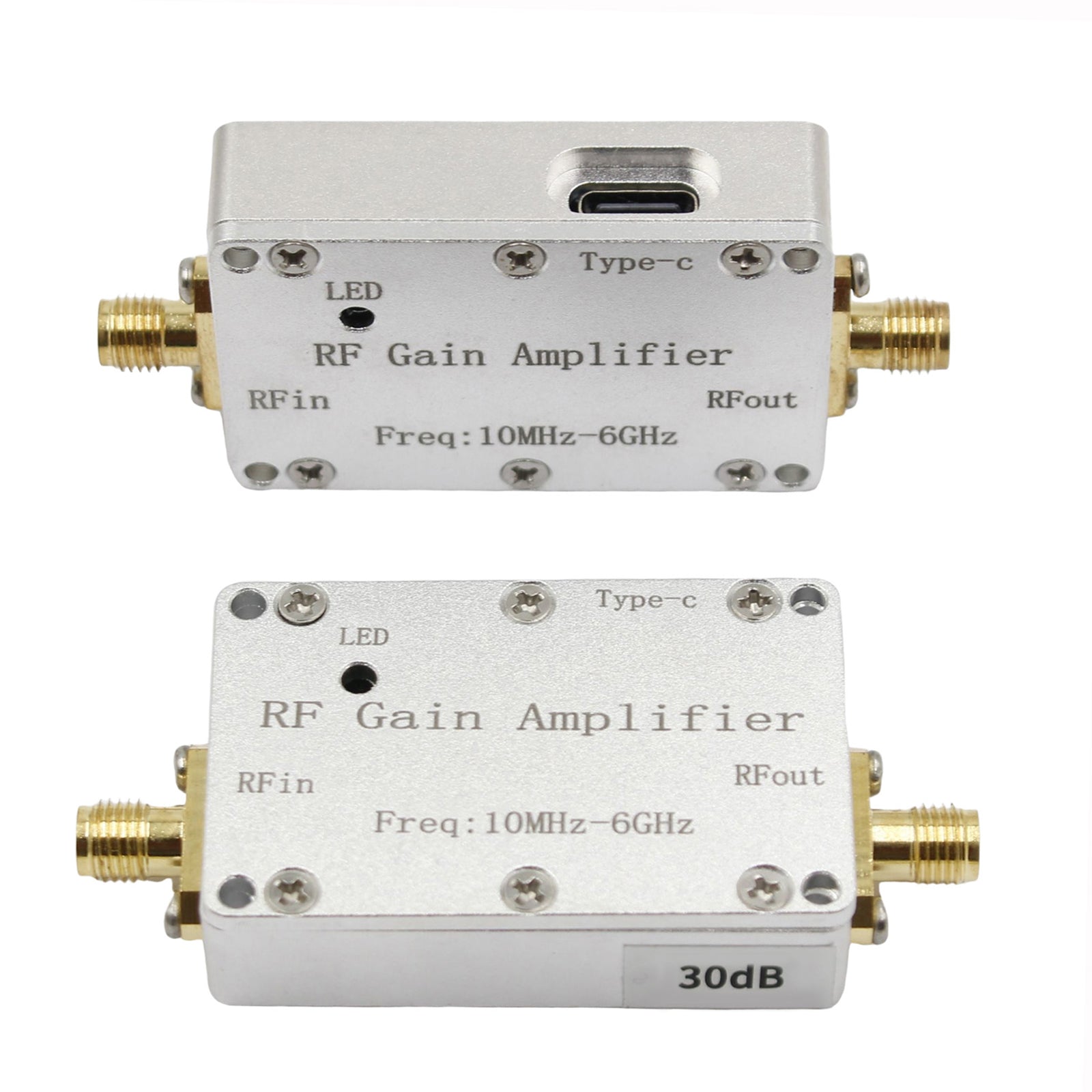

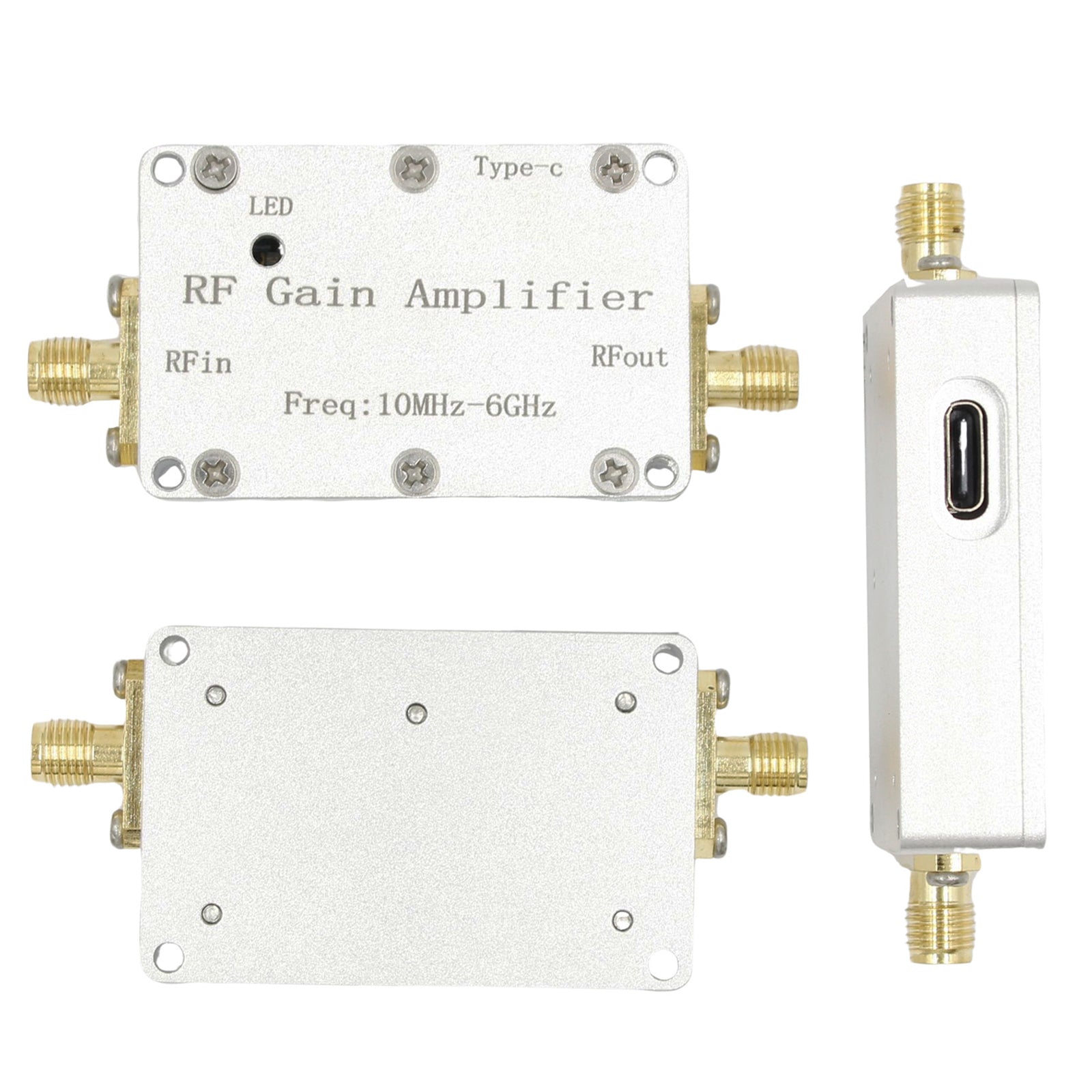

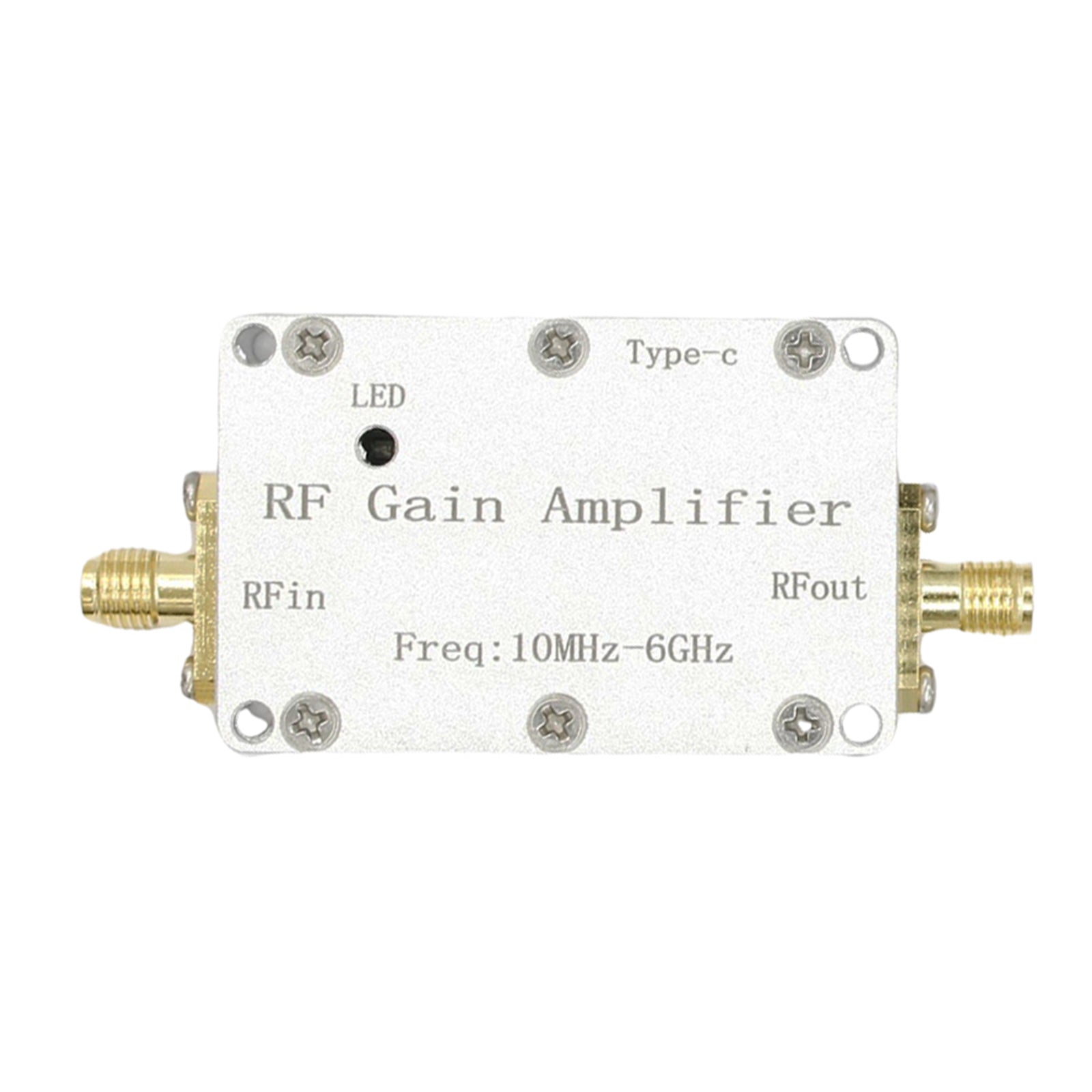

10M-6GHz RF amplifier 30dB high gain driver receiving amplifier
Description:

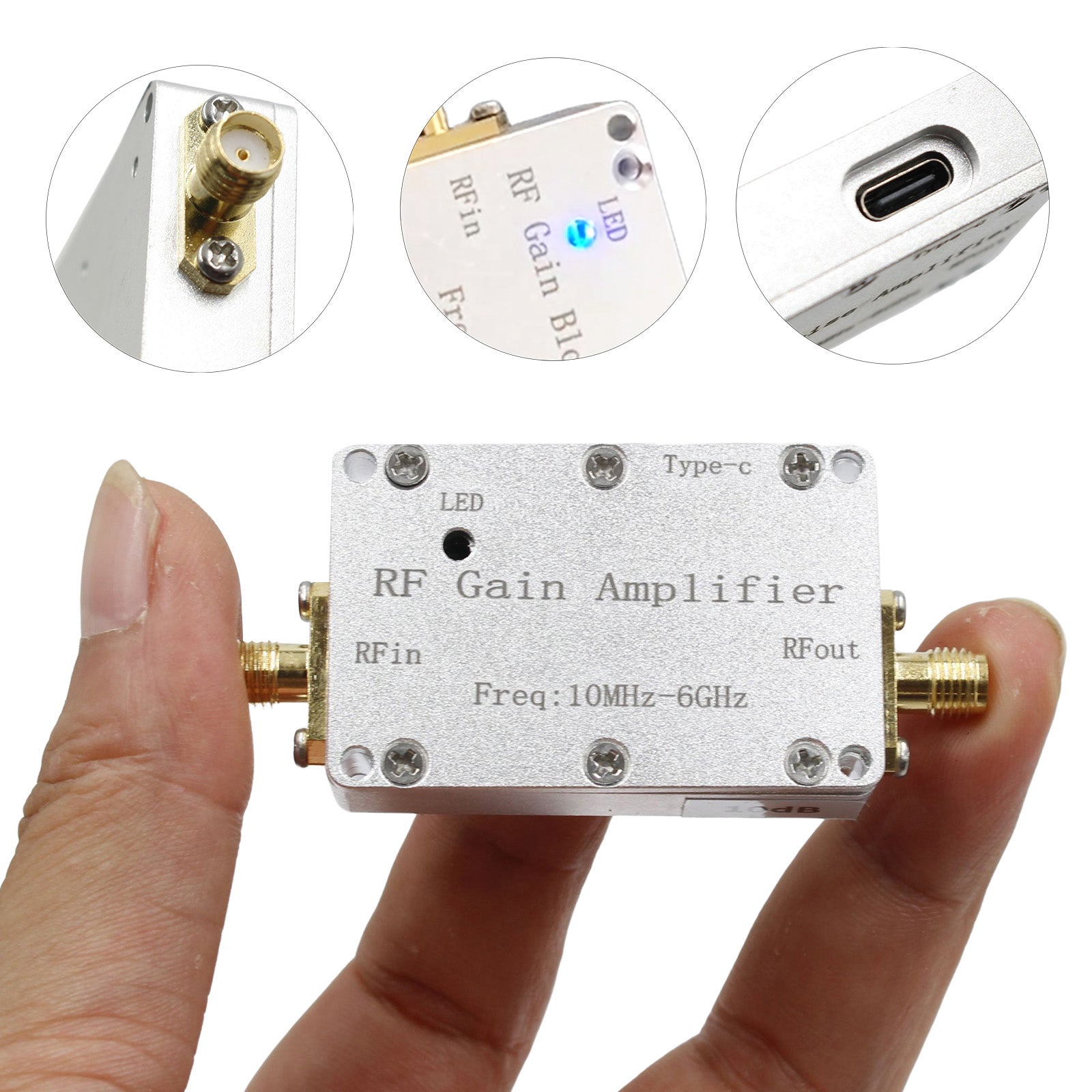

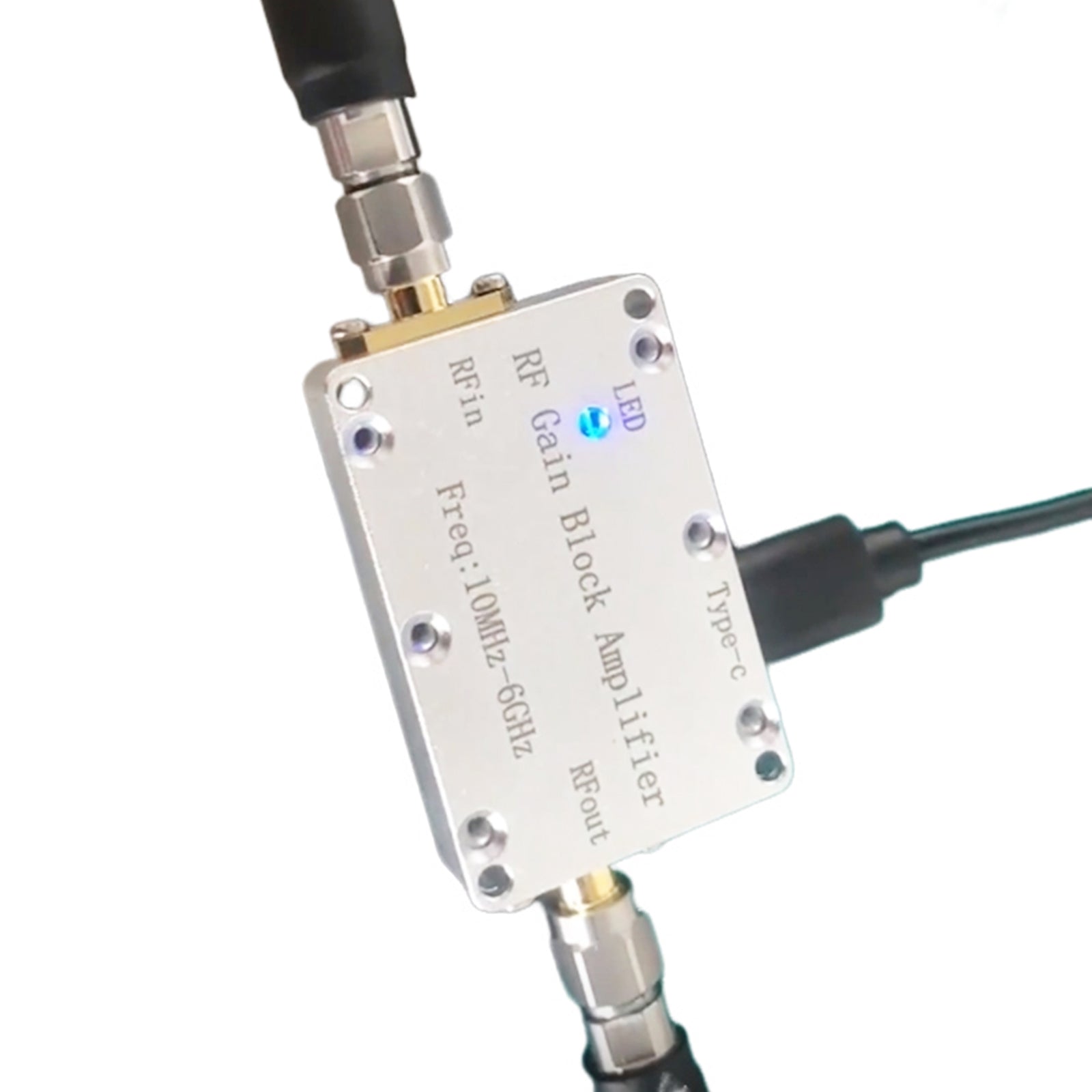

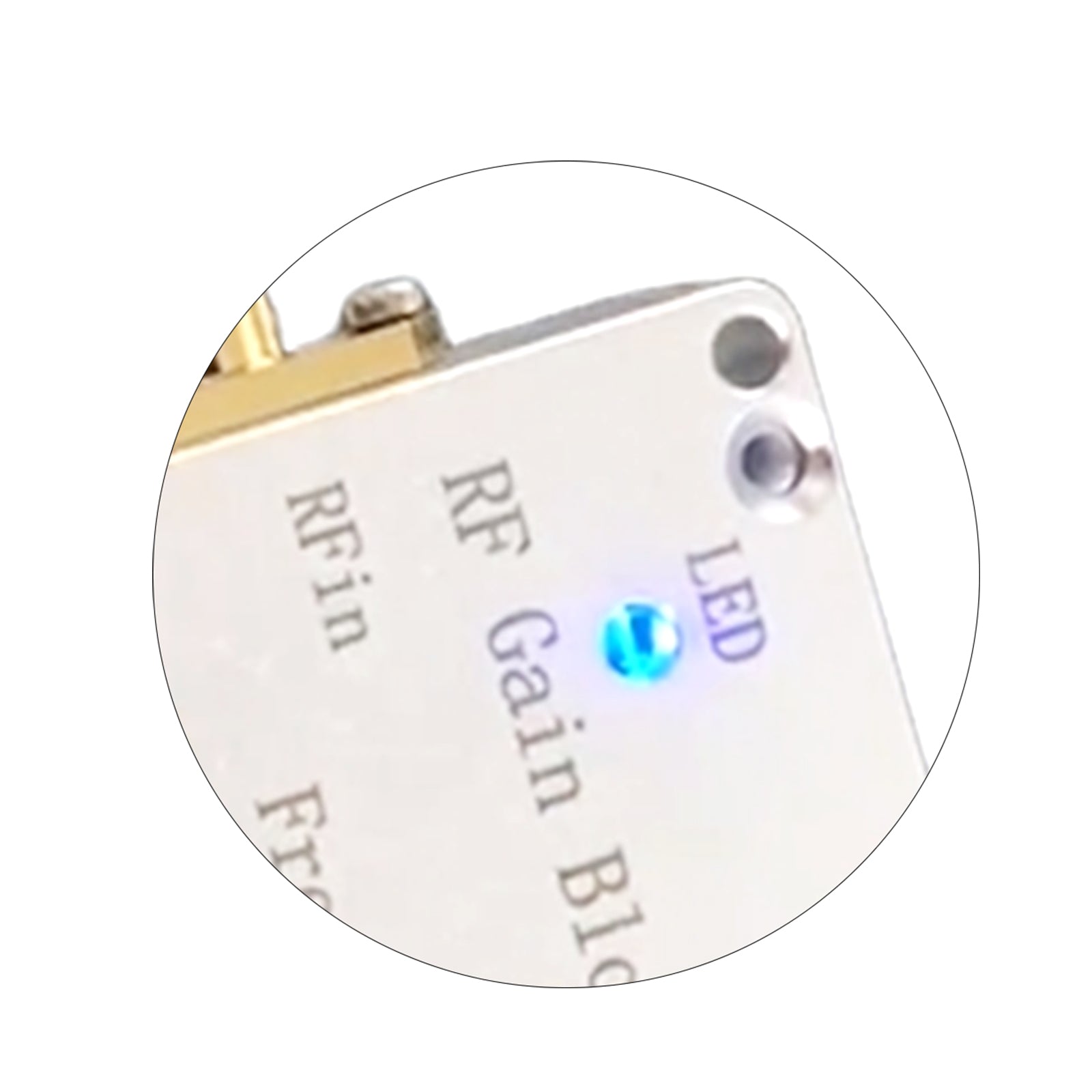

This amplifier module is used for signal gain promotion and small signal amplification in various radio transmitters and receivers. The module covers the 10M-6GHz0M-6GHz broadband frequency range, covers 433M, 1.2G, 1.5G, 2.4G, 5.8G and other typical application frequencies, and has a high flatness gain characteristic of 30dB. It is used in transmitter signal gain promotion and receiver systems. The module uses a Type-c interface +5V power supply and has a power working indicator light.
Application scenario:
1. Beidou/GPS receiver
2. Receiver system (FM radio reception, radar reception, etc.)
3. Electromagnetic compatibility receiving system
4. Software Radio Receive
5. Intermediate frequency signal amplification

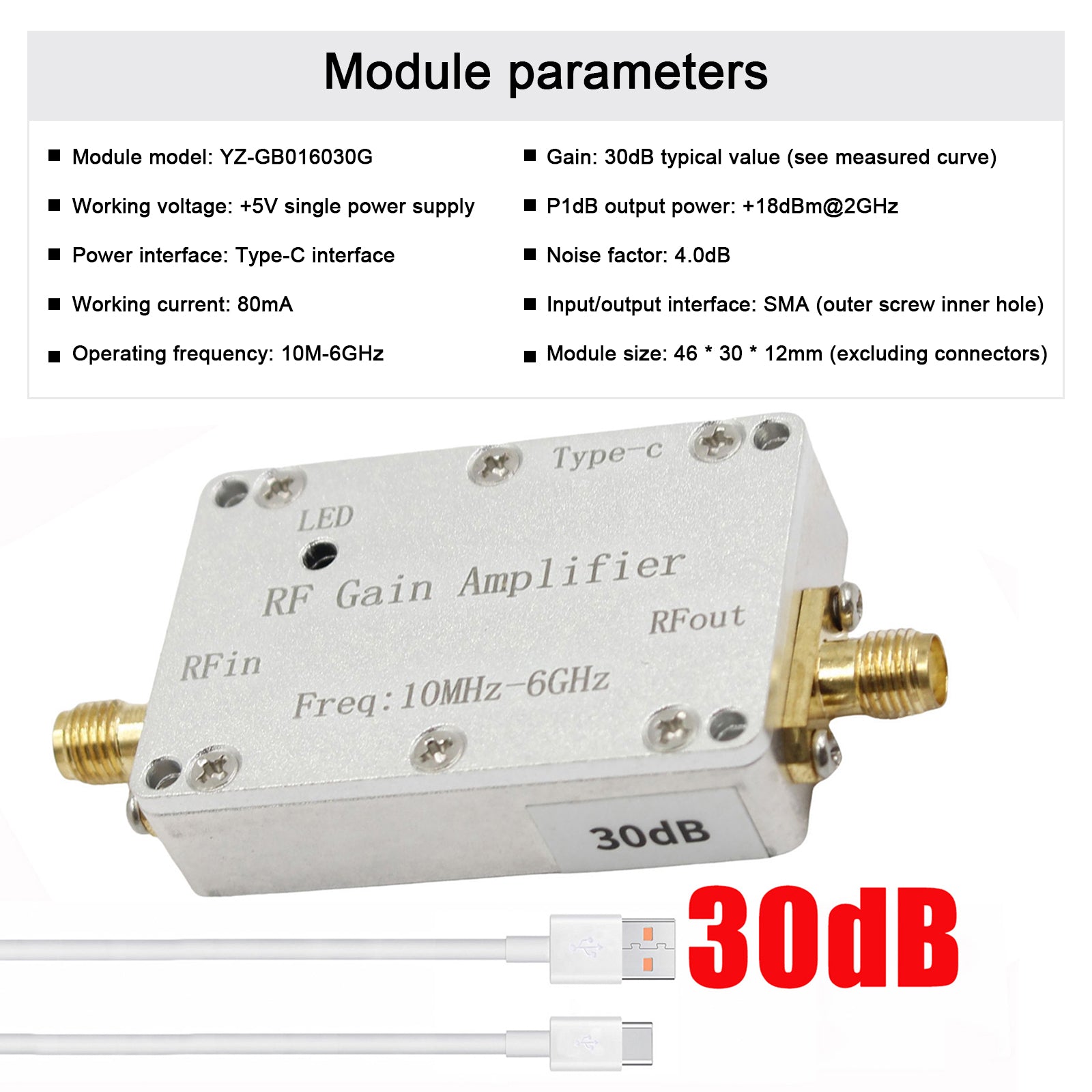

Specification:
Working voltage: +5V single power supply;

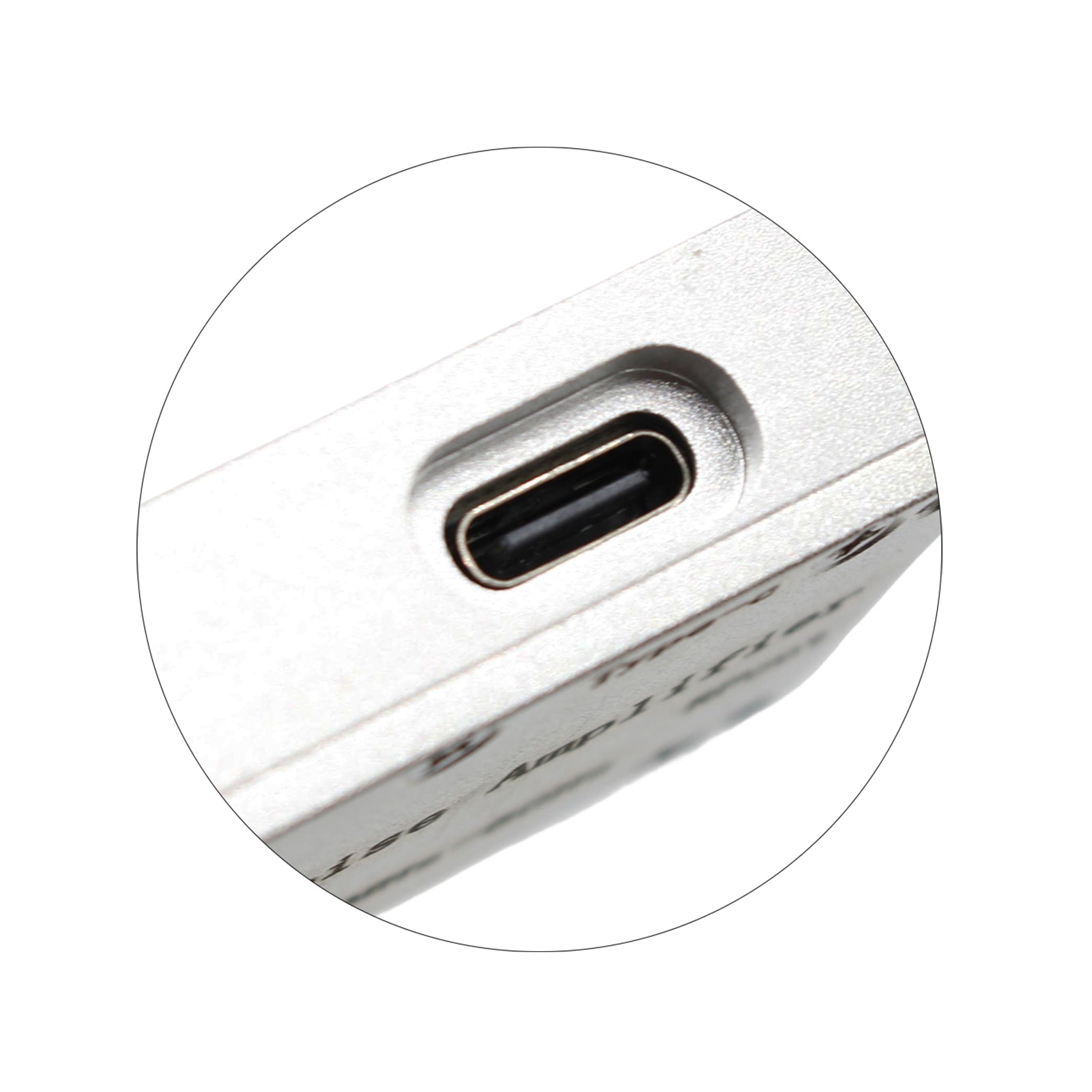

Power interface: Type-c interface;
Working current: 30dB-80mA;
Working frequency: 10M-6GHz;

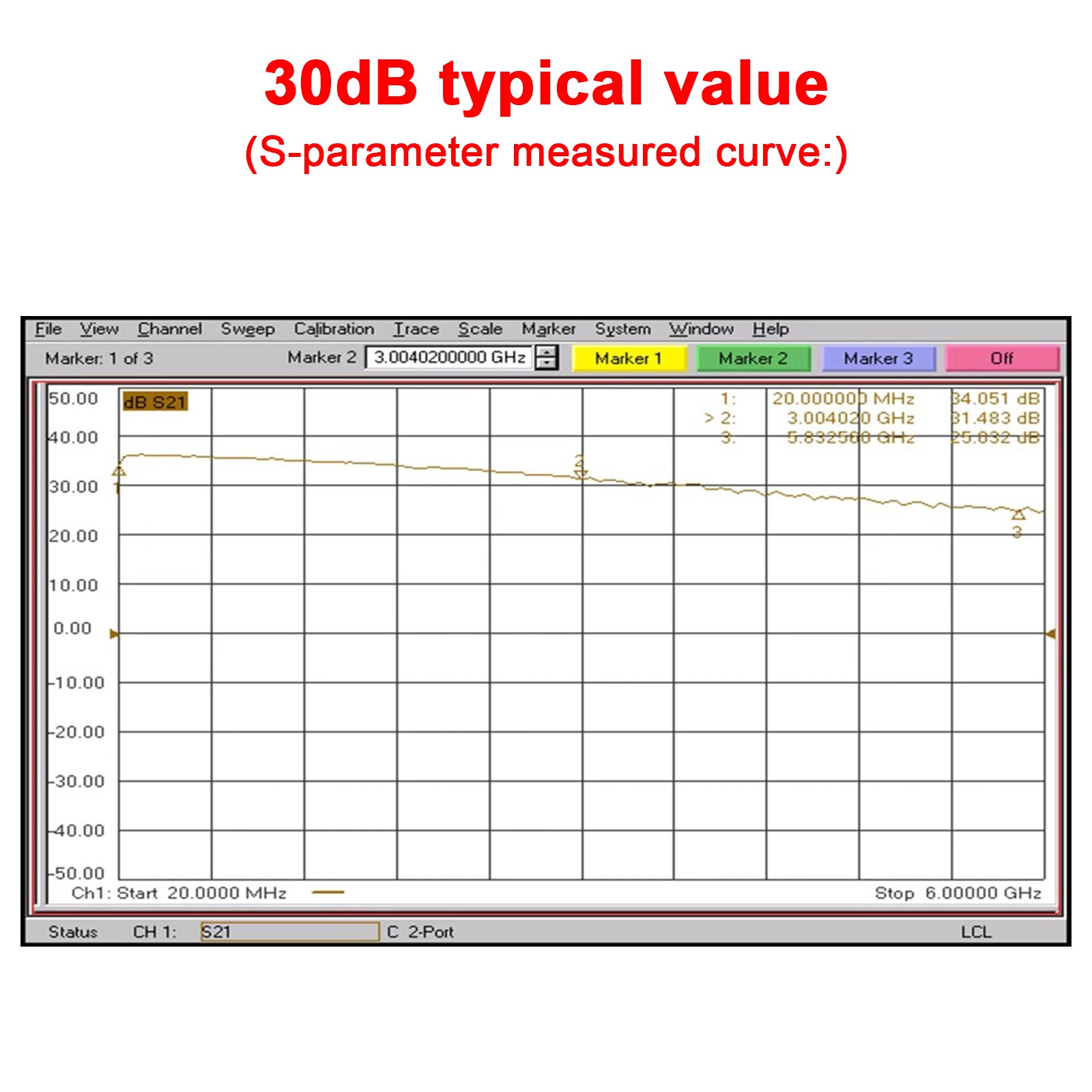

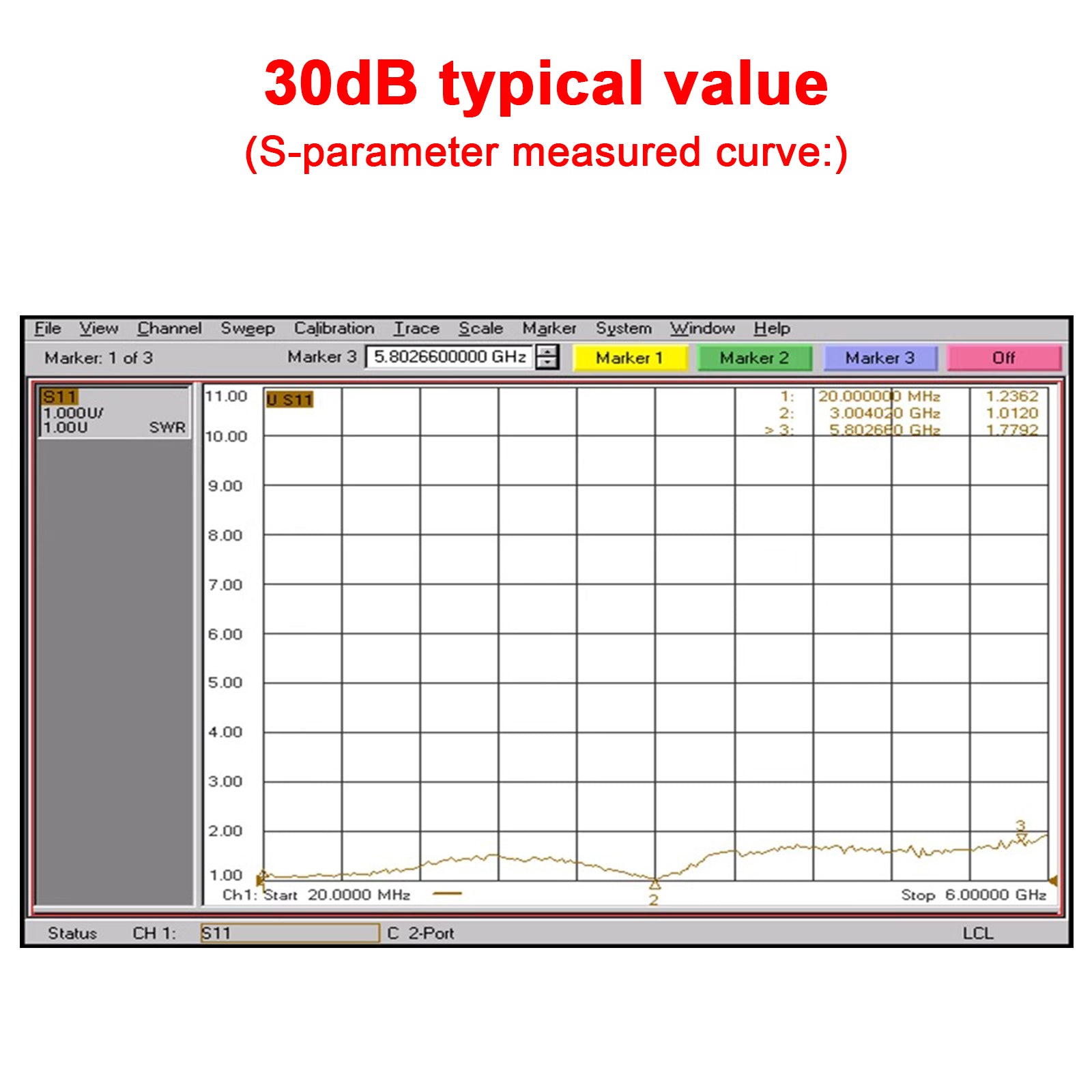

Gain: 30DB (refer to the measured curve for different frequencies);
P1dB output power: +18dBm@2GHz;
Noise coefficient: 4.5dB;

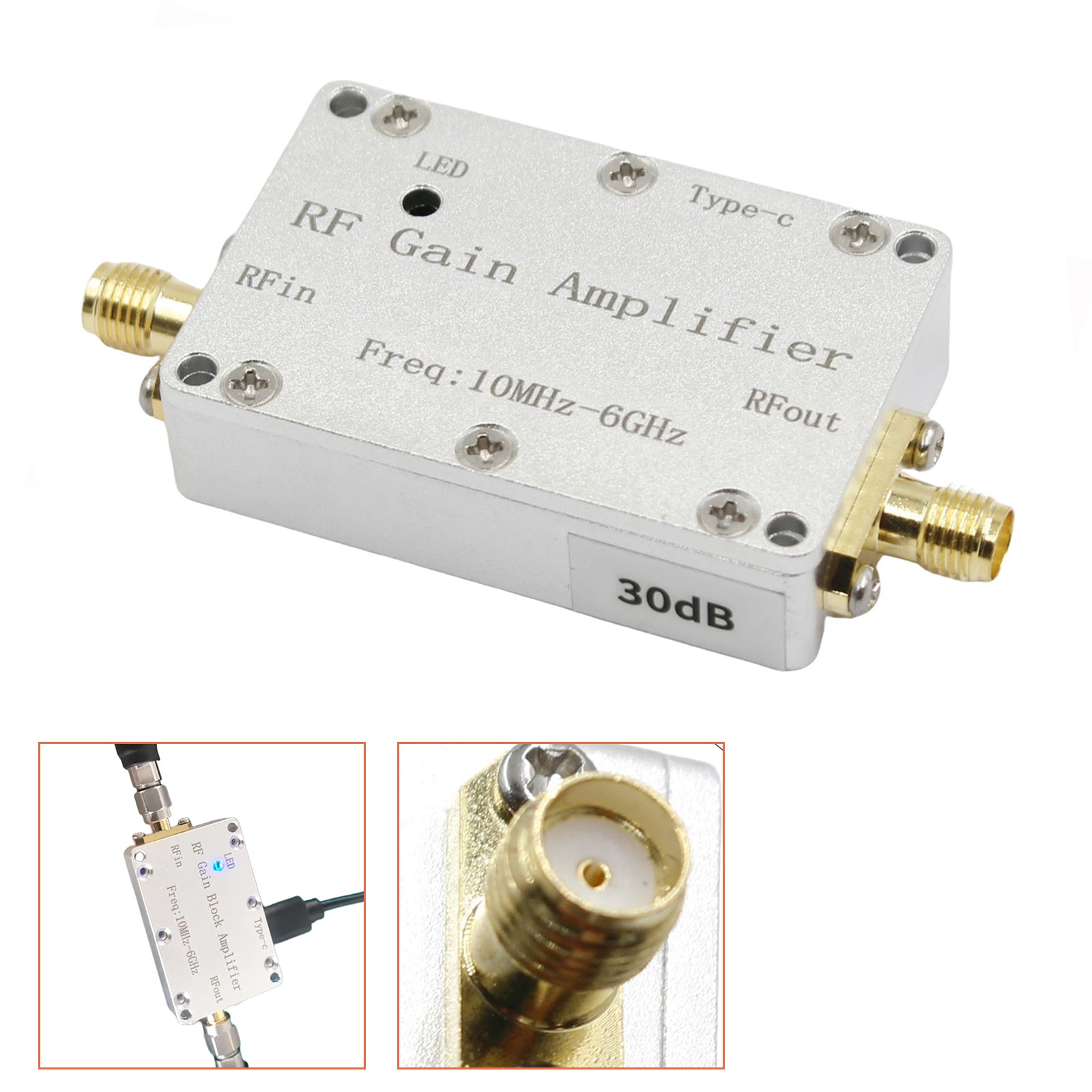

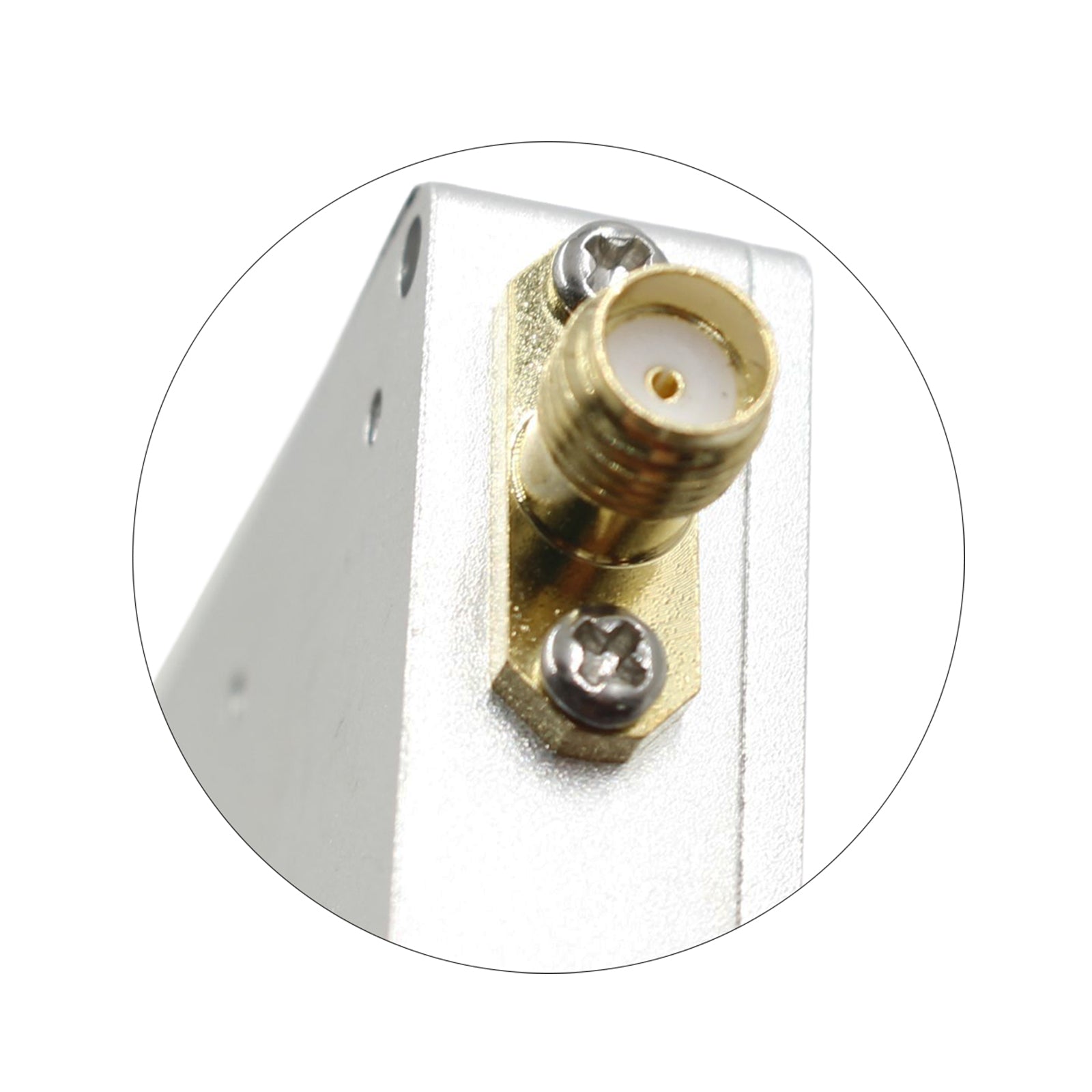

Input and output interface: SMA (external screw inner hole);

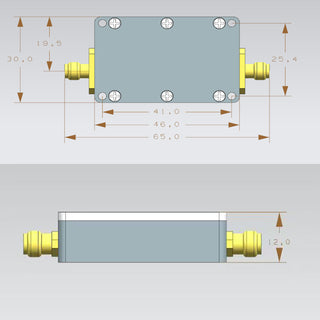

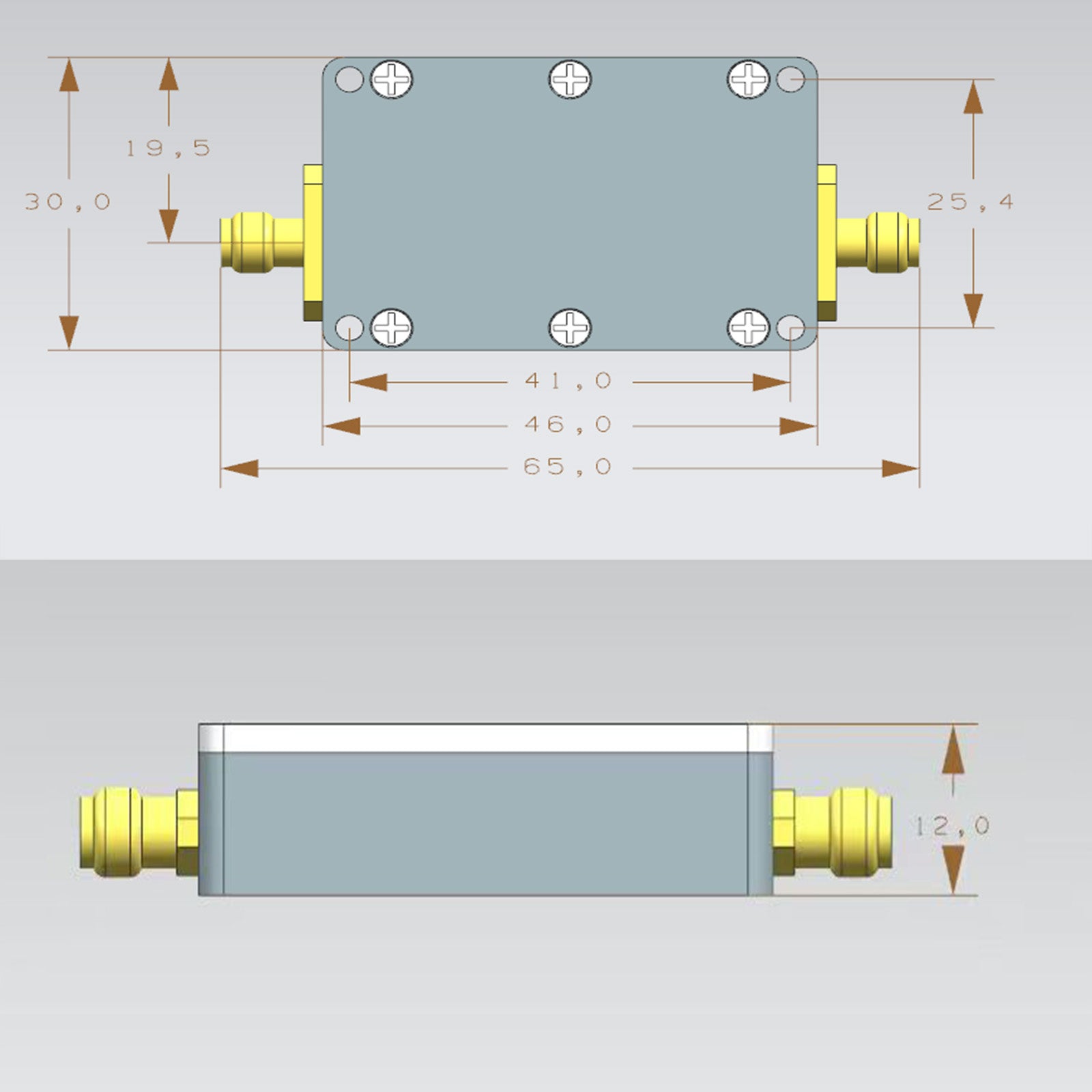

Module size: 46*30*12mm (excluding connector);
Module weight: 35g;
Weight: 60g (including host+TYPE-C cable);
Current:<100mA;
input-output impedance: 50 ohms

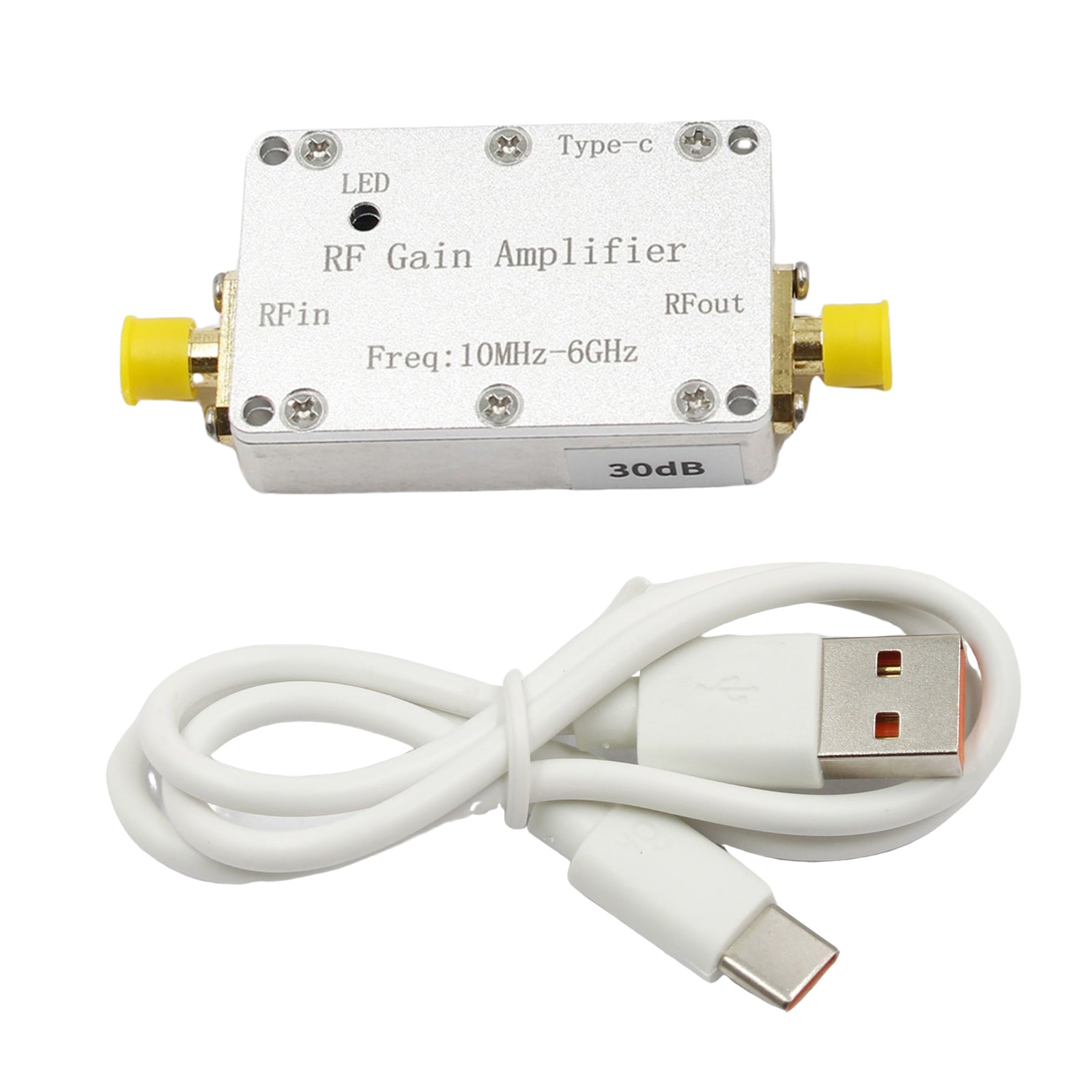

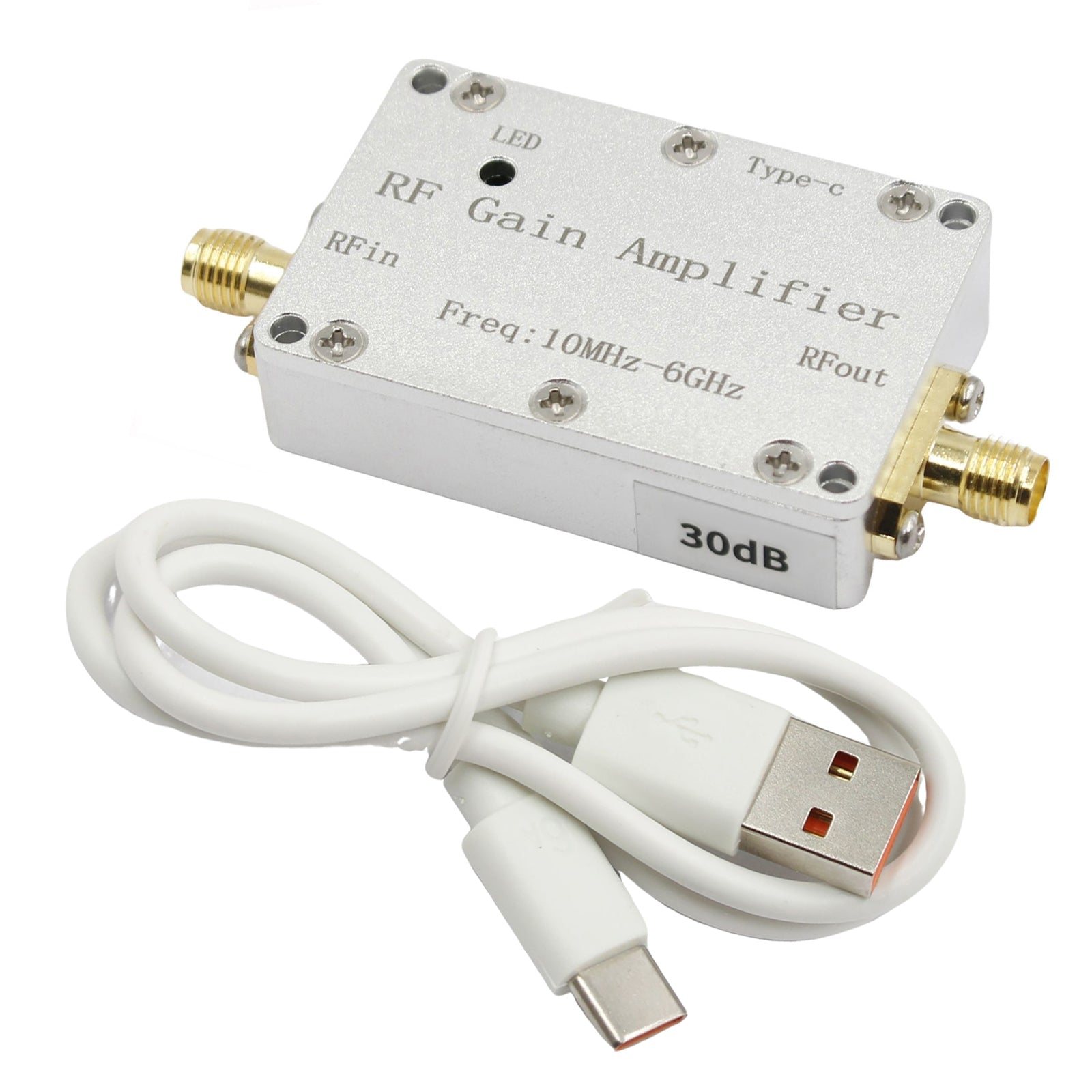

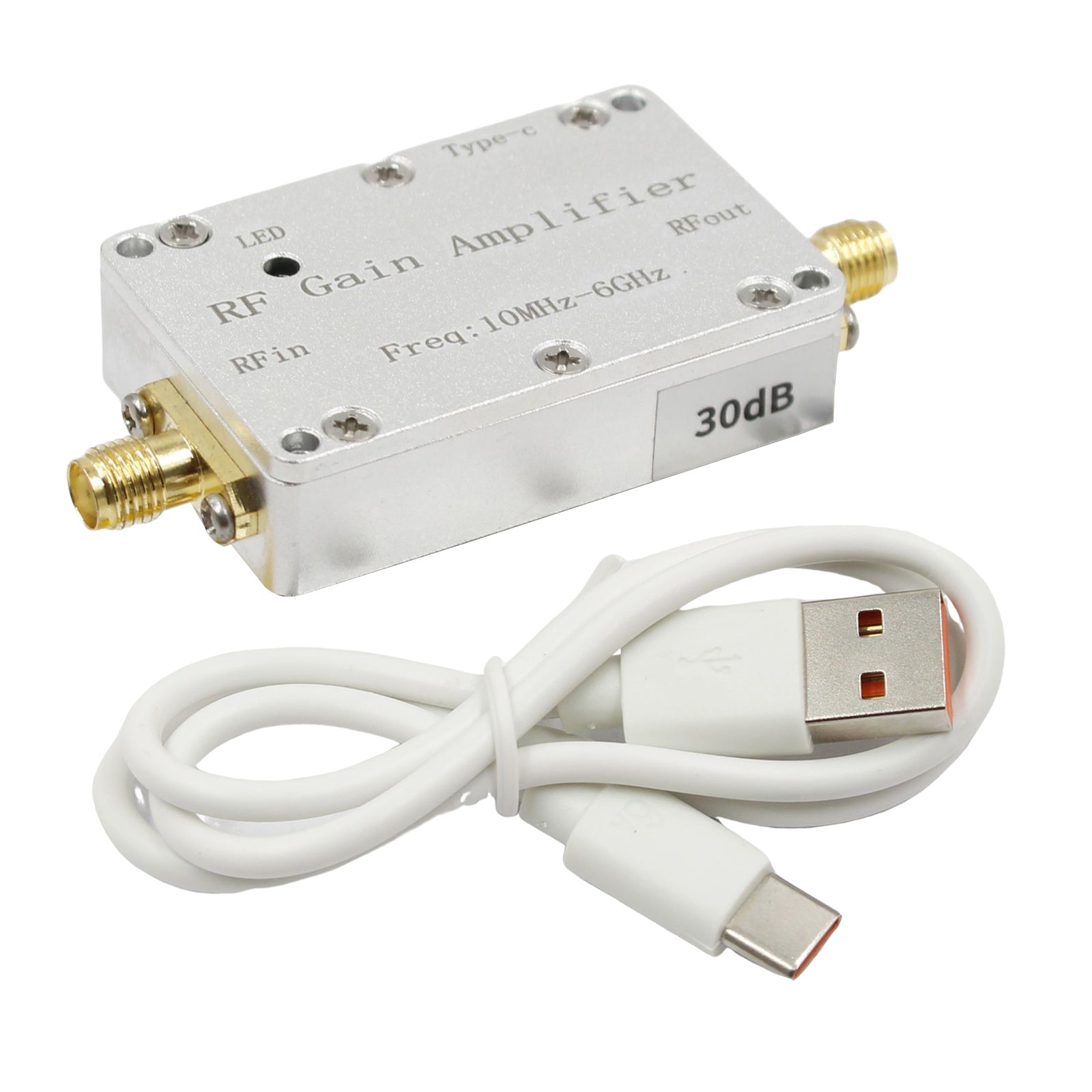

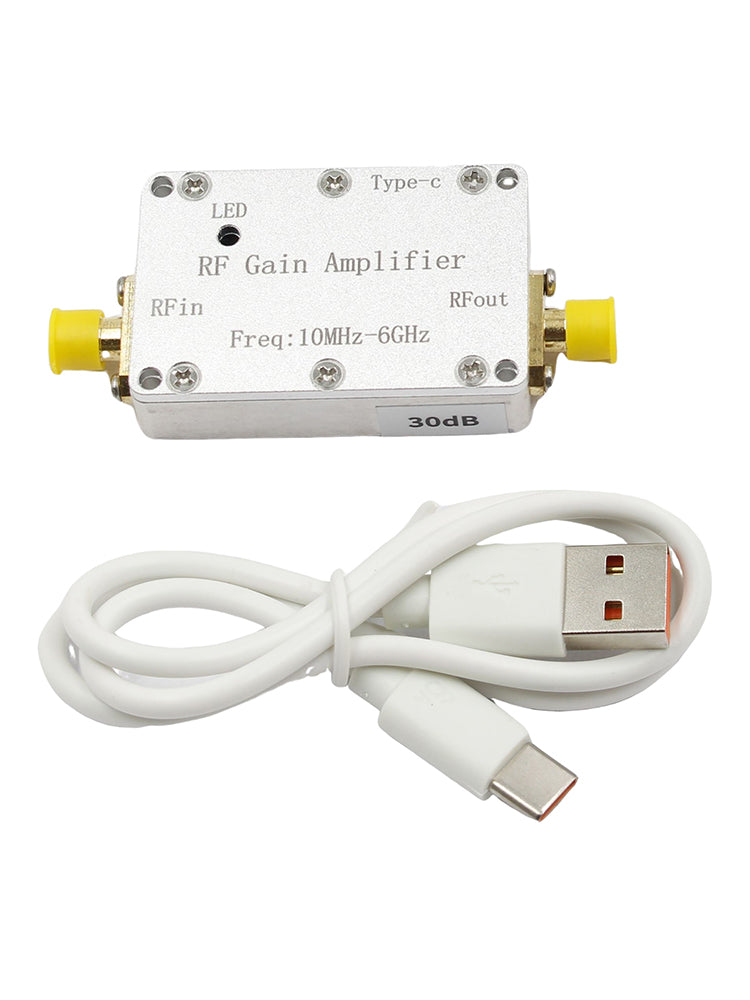

Package Included:
1 x 30dB Amplifier Module
1 x TYPE-C Cable
Shipping Information:
Free Quick Shipping to USA.
Estimated Time of Arrival: within 3-8 working days.
Warranty:
1.Customers have the right to request a return within 60 days from the date of product receipt.
2.At Itopteng, we offer prompt customer service to assist with product usage inquiries and facilitate returns or refunds.
