100% Brand New and High Quality.
Shape/Color: Same as the picture show

Specifications:
1. Material: Chisel tool steel
2. Crimping force: 10T
3. Rotation: 180°
4. Crimping dies: 10,16, 25, 35, 50, 70, 95, 120mm² (After heat treatment and blackening process, the Black Dies comes with steel stamp, which has higher hardness and can easily identify the Dies model)
5. Size: Approx. 45 x 19.5 x 9cm / 17.7 x 7.7 x 3.5inch
6. Weight: Approx. 4.5KG

Operation Manual

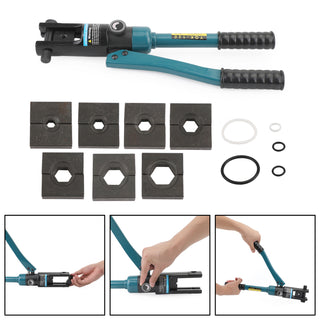

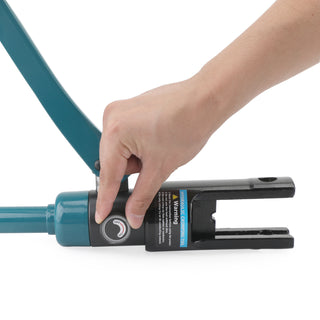

Turn moveable handle to drive plunger work. Then oil pressure lifts,Big plunger push slightly crimping die ahead until two pieces of dies touch(Don't impose more pressure. Otherwise parts inside would be damaged.).If fitted with safety unit,the safe unit inside would release pressure automatically.when pressure reach to preset limit. Then undo oil return switch. The piston automatically reset. The step 1 finishes. The step 2 is by analogy with Step1. It is normal that there is little oil appearing from plunger and big piston in Operation.

Package Included:

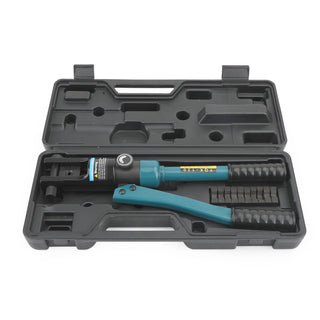

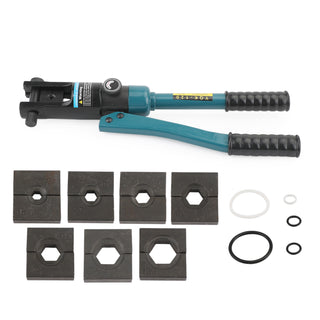

1 x Hydraulic Crimper
8 Pairs x Crimping Dies(The product has been improved: Black Dies is thickened and upgraded,high hardness and more durable)
1 x Positive Die Positioning Pin
1 x Strong Protective Storage Carry Case
1 x Sealing Ring
