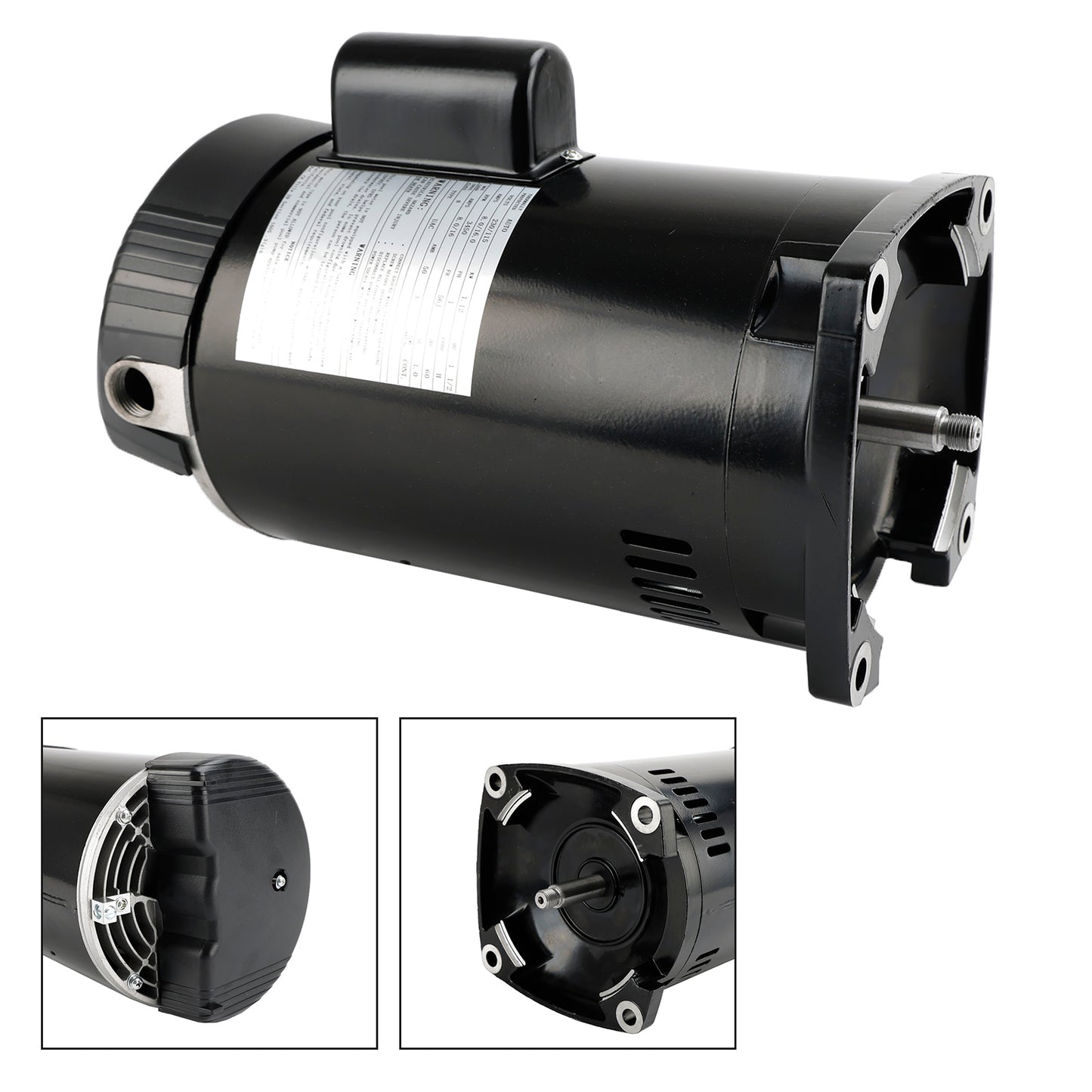

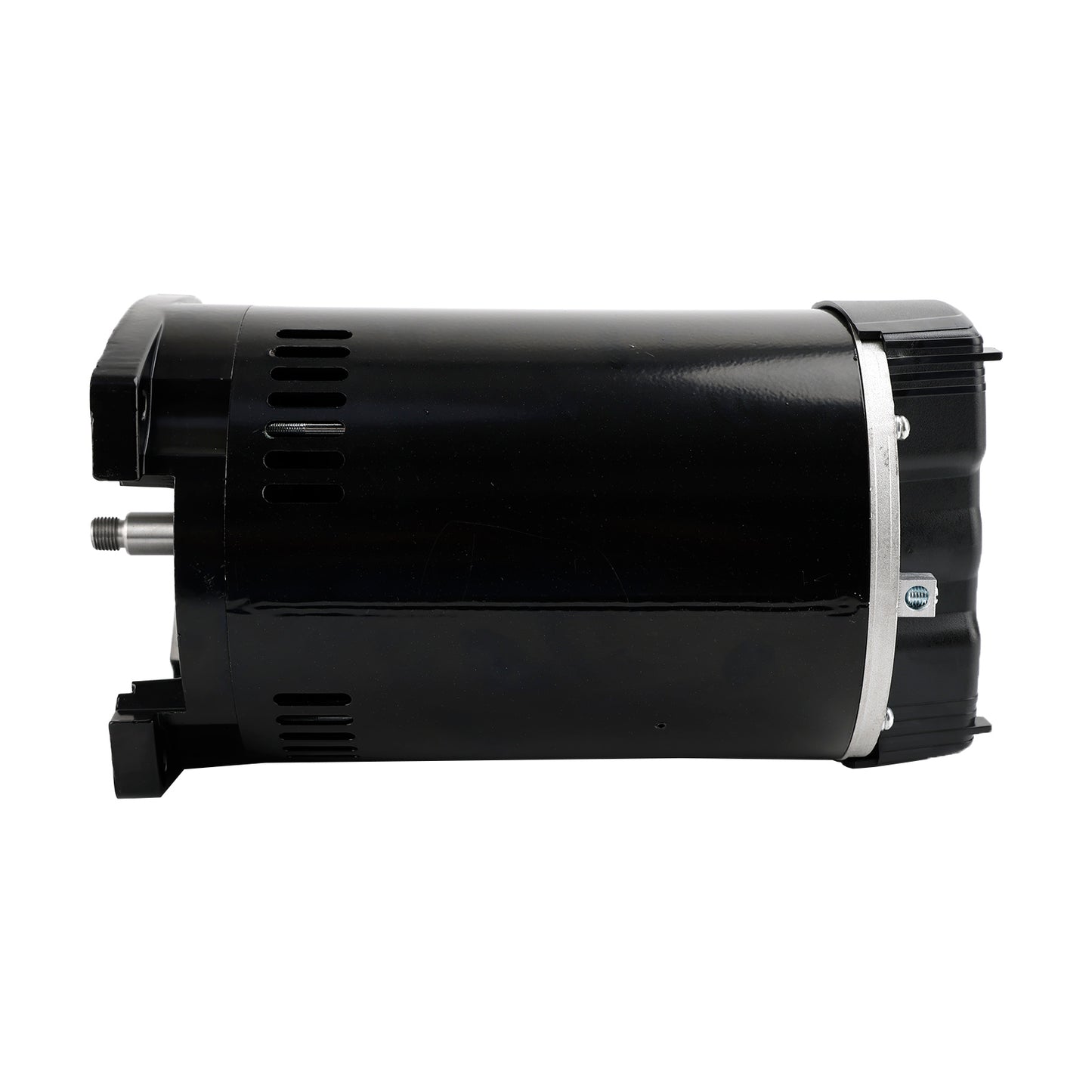

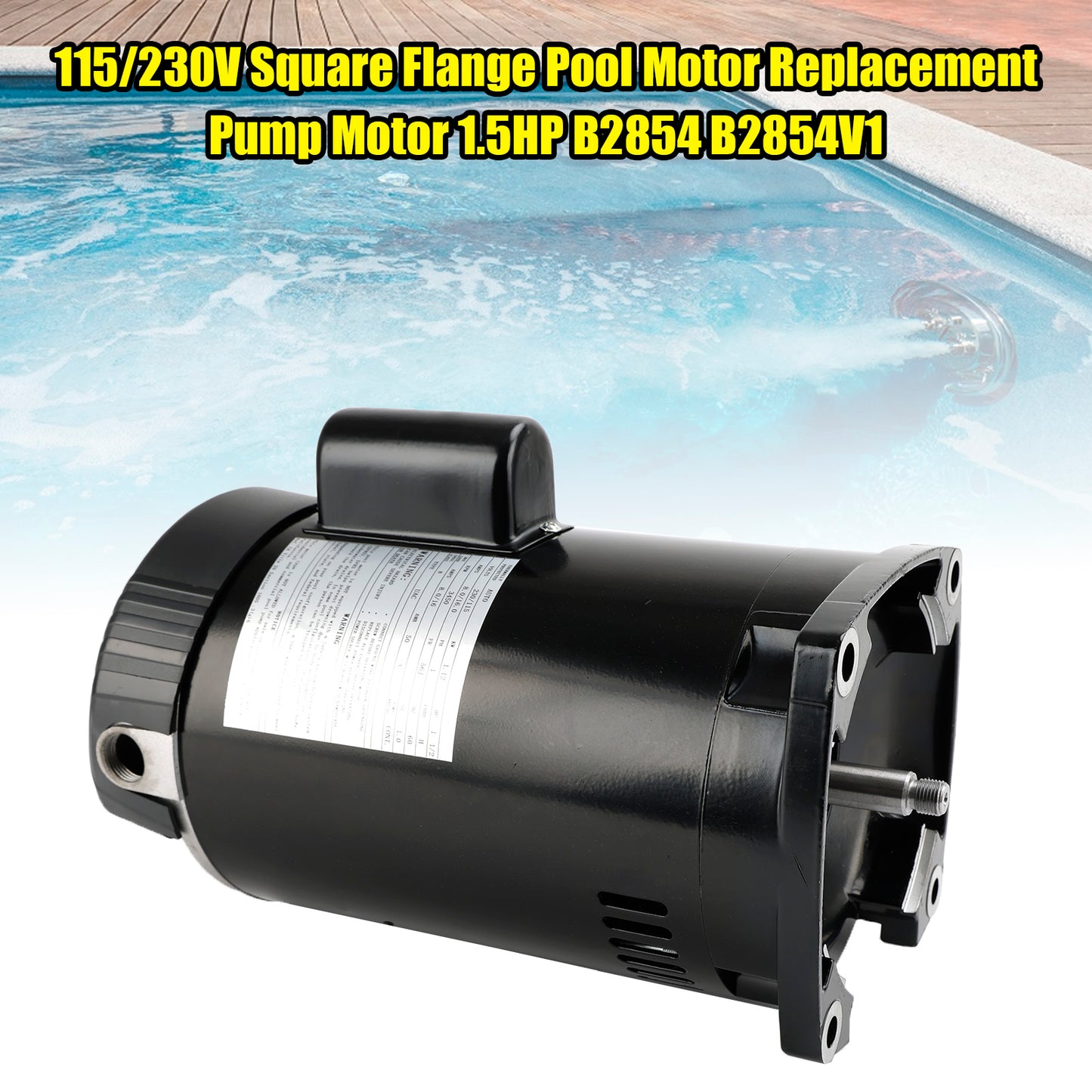

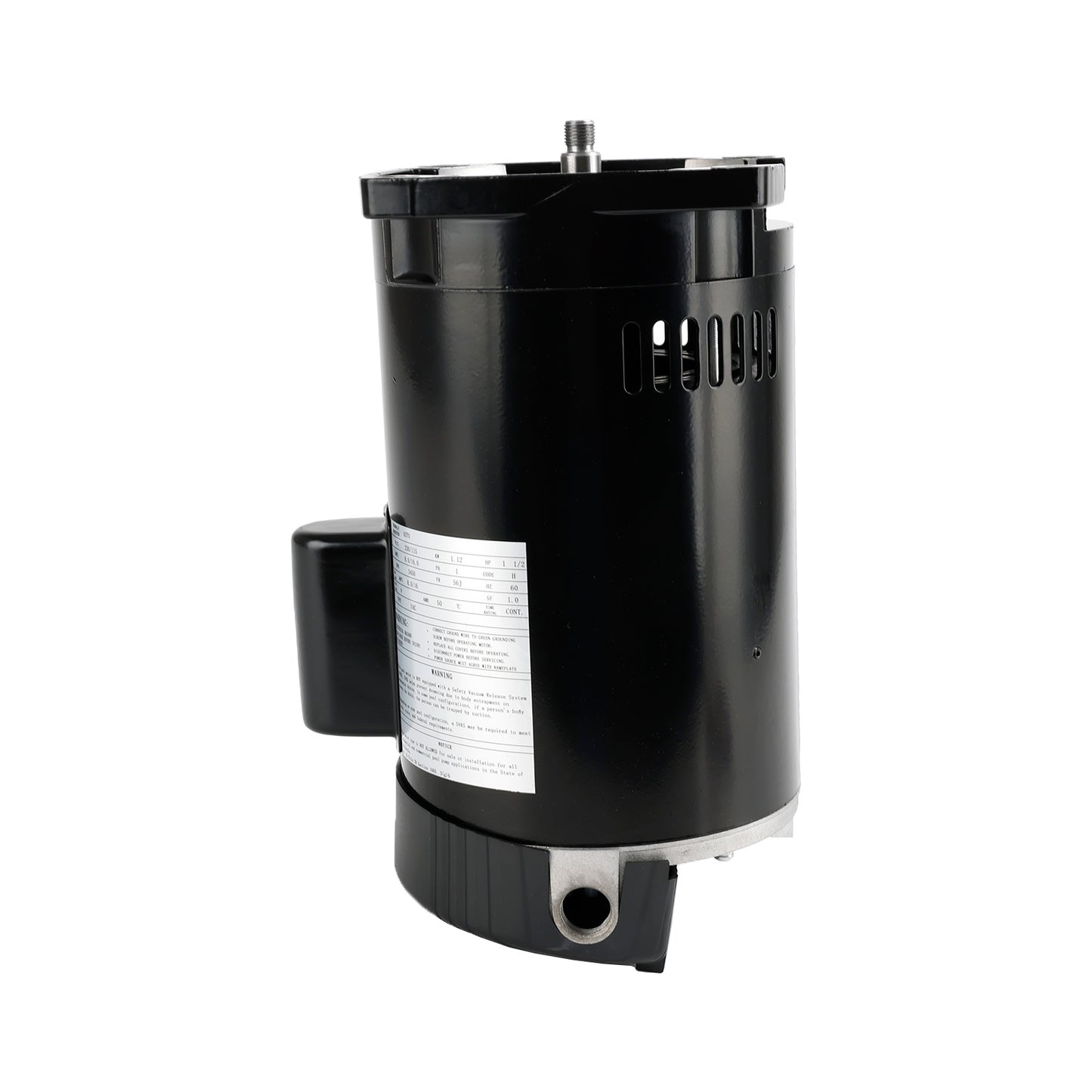

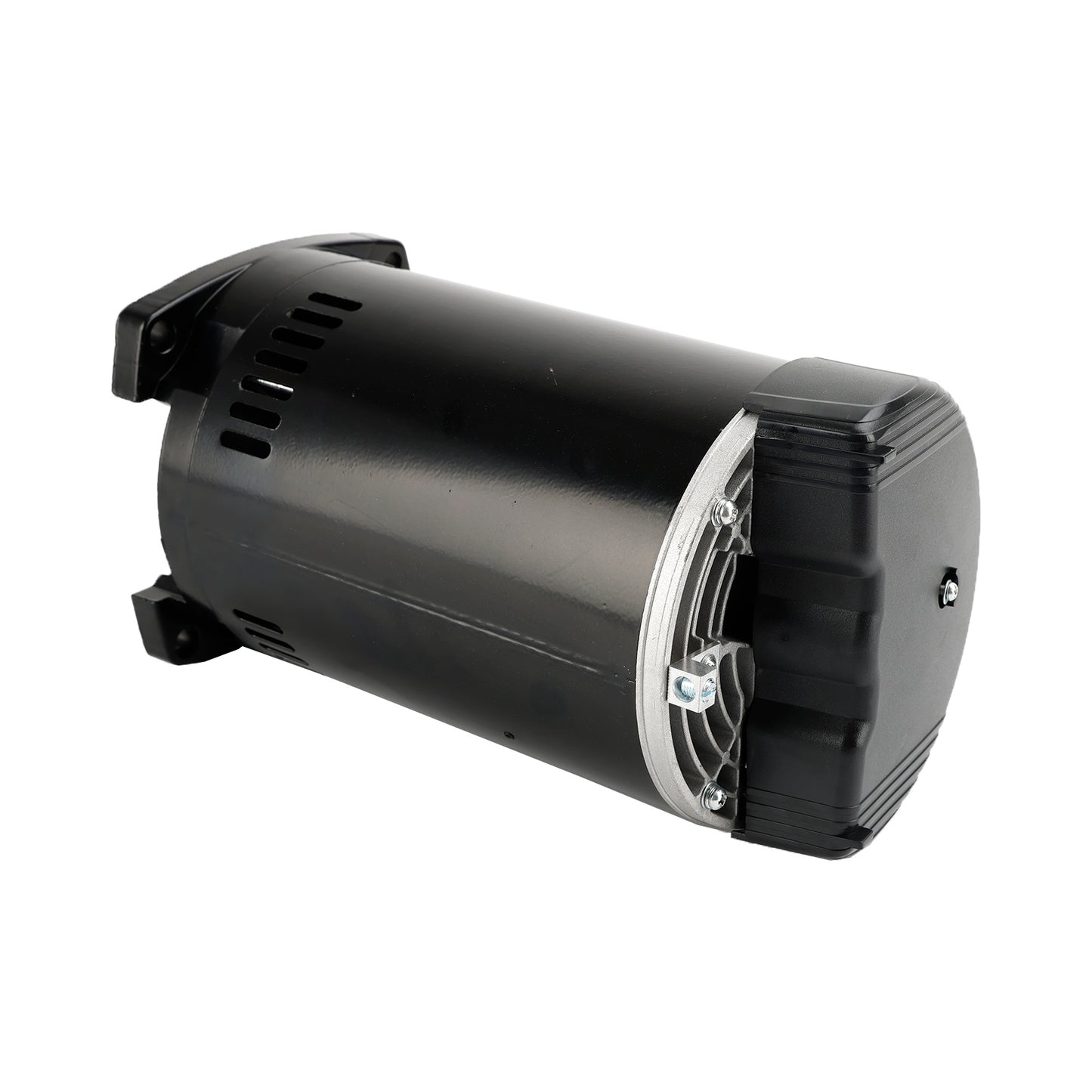

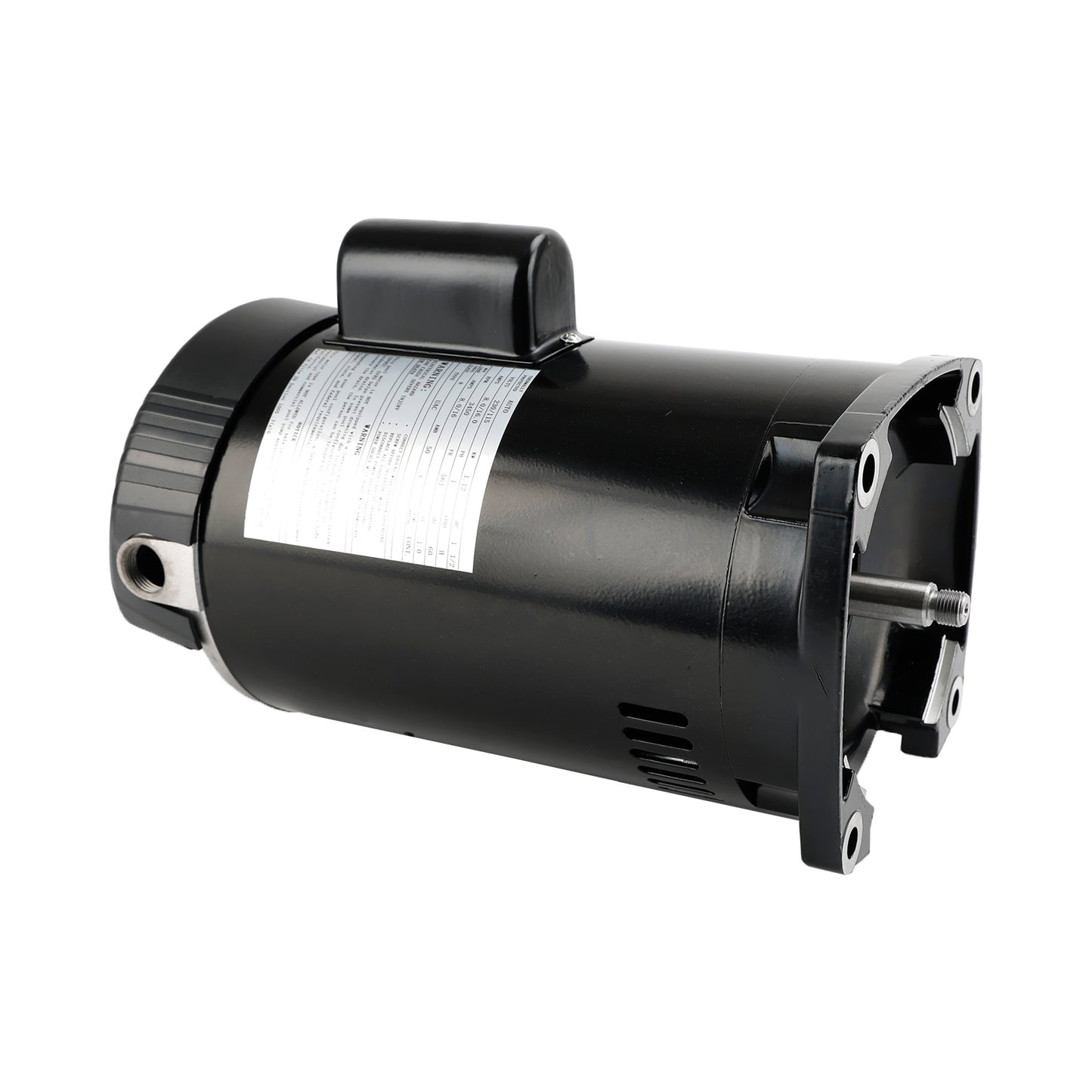

115/230V Square Flange Pool Motor Replacement Pump Motor 1.5HP B2854 B2854V1
115/230V Square Flange Pool Motor Replacement Pump Motor 1.5HP B2854 B2854V1
SKU:H103-A007
115/230V Square Flange Pool Motor Replacement Pump Motor 1.5HP B2854 B2854V1

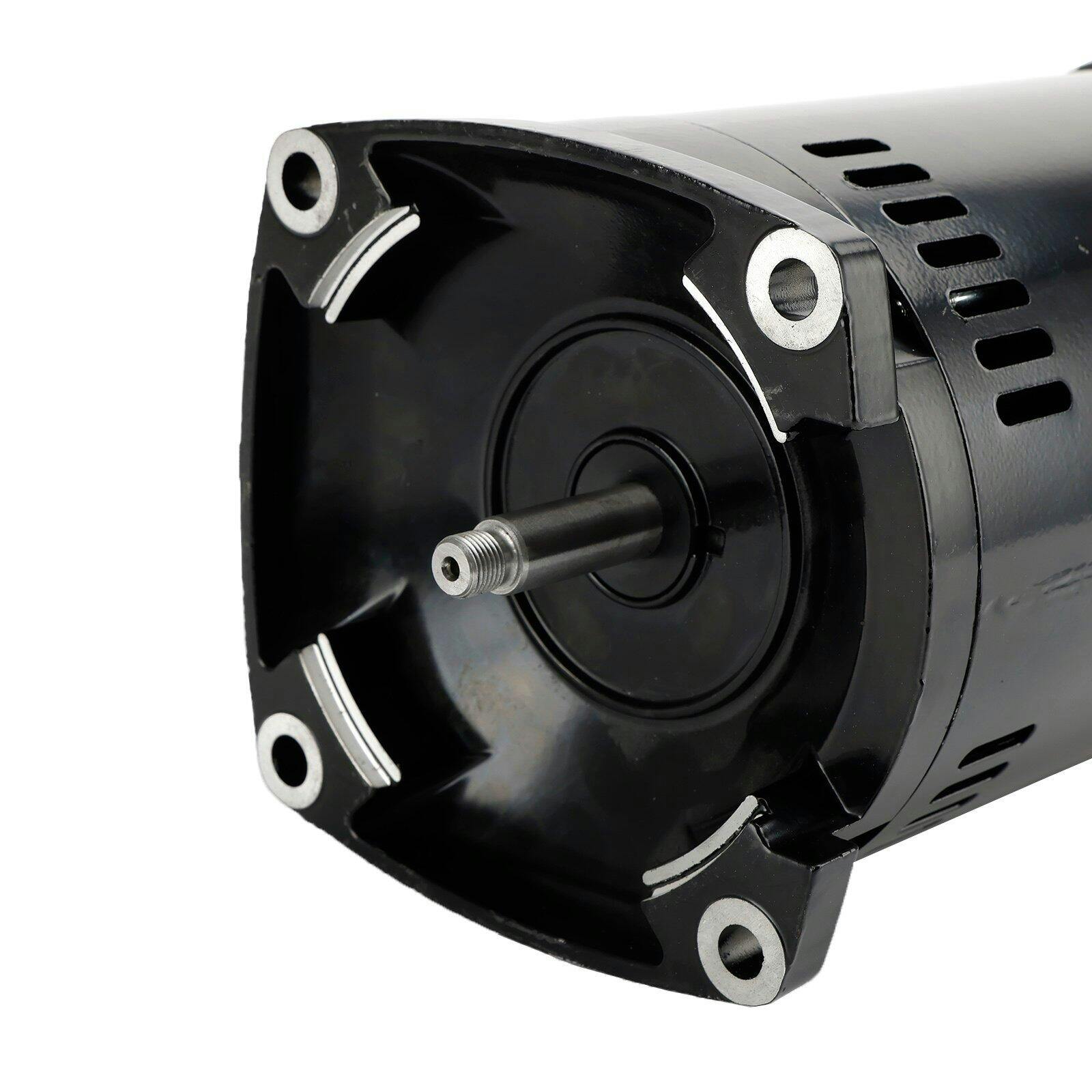

Square Mounting flange has 4 non-threaded bolt holes
Shaft is 5/8" diameter with threads on end
All electric motors listed are 60HZ single phase • with Automatic Overload Protection
Service Factor = SF • Ball Bearings
Motors with dual voltage are shipped wired for 220 volts
1081 Duty
Electric Motors with dual voltage are normally shipped wired for 220 volts
It is your responsibility to verify the voltage connection before applying power to the motor
Motor does not have switches or power cord
1.5 HP 3450 RPM, 16.0/8.0 amps, 115/230V 60hz.
Automatic Overload Protection - Service Factor 1.10
Non-Reversible - CCW Rotation facing the shaft
Open Drip Proof - Ball Bearings

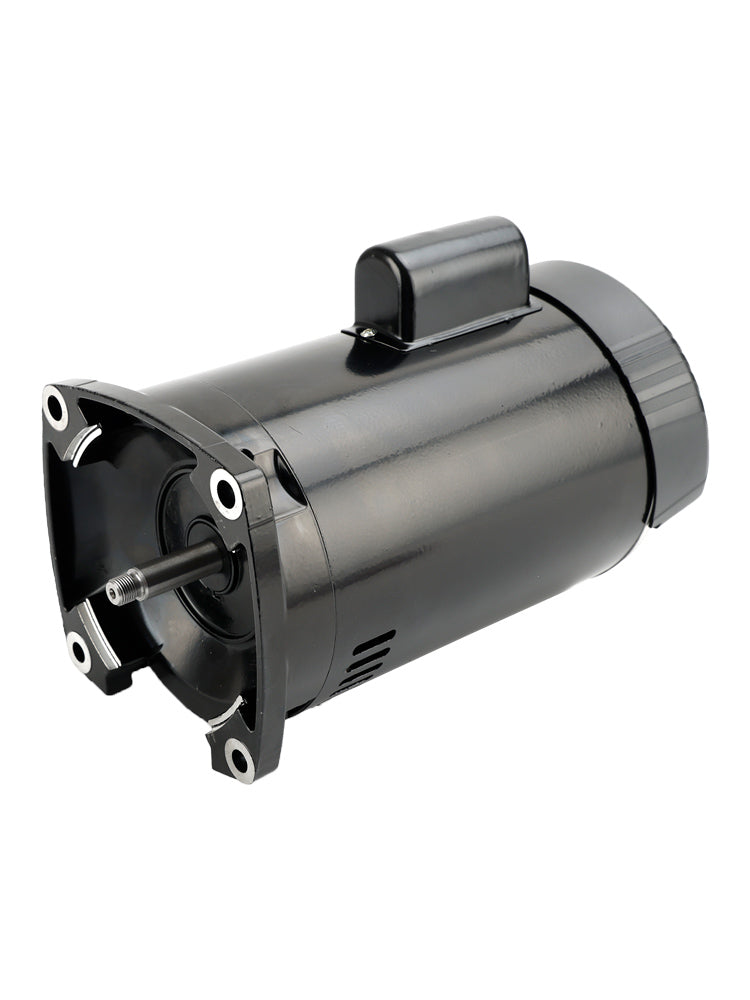

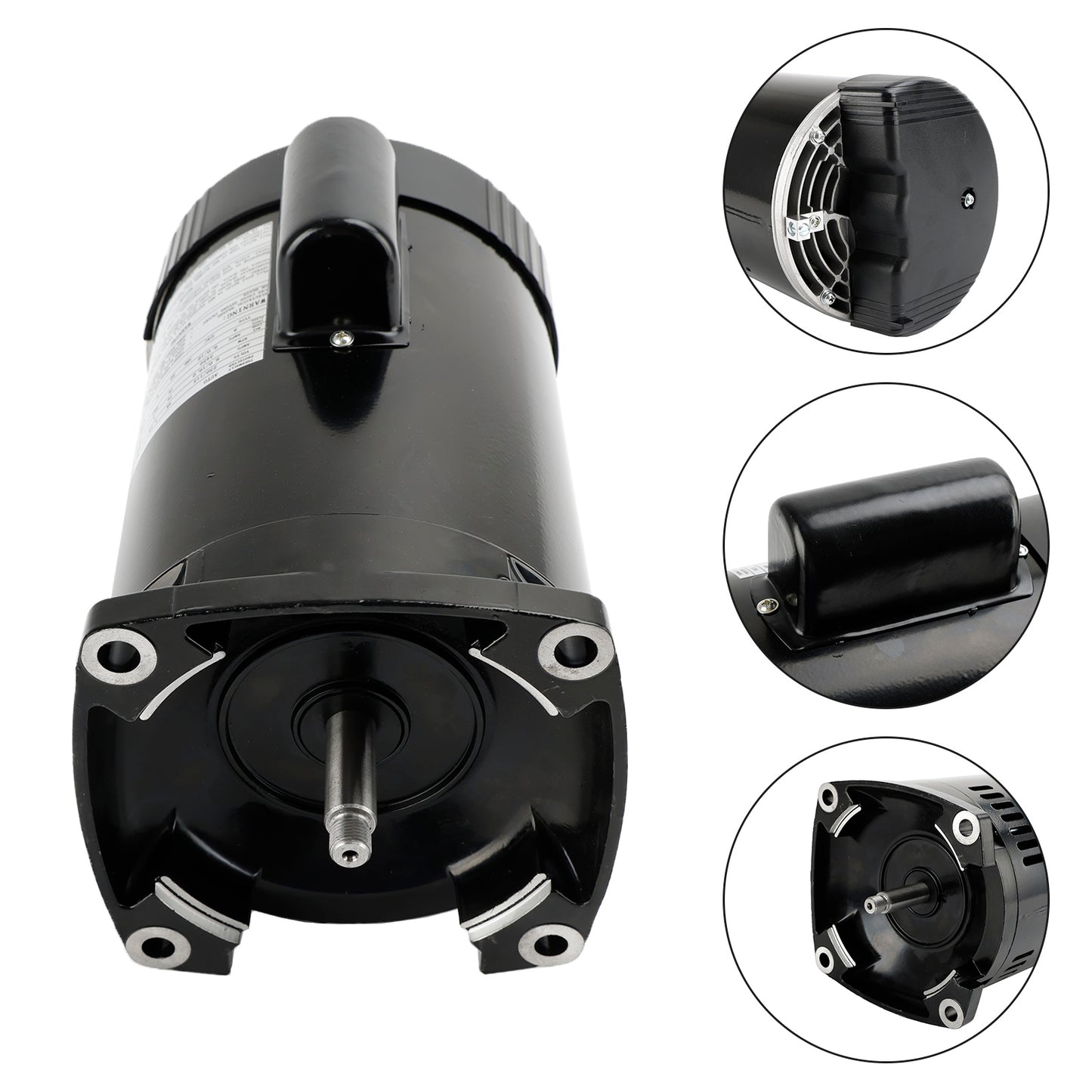

56Y Frame-Square Flange; 5/8" diameter threaded stainless steel shaft
56Y Square Flange replacement pool motor.
Motor has a square type flange for mounting the pump. 4 non-threaded bolts holes in flange.
Motor is found on many in ground pool pumps such as PacFab Challenger, Whisperflo, Pentair.
Replaces Century/AO Smith B854, B2854, F56C20Z01, F56AA40A01, 7-F56AA40A01-24
