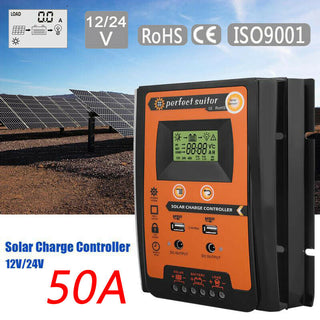

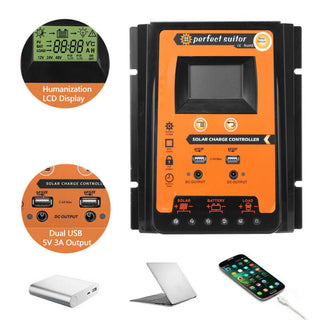

12/24V 50A Solar Charge Controller Panel Battery Regulator Dual USB
Specification:
Material: Plastic
Model: PVSC50A
Voltage: 12/24V
Current: 50A
Max PV Voltage: 50V

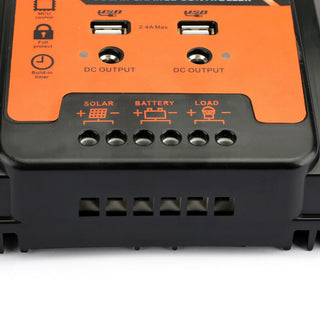

USB Output: 2.4A × 2
Over Charge Current: 13.7V / 24V
Over Discharge Current: 10.5–11V / 24V
Temperature Compensation: −3mV/℃/cell
Empty Load Wastage: <45mA
Loop Voltage Drop: <200mV
Display: LCD Display
Size: 21 × 19.2 × 4cm (50A)

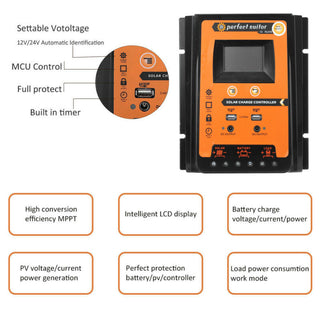

Features:
- LCD Display for real-time monitoring
- PWM Battery Charging technology

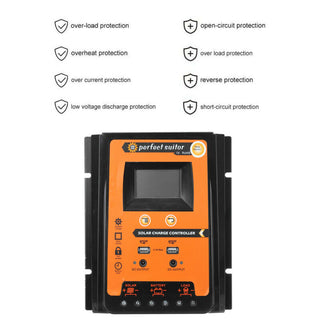

- Comprehensive protection systems included
- Automatic 12/24V voltage detection and adaptation
- Adjustable control parameters for multiple battery types
- Selectable load control modes with timer function for street lighting
- Automatic recovery from overcurrent and short-circuit protection
- Three-stage intelligent control: bulk charge, constant current, and floating
- Accurate temperature compensation for extended battery life
Important Note:
This controller is designed exclusively for lead-acid batteries. As a basic, budget-friendly model, it does not include advanced multifunctional features. Please review specifications carefully before purchase.
Package Included:
- 1 × Solar Charge Controller
Usage Instructions:
The controller protects against voltage overshoot and overdischarge. When battery voltage drops critically, output stops automatically; it resumes after solar charging restores the battery to 12.6V (recovery threshold).
Standard operating voltage range: 10.7V–13.7V (adjustable manually).
To Adjust Float Voltage to 13.7V:

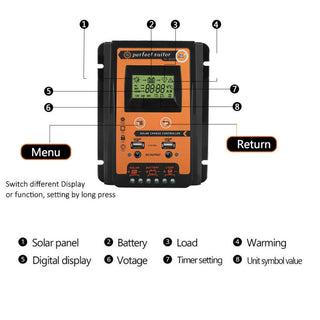

- Press the MCU control button for 3–4 seconds until the management interface appears
- Press the on-screen add button repeatedly until voltage reaches 13.7V
- Press the MCU control button again to save settings when the display stops flickering
