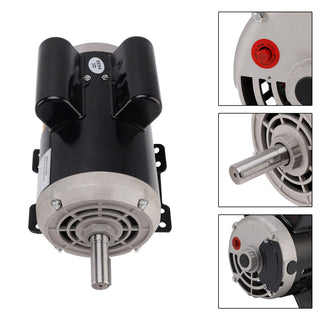

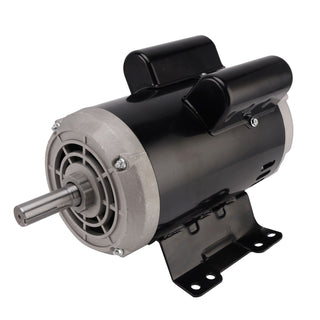

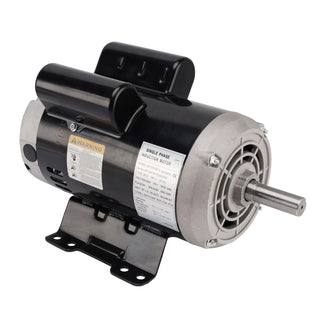

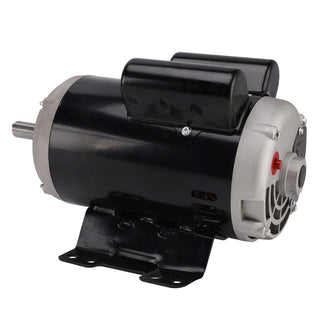

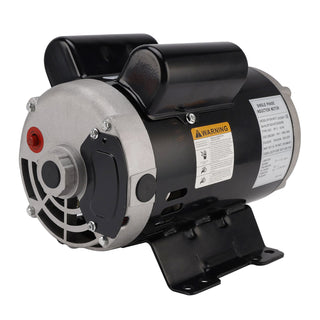

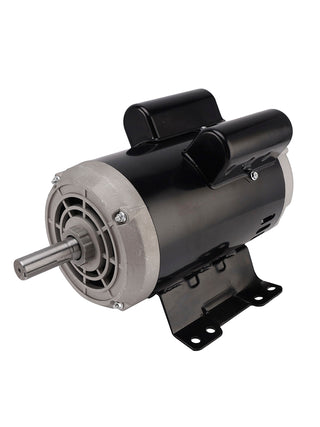

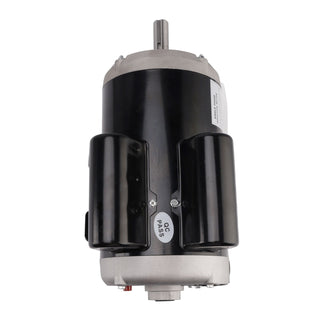

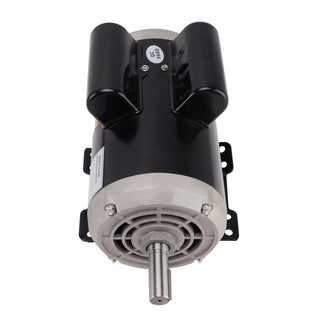

23378805 54421193 5HP Air Compressor Motor For Ingersoll Rand 230V 3450 Rpm

Feature:
1: Made of high quality material, durable and practical to use.
2: High Performance,Long Working Life.
3: Easy installation and removal.
4: Professional install will be highly recommend,Installation instruction not included.
5: Before purchasing, please carefully check the OEM part number and illustrations to make sure it is compatible with your model.

Specifics:
Condition: 100% Brand New
Type: Air Compressor Motor
Quantity: 1pc
Fitment Type: Direct Replacement
Replacement Part Number: 56283138，23378805，23220064，54421193
Power: 5 HP
FLA: 24.9
SFA: 27.3
RPM: 3450
Frame: 184T

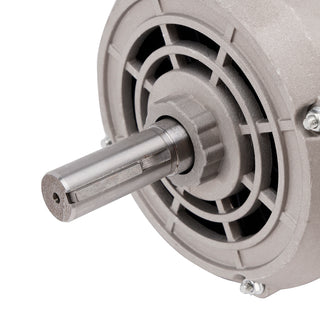

Shaft Size: 7/8" x 2 1/4" with Keyway
Shaft height: 4.5" (Measured to Shaft Center)
Base: Flat Rigid Mounting Base
Voltage: 208-230V 60hz, 24.9 AMPS
Phase: Single Phase
Service Factor: 1.15
Insulation Class B
Ball Bearings
Open Drip Proof Enclosure

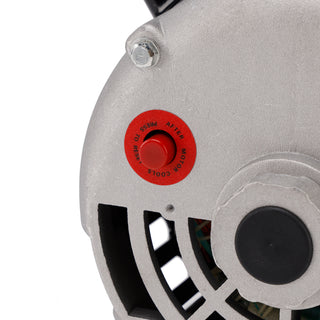

Manual Overload Protection

Note:

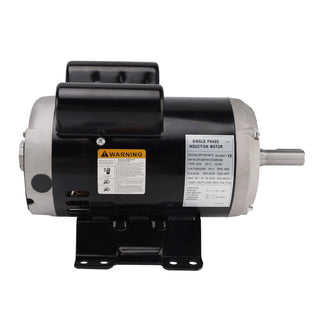

Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.
When the motor is received,
1. Turn the shaft by hand to see if the motor shaft can rotate normally.
2. Do not run with load first, run the machine for a few minutes, and then bring the load after everything is normal.
3. When running with load, it is best to use an ammeter to measure the actual running current and see if it exceeds the rating on the nameplate.

Package Included:
1 XAir Compressor Motor

Shipping:
Free Shipping
Handling time: Ship within 24 hours
Delivery Time: 3-7 business days

Warranty:
1. Condition: 100% Brand New
2. Warranty Period: 1 Years
3. 24-Hour Support: Provide you with timely after-sale support
