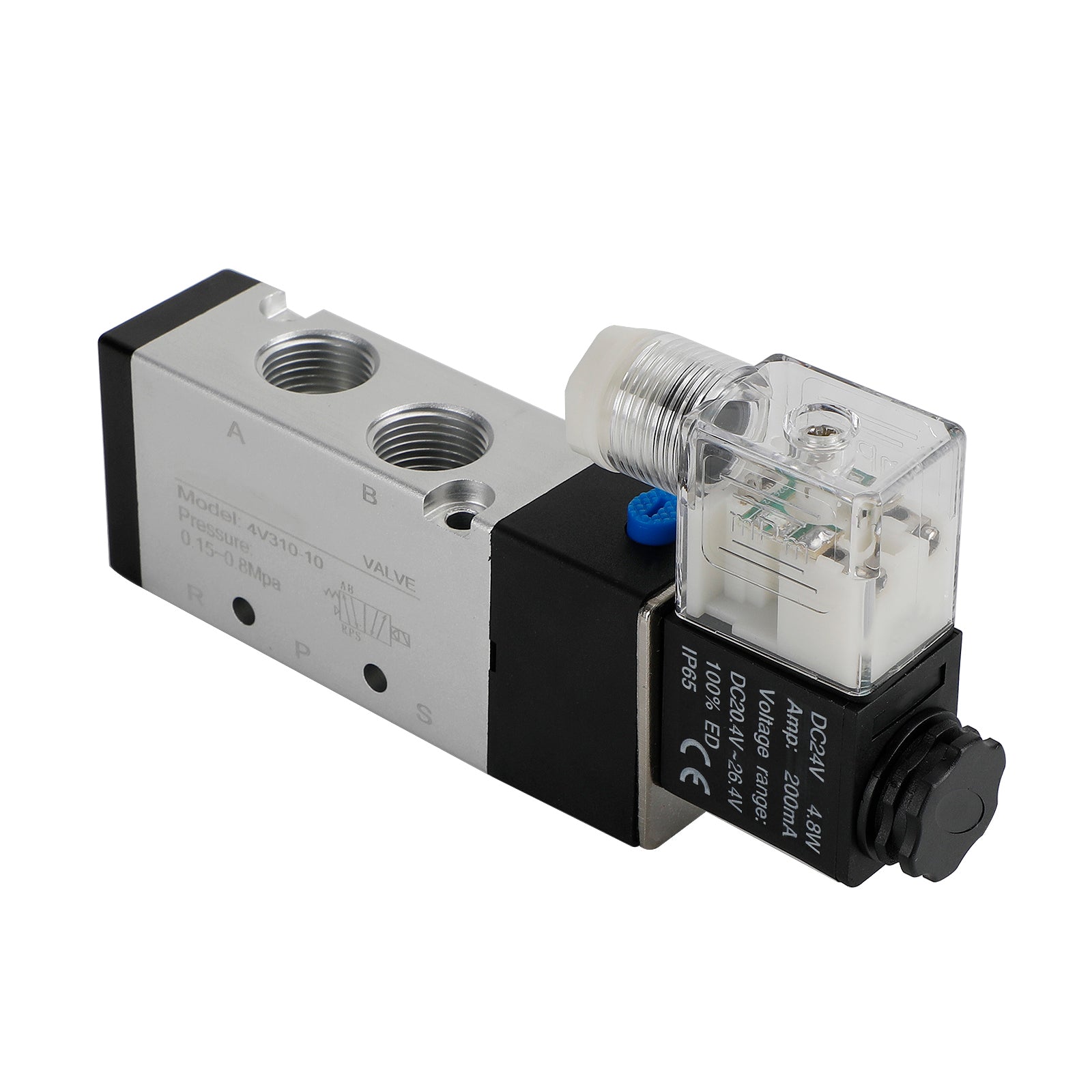

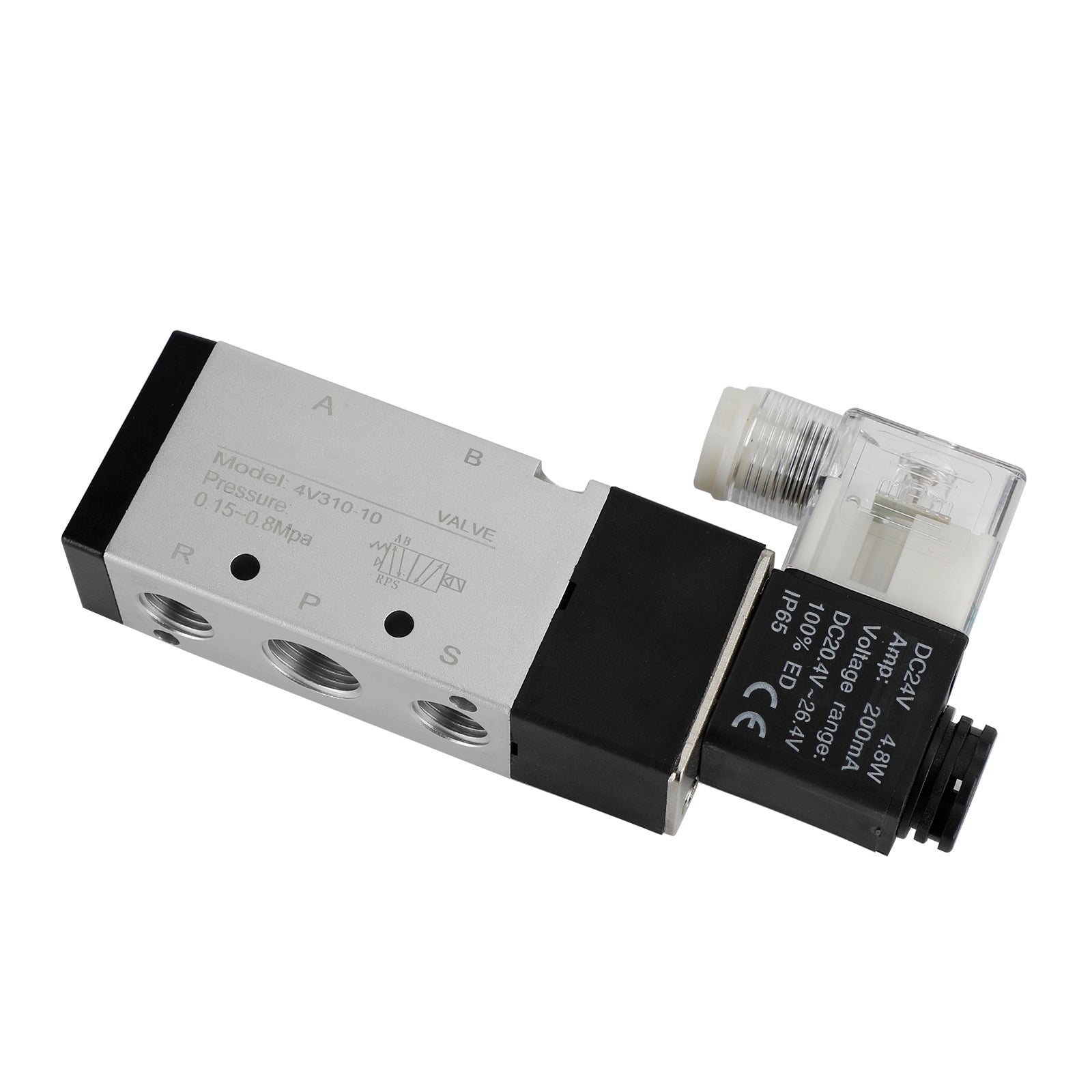

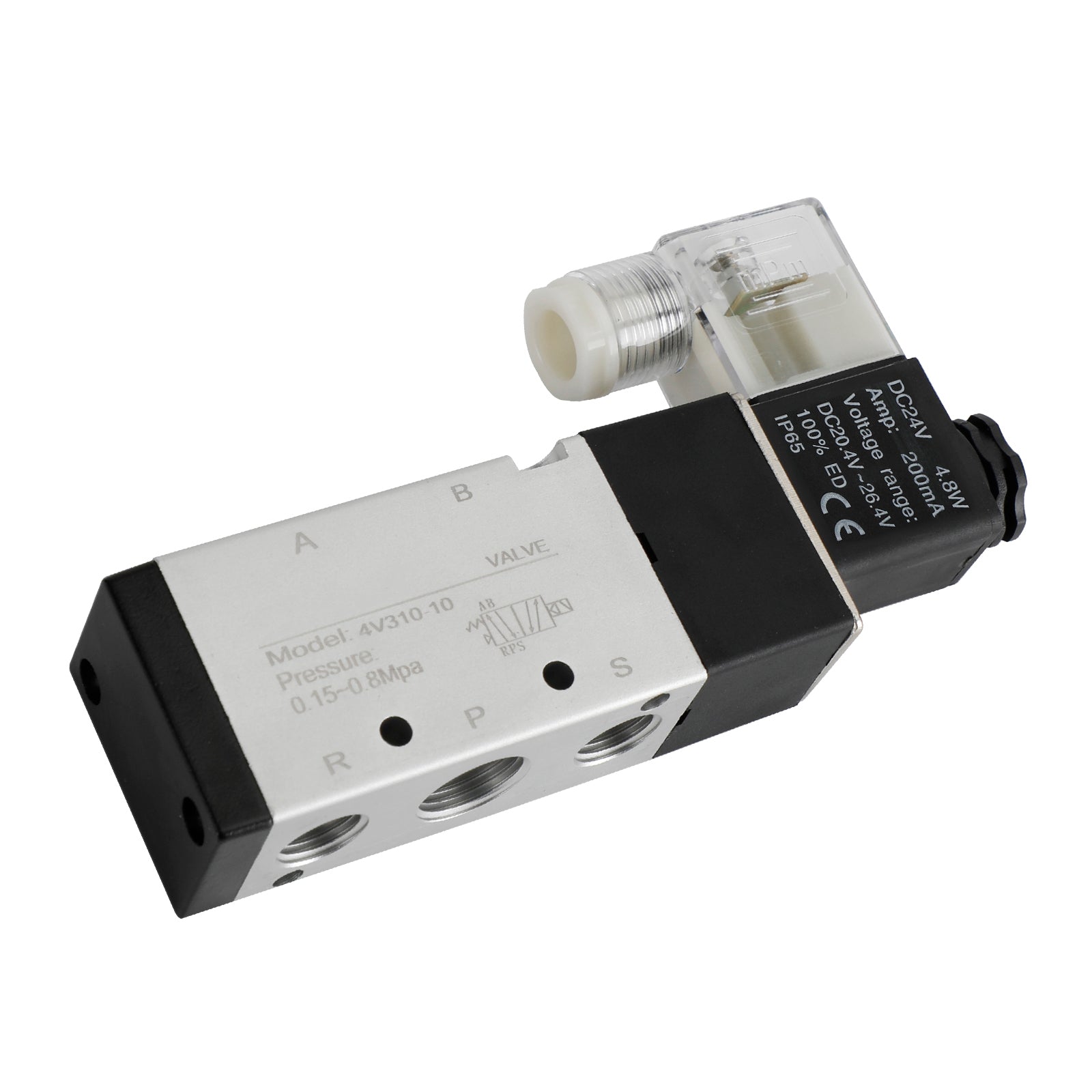

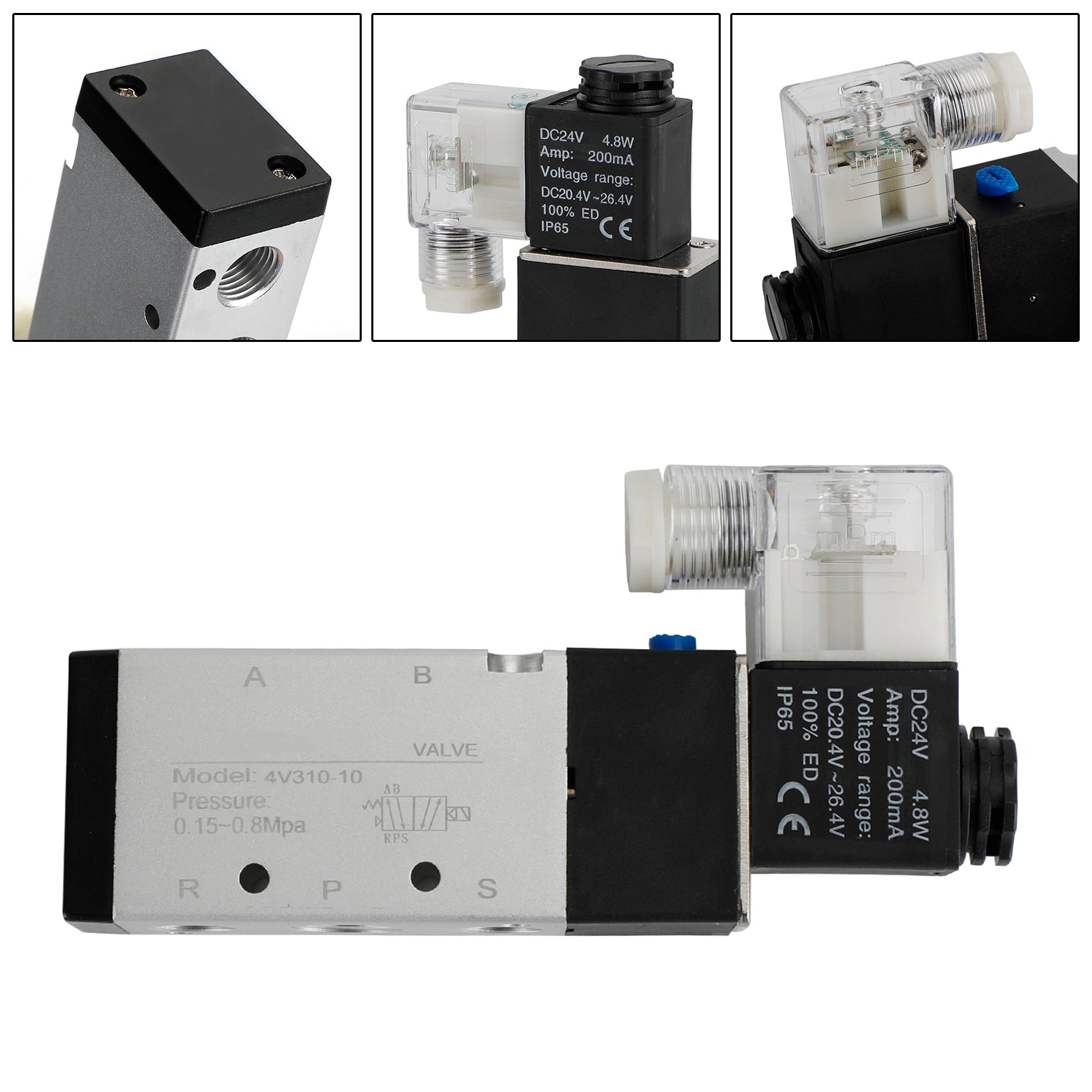

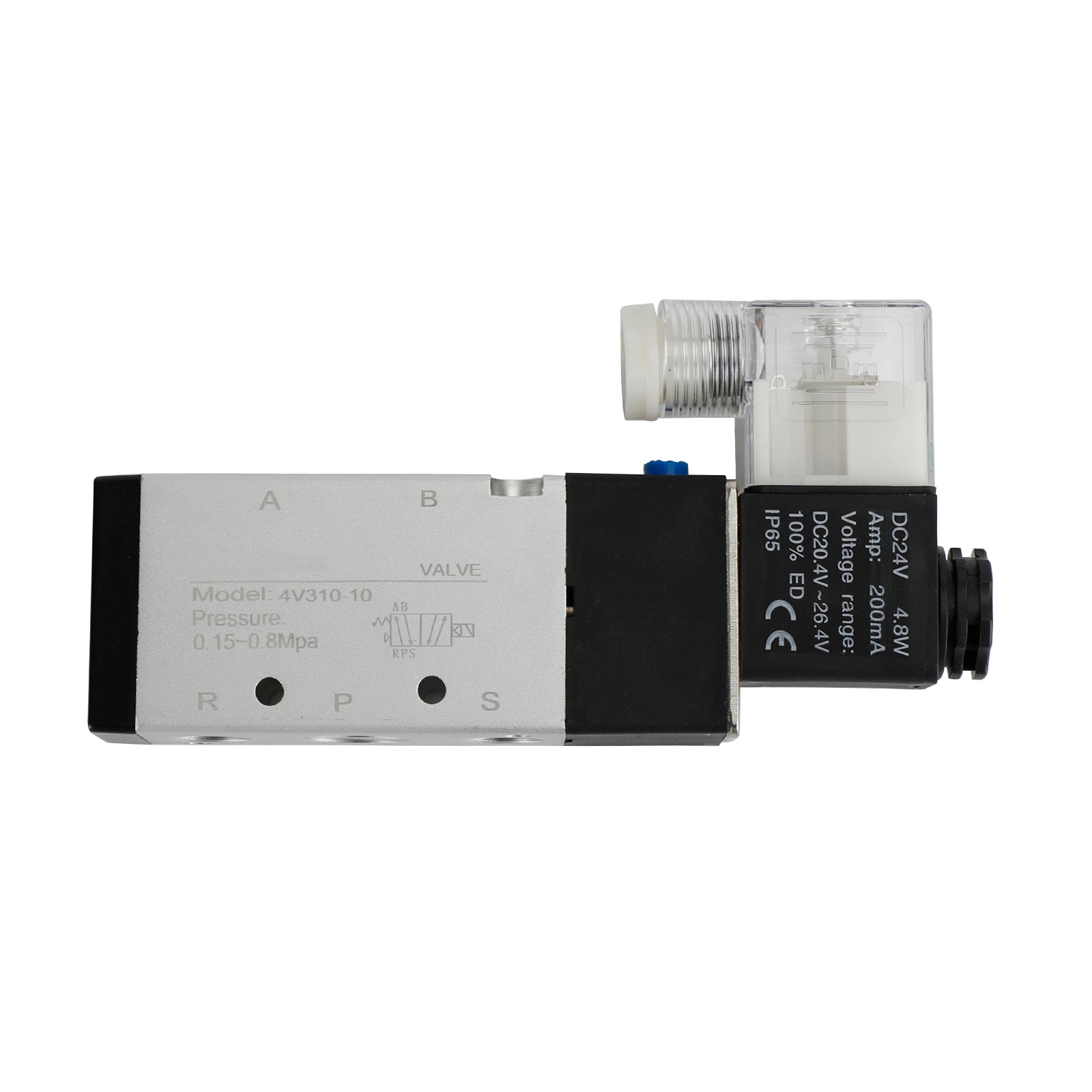

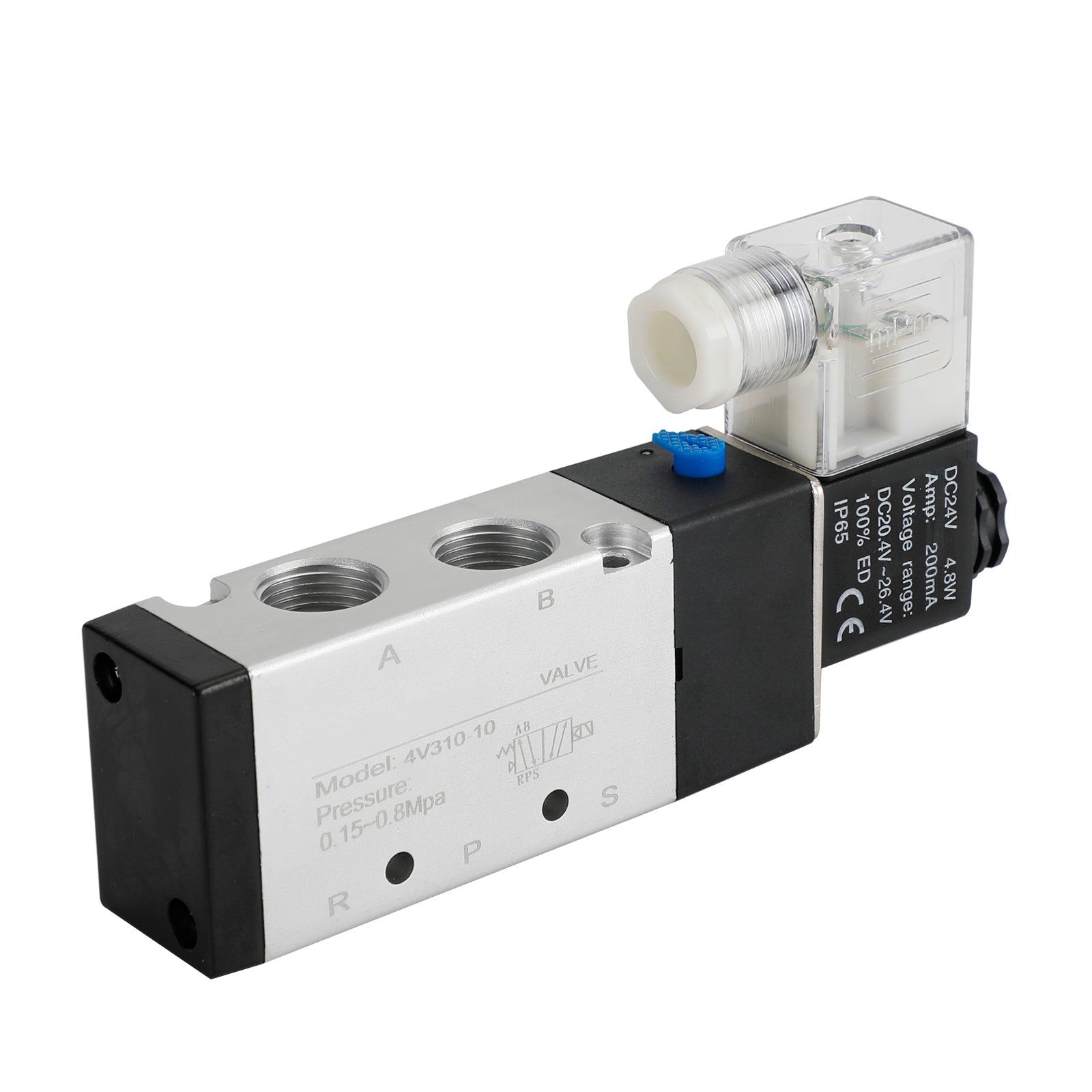

4V310-10 5 Way 2 Position PT3/8" DC 24V Pneumatic Electric Solenoid Air Valve

Specifics:
Condition: 100% Brand New
Name: Pneumatic Solenoid Valve
Model: 4V310-10
Voltage: DC 24V 4.8W
Operating Pressure : 0.15 ~ 0.8MPa
Action: Internally Piloted Acting Type
Type: 5 Port 2 position
Port Size: Air Inlet=Air Outlet=3/8" BSPT
Working pressure range: 1.5~8(kgf/cm2)
Lubrication: Not required
Material: Aluminum alloy
Insulation: F Class
Protection: IP65
Voltage range: DC20.4~26.4V
Temp. range: -5 - 60℃
Max. frequency: 7 cycles/s
Min. activate time: 0.05second

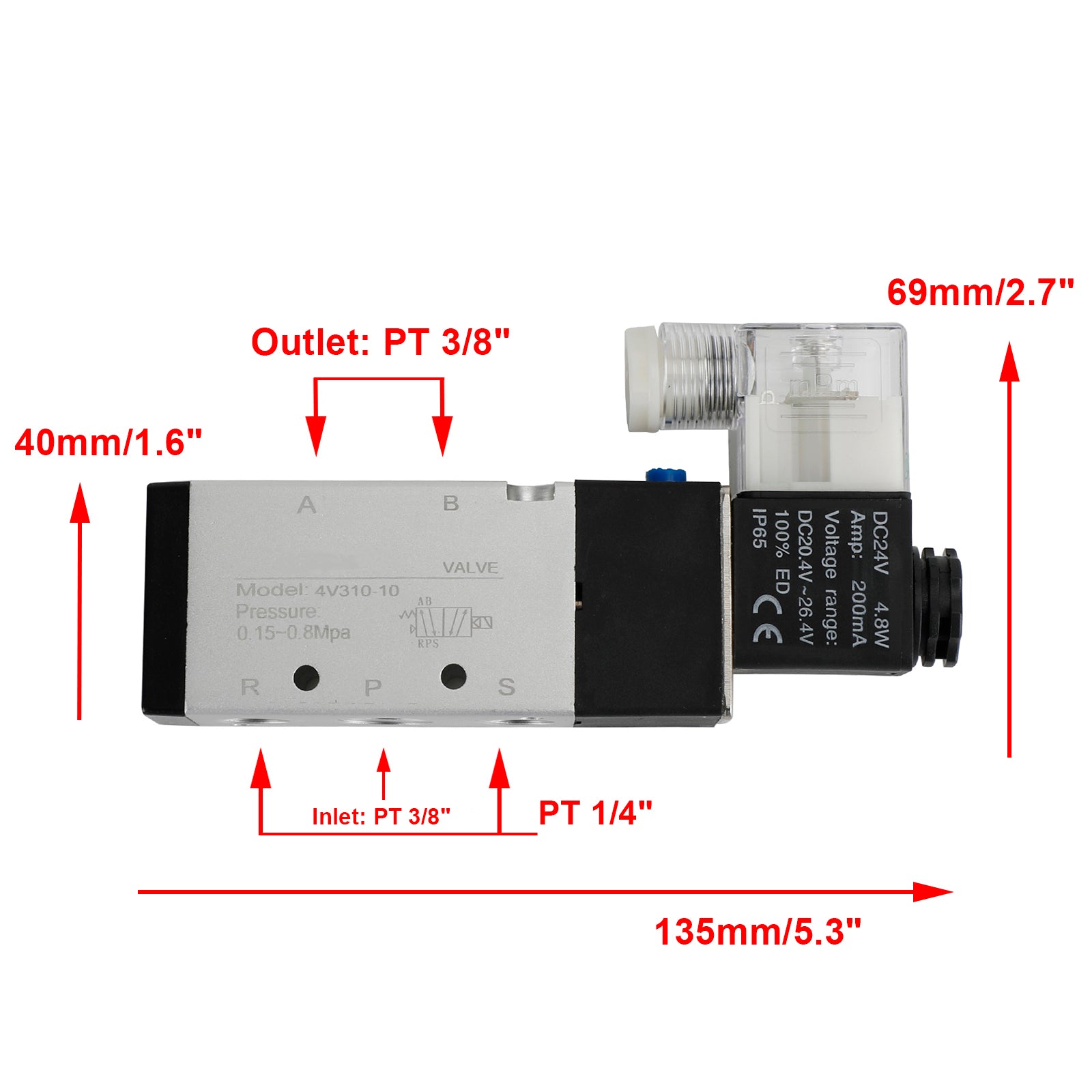

Total Size(Approx) : 13.5 x 6.9 x 4.0cm / 5.3" x 2.7" x 1.6" (L*W*H)

Note:
1.Please allow 1-5mm errors due to manual measurement.
2.Pay attention to check the components before use, whether they are damaged during transportation, and then install and use.
3.Please note that the gas flow direction and the takeover tooth type is correct installation.
4.When installing, pay special attention to whether the voltage meets the requirements. When debugging the whole machine,
it is recommended to use manual device debugging first, and then power on for debugging.

Package Included:
1 x Pneumatic Solenoid Air Valve

Shipping Information:
Free Quick Shipping to USA.
Estimated Time of Arrival: within 3-8 working days.
Warranty:
1.Customers have the right to request a return within 60 days from the date of product receipt.
2.At Itopteng, we offer prompt customer service to assist with product usage inquiries and facilitate returns or refunds.
