Digital PWM Motor Speed Controller 0~100% DC12V 24V 36V 48V Time Reversible 40A

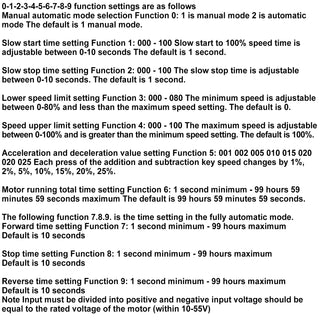

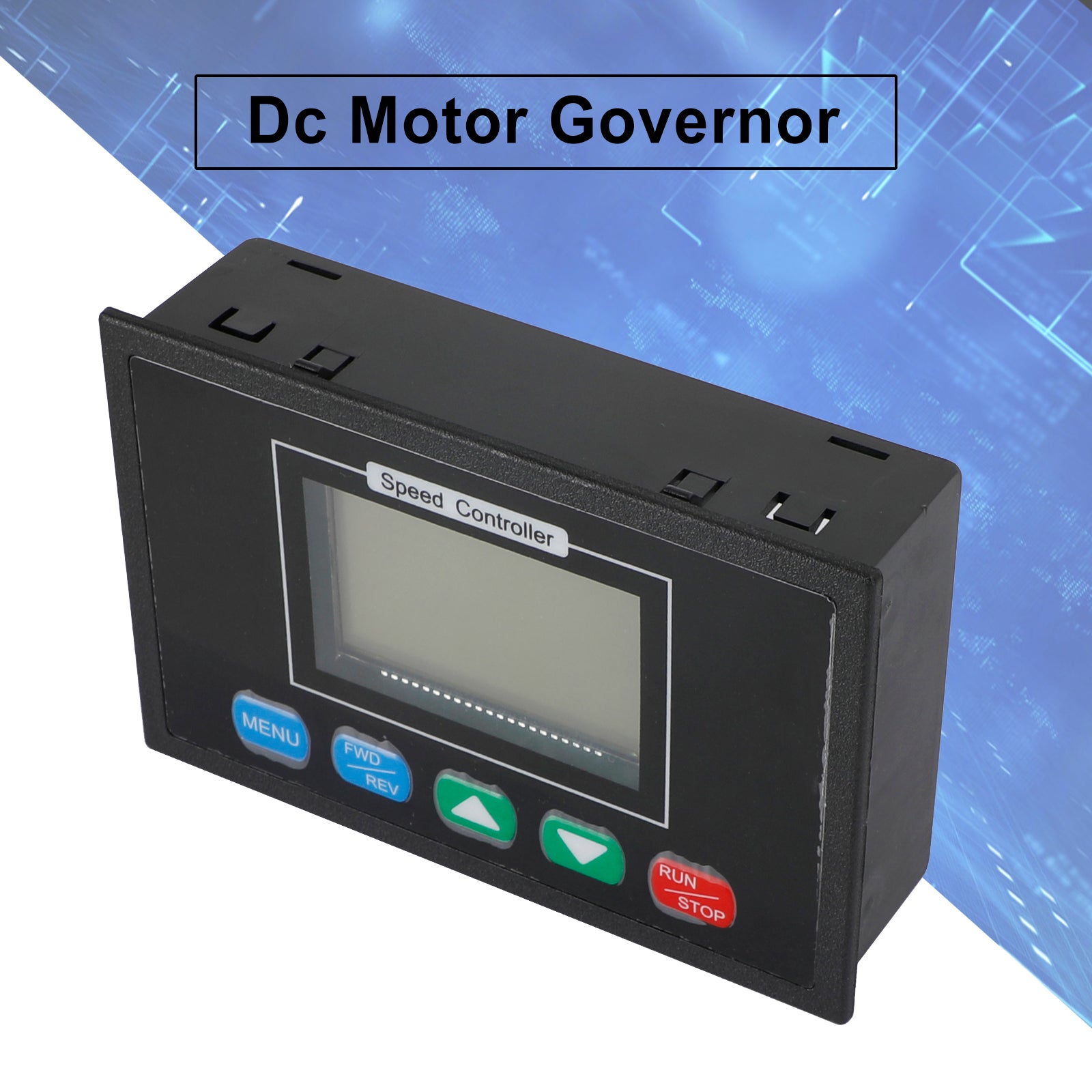

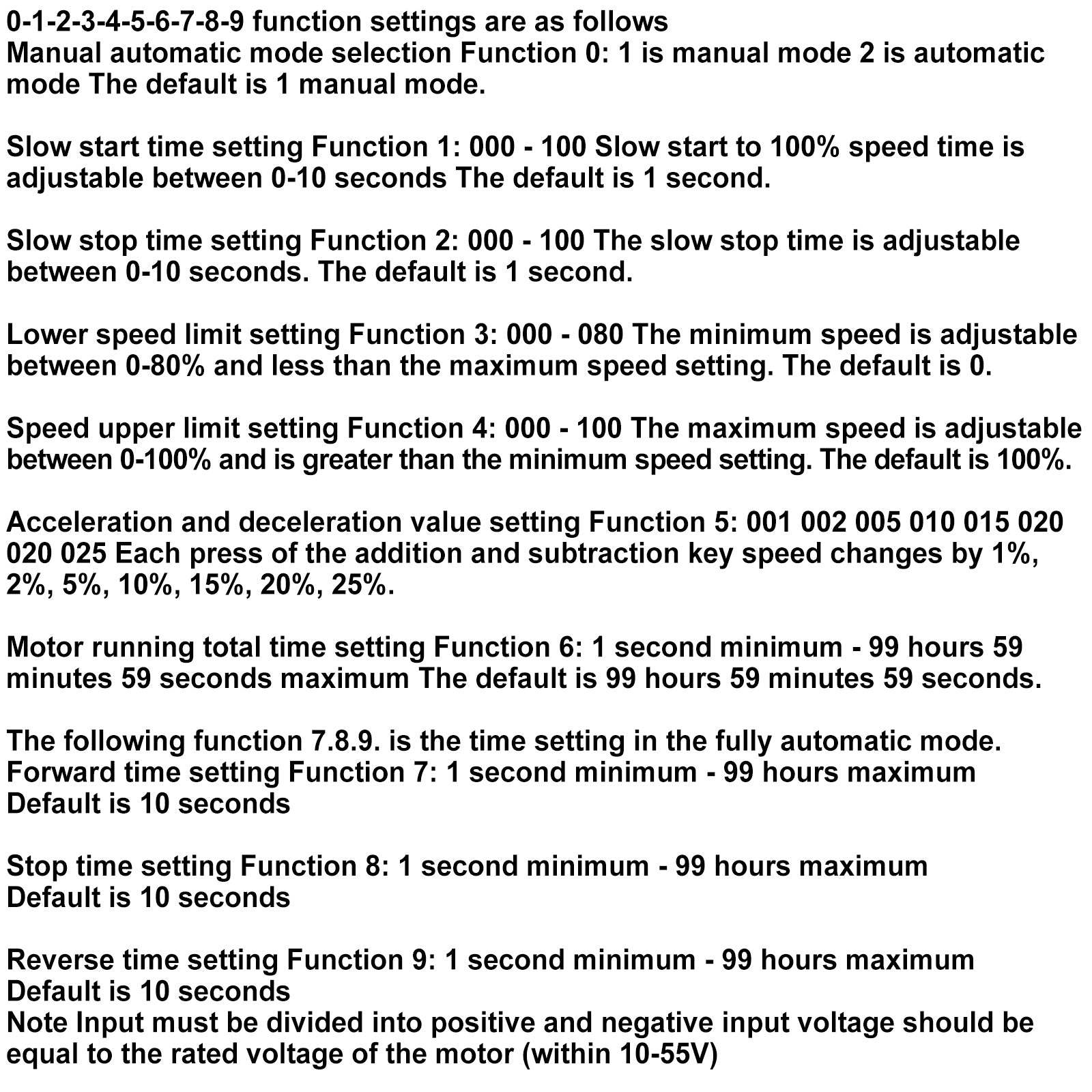

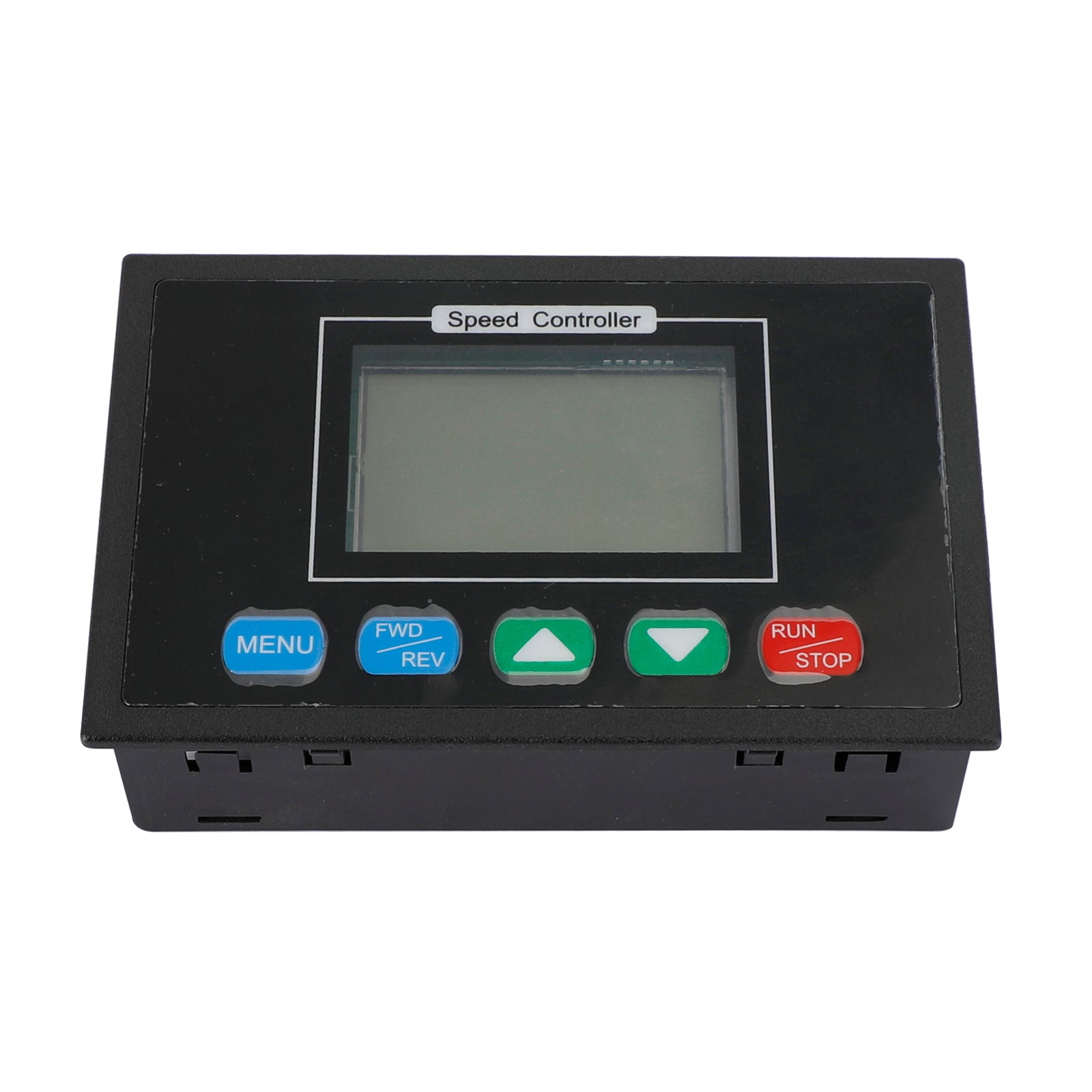

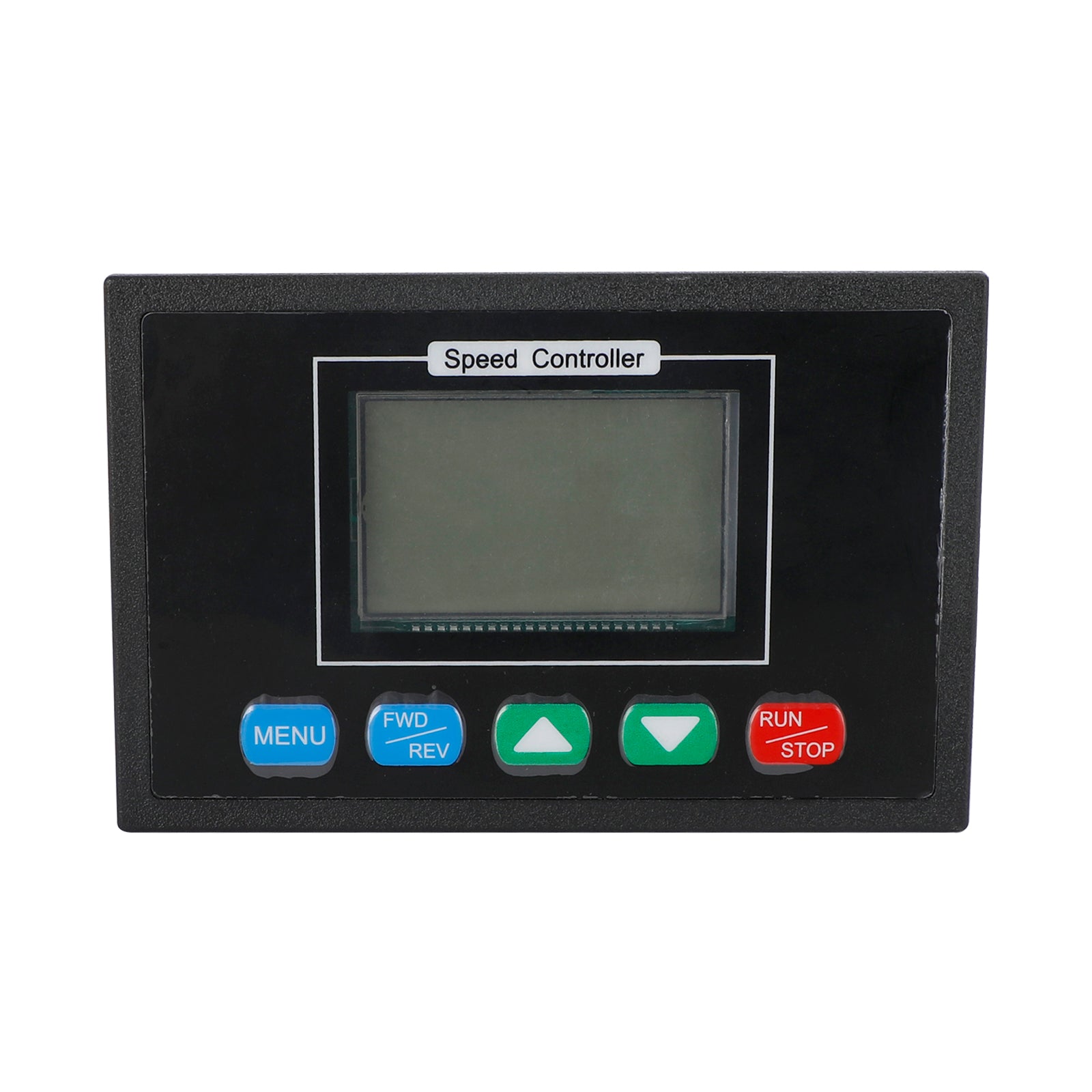

Feature: 1: Can set working time, time to point stop. 2: Intelligent dual mode manual Fully automatic two modes are available. 3: Slow start and slow down time can be set with speed upper limit lower limit setting. 4: LCD screen with backlight capable of displaying working time speed percentage current mode forward rotation reverse state. 5: Tact switch to switch forward and reverse jog acceleration and deceleration solves the problem of traditional potentiometer.

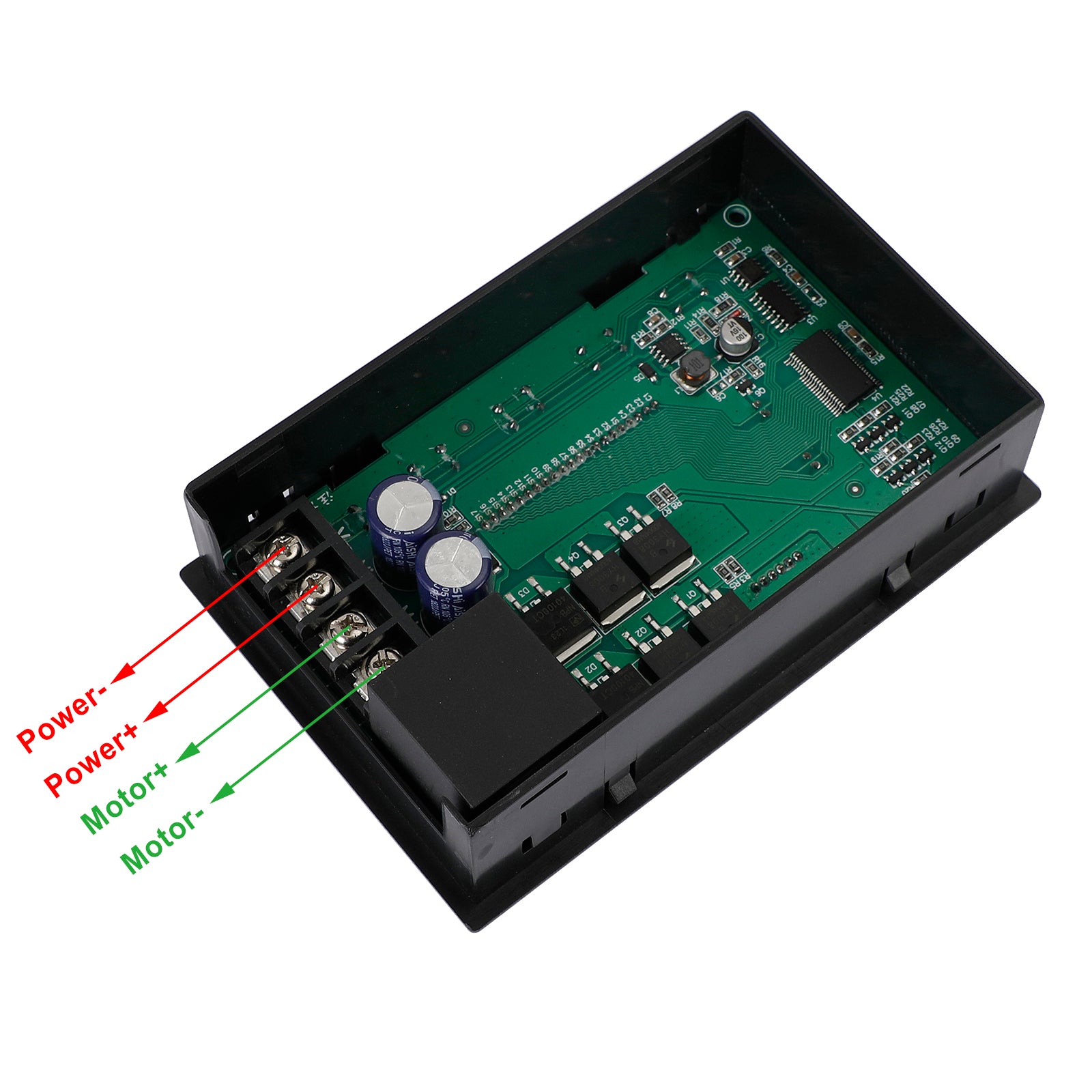

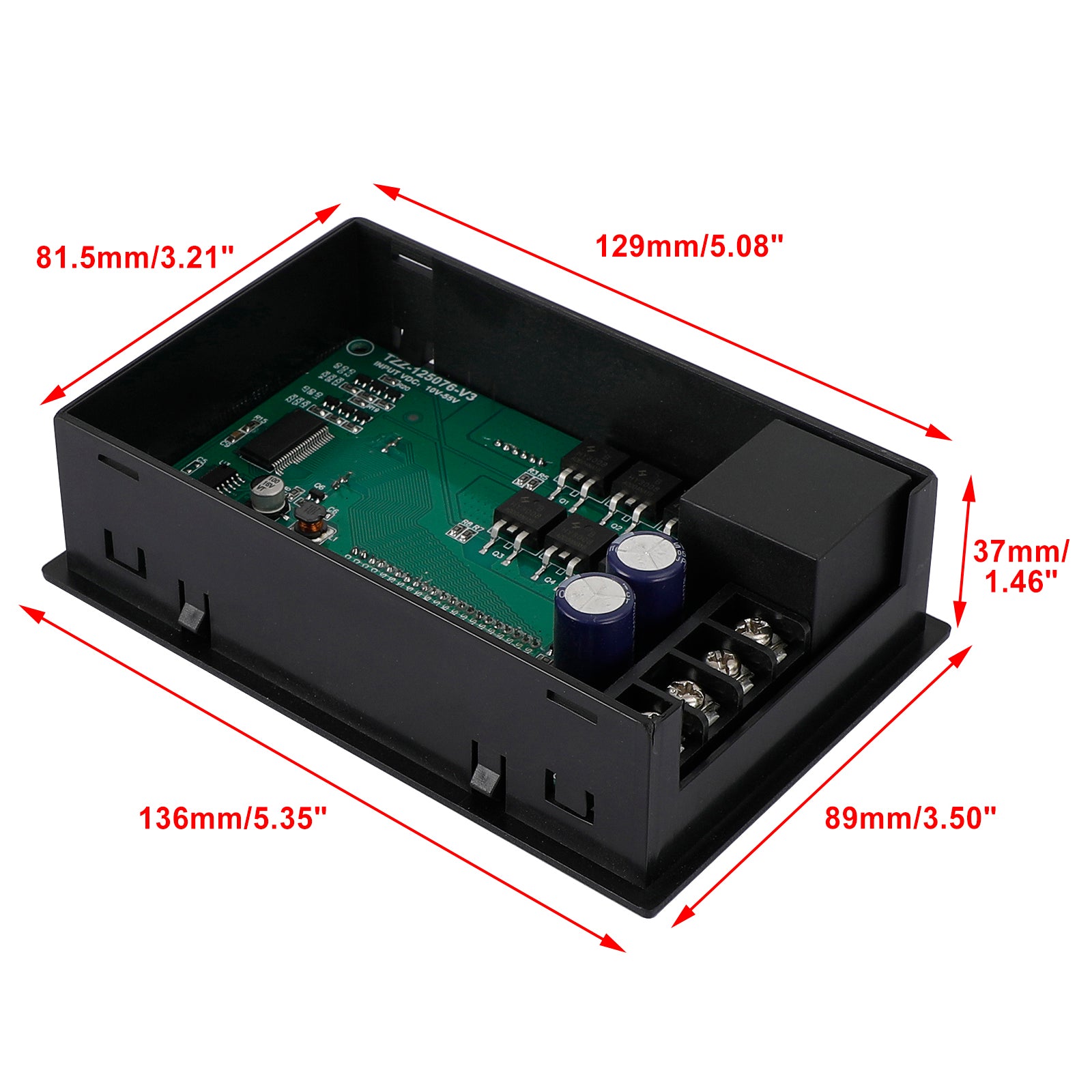

Specifics: Condition: 100% Brand New Input voltage: DC10-55V Output voltage: linear under load Instantaneous current: 40A Continuous current: 30A Speed control type: adjust current Adjustment speed control mode: jog + - Speed range: 0 - 100% Timing: yes Control frequency: 15KHZ Wiring type: fence terminal block Support motor: brush motor Speed digital display: percentage 0-100% Slow start and slow stop: can be set Module size: 136mm * 89mm * 37mm / 5.34in * 3.5in * 1.45in Panel opening:129mm * 81.5mm / 5.07in * 3.2in
Note: 1. Please allow 1-3mm difference due to manual measurement. 2. The input must be divided into positive and negative. The input voltage must be equal to the rated voltage of the motor (within 10-55V), otherwise it will burn out. 3. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Package Included: 1 X DC Motor Speed Controller
Warranty: Guarantee Period: 1 Years Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day 24-Hour Support: Provide you with timely after-sale support
