Feature: 1: Good product stability and high side accuracy 2: Appearance adopts standard scale, easy to install 3: The power supply uses polar protection circuit 4: Durable and safety. Small size and lightweight, easy to carry.

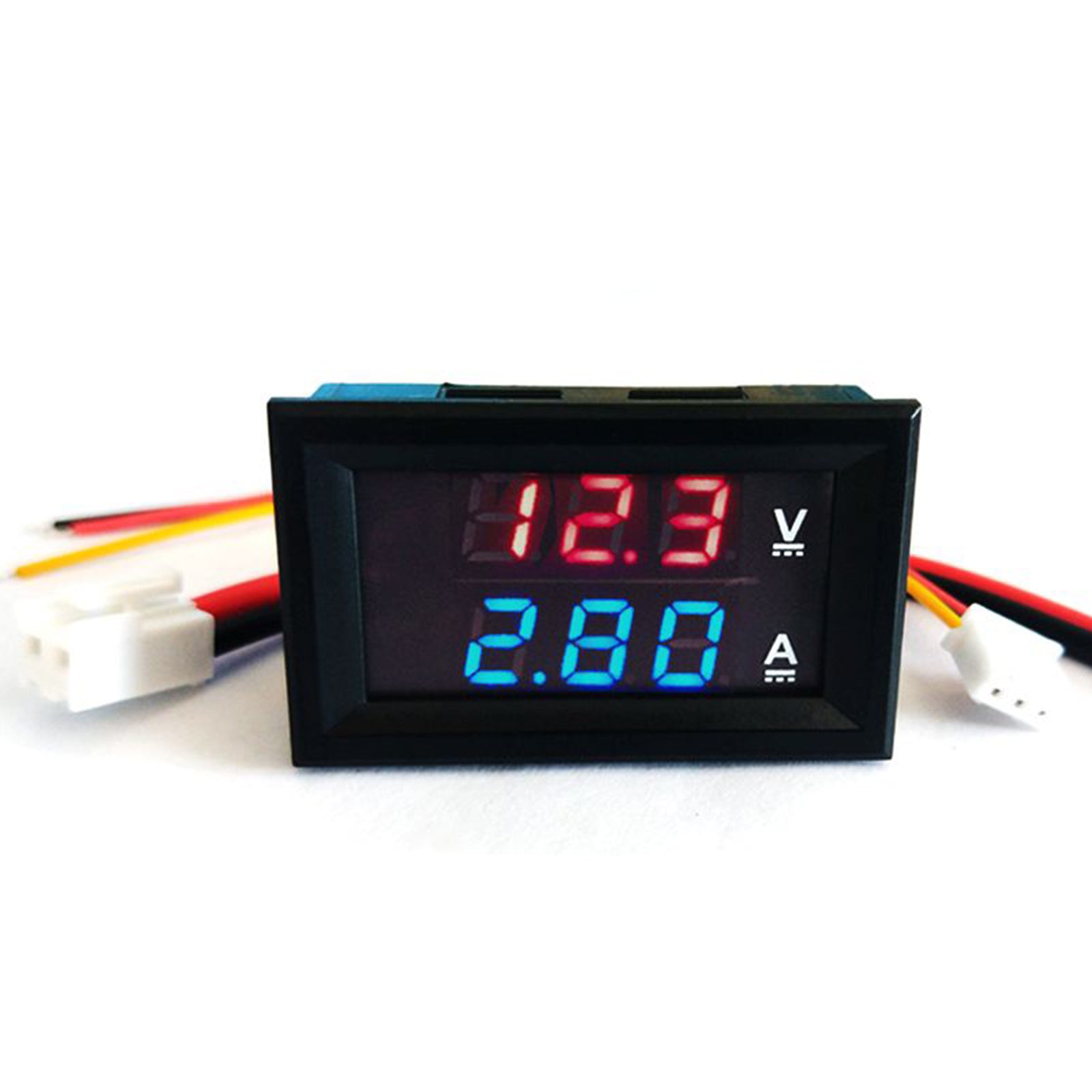

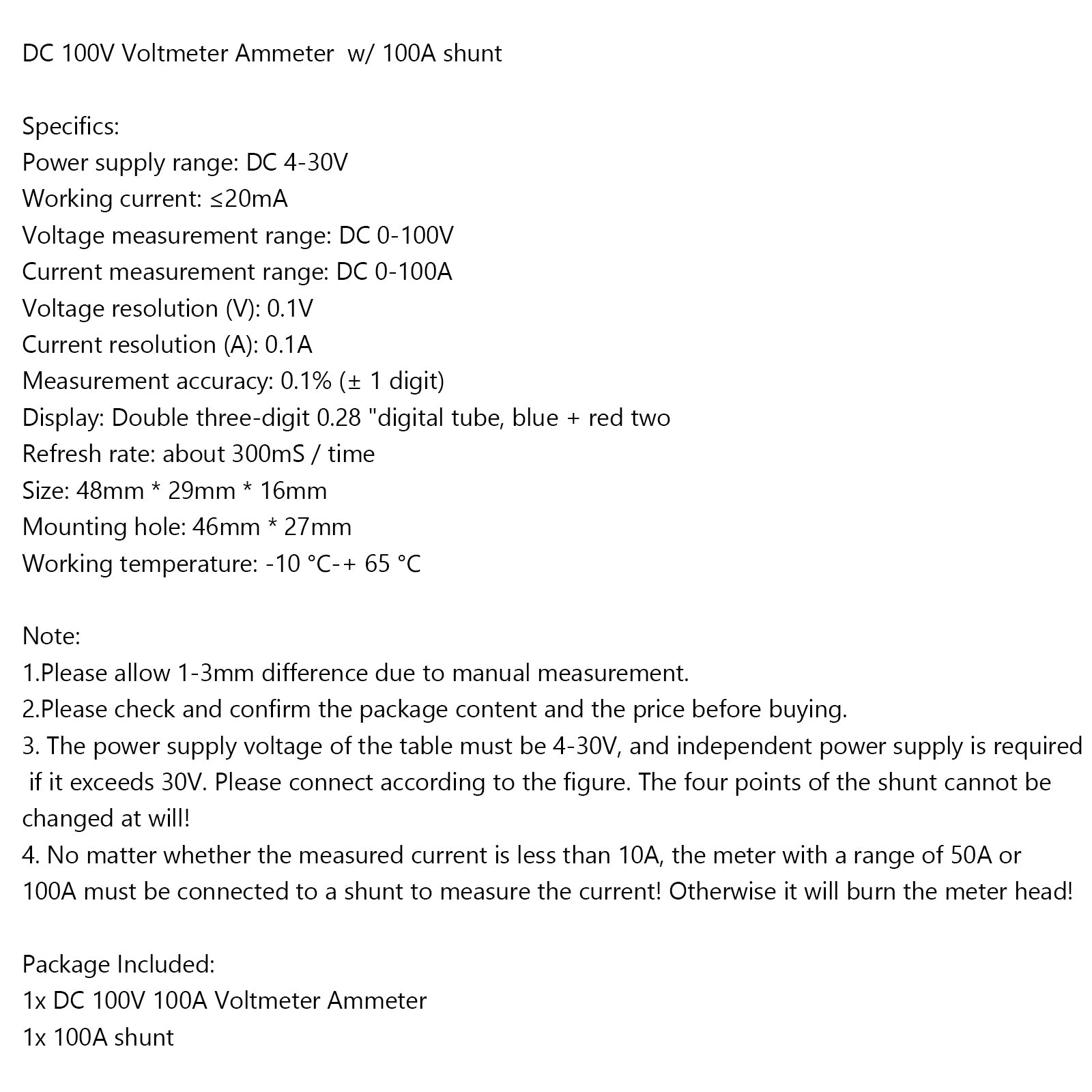

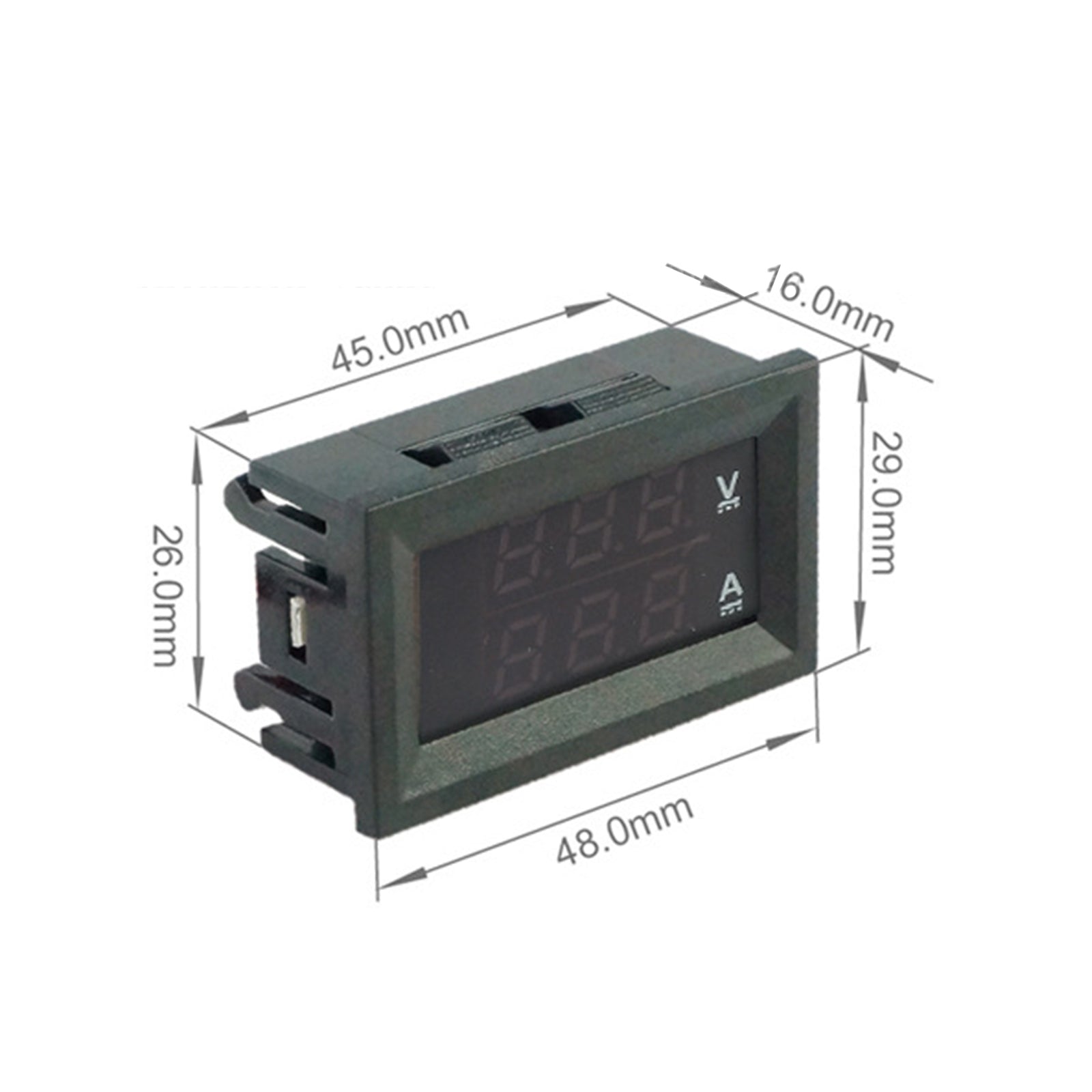

Specifics: Power supply range: DC 4-30V Working current: ≤20mA Voltage measurement range: DC 0-100V Current measurement range: DC 0-100A Voltage resolution (V): 0.1V Current resolution (A): 0.1A Measurement accuracy: 0.1% (± 1 digit) Display: Double three-digit 0.28 "digital tube, blue + red two Refresh rate: about 300mS / time Size: 48mm * 29mm * 16mm Mounting hole: 46mm * 27mm Working temperature: -10 ℃-+ 65 ℃

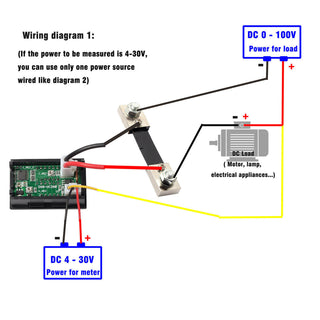

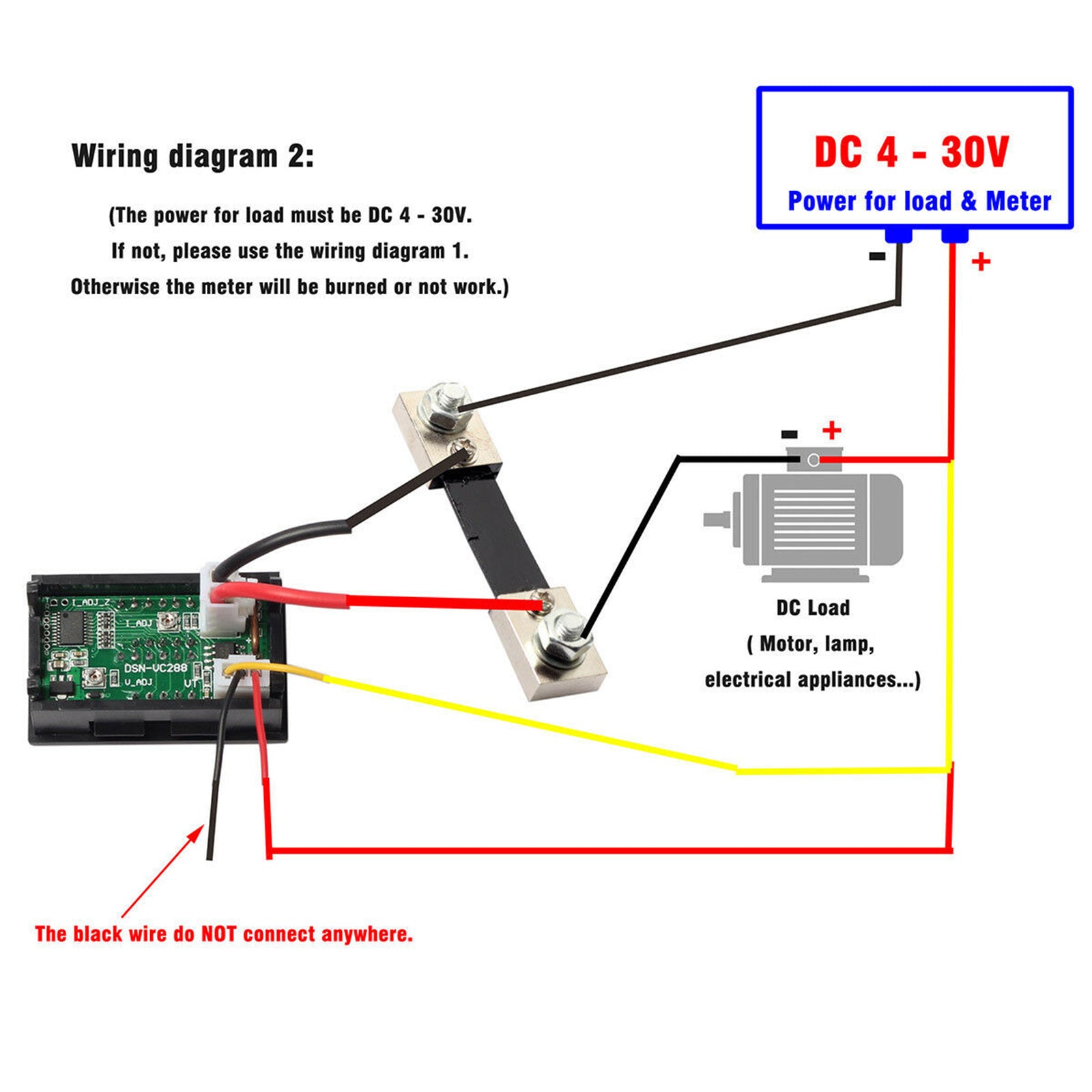

Note: 1.Please allow 1-3mm difference due to manual measurement. 2.Please check and confirm the package content and the price before buying. 3. The power supply voltage of the table must be 4-30V, and independent power supply is required if it exceeds 30V. Please connect according to the figure. The four points of the shunt cannot be changed at will! 4. No matter whether the measured current is less than 10A, the meter with a range of 50A or 100A must be connected to a shunt to measure the current! Otherwise it will burn the meter head!

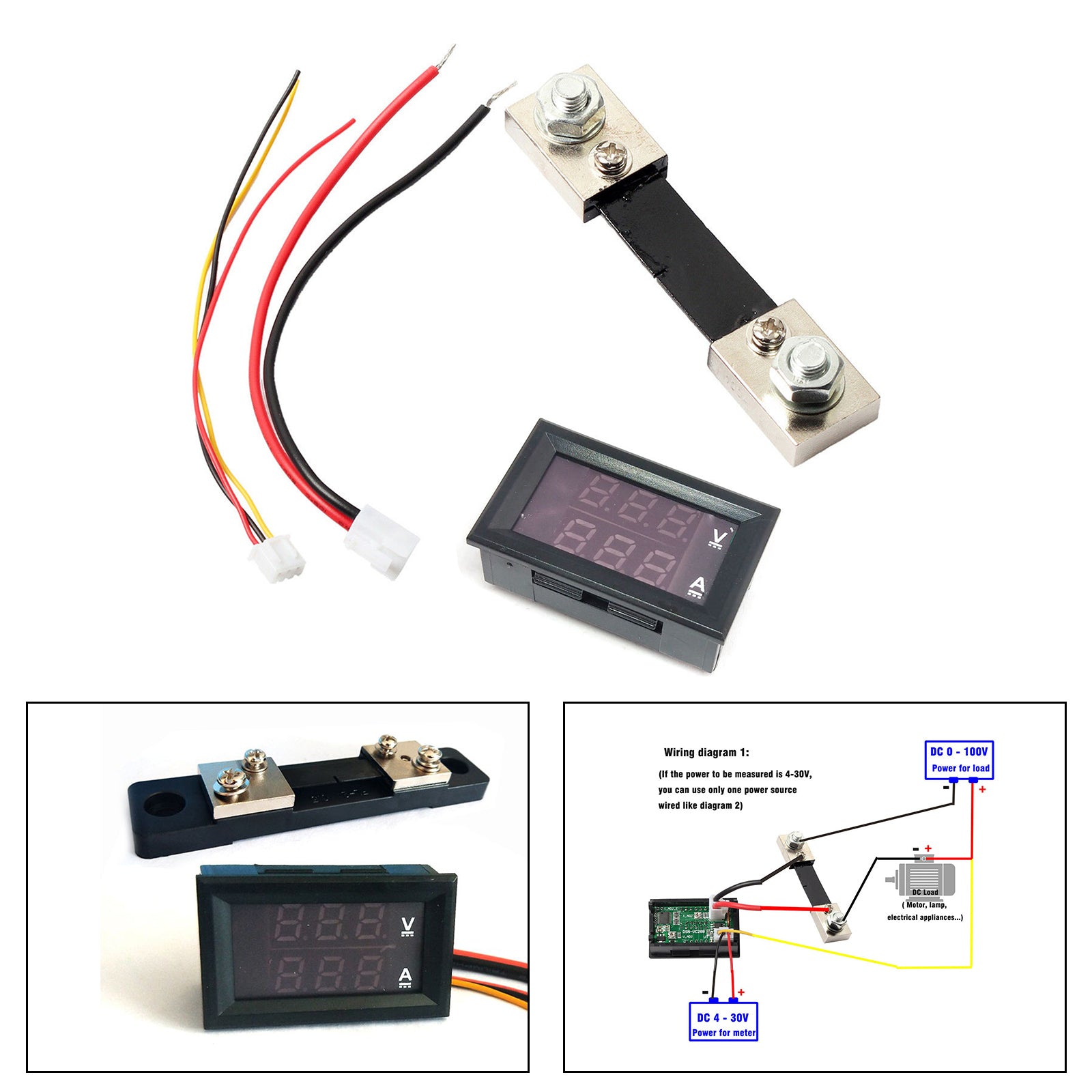

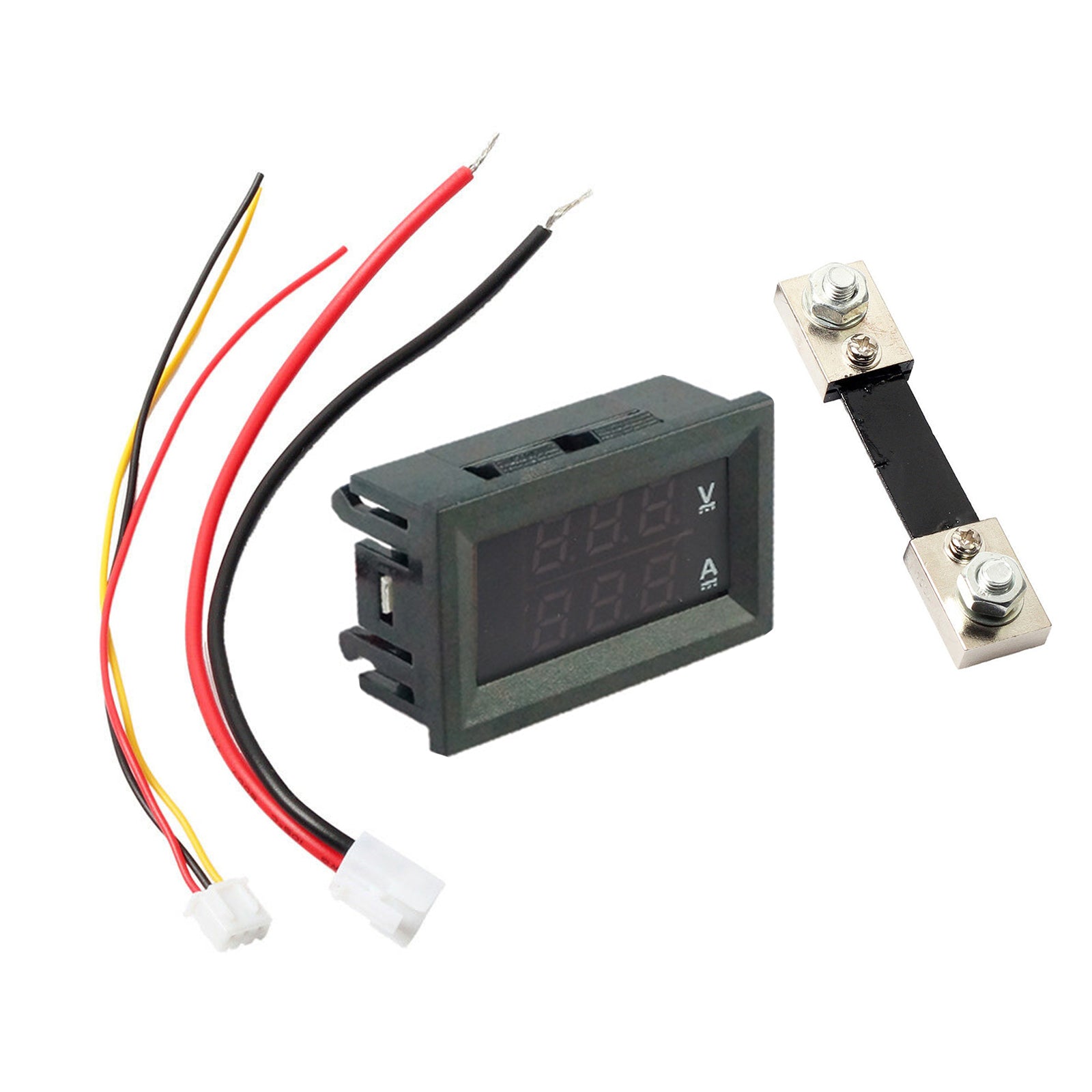

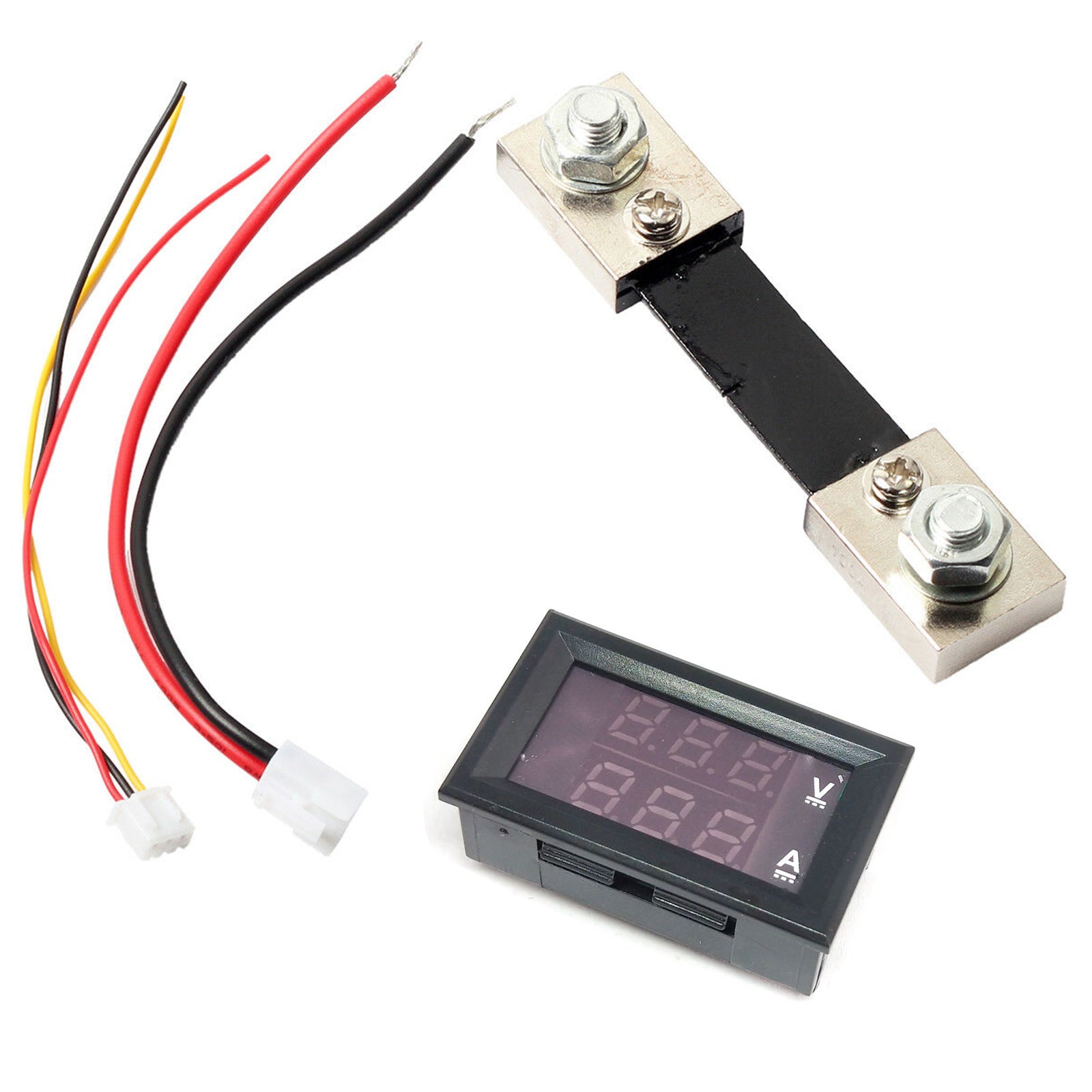

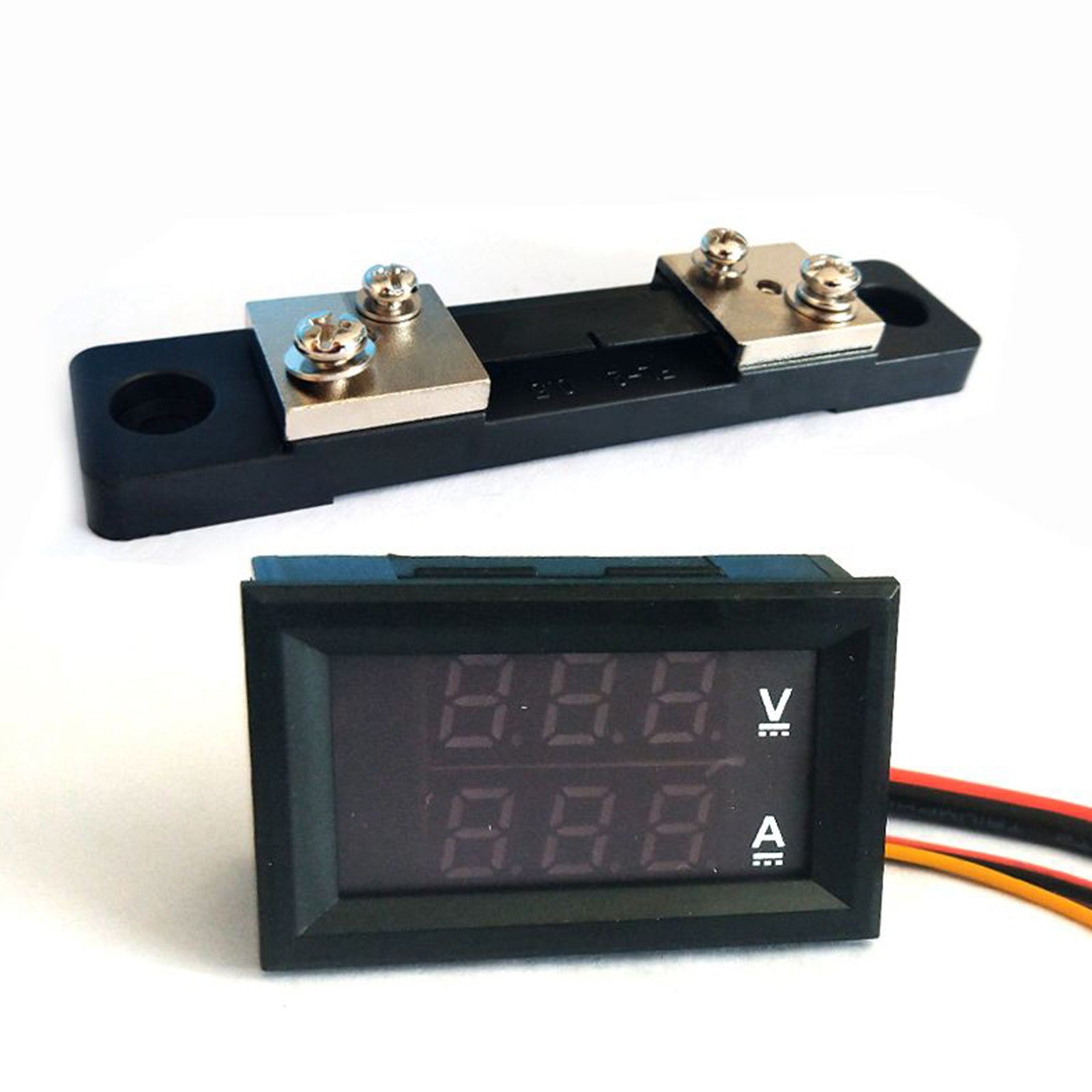

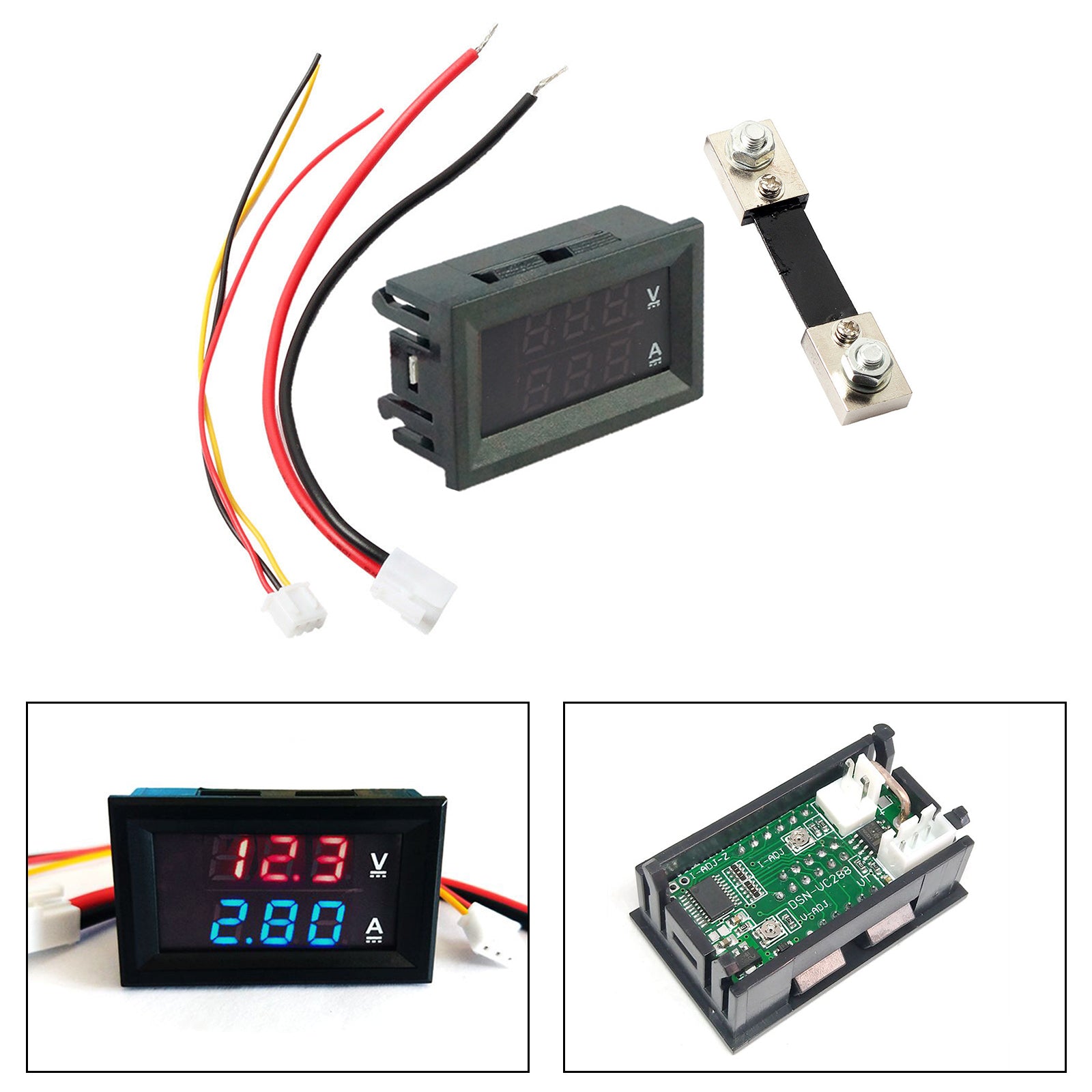

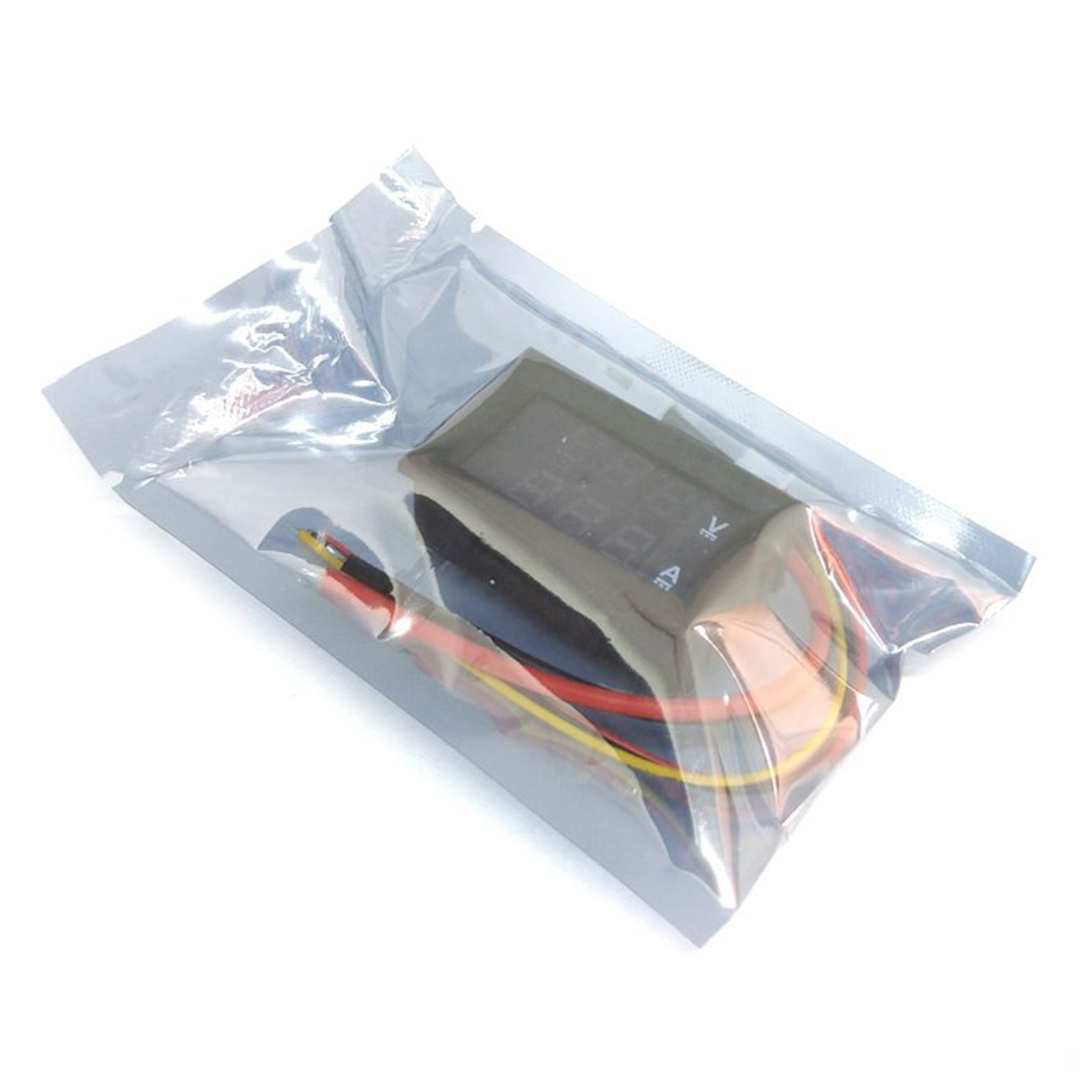

Package Included: 1x DC 100V 100A Voltmeter Ammeter 1x 100A shunt
Warranty:1 year
