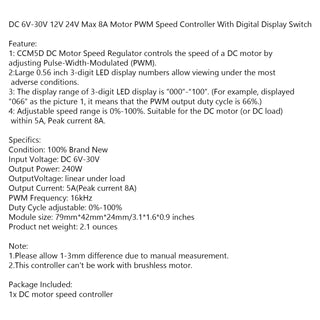

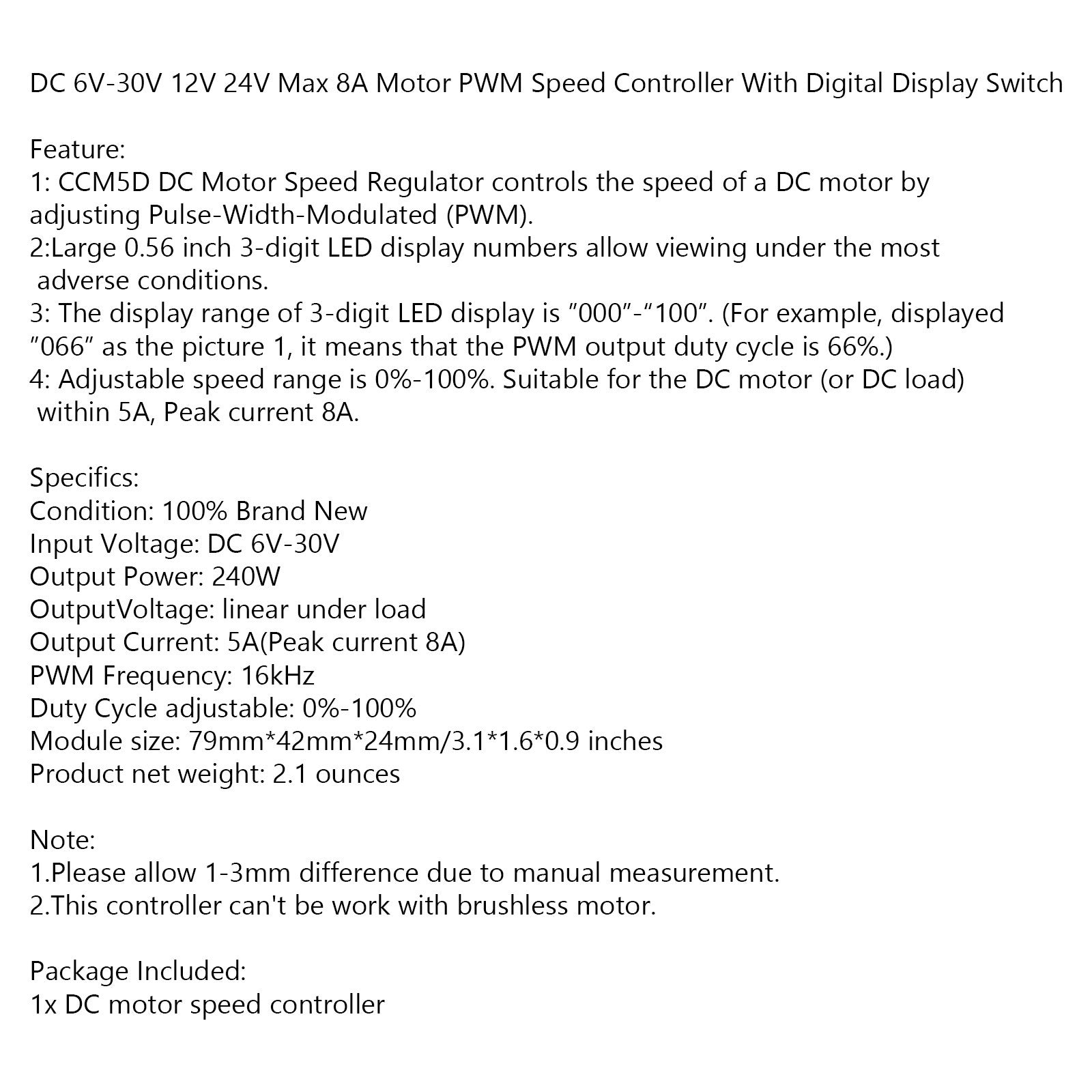

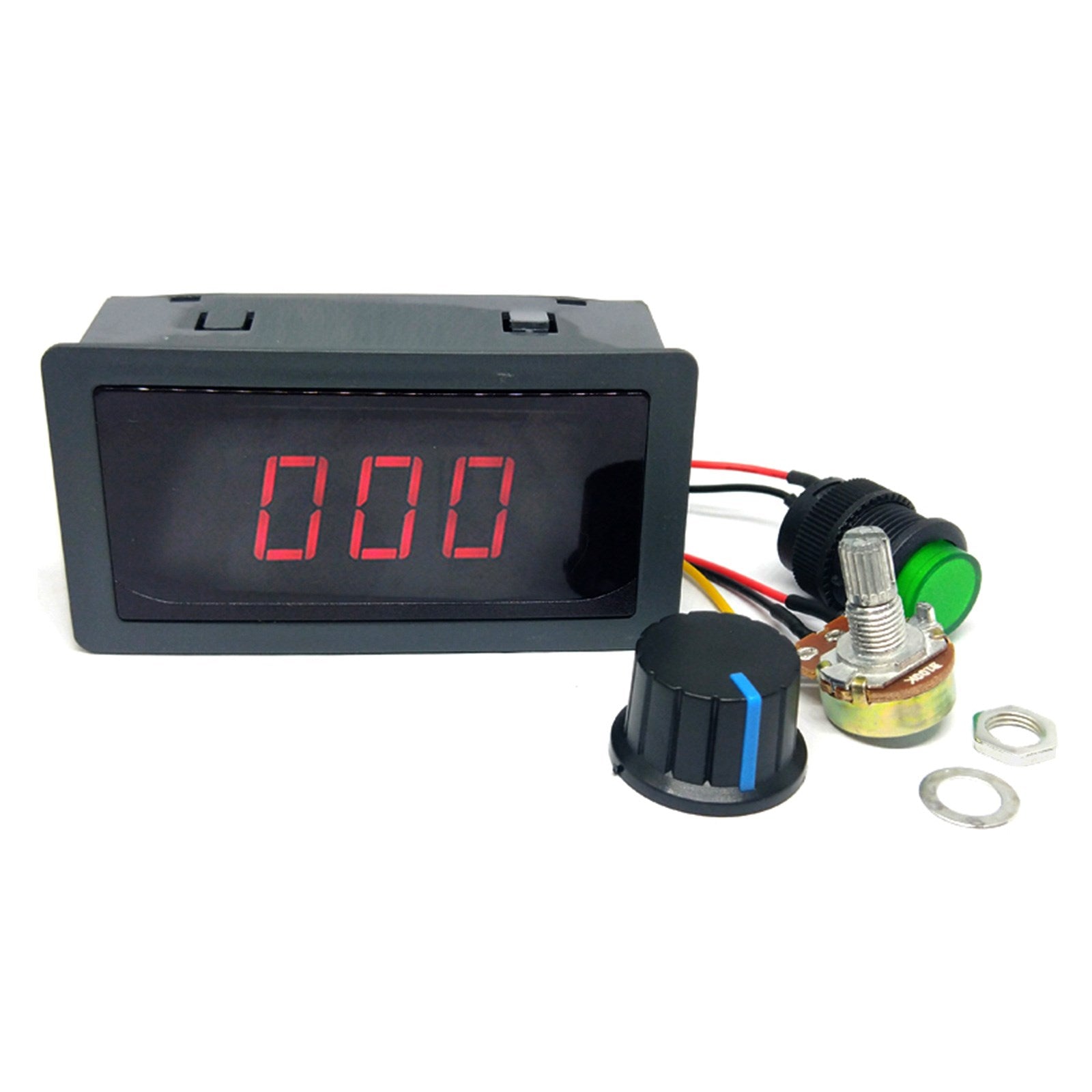

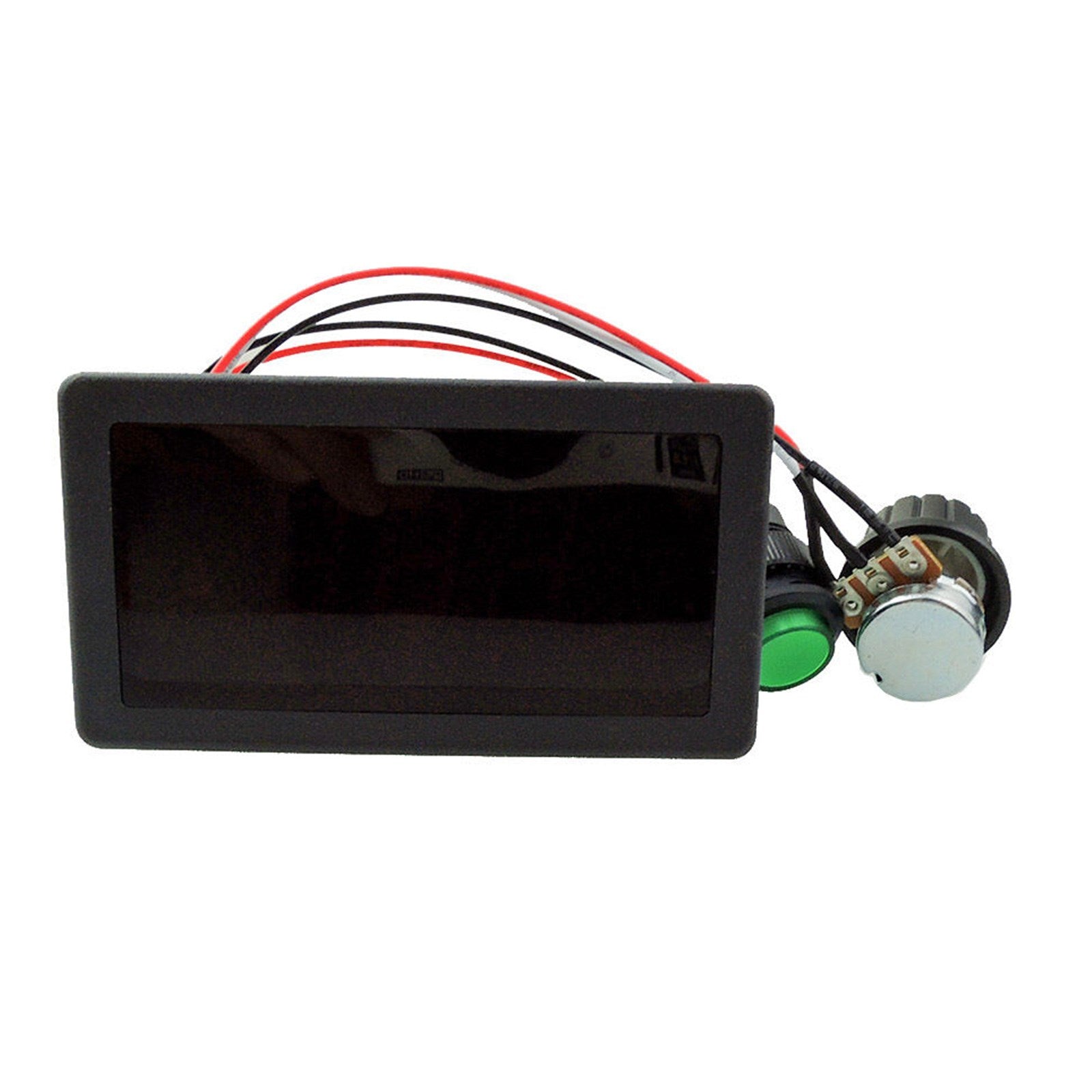

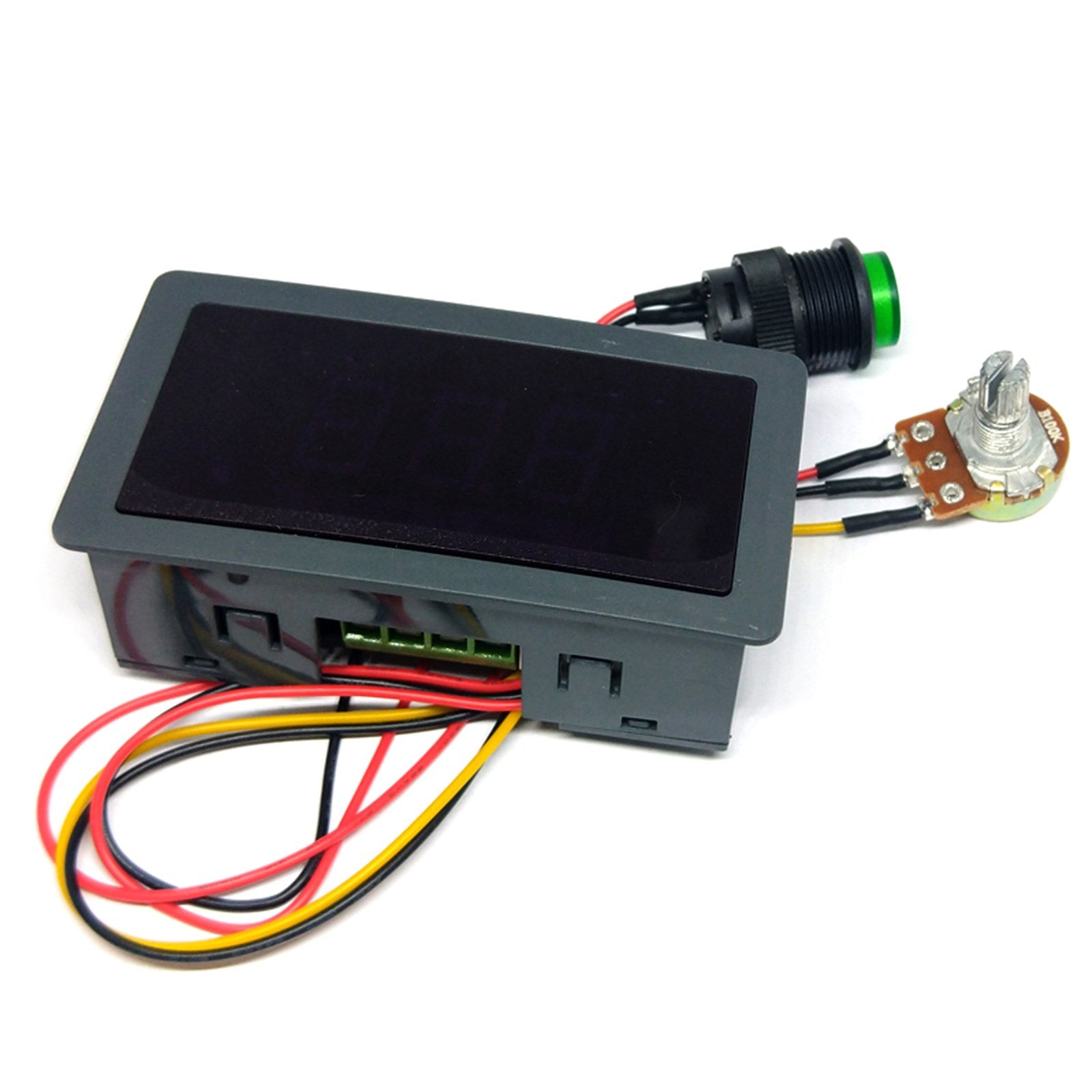

DC 6V-30V 12V 24V Max 8A Motor PWM Speed Controller With Digital Display Switch

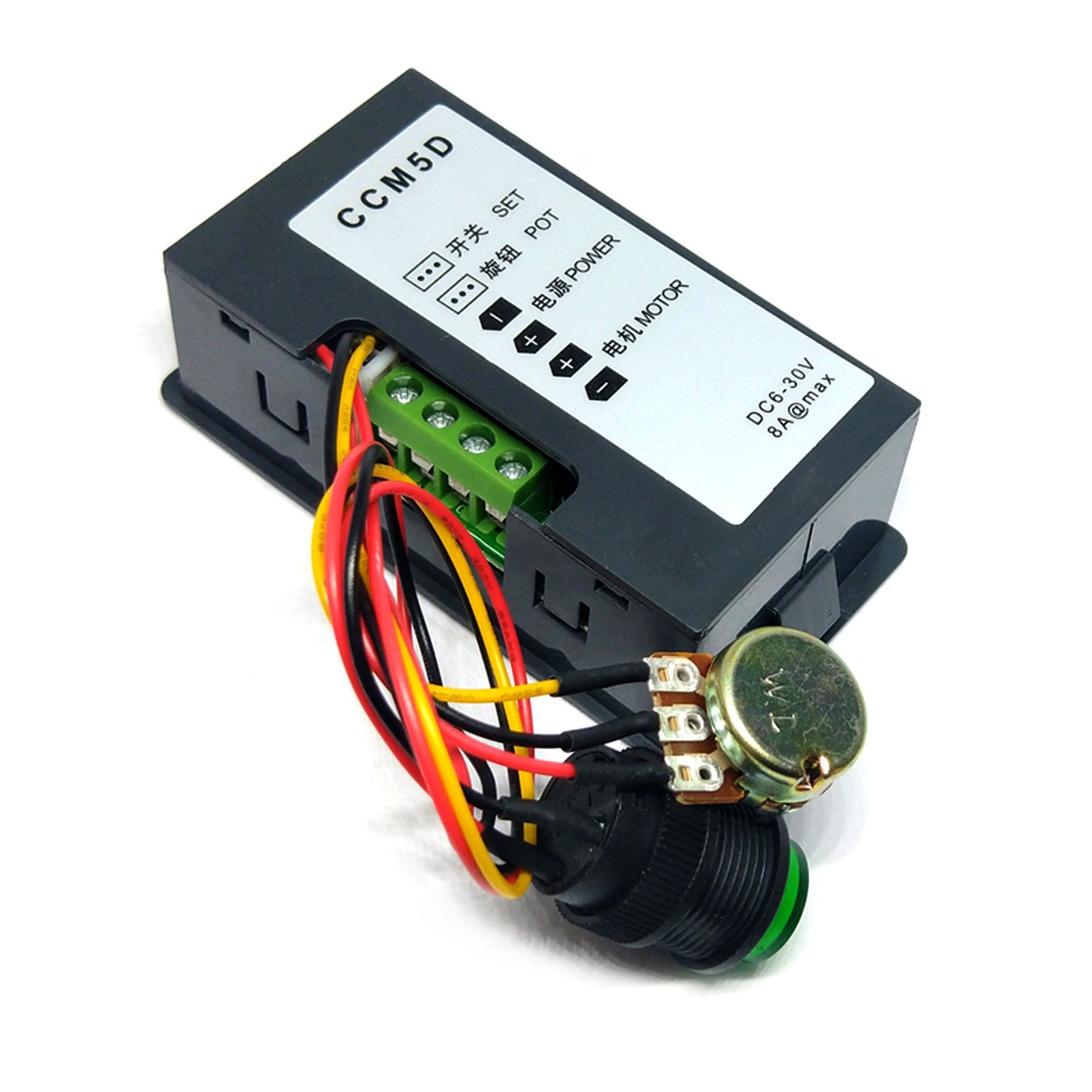

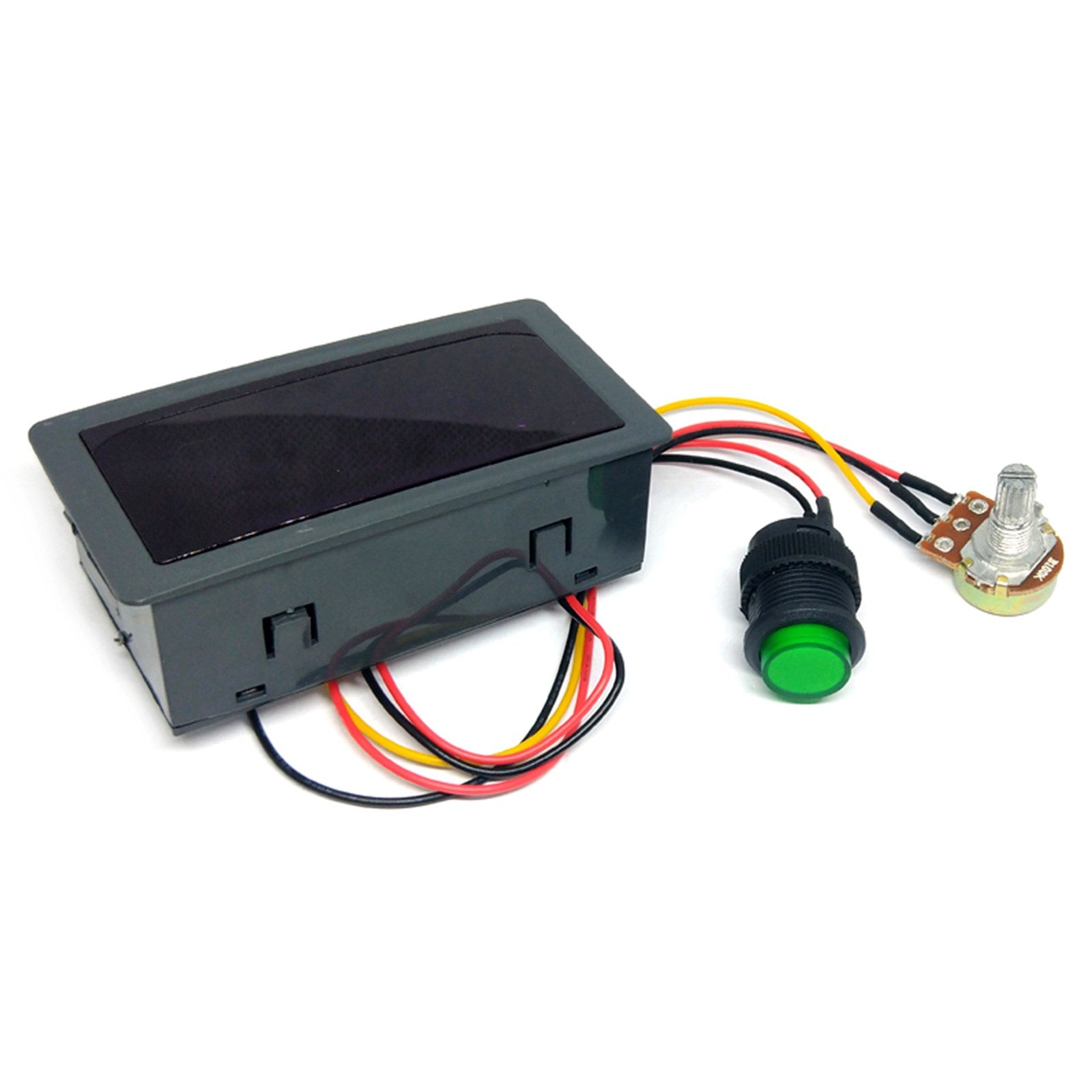

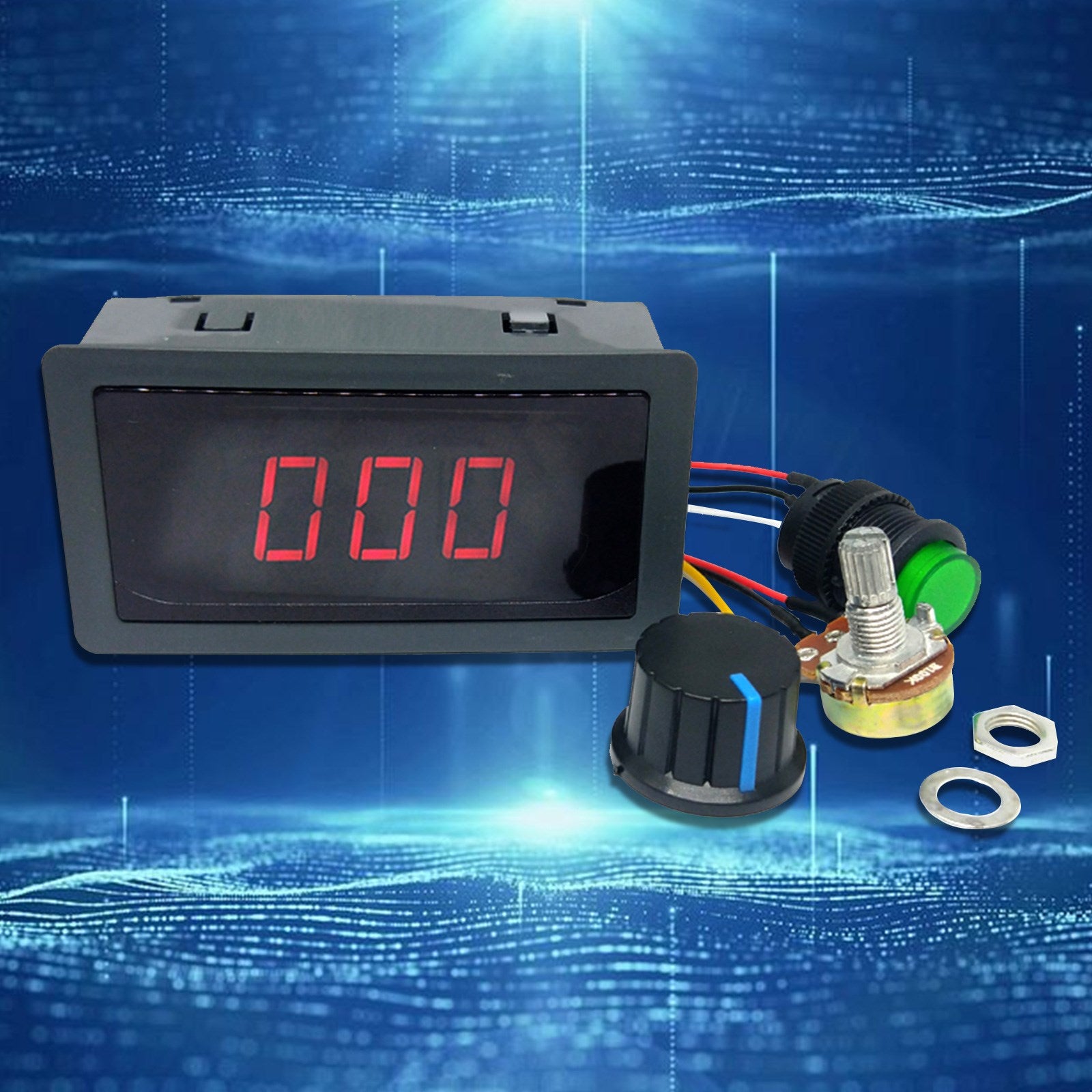

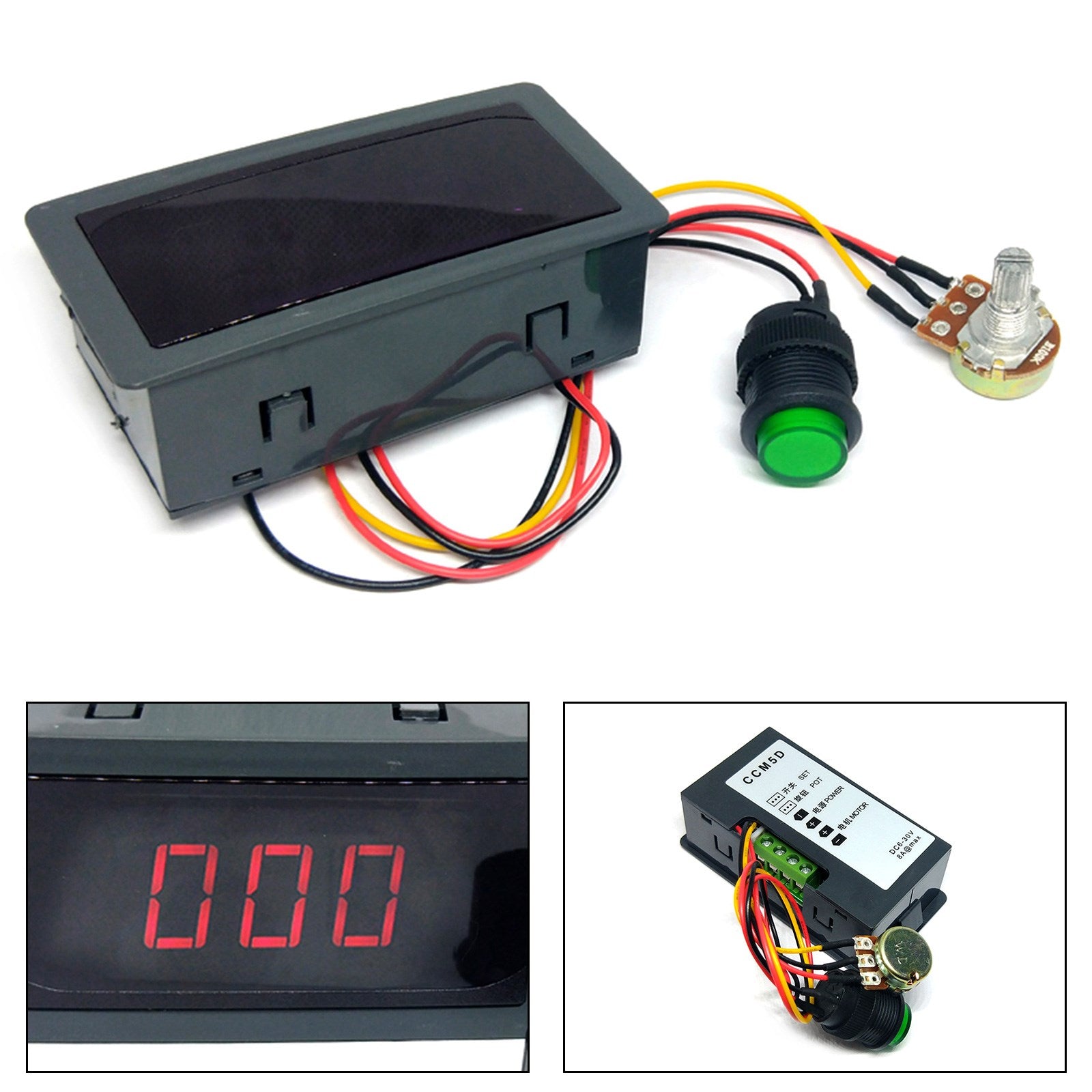

Feature: 1: CCM5D DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM). 2:Large 0.56 inch 3-digit LED display numbers allow viewing under the most adverse conditions. 3: The display range of 3-digit LED display is 鈥?00鈥?鈥?00鈥? (For example, displayed 鈥?66鈥?as the picture 1, it means that the PWM output duty cycle is 66%.) 4: Adjustable speed range is 0%-100%. Suitable for the DC motor (or DC load) within 5A, Peak current 8A.

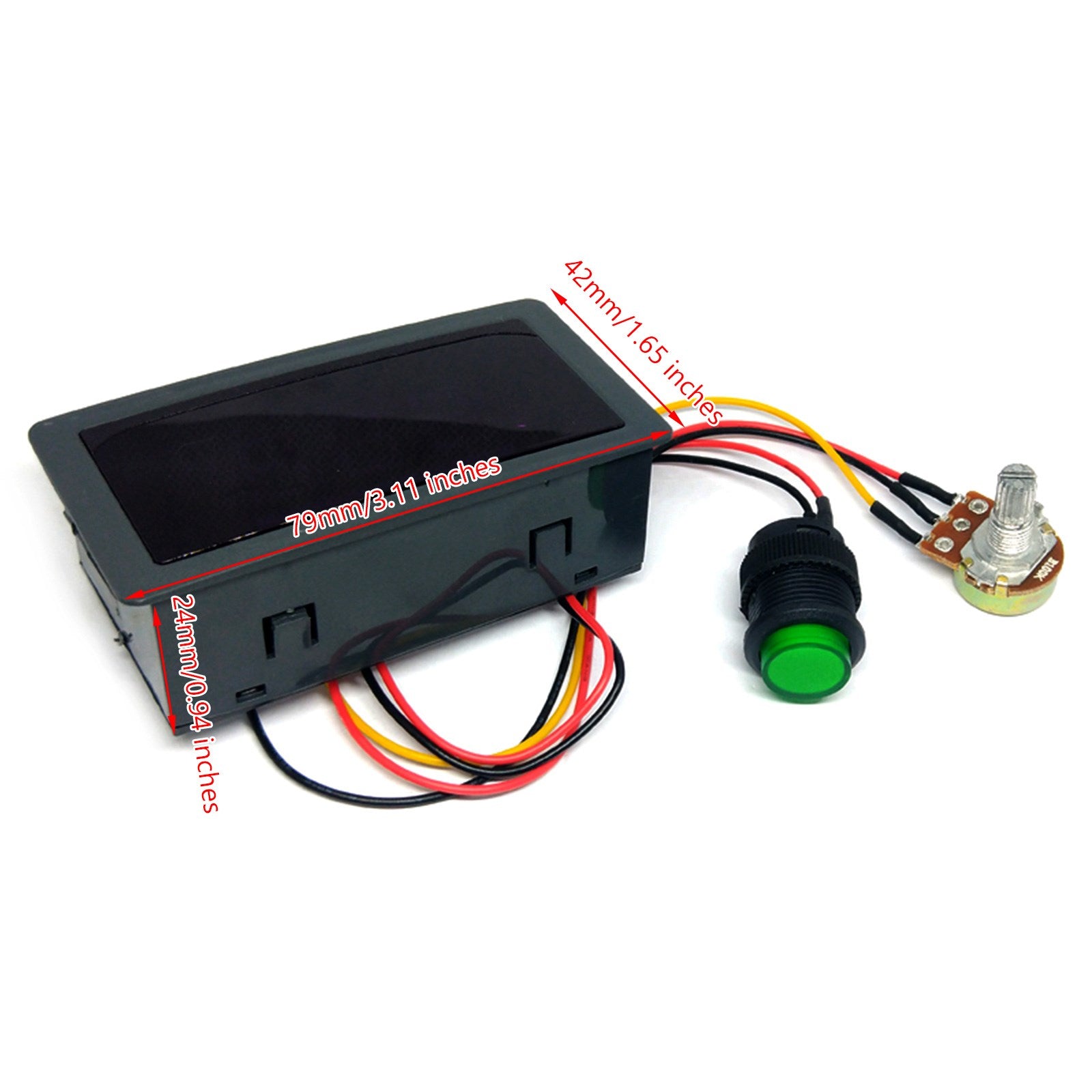

Specifics: Condition: 100% Brand New Input Voltage: DC 6V-30V Output Power: 240W OutputVoltage: linear under load Output Current: 5A(Peak current 8A) PWM Frequency: 16kHz Duty Cycle adjustable: 0%-100% Module size: 79mm*42mm*24mm/3.1*1.6*0.9 inches Product net weight: 2.1 ounces
Note: 1.Please allow 1-3mm difference due to manual measurement. 2.This controller can't be work with brushless motor.

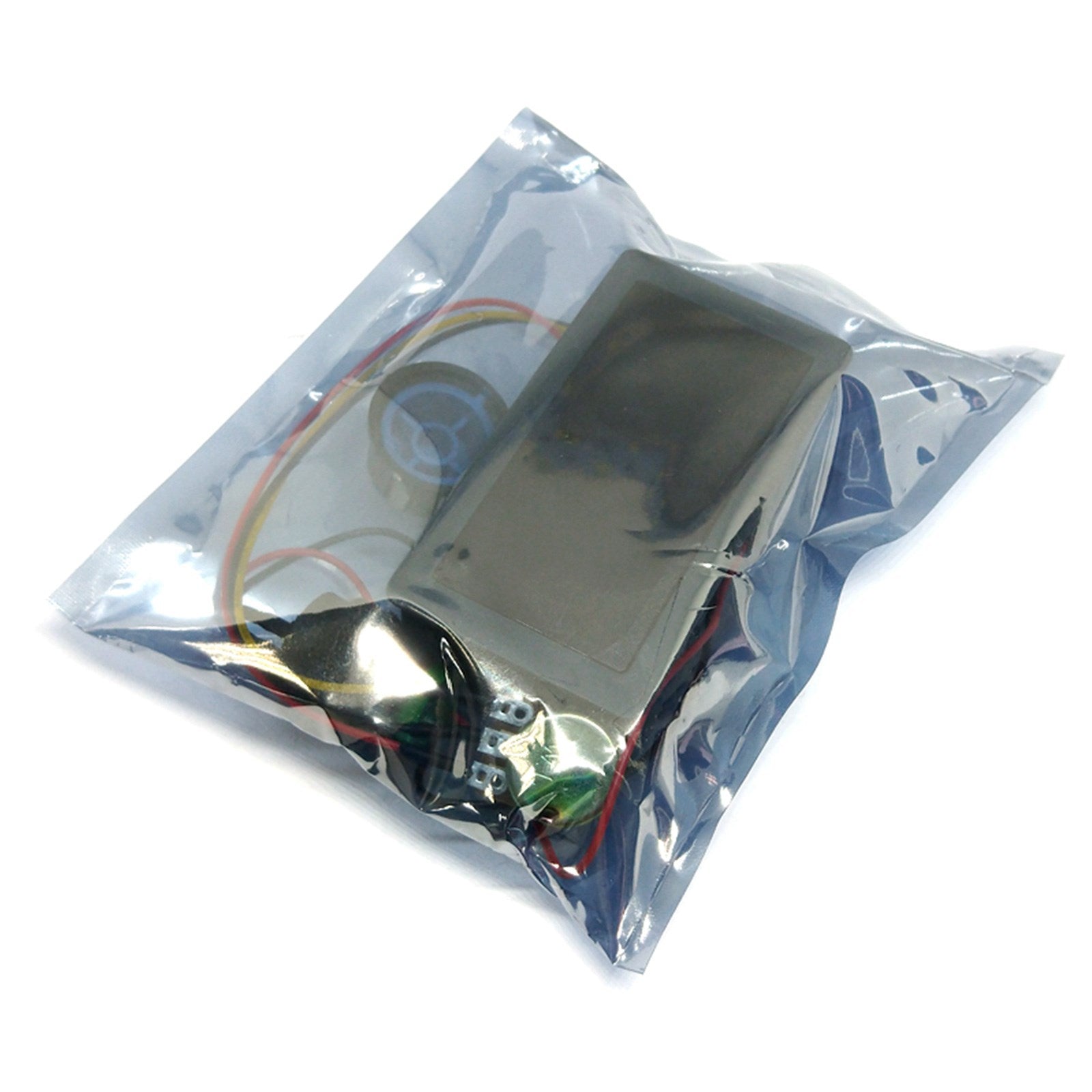

Package Included: 1x DC motor speed controller
