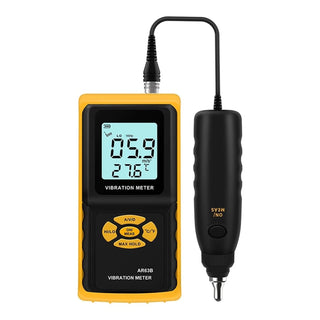

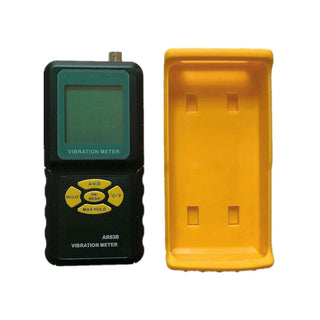

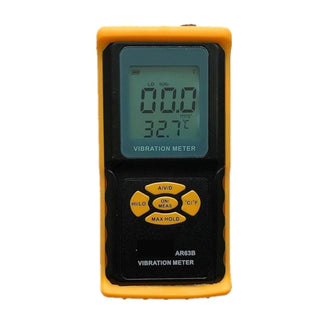

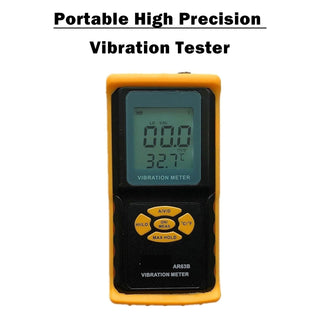

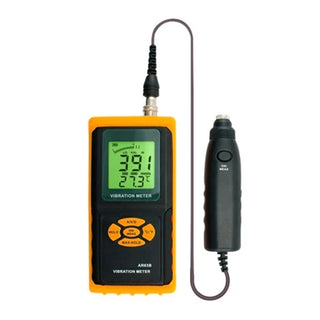

Digital AR63B Vibration Meter Vibrometer 3-in-1 Measuring Modes For Accelerat
Feature:
1: Adopting high sensitivity probes for accurate measurement.

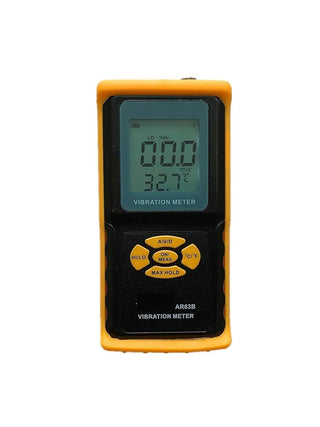

2: Features an easy-to-read LCD that displays measurement results and conditions directly.

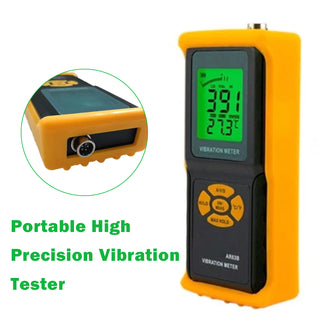

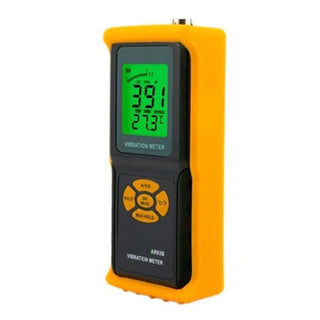

3: With options for backlighting for low-light environments..

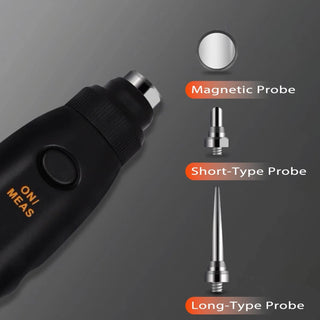

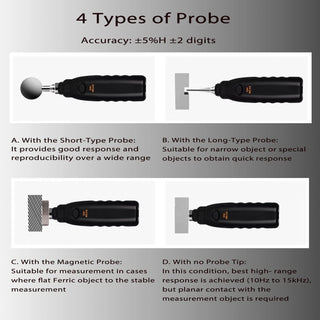

4: Equipped with one long and one short probe and one magnetic suction cup, suitable for measuring in various different places.
5: Low battery indication, automatic shutdown, LCD backlight, higher value locking and temperature unit conversion functions.

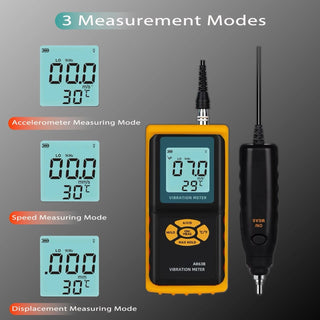

6: Comprehensive Measurement Capabilities: Accurately measures acceleration (m/s² peak), velocity (mm/s rms), and displacement (mm p-p), making it suitable for various industrial applications, including mechanical manufacturing, electric power, metallurgy, and aviation.
Specifics:
Condition: 100% Brand New
Type: Vibration Meter
Model: AR63B
Measuring principle: piezoelectric ceramic accelerometer
Measuring range:
Acceleration: 0.1 ~ 199.9m/s² peak value
Velocity: 0.1 ~ 199.9mm/s effective value
Displacement: 0.01 ~ 1.999mm peak value
Frequency range:

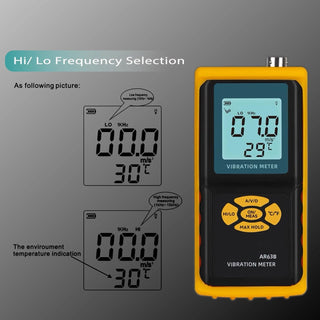

Acceleration: 10Hz ~ 1KHz (LO) 1KHz ~ 15KHz (HI)
Velocity: 10Hz ~ 1KHz (LO)
Displacement: 10Hz ~ 1KHz (LO)
Measuring error: ±5%H±2digits
Power Supply: 9V Alkaline Battery (NOT included)
Product size: 70 x 30 x 150mm
Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

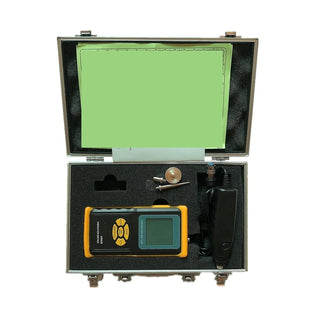

Package Included:
1 x Vibration Meter
1 x Probe
1 x User Manual
1 x Box
