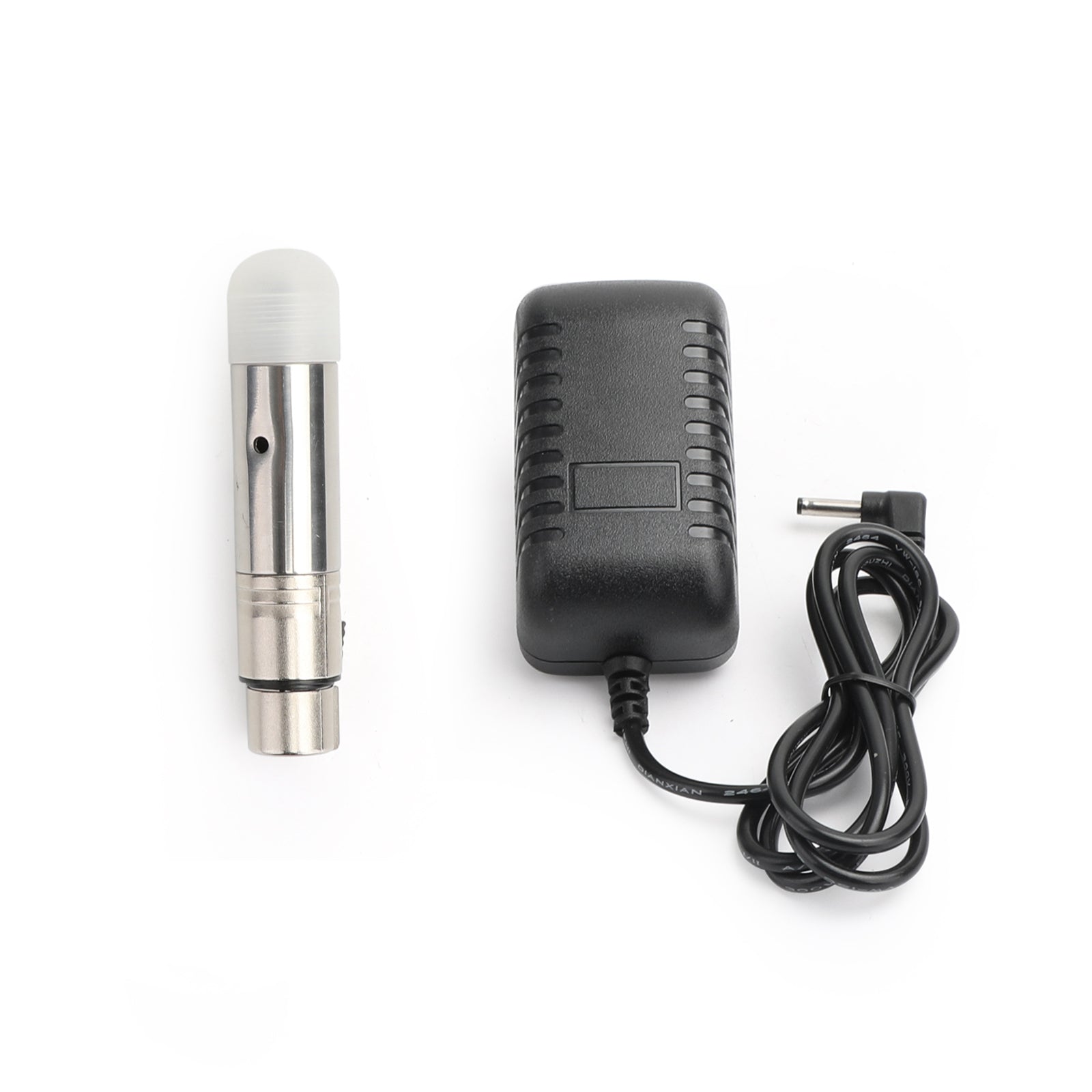

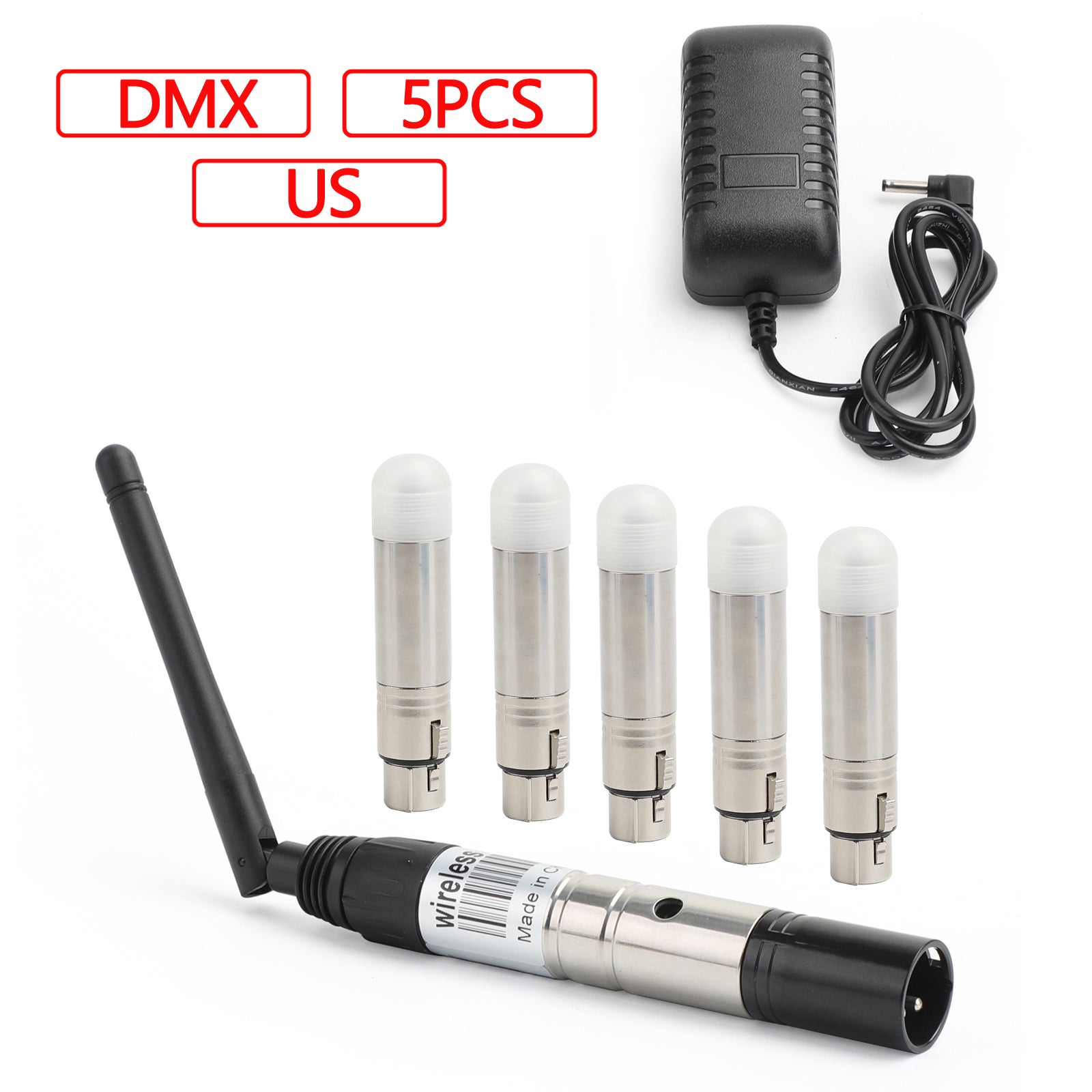

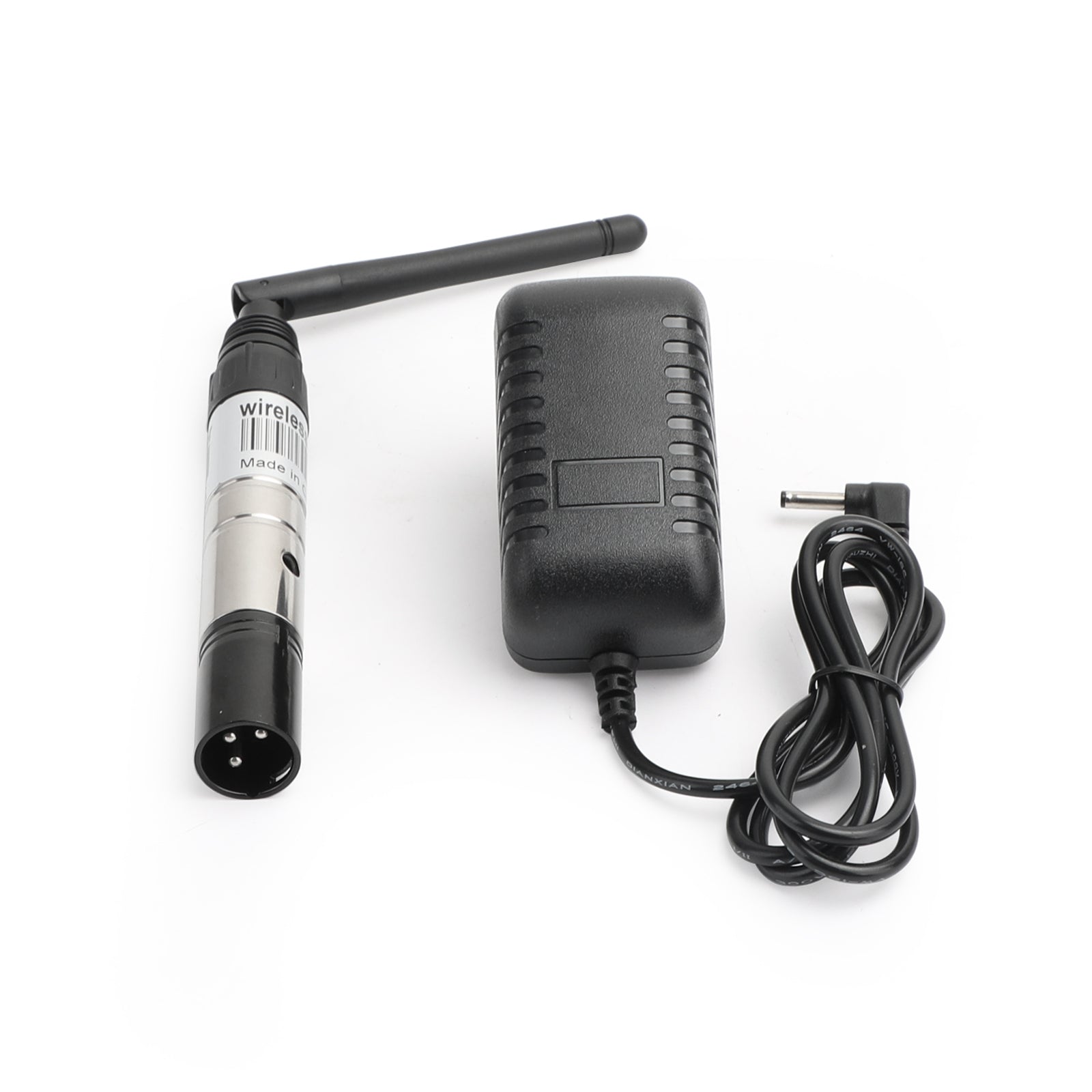

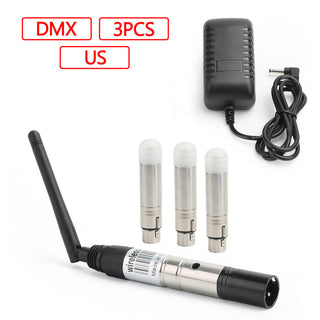

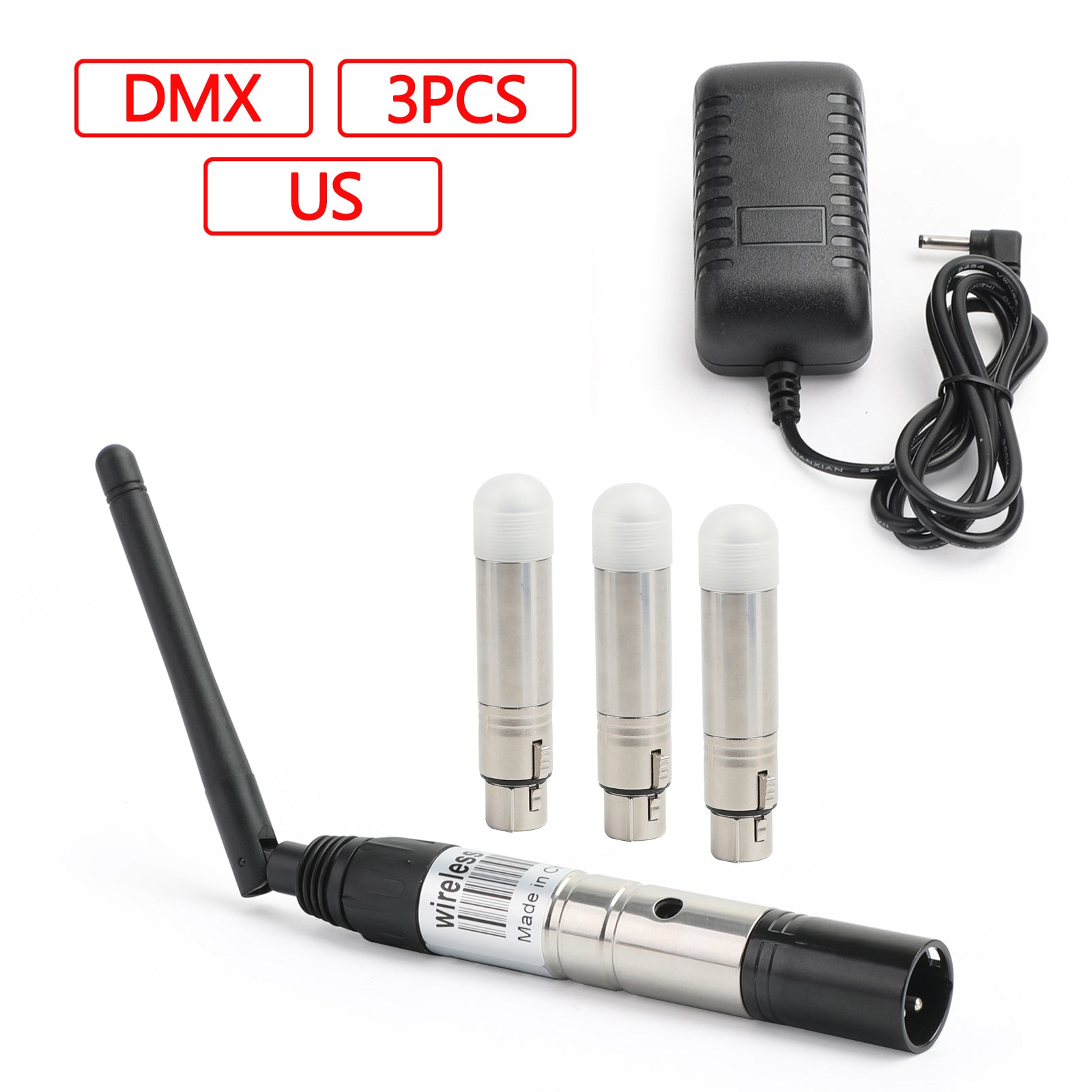

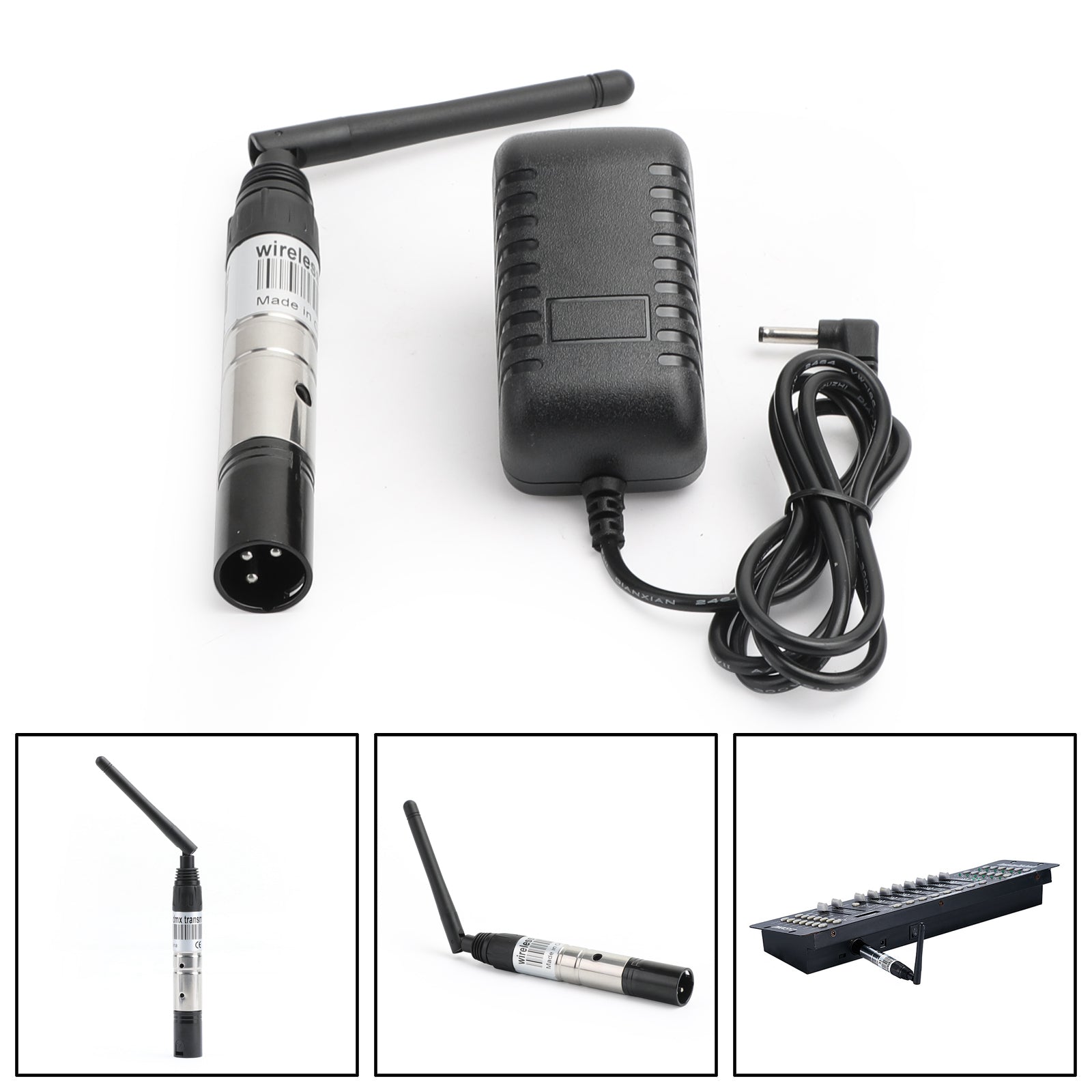

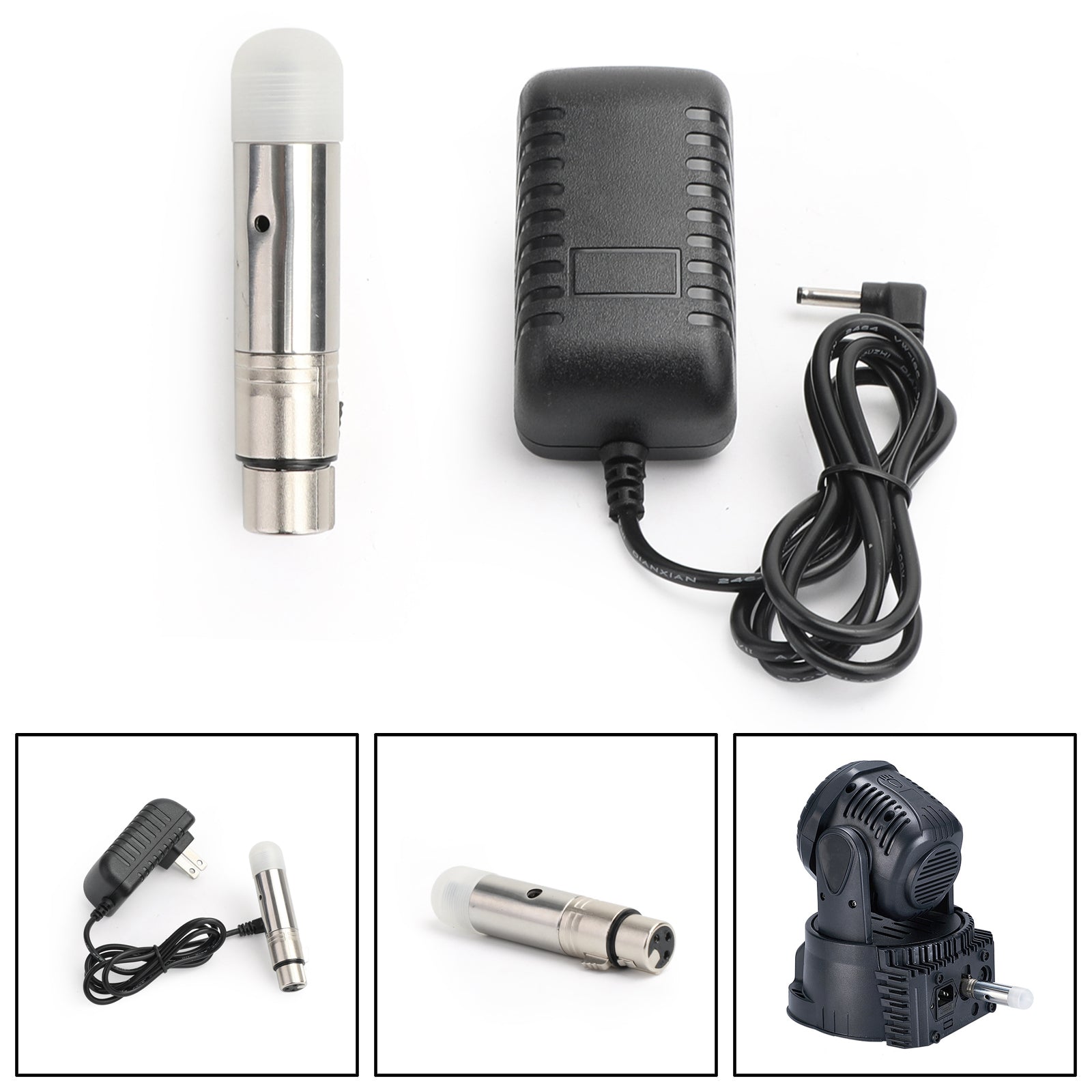

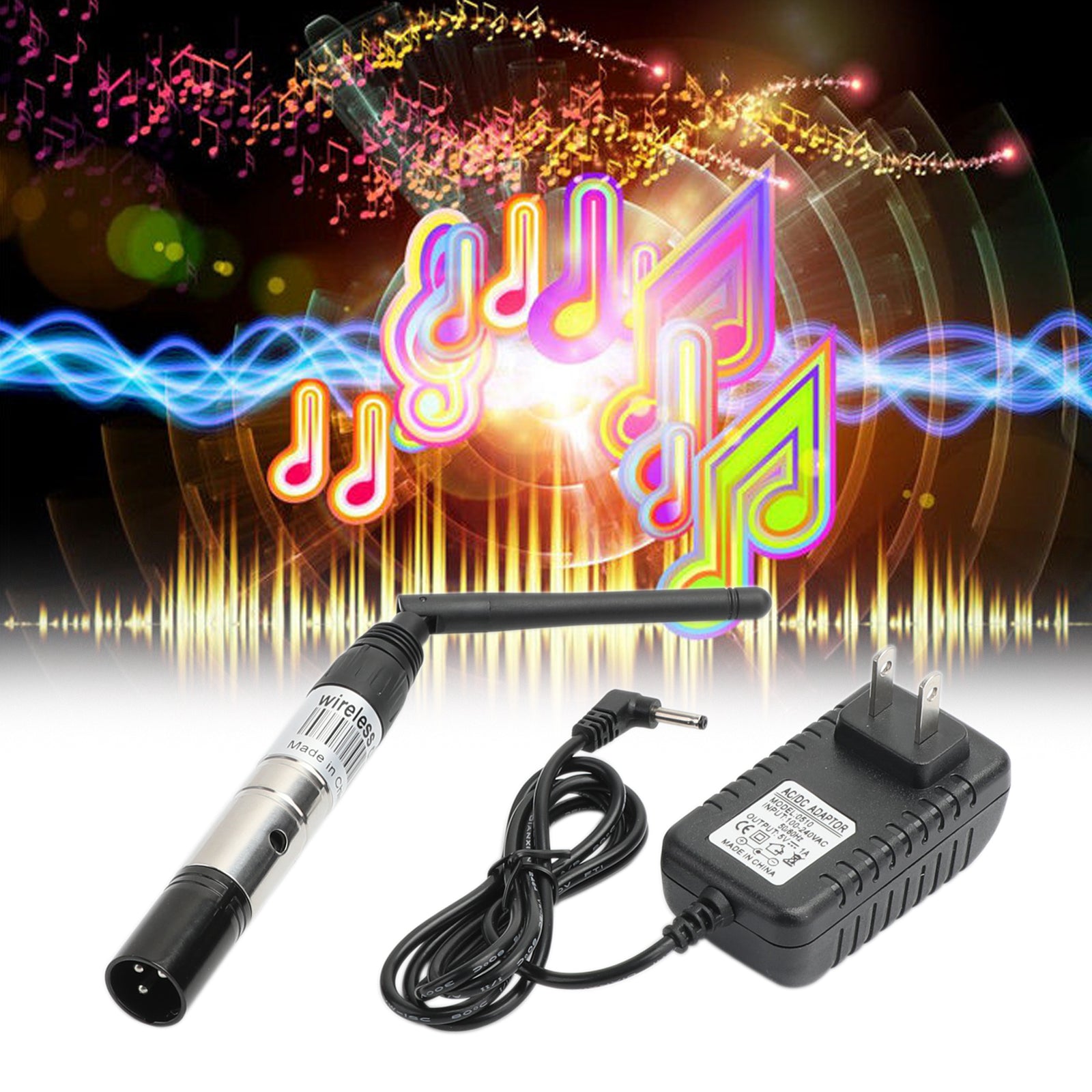

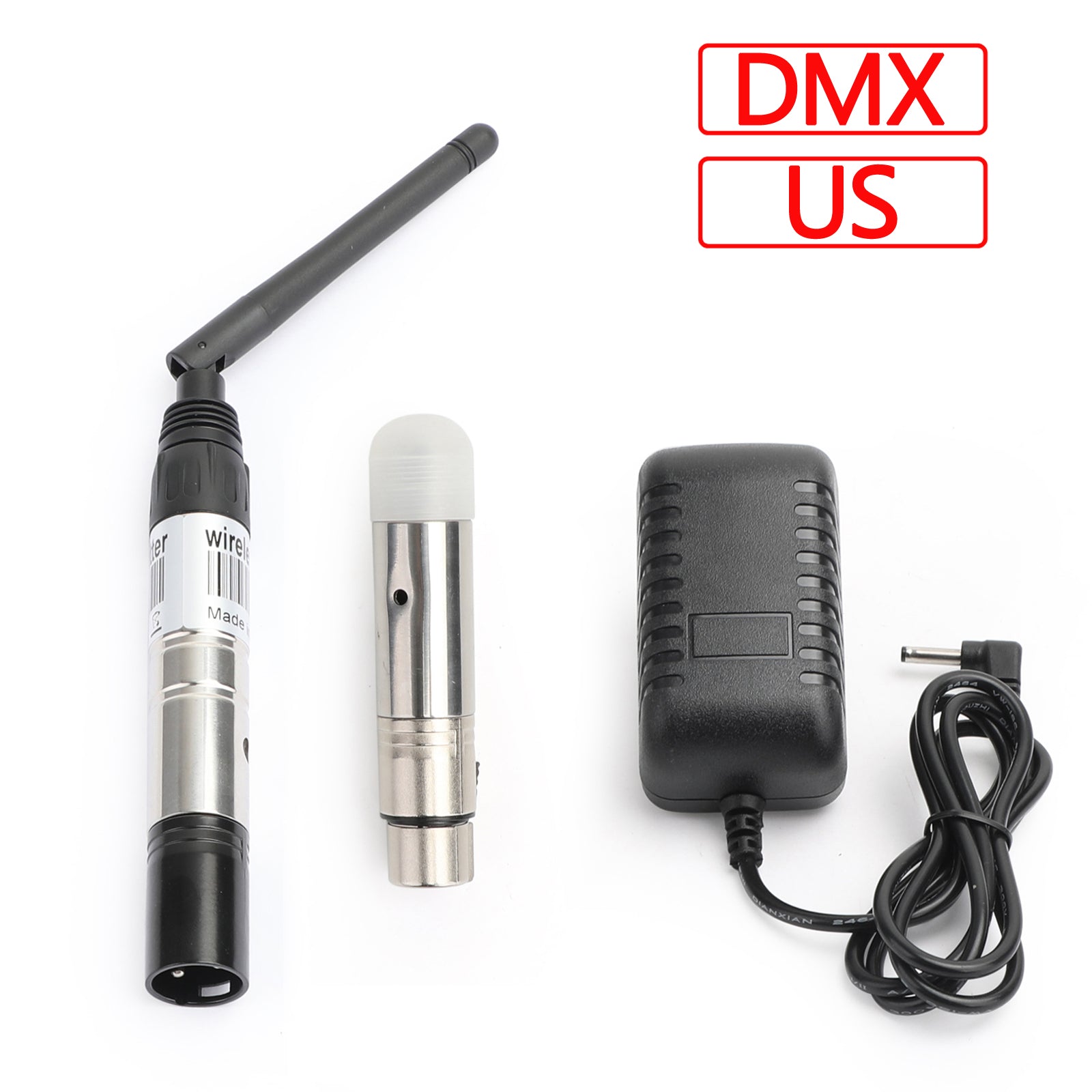

DMX512 DMX Controller 2.4G Stage Lighting Kit For Stage Party Light US

Please Note ：

This DMX512 all need to connect Power Adapter Plug to work , NOT Battery type !!!

US Plug

Package include:

according to your order

Feature:

1. No time delay during data

2. 7 groups ID code settable

3. Portable and easy to handle

4. Economical

5. Small size: 13.5cm x 2cm x 2cm only

Technical Parameters:

1. Tricolor LED displaying

2. 126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability. 3. 7 groups ID code settable, user can use 7 groups individual system without any interference with each other in the same place.

4. Input voltage: 5VDC 500mA MIN

5. Communication distance: 500M

6. Work frequency section: 2.4GHz ISM band, 126 channels frequency section.

7. Max power rate: 23dBm

8. Sensitive: -94dBm

Operating Manual:

ID code and LED color corresponding correlation:

1: RED

2: GREEN

3: RED+GREED = YELLOW

4: BLUE

5: RED+BLUE = PURPLE

6: GREEN+BLUE = CYAN

7: RED+GREED+BLUE = WHITE

Press key 1 time to indicate ID setting, press again to set ID, then ID value adding

Working Condition:

LED constant lit up: no DMX or signal

RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically. ID Code------17 groups

ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver.

Establishing Communication:

1. Power on DMX512 board.

2. Press "Key" button to set same ID value of board, please use different ID value if you need to use more than 1 group system at the same time in the same place.

3. The red LED flashes when DMX data by no interfered frequency section, then changes communicated frequency section. Green LED flash till corrected same ID value, LED flash more fast once DMX data more fast.
