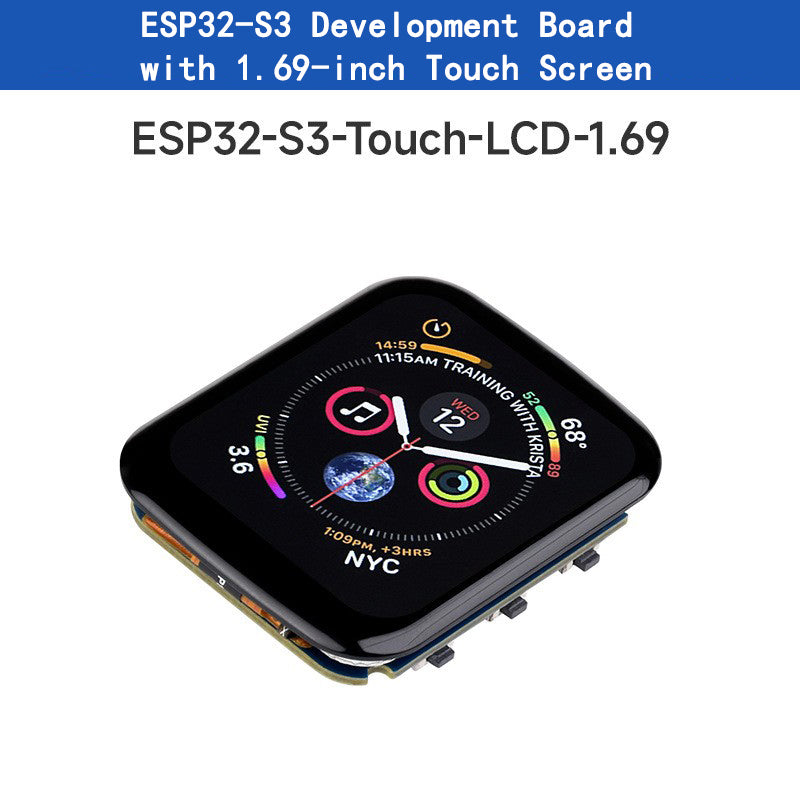

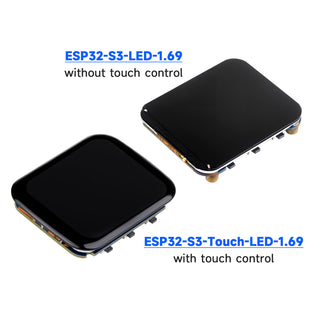

ESP32-S3 1.69-inch Touch Screen Development Board 240MHz Processor WIFI Bluetooth 262K Color LCD
Description:
This product is a low-cost, high-performance microcontroller development board designed by Waveshare and equipped with a 240MHz dual-core processor. In a small form factor, it is equipped with a 1.69-inch 262K color LCD screen, a lithium battery charging chip, a six-axis sensor (three-axis accelerometer and three-axis gyroscope), a WiFi/Bluetooth antenna, an RTC and other peripherals, making it easy to develop and embed applications into products.
Features:
Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is up to 240 MHz
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), onboard antenna
Built-in 512KB SRAM and 384KB ROM, stacked 8MB PSRAM and external 16MB Flash
Using Type-C interface, keep up with the trend of the times, no need to worry about whether to insert it forward or backward

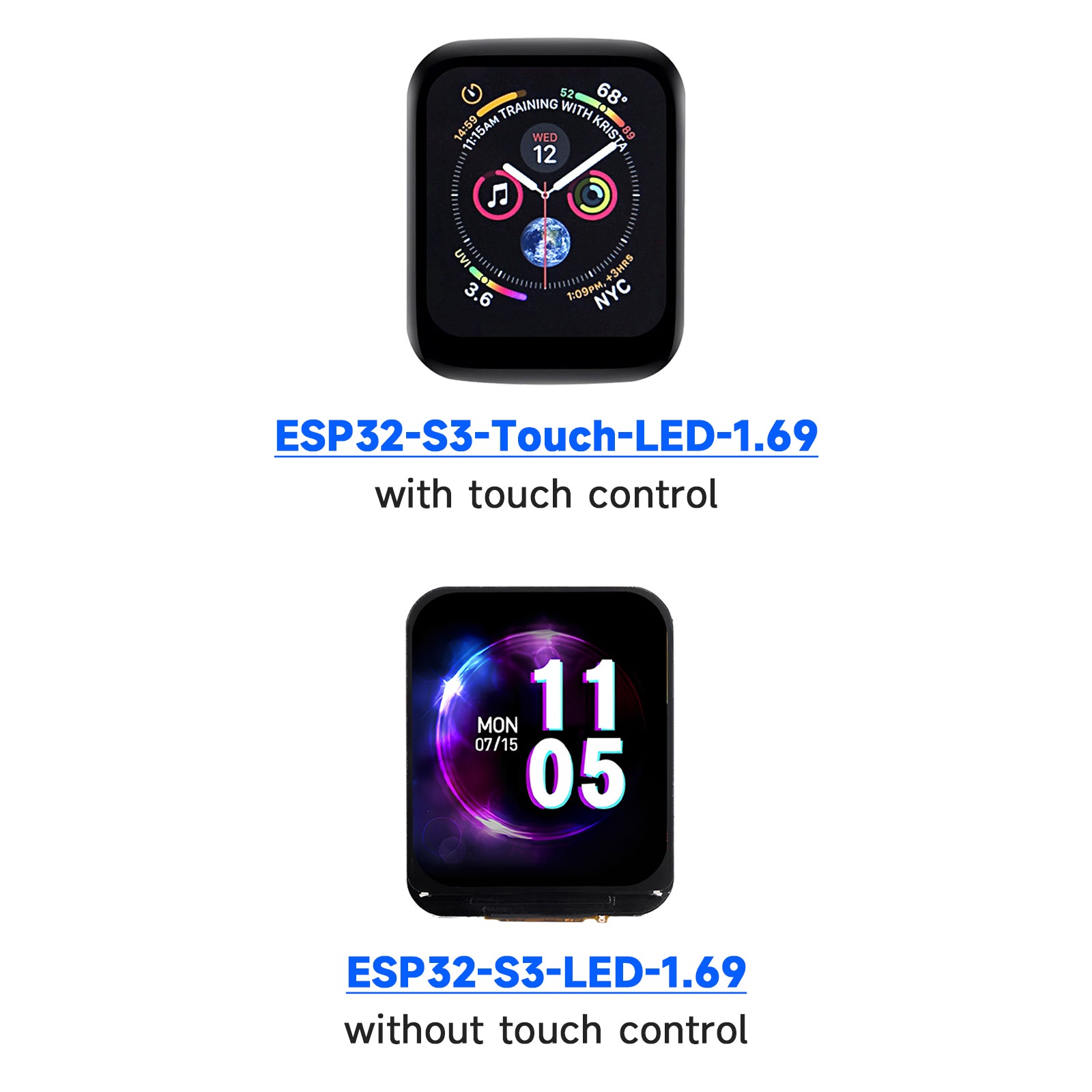

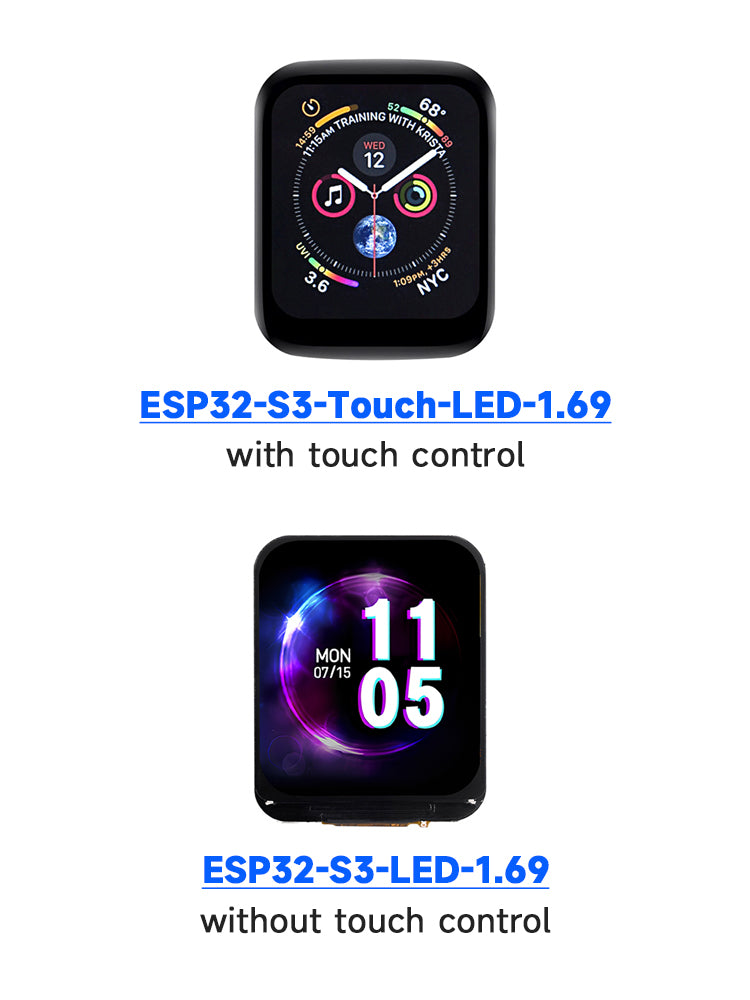

Onboard 1.69-inch LCD screen, 240x280 resolution, 262K color, can clearly display color pictures

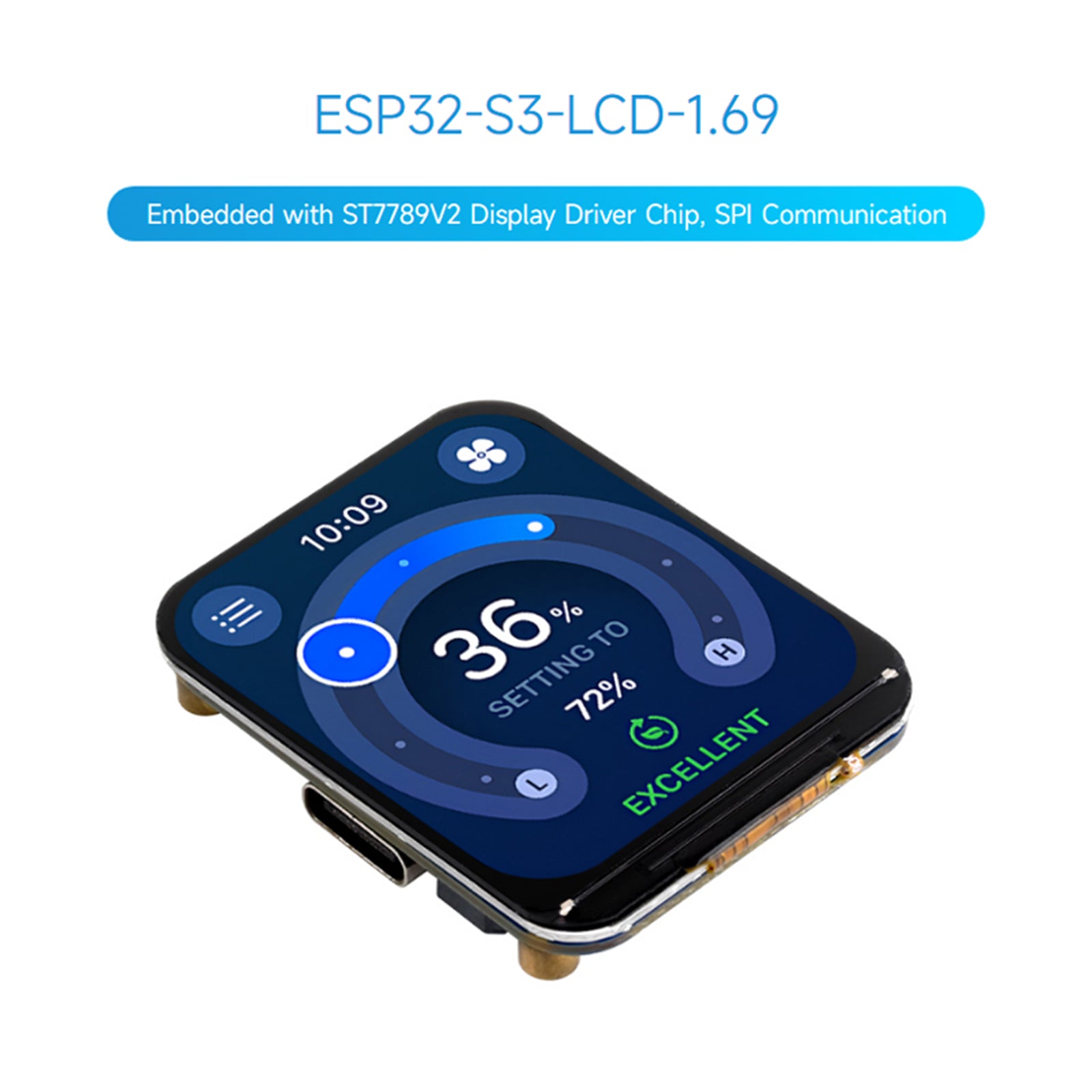

Built-in ST7789V2 driver chip, using SPI does not occupy too many interface pin resources
Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), can detect motion posture, step counting, etc.
Onboard PCF85063 RTC chip, reserved SH1.0 battery slot (supports charging), can be easily realized RTC function requirements

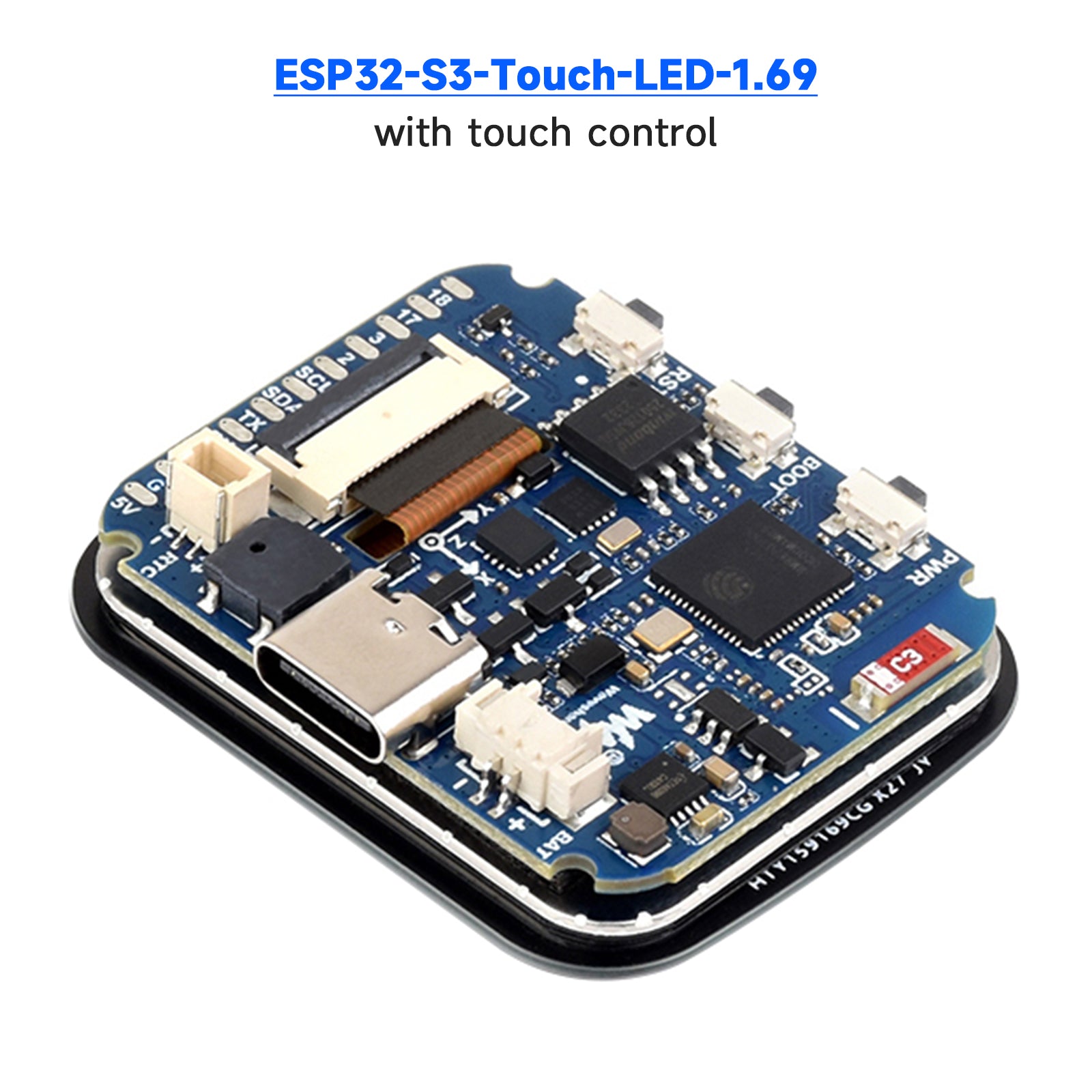

Onboard RST, BOOT and a side button with customizable functions, convenient for custom function development using buttons
Onboard 3.7V MX1.25 lithium battery charging and discharging interface

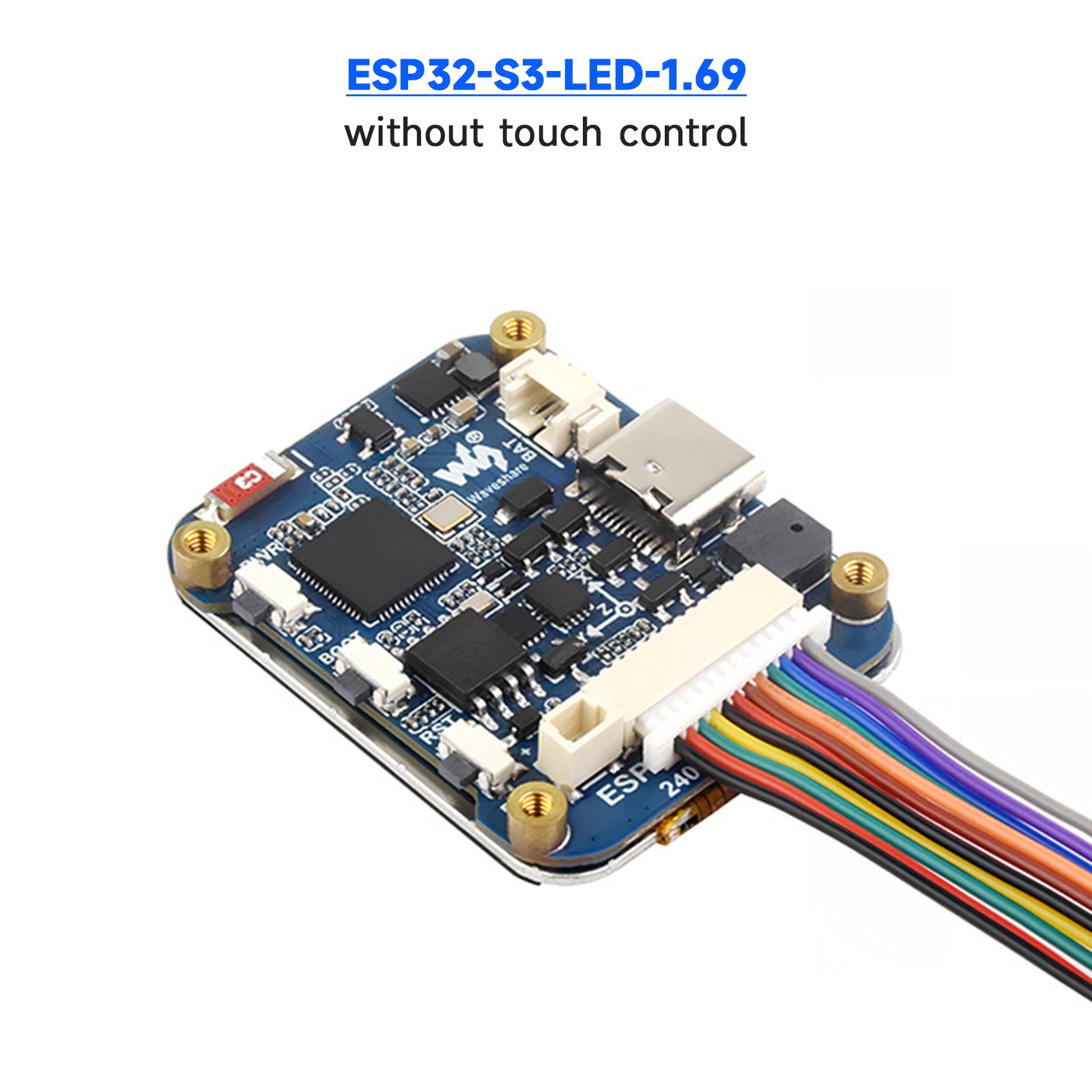

Bring out 5 GPIO, I2C and UART pins for external devices and debugging, flexible configuration of peripheral functions
Support flexible clock, module power separate setting and other precise control, realize multi-scenario low power mode

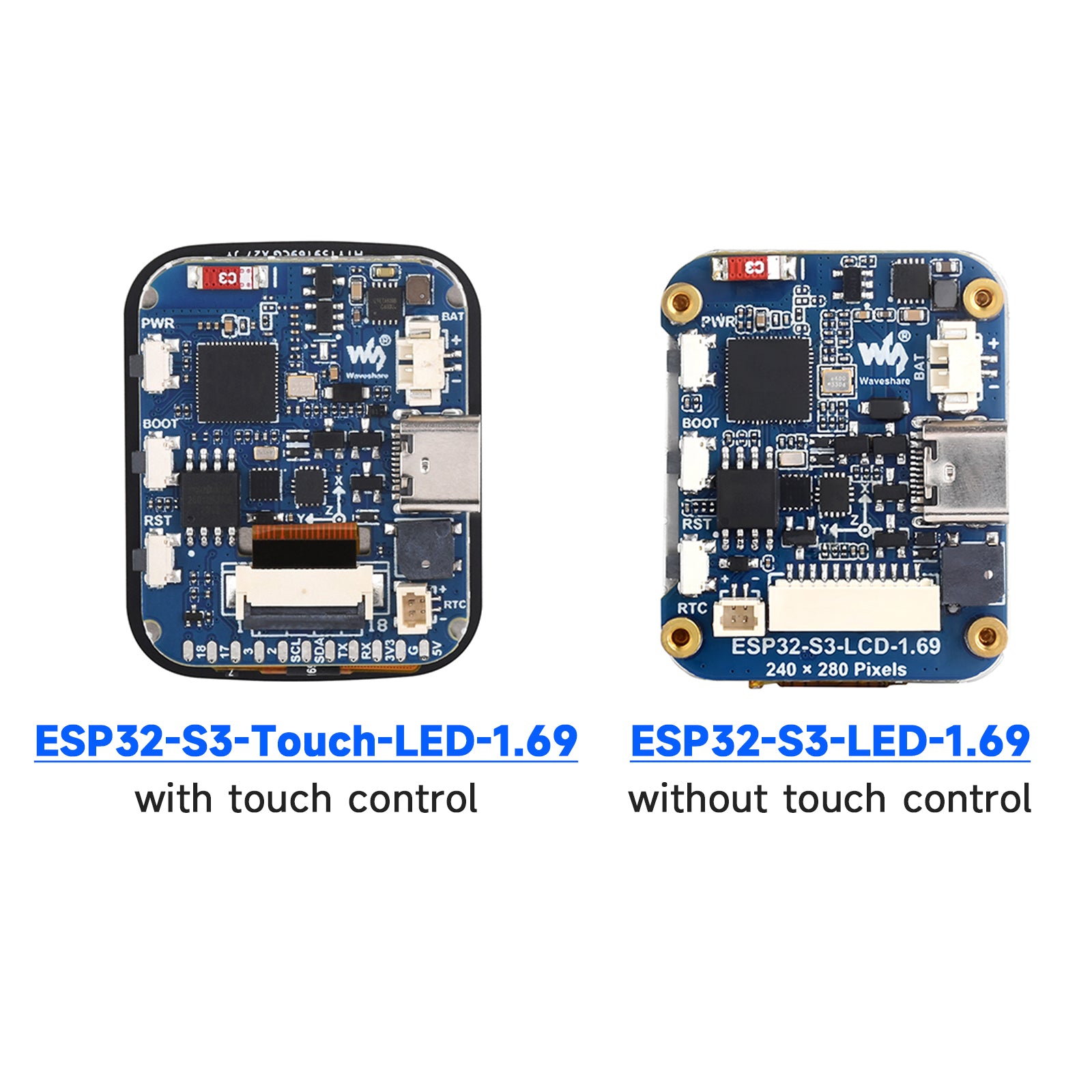

Package Include:

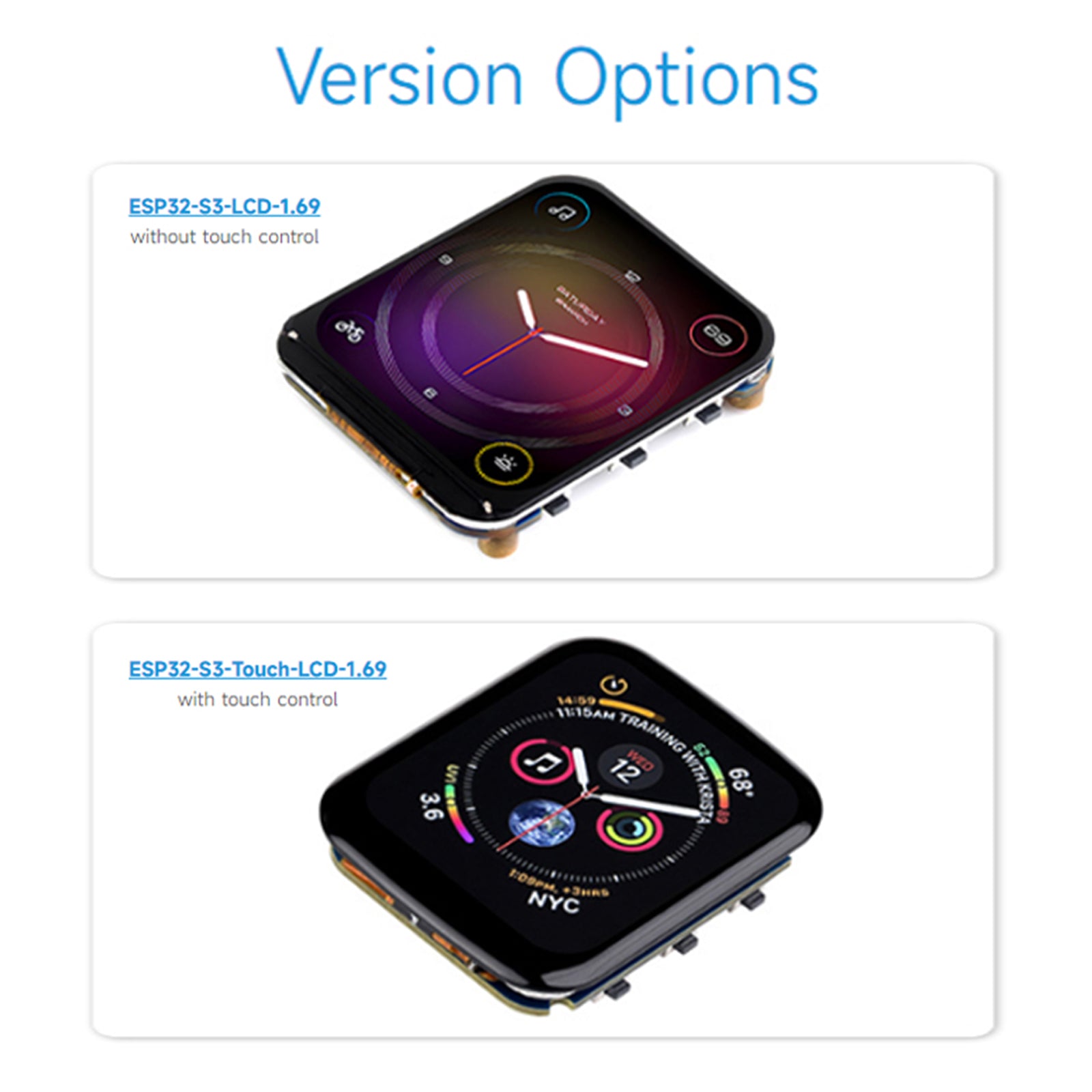

Option1:

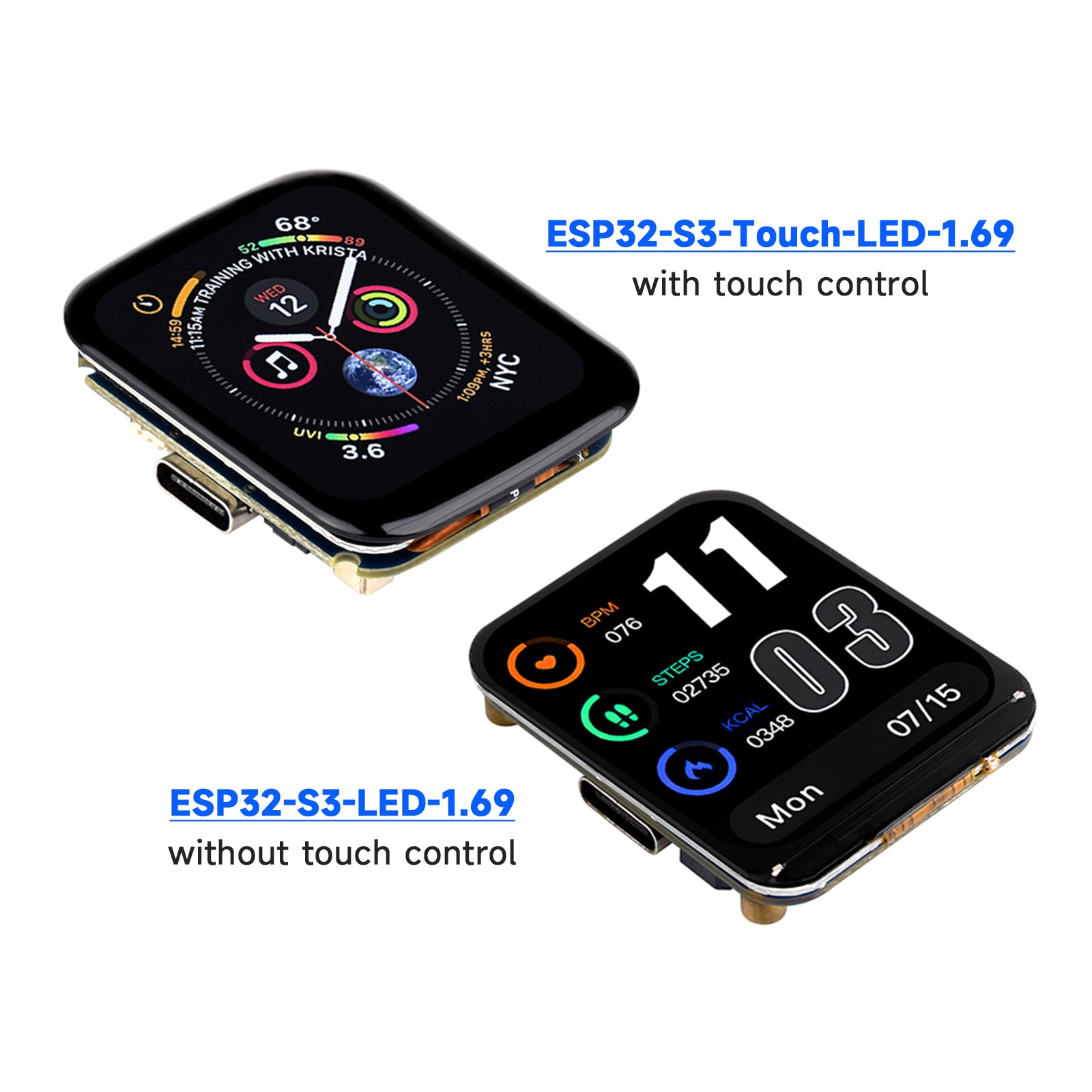

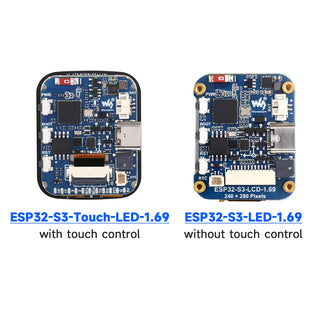

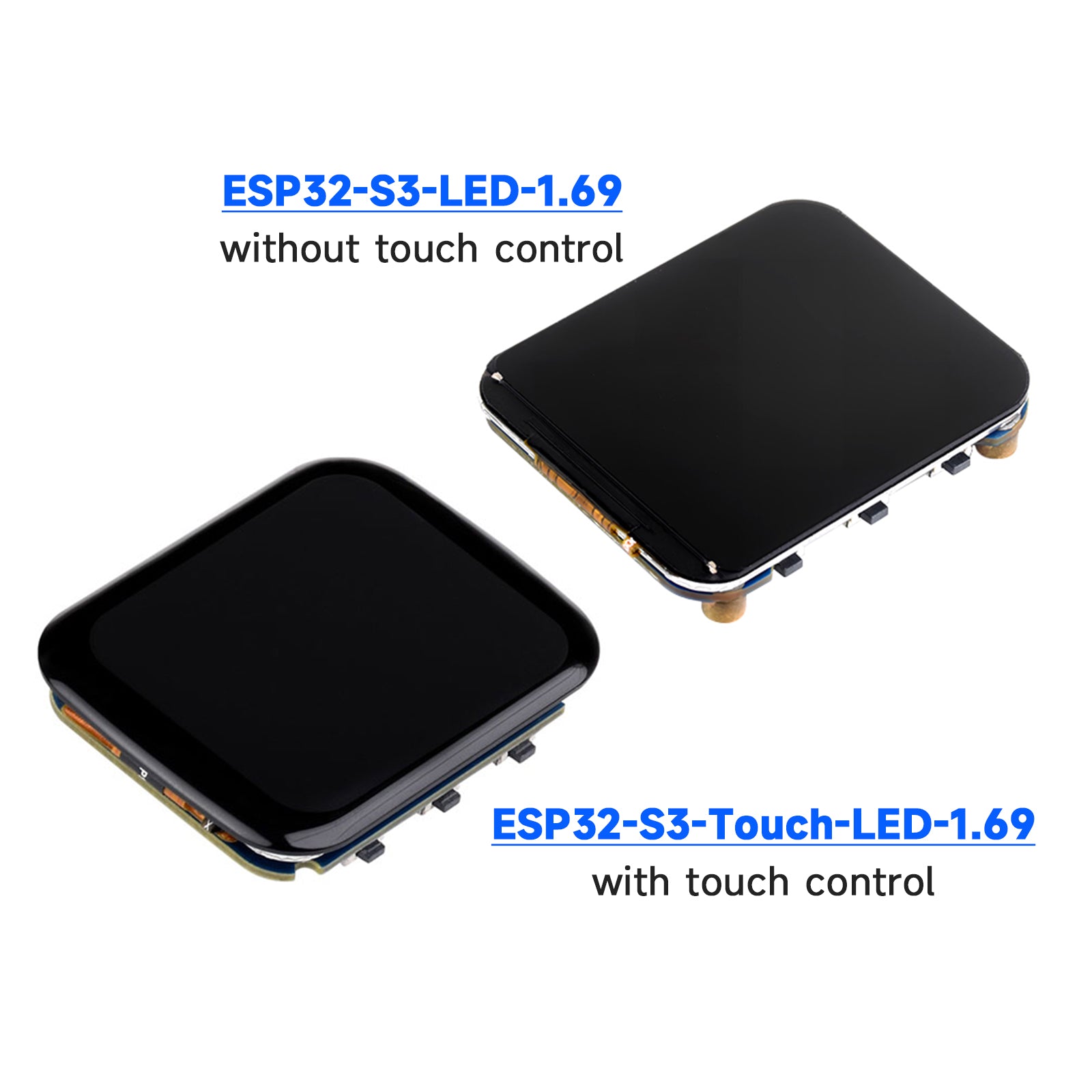

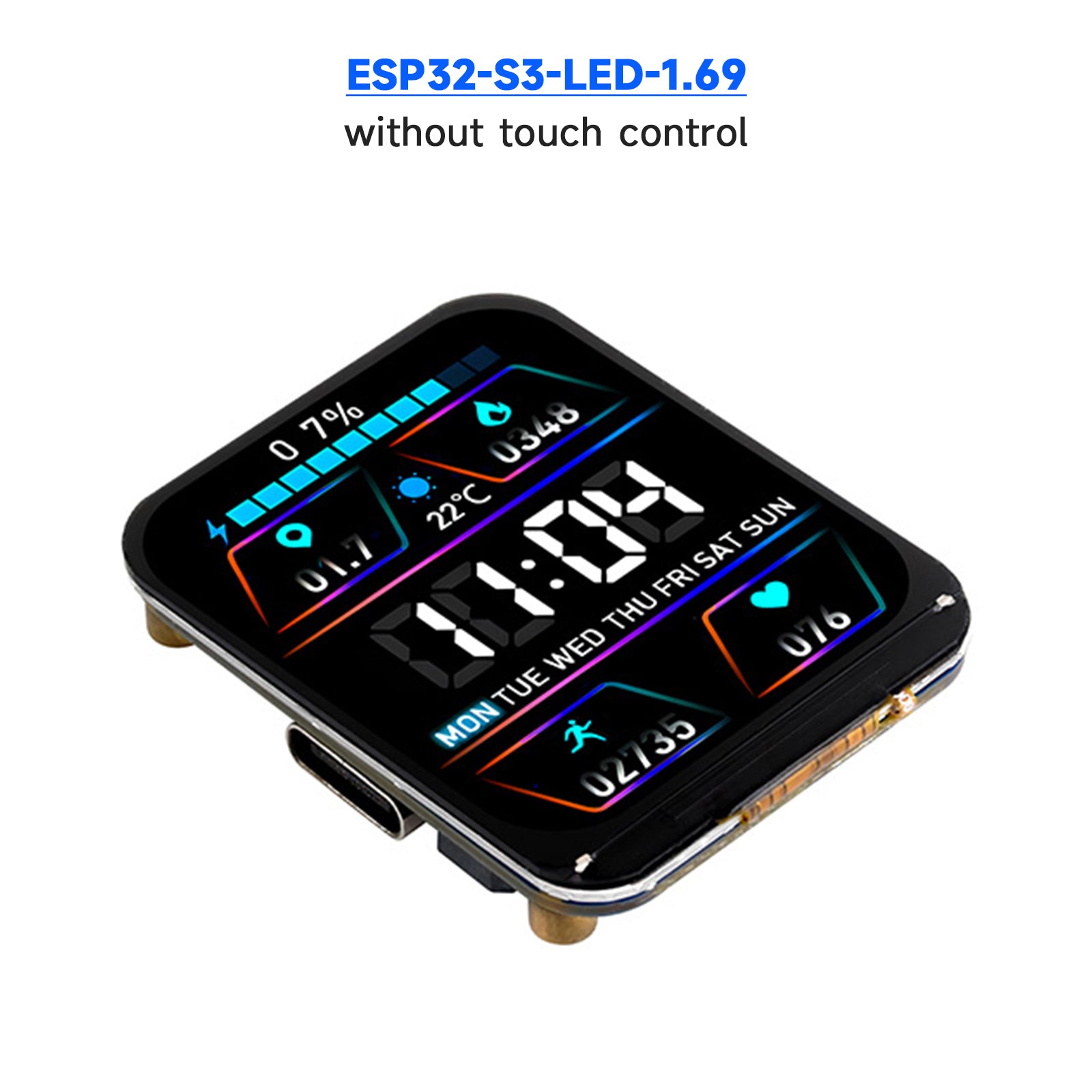

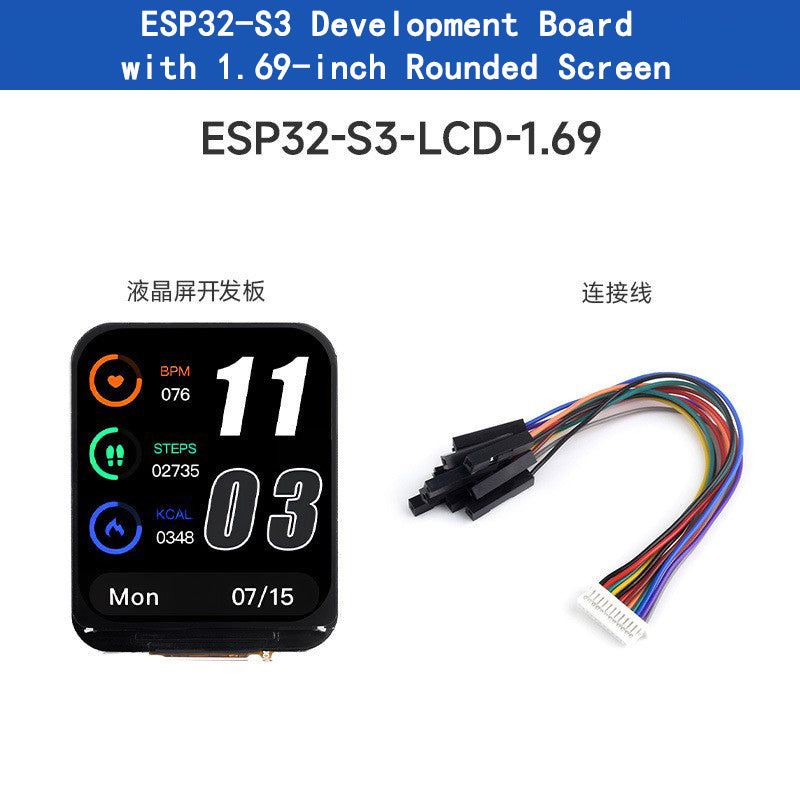

1x 1.69-inch Screen Development Board [non-touch screen]
Option2:

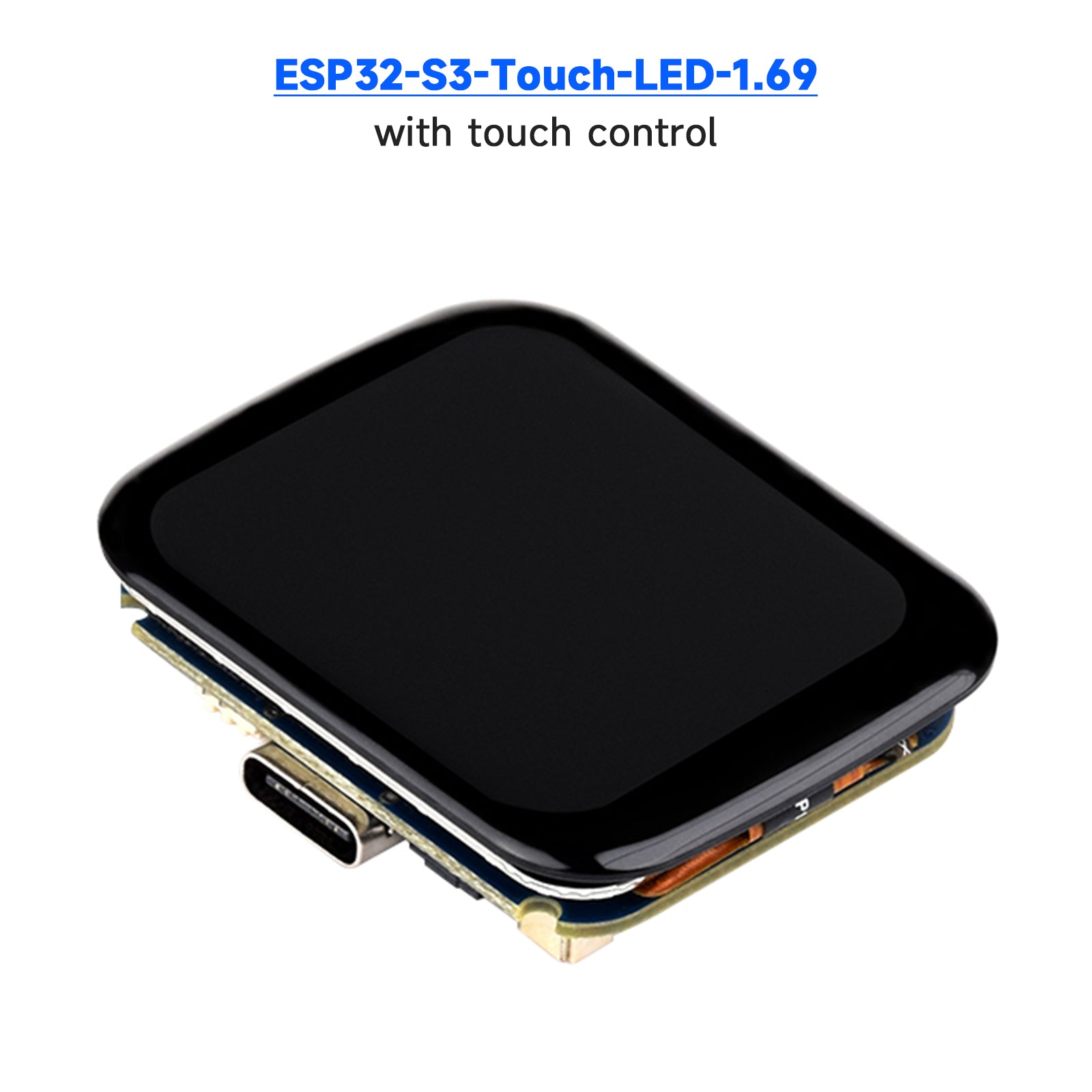

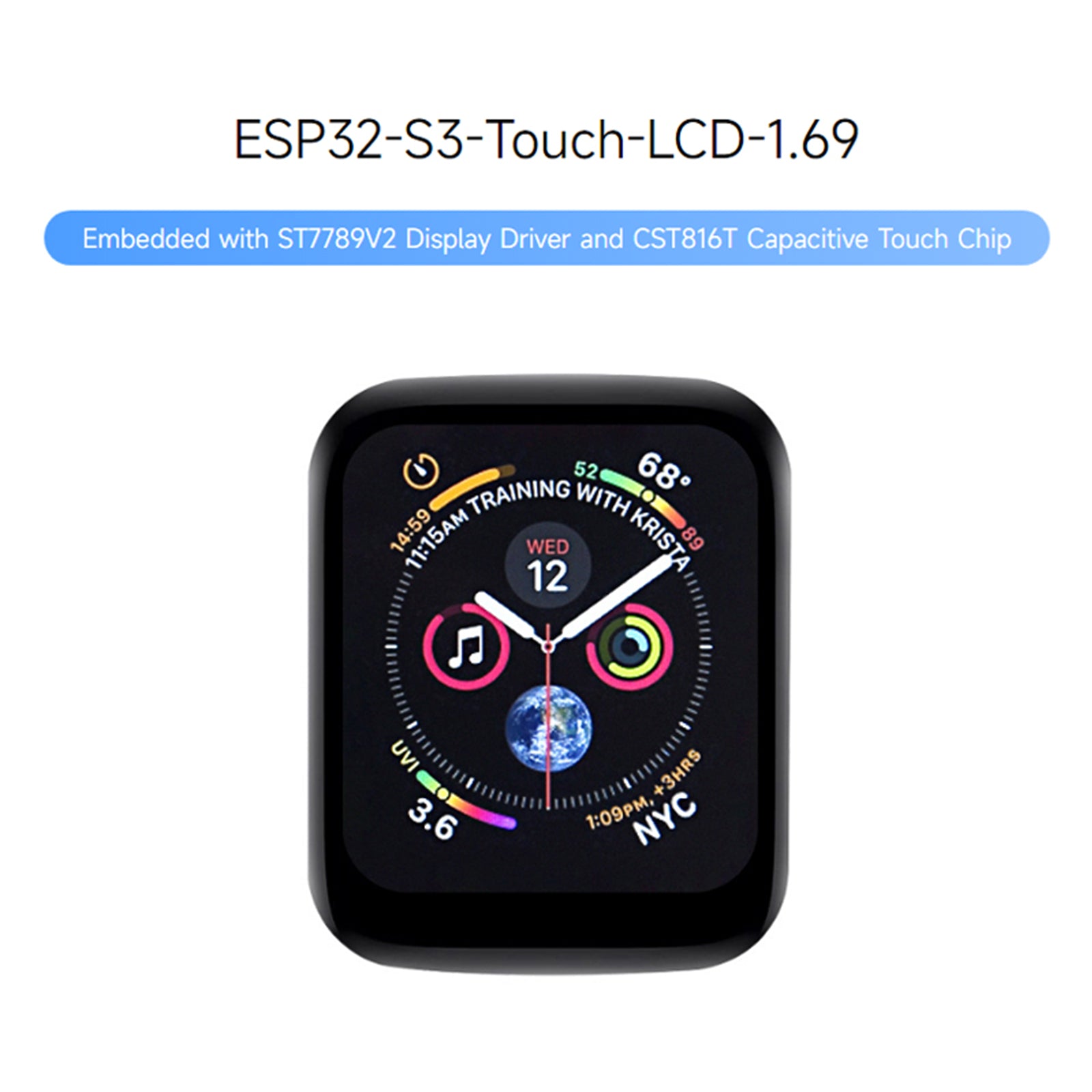

1x 1.69-inch Screen Development Board [touch screen]
Shipping Information:
Free Quick Shipping to USA.
Estimated Time of Arrival: within 3-8 working days.
Warranty:
1.Customers have the right to request a return within 60 days from the date of product receipt.
2.At Itopteng, we offer prompt customer service to assist with product usage inquiries and facilitate returns or refunds.
