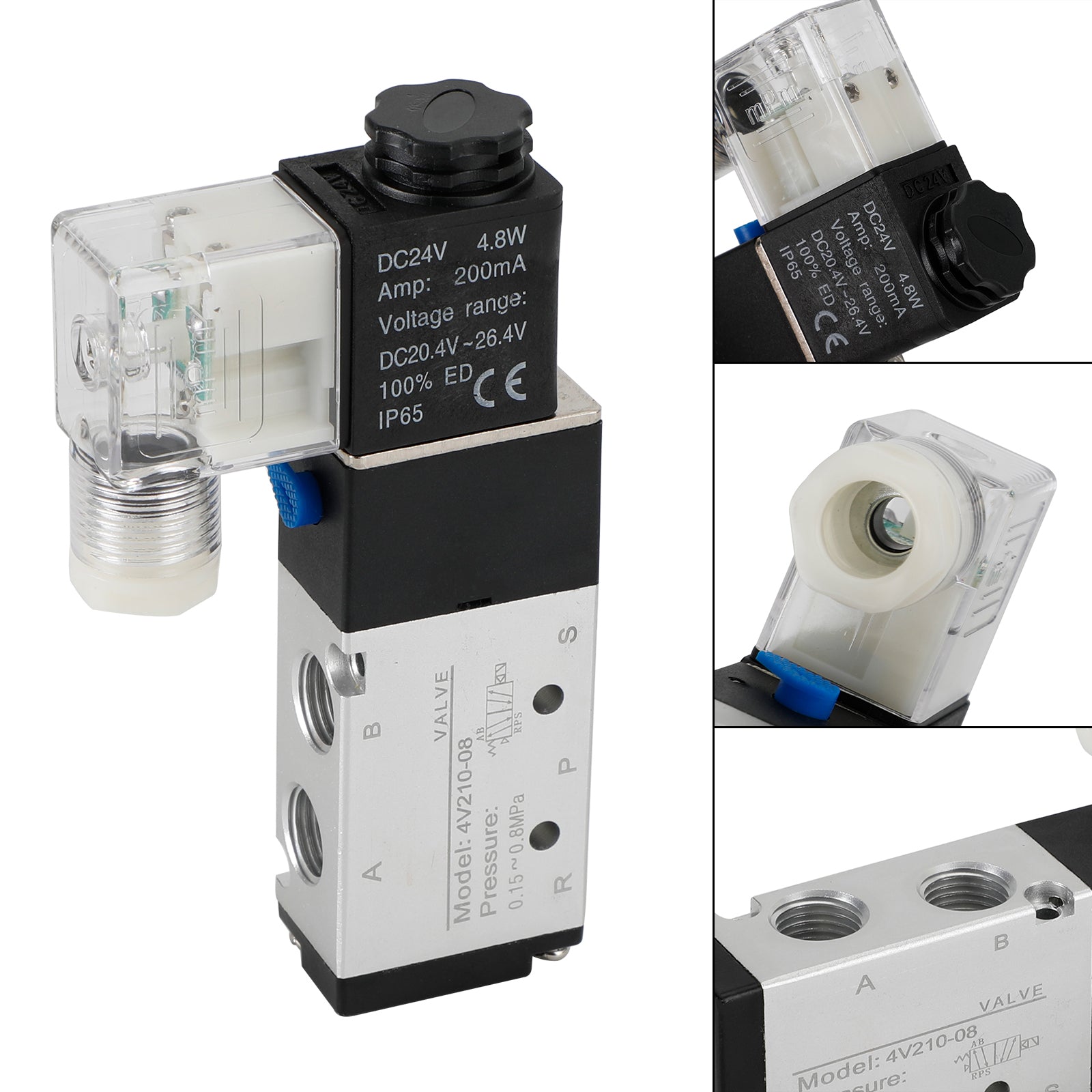

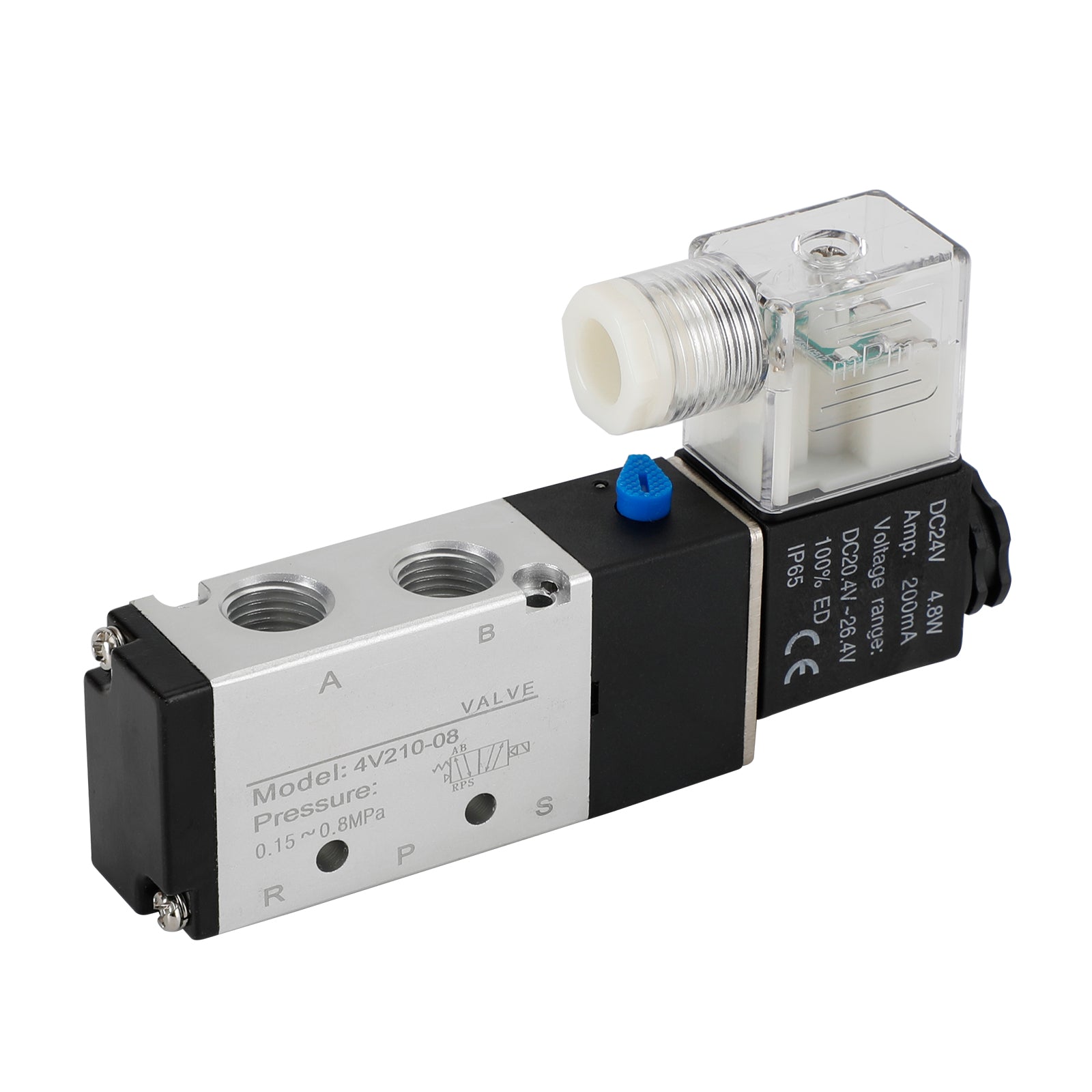

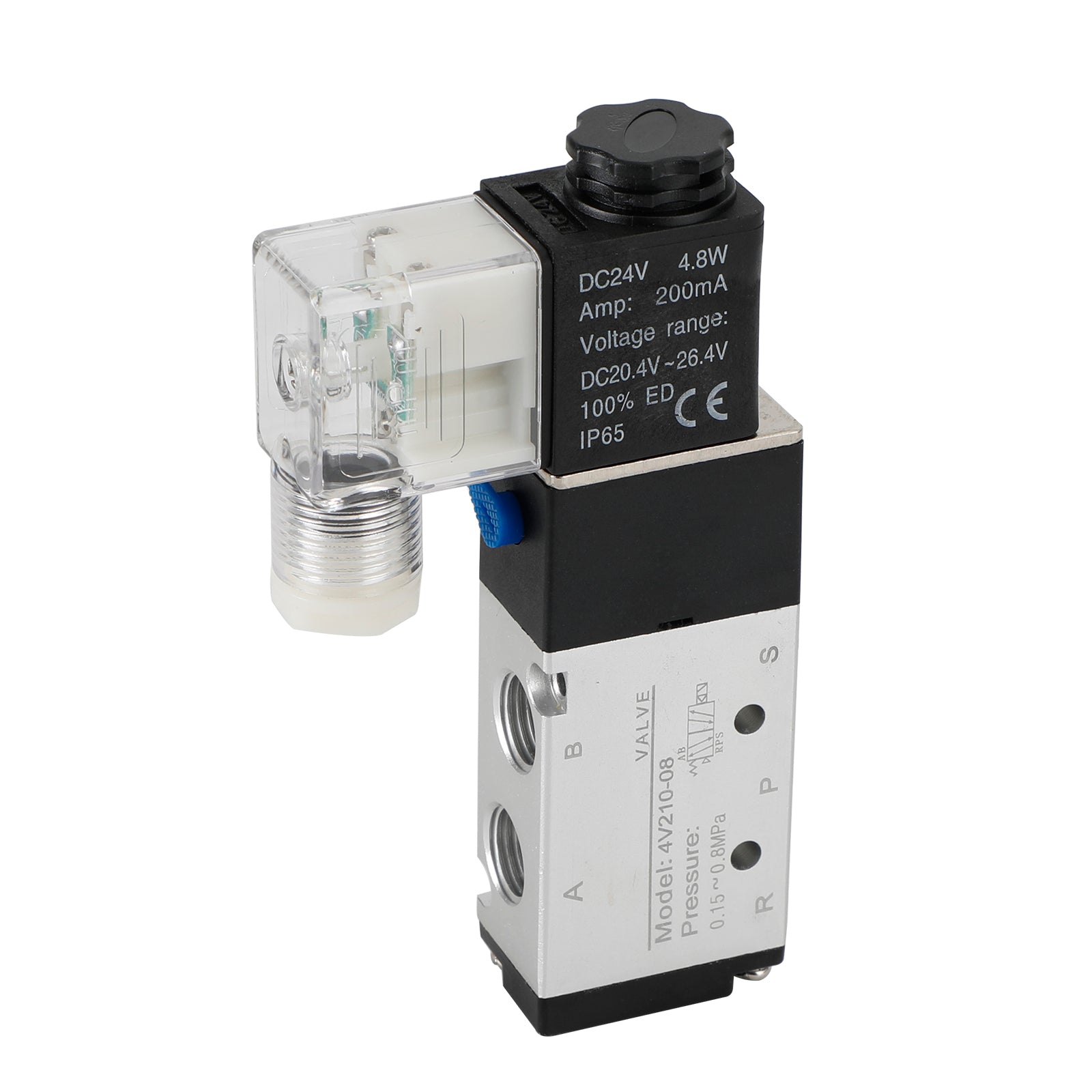

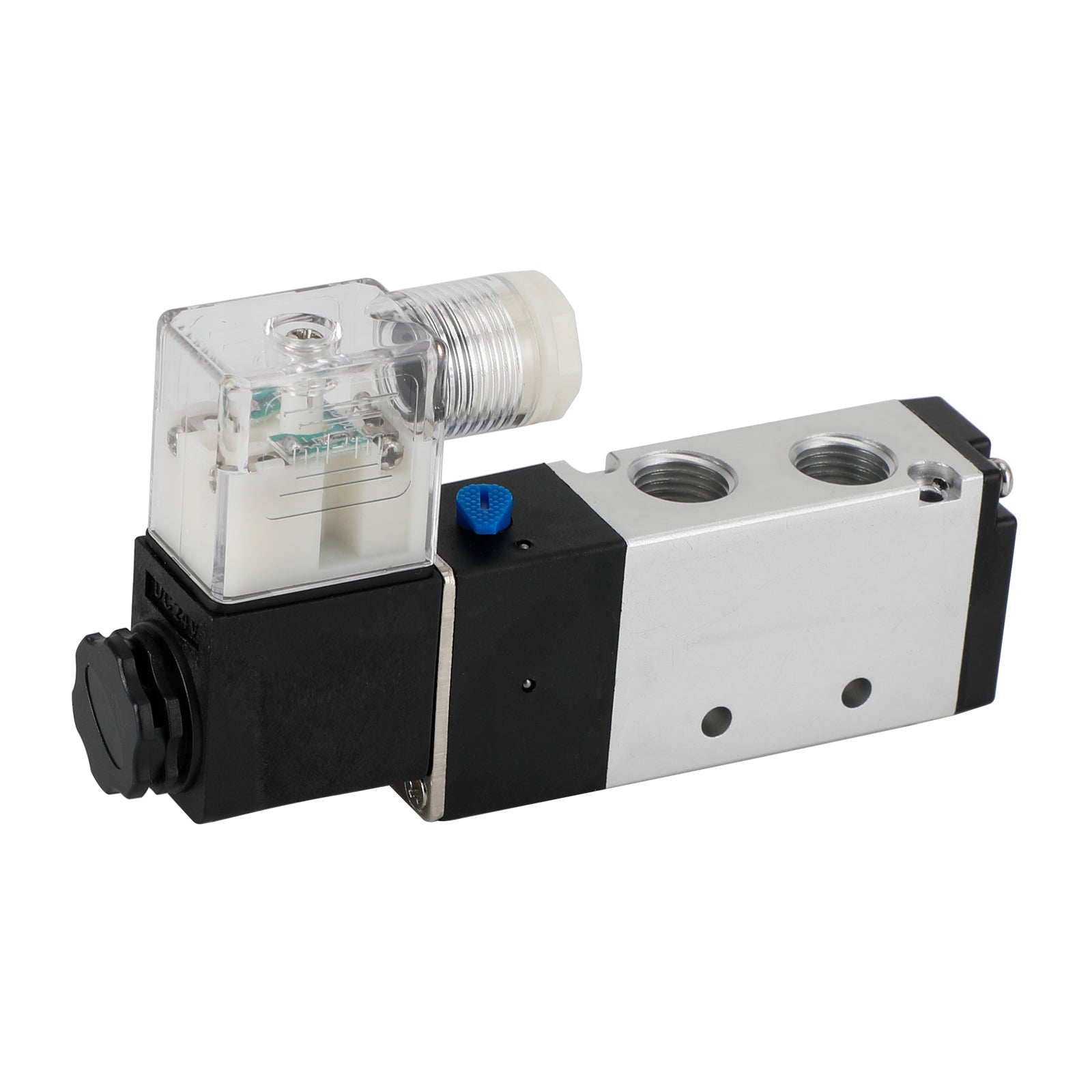

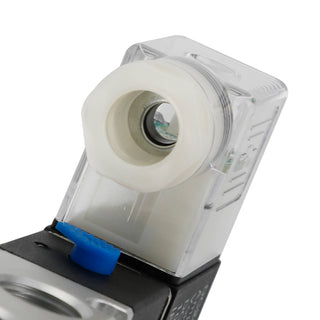

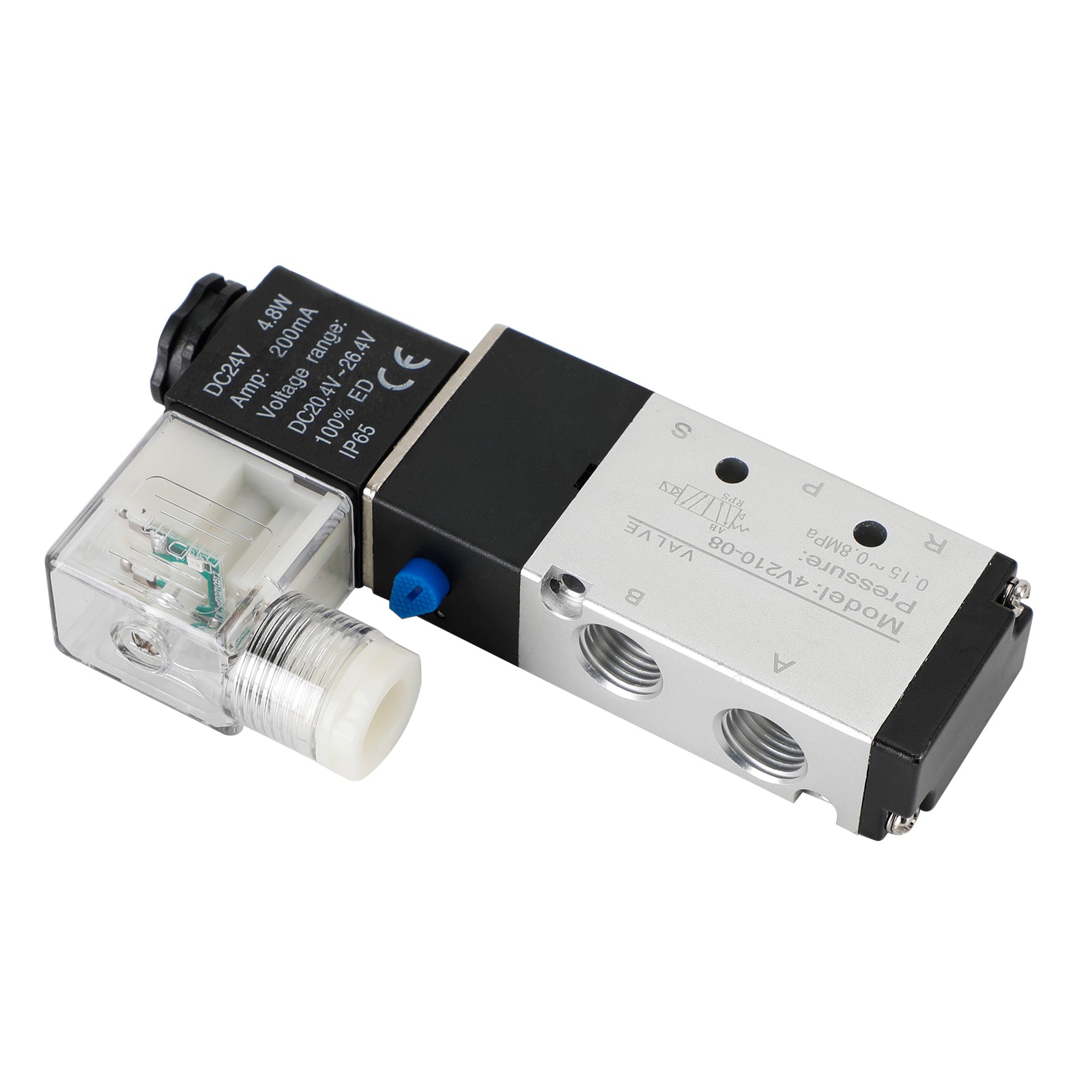

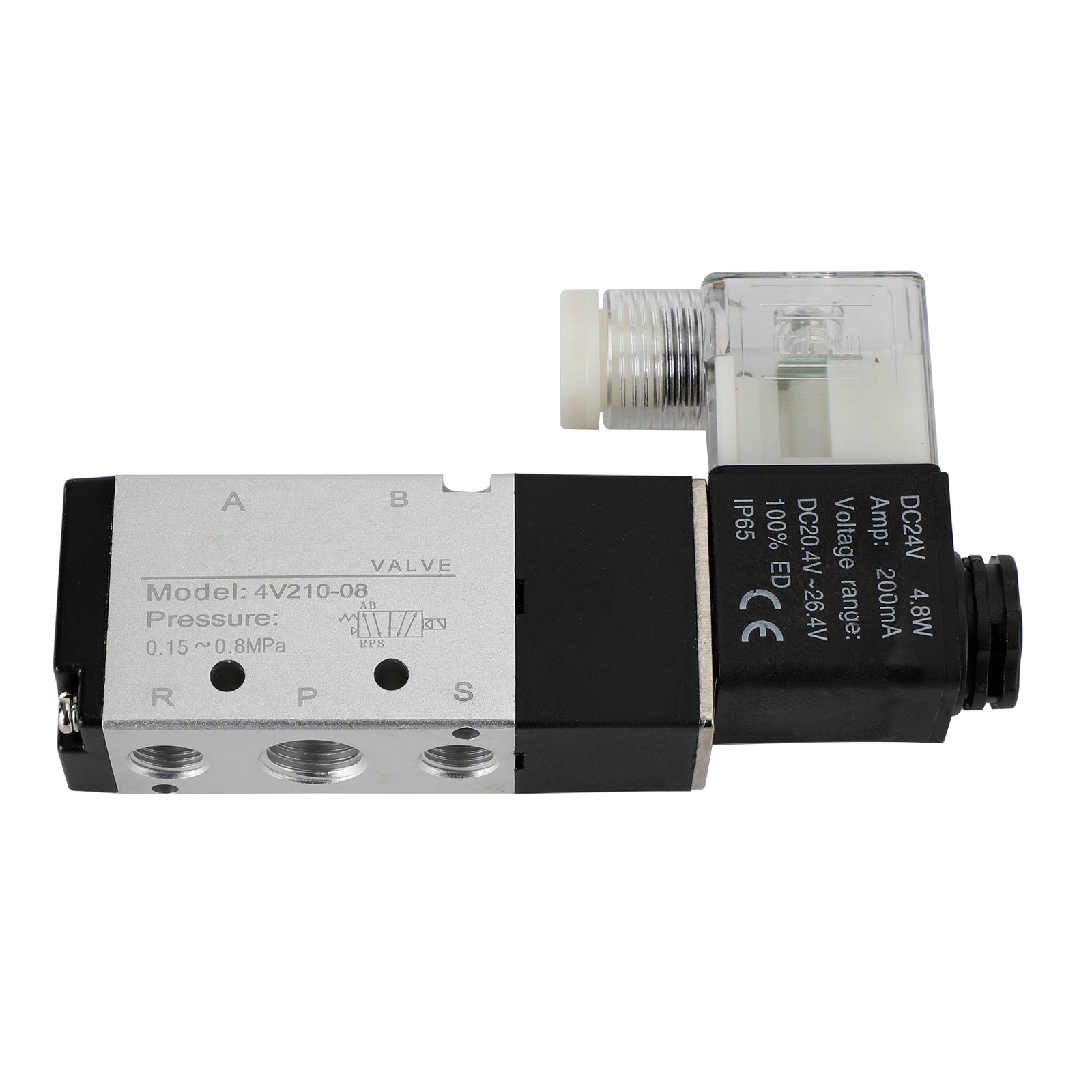

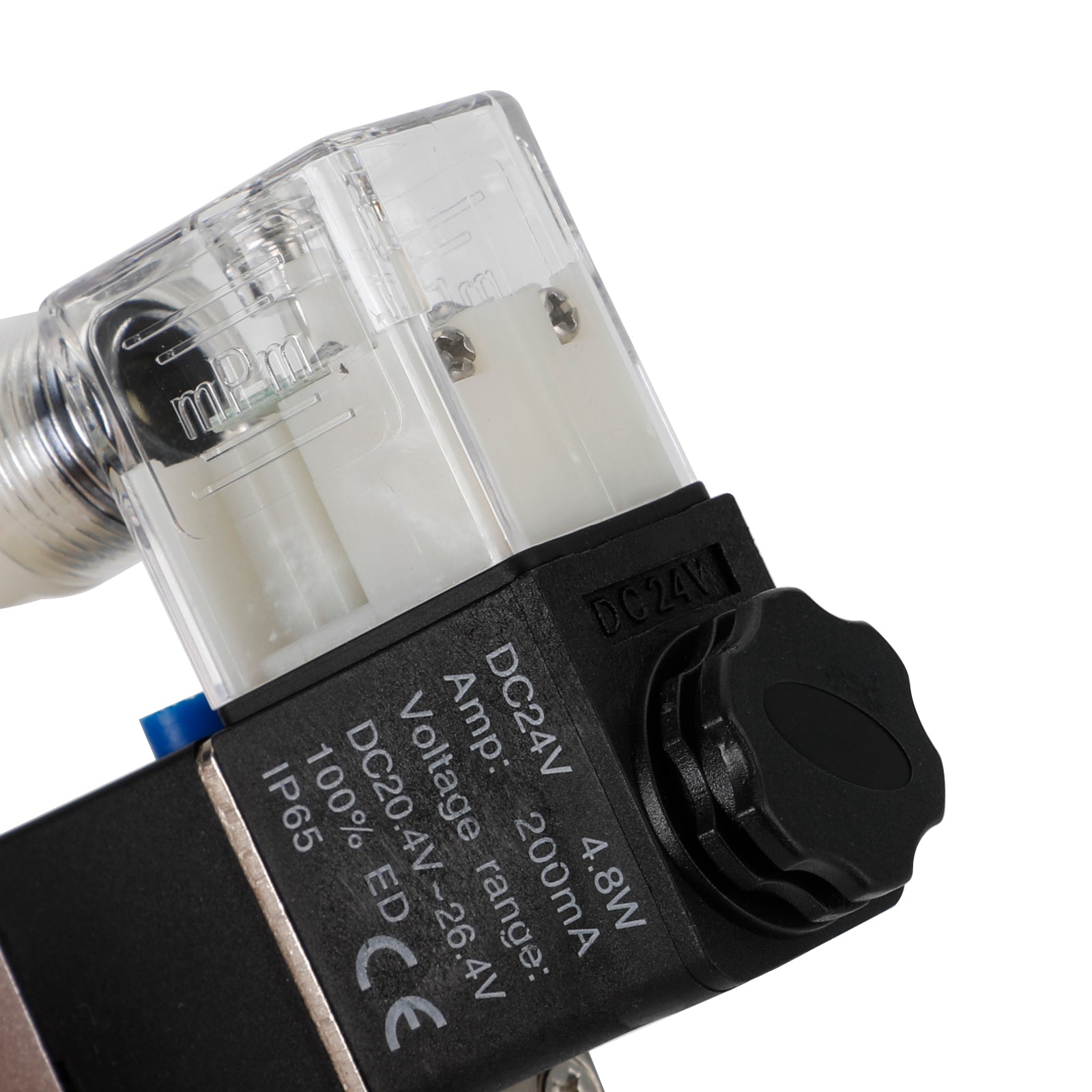

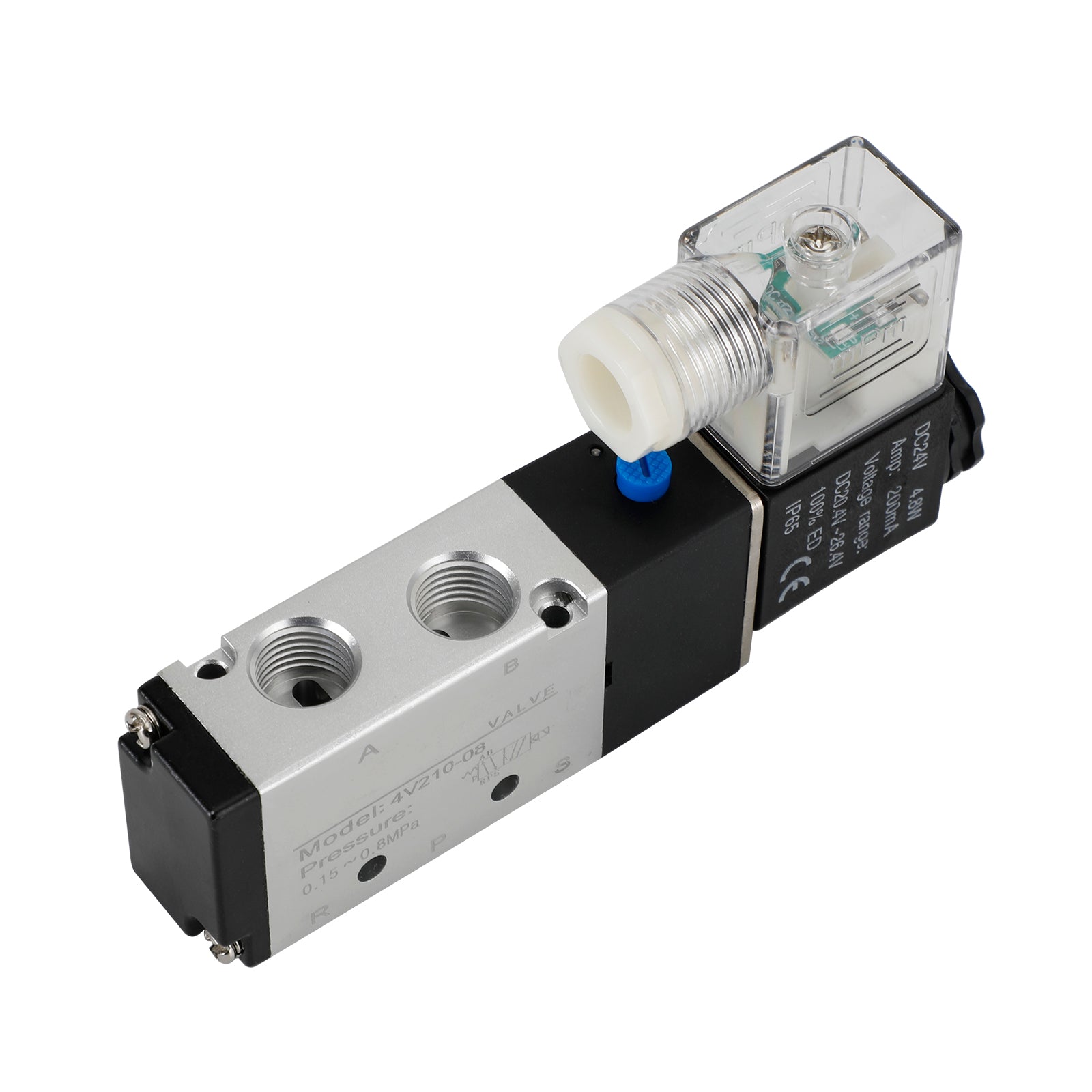

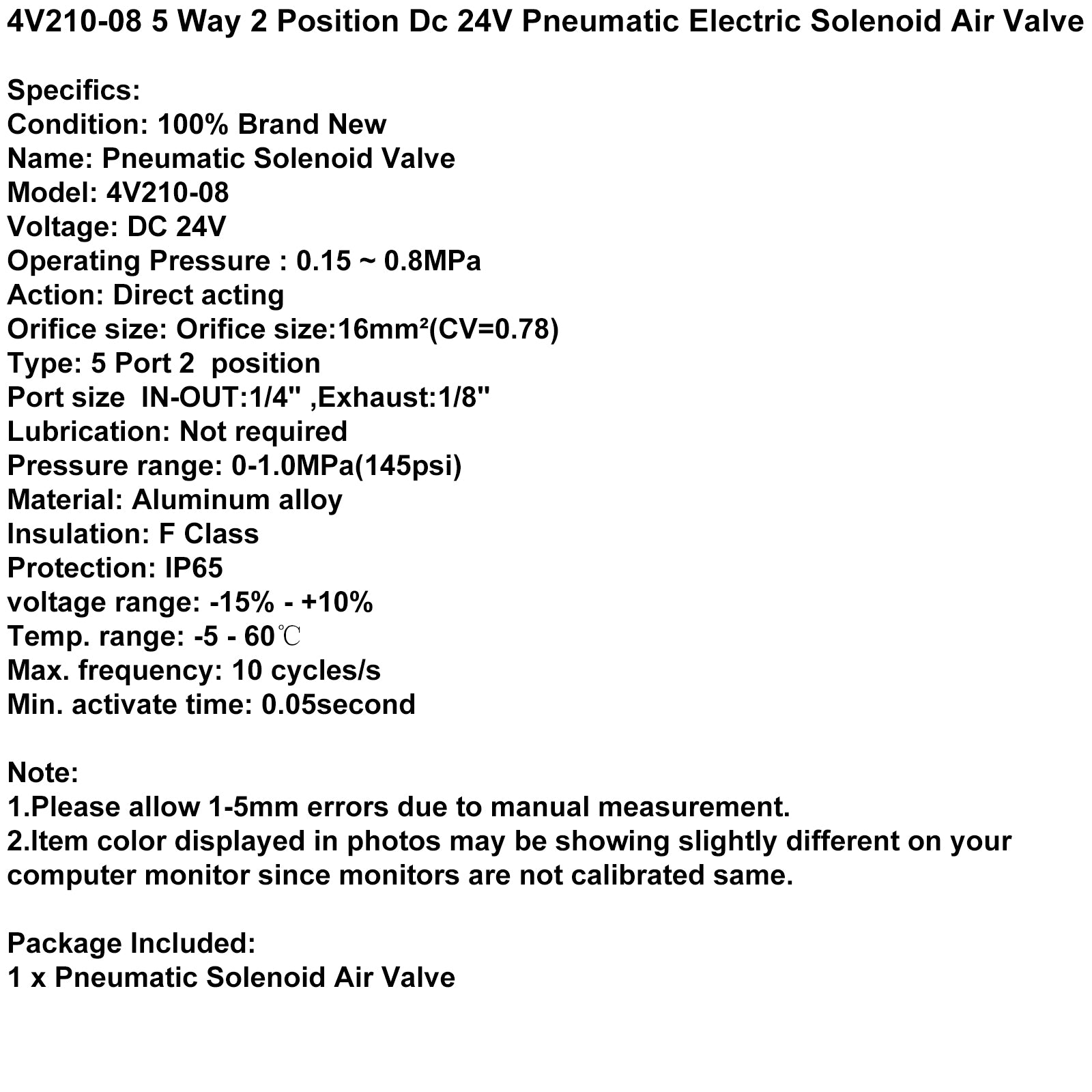

4V210-08 5 Way 2 Position Dc 24V Pneumatic Electric Solenoid Air Valve
Specifics:
Condition: 100% Brand New
Name: Pneumatic Solenoid Valve
Model: 4V210-08
Voltage: DC 24V
Operating Pressure : 0.15 ~ 0.8MPa
Action: Direct acting
Orifice size: Orifice size:16mm²(CV=0.78)
Type: 5 Port 2 position

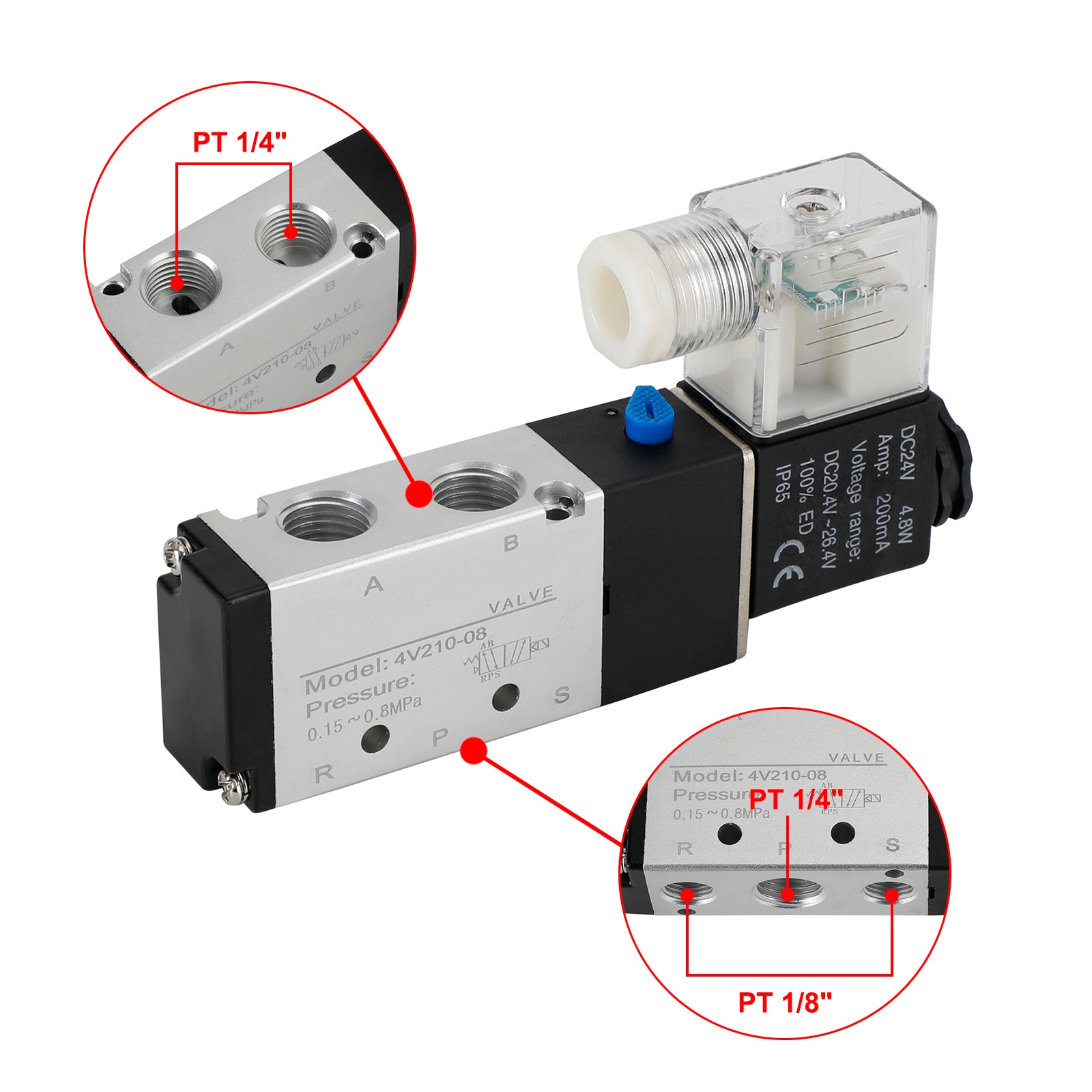

Port size IN-OUT:1/4" ,Exhaust:1/8"
Lubrication: Not required
Pressure range: 0-1.0MPa(145psi)
Material: Aluminum alloy
Insulation: F Class
Protection: IP65
voltage range: -15% - +10%
Temp. range: -5 - 60℃
Max. frequency: 10 cycles/s
Min. activate time: 0.05second
Note:

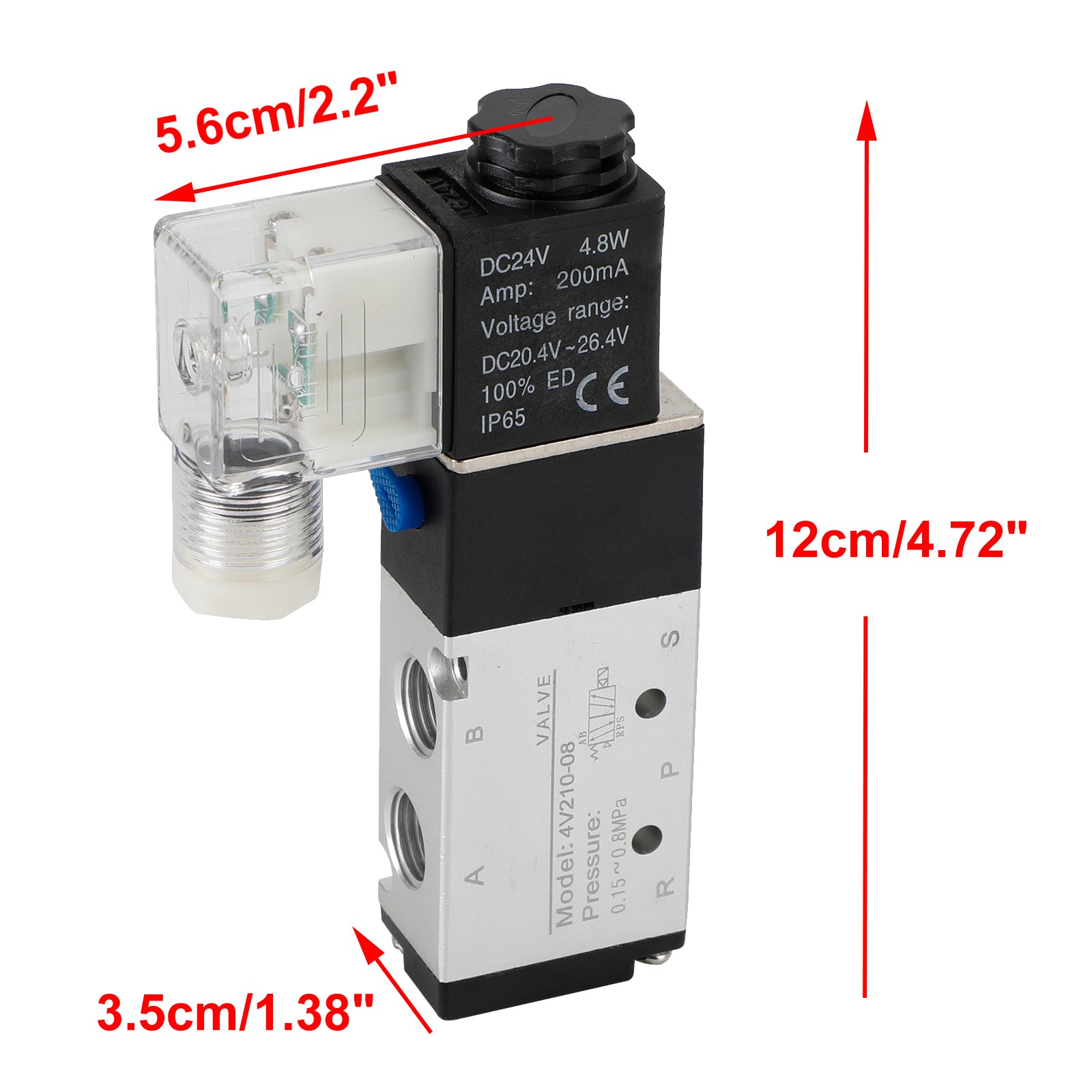

1.Please allow 1-5mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Package Included:
1 x Pneumatic Solenoid Air Valve
Shipping Information:
Free Quick Shipping to USA.
Estimated Time of Arrival: within 3-8 working days.
Warranty:
1.Customers have the right to request a return within 60 days from the date of product receipt.
2.At Itopteng, we offer prompt customer service to assist with product usage inquiries and facilitate returns or refunds.
4V210-08 5 Way 2 Position Dc 24V Pneumatic Electric Solenoid Air Valve
Specifics:
Condition: 100% Brand New
Name: Pneumatic Solenoid Valve
Model: 4V210-08
Voltage: DC 24V
Operating Pressure : 0.15 ~ 0.8MPa
Action: Direct acting
Orifice size: Orifice size:16mm²(CV=0.78)
Type: 5 Port 2 position
Port size IN-OUT:1/4" ,Exhaust:1/8"
Lubrication: Not required
Pressure range: 0-1.0MPa(145psi)
Material: Aluminum alloy
Insulation: F Class
Protection: IP65
voltage range: -15% - +10%
Temp. range: -5 - 60℃
Max. frequency: 10 cycles/s
Min. activate time: 0.05second
Note:
1.Please allow 1-5mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Package Included:
1 x Pneumatic Solenoid Air Valve
Shipping Information:
Free Quick Shipping to USA.
Estimated Time of Arrival: within 3-8 working days.
Warranty:
1.Customers have the right to request a return within 60 days from the date of product receipt.
2.At Itopteng, we offer prompt customer service to assist with product usage inquiries and facilitate returns or refunds.
A

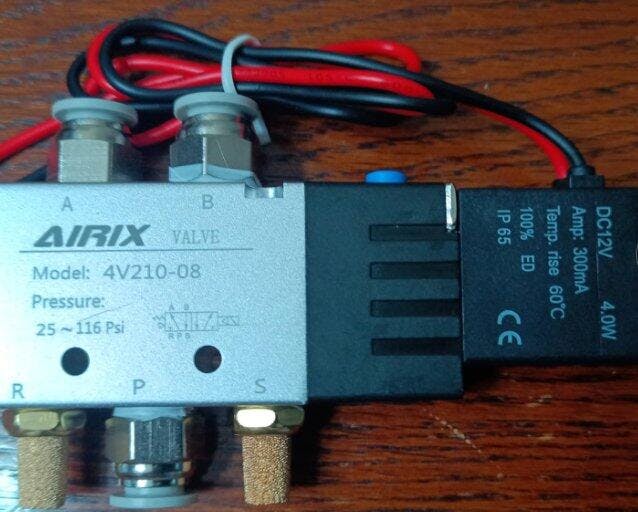

Great mod to escape the over priced namw brand parts. Does exactly what I need it to do....pump up and deflate my firestone ride rite air bags.
A

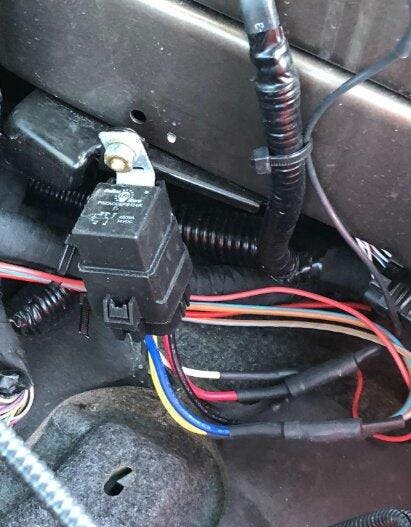

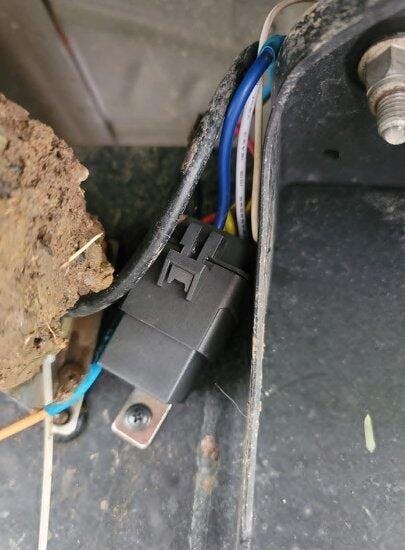

This is a really nice heavy duty relay. I put it in my Yanmar to run my auxiliary backup lights with my upfitter switches. With this relay installed I can run the auxiliary backup lights in two modes, ON when ever I want (even with the truck OFF) or make them go ON and OFF with the factory back up lights. Works great and I didn’t have to use a diode. My configuration uses two of the upfitter switches in the truck. The mounting bracket worked out nice. This relay is water proof as well, has a nice ribbed torturous path gasket.
