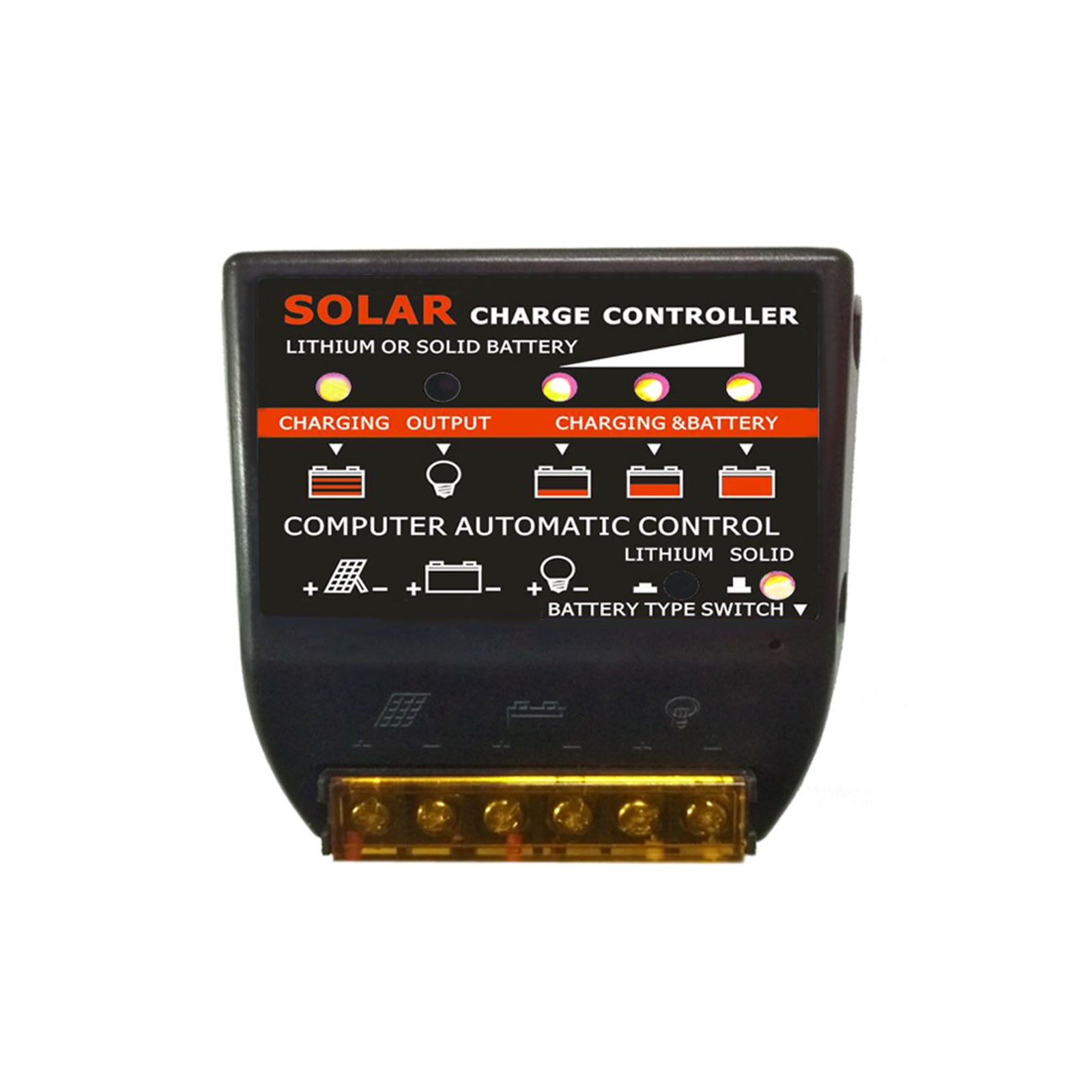

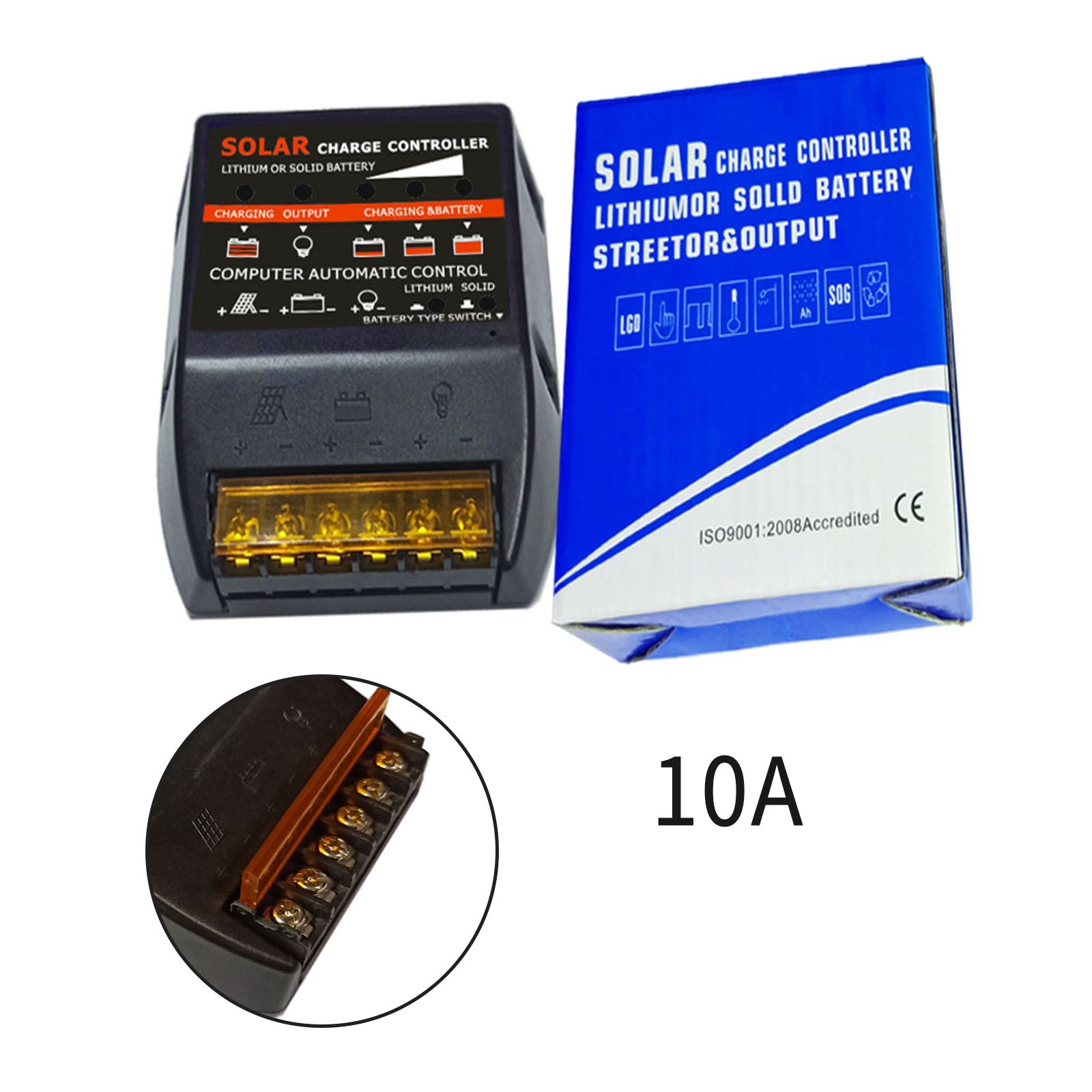

Solar Photovoltaic Charge Controller PWM 10A 12V Solar Panel Battery Controller

Build-in industrial micro controller with LED display and full 4-stage PWM charge management for efficient energy storage from solar panels to batteries. Ideal for small solar power generation systems including landscape and lighting applications.
Features:
Build-in industrial micro controller
LED display showing working status
Full 4-stage PWM charge management
Built-in short-circuit protection, open-circuit protection, reverse and over-load protection
Dual MOSFET reverse current protection with low heat production
Specifications:
Battery voltage: 12V/24V auto adapt
Charge current: 10A
Discharge current: 10A
Max solar input: 12V battery with 18V, 24V battery with 36V
Self-consume: <10mA
Operating temperature: -35°C to +85°C
Color: Black
Installation Instructions:

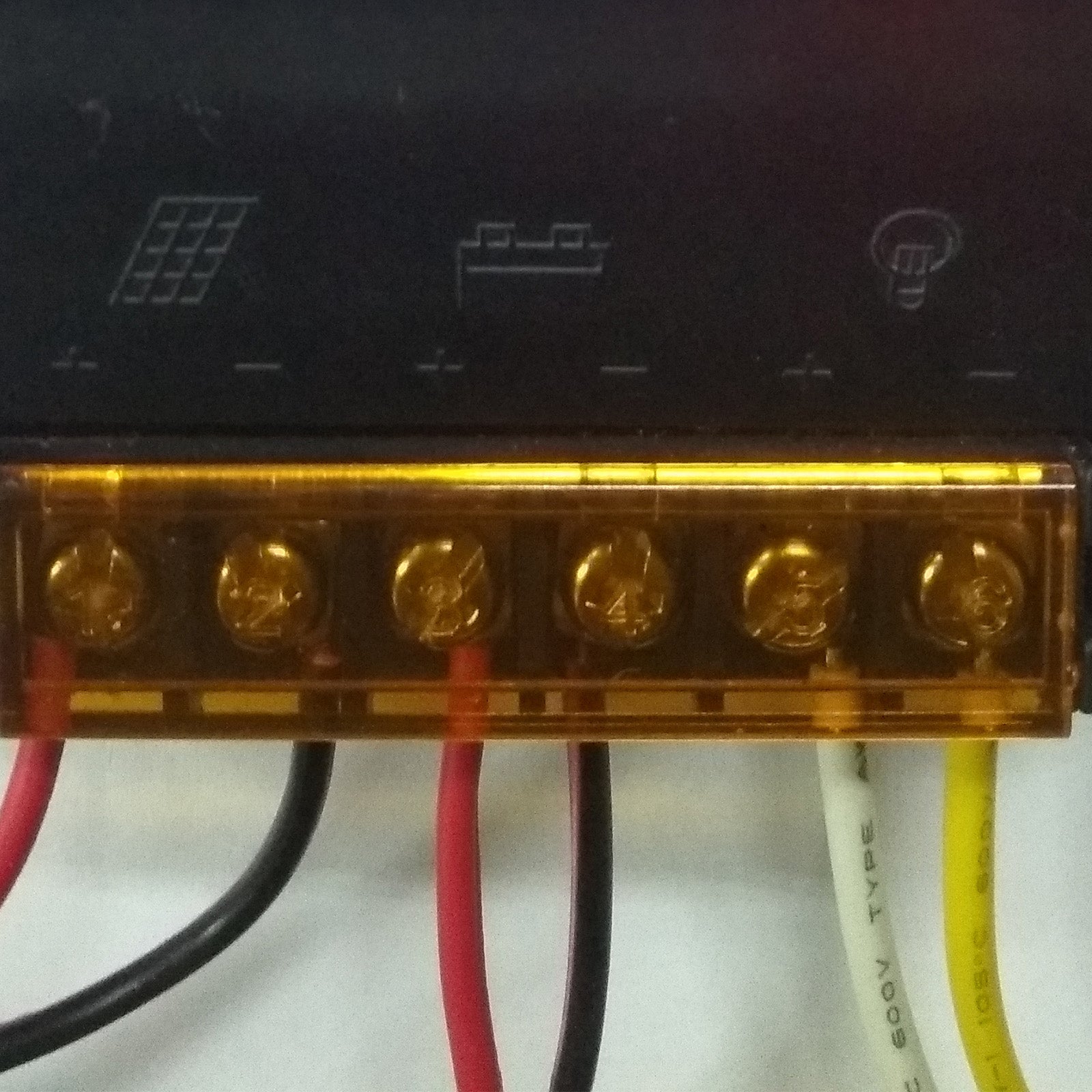

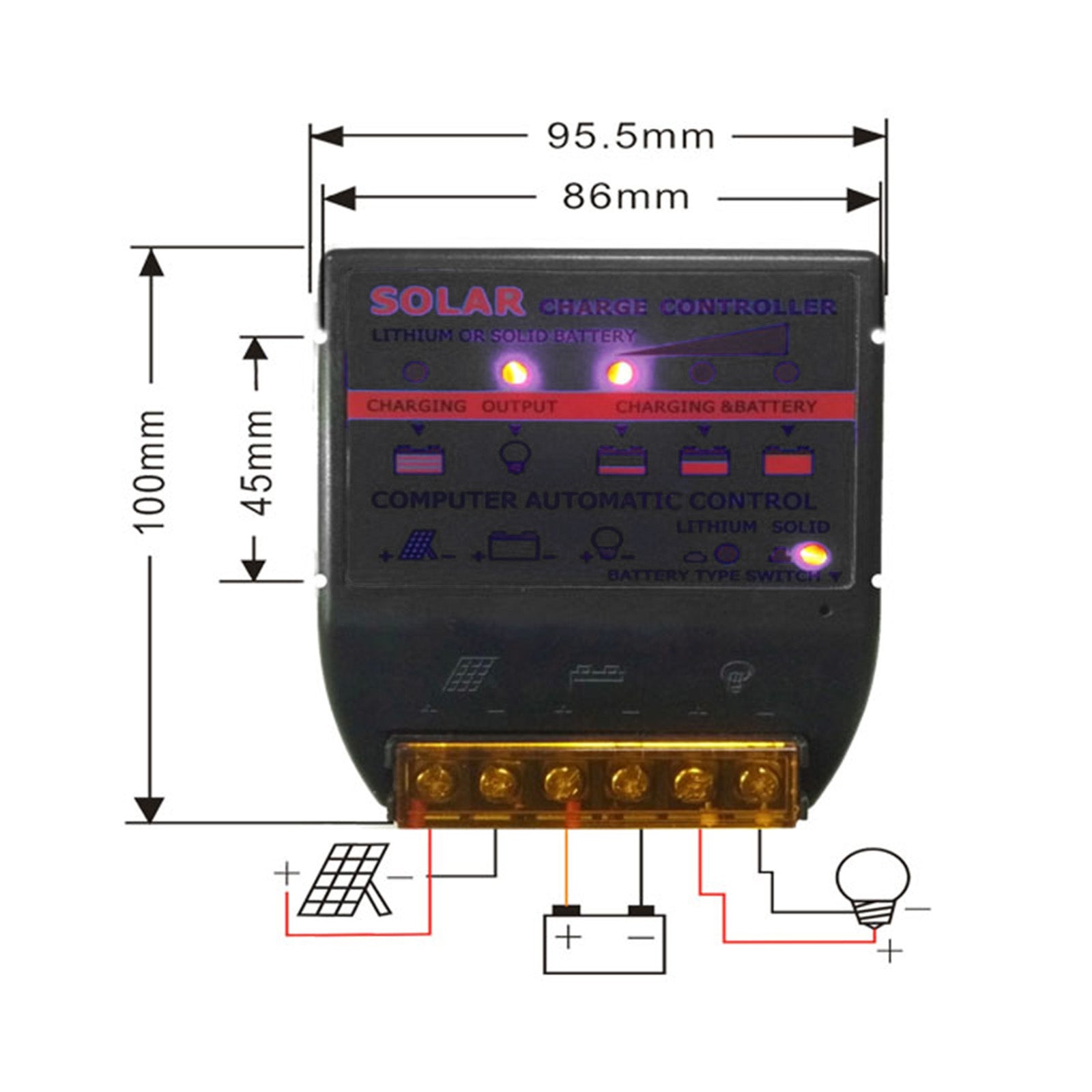

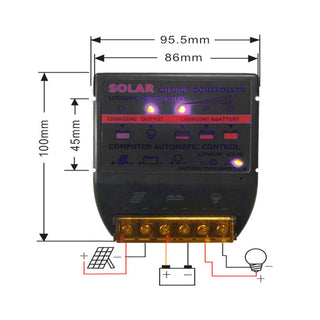

1. Open the top cover and connect battery "+" and "-" to terminals 3 and 4. Load indicator should flash and light within 15-30 seconds.
2. Connect solar panel "+" and "-" to terminals 1 and 2.
3. Connect load "+" and "-" to terminals 5 and 6.
4. Charging indicator: bright = strong charge, flashing = float charge, off = stopped.
5. Load indicator: bright = output active, off = no output.
Important Notes:
Ensure battery has sufficient voltage during first installation for proper type recognition
Keep battery cables as short as possible to minimize loss
Compatible with lead-acid and lithium batteries only
Set battery type via hardware switch before operation
Use only with solar modules; do not connect other charging sources

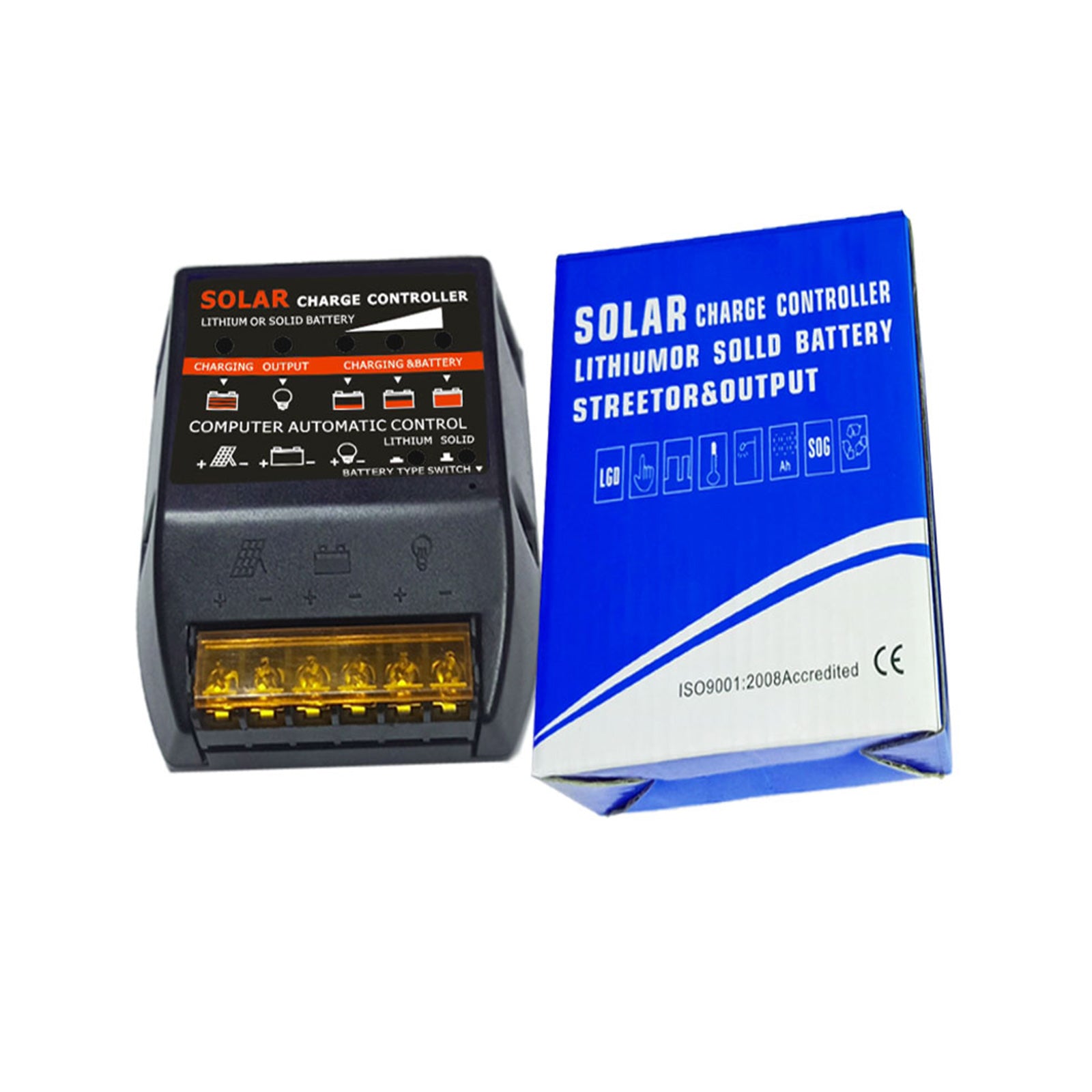

Package Included:
1 × Solar controller unit
1 × User manual
Shipping Information:
Free quick shipping to USA. Estimated arrival: 3-8 working days.
Warranty:
60-day return window from receipt. Prompt customer service available for usage inquiries, returns, and refunds.
