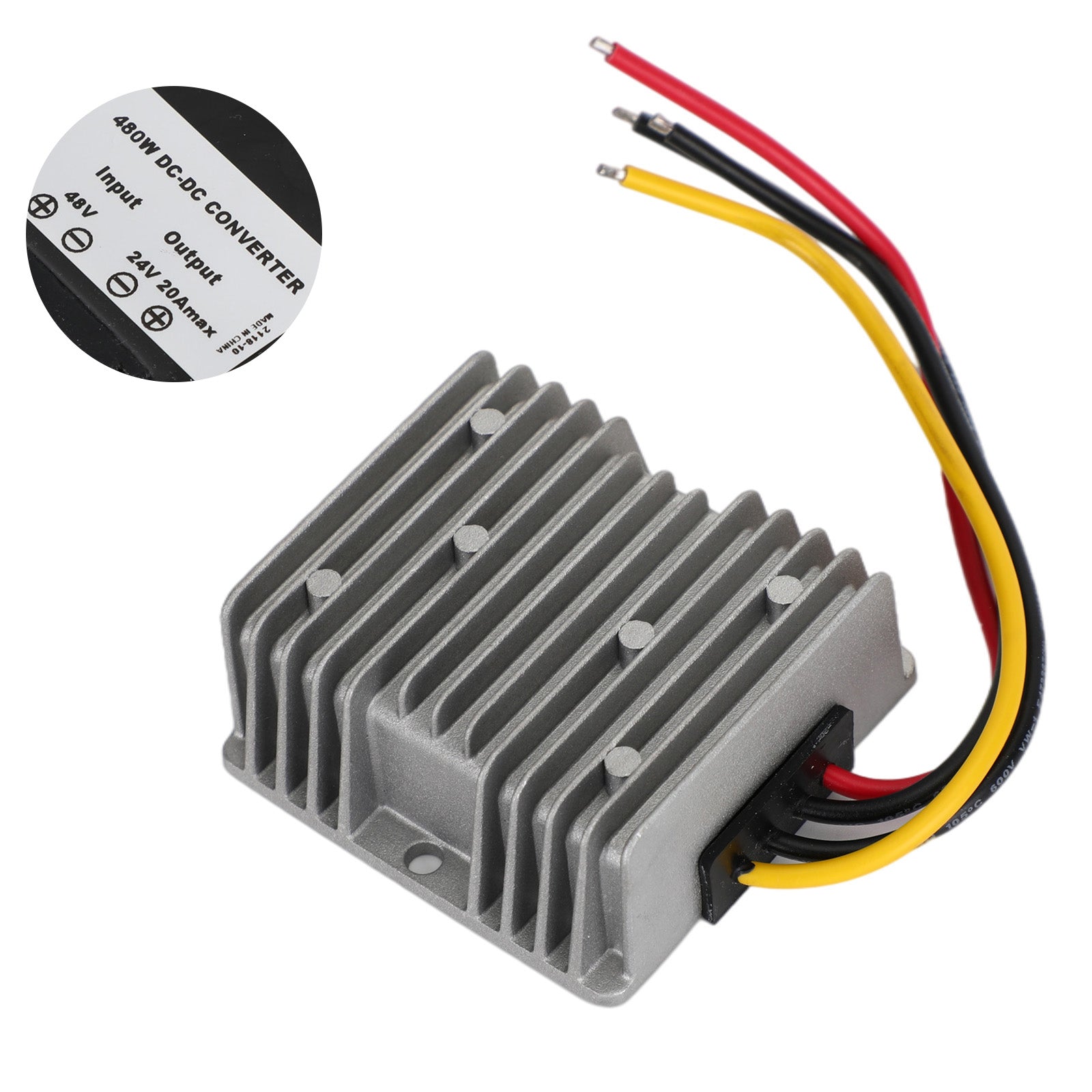

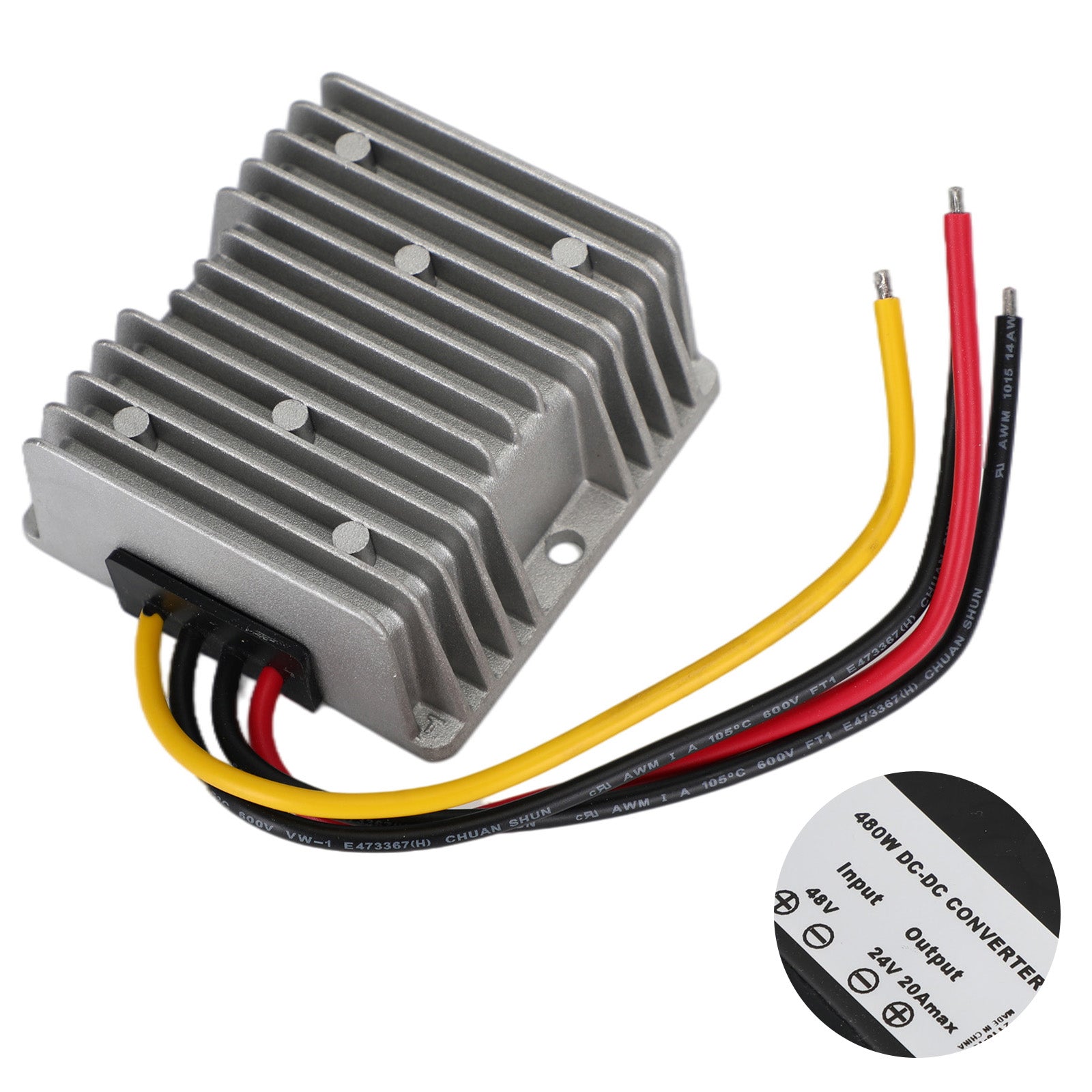

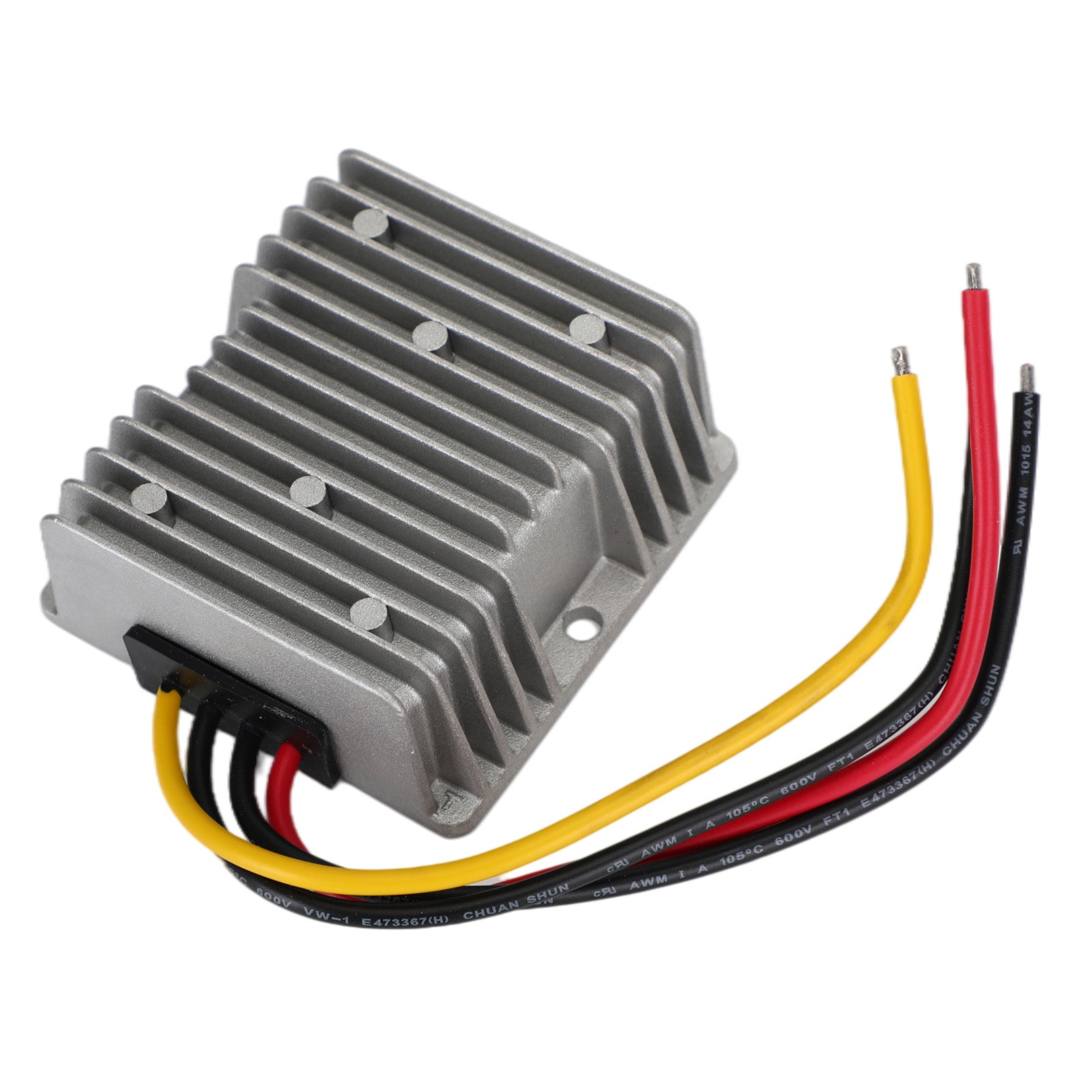

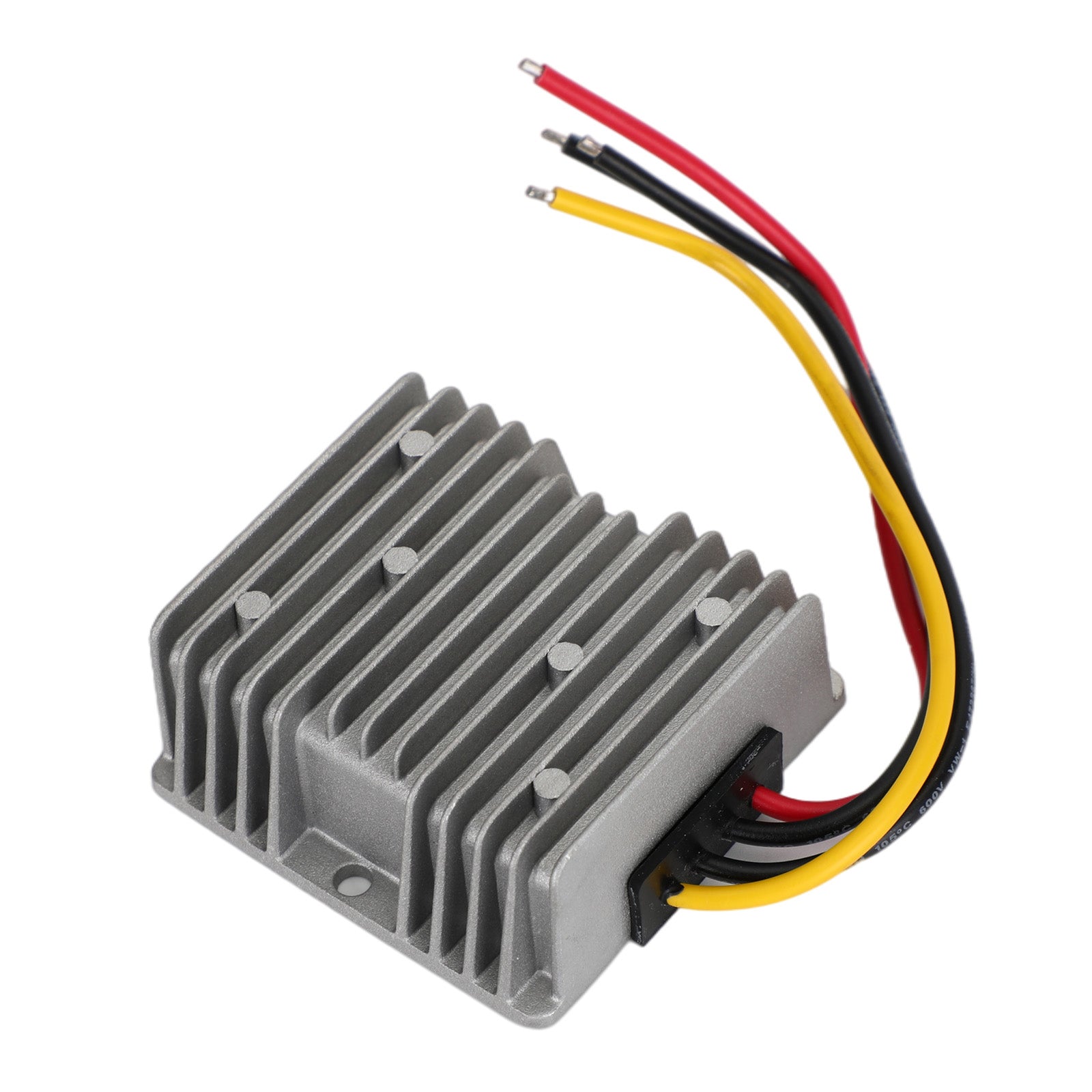

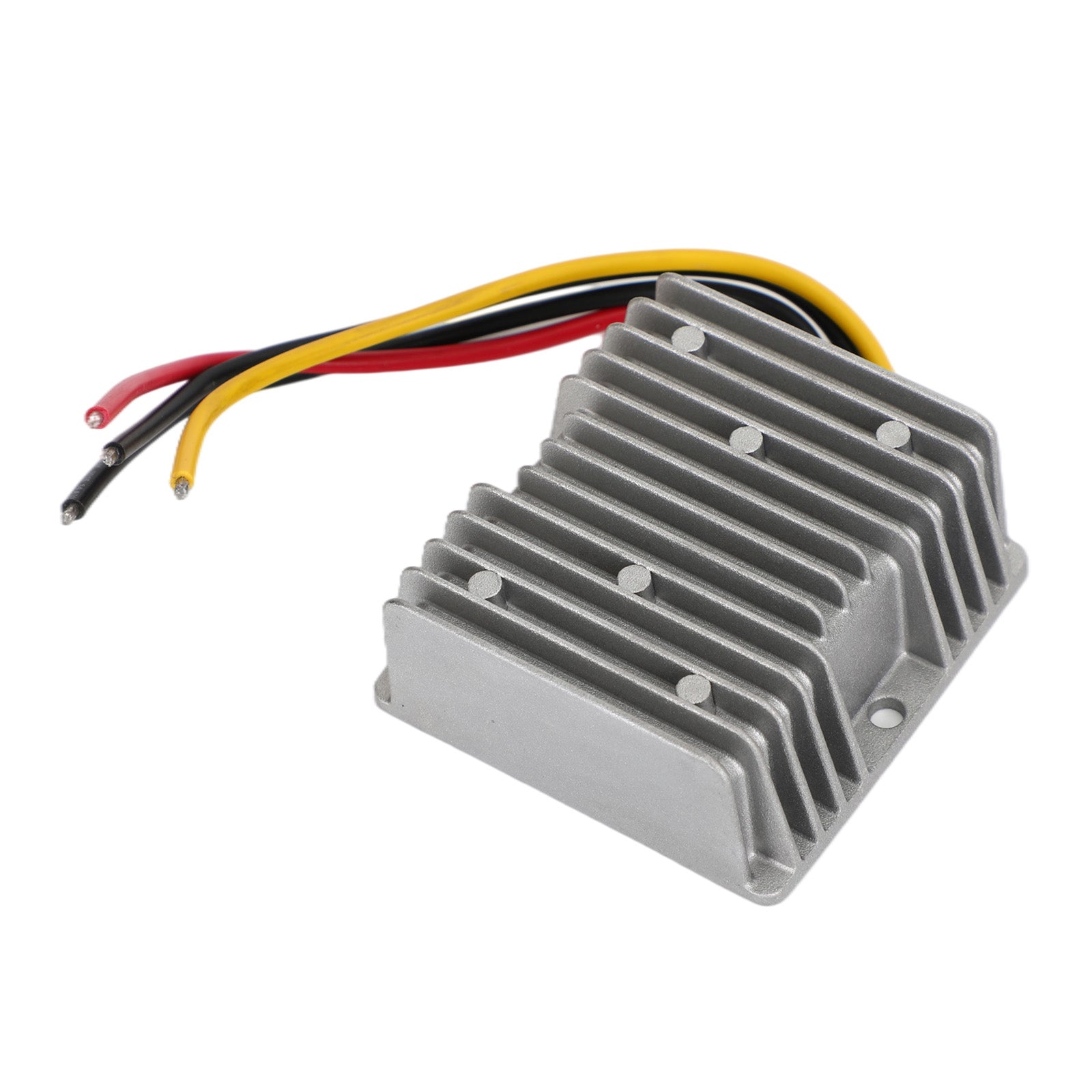

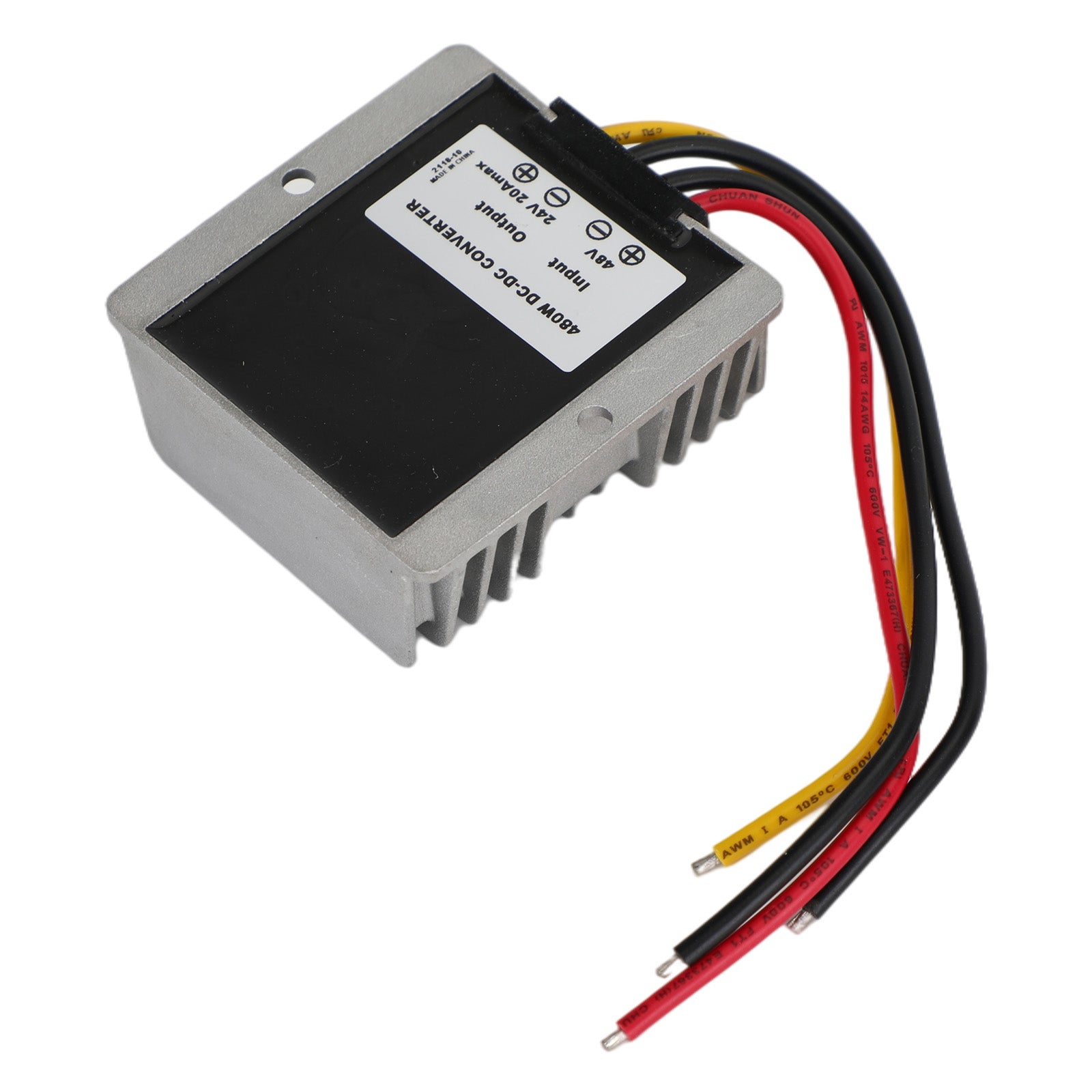

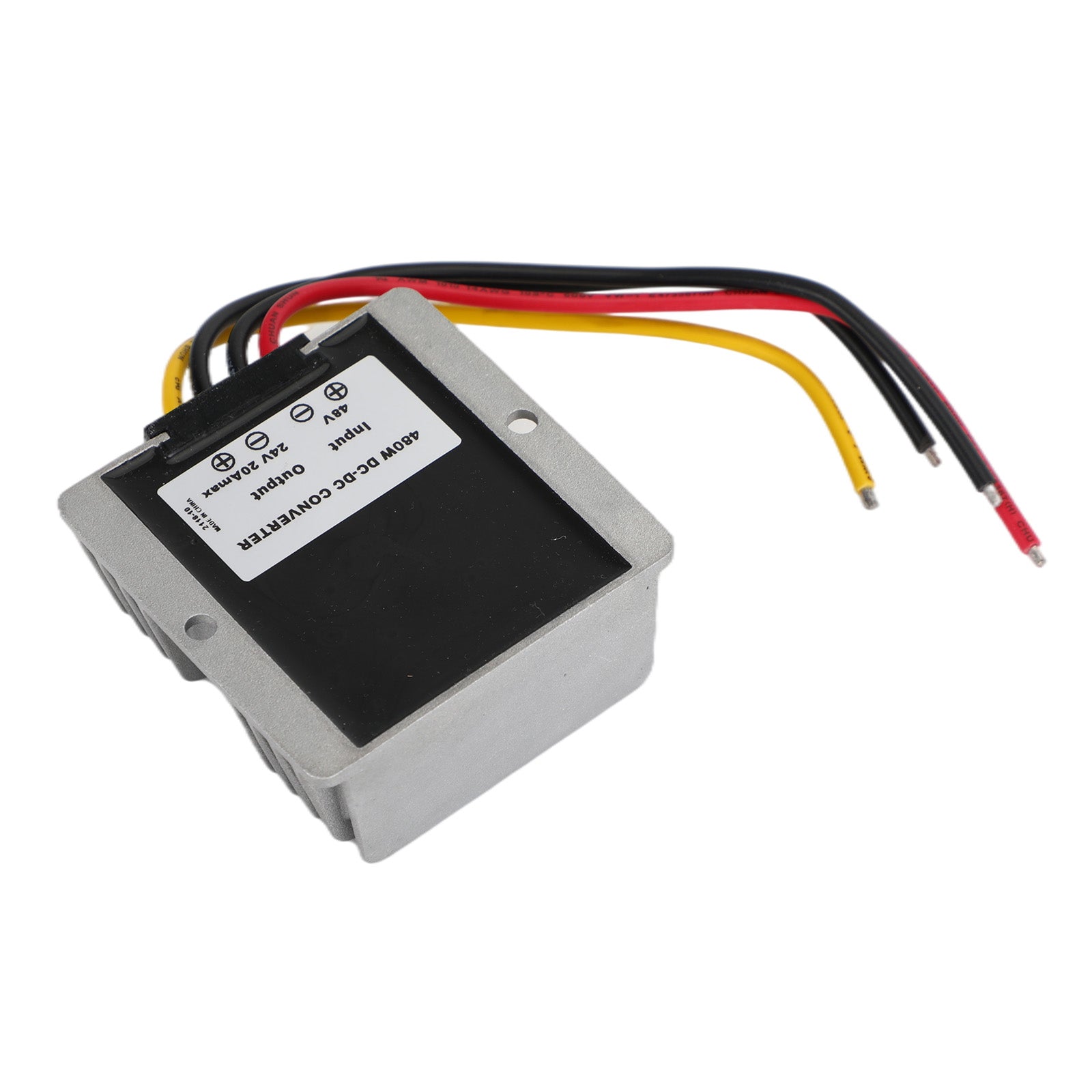

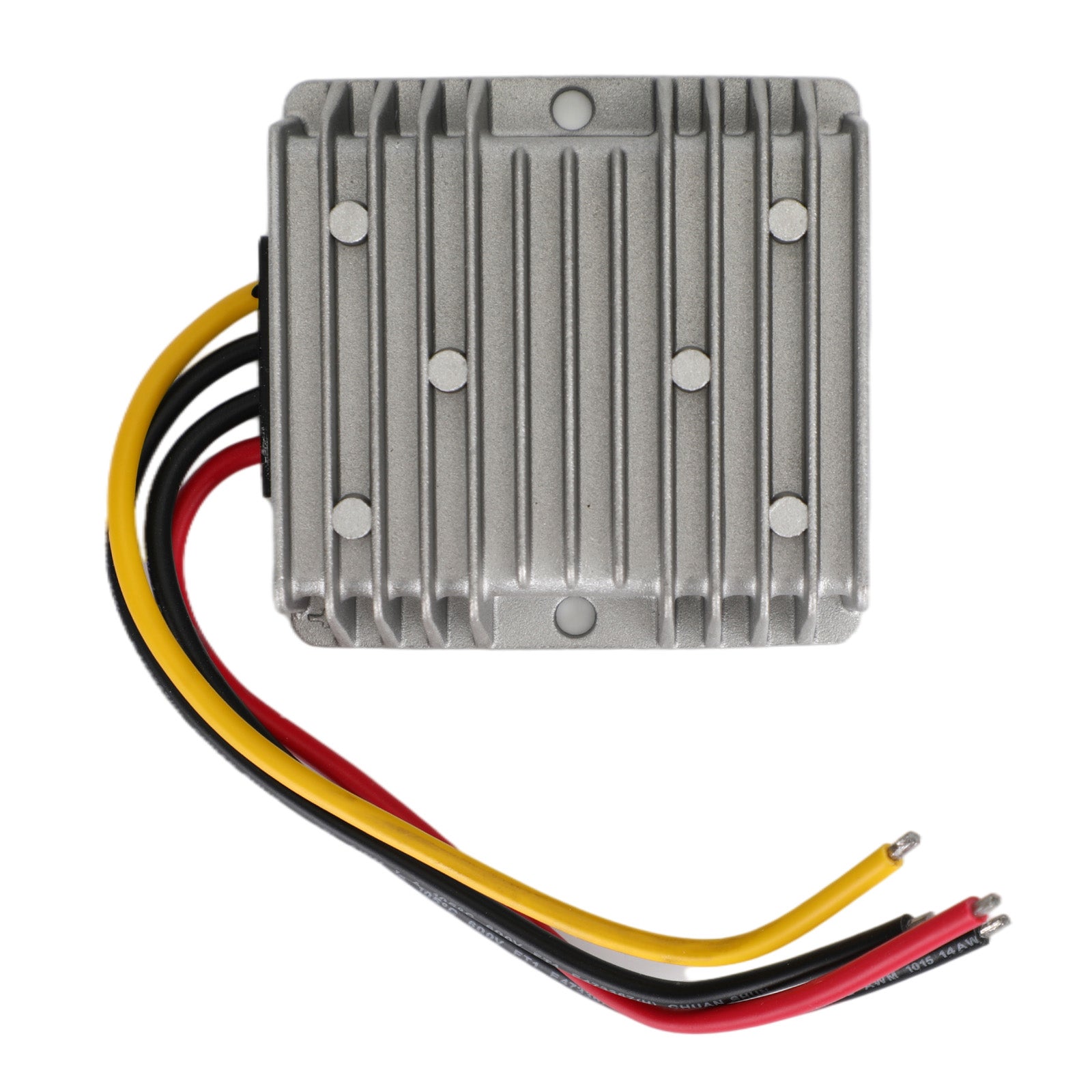

36V/48V~24V 20A 480W Step Down DC/DC Power Converter Regulator

Feature:
1:High quality thermal silica potting, waterproof, dust-proof, shockproof effect
2:Aluminum Outer Case material, long term stable and reliable.
3:With overvoltage,overcurrent overheating protection
4:Waterproof, Shockproof Design.
5:Easy to install.

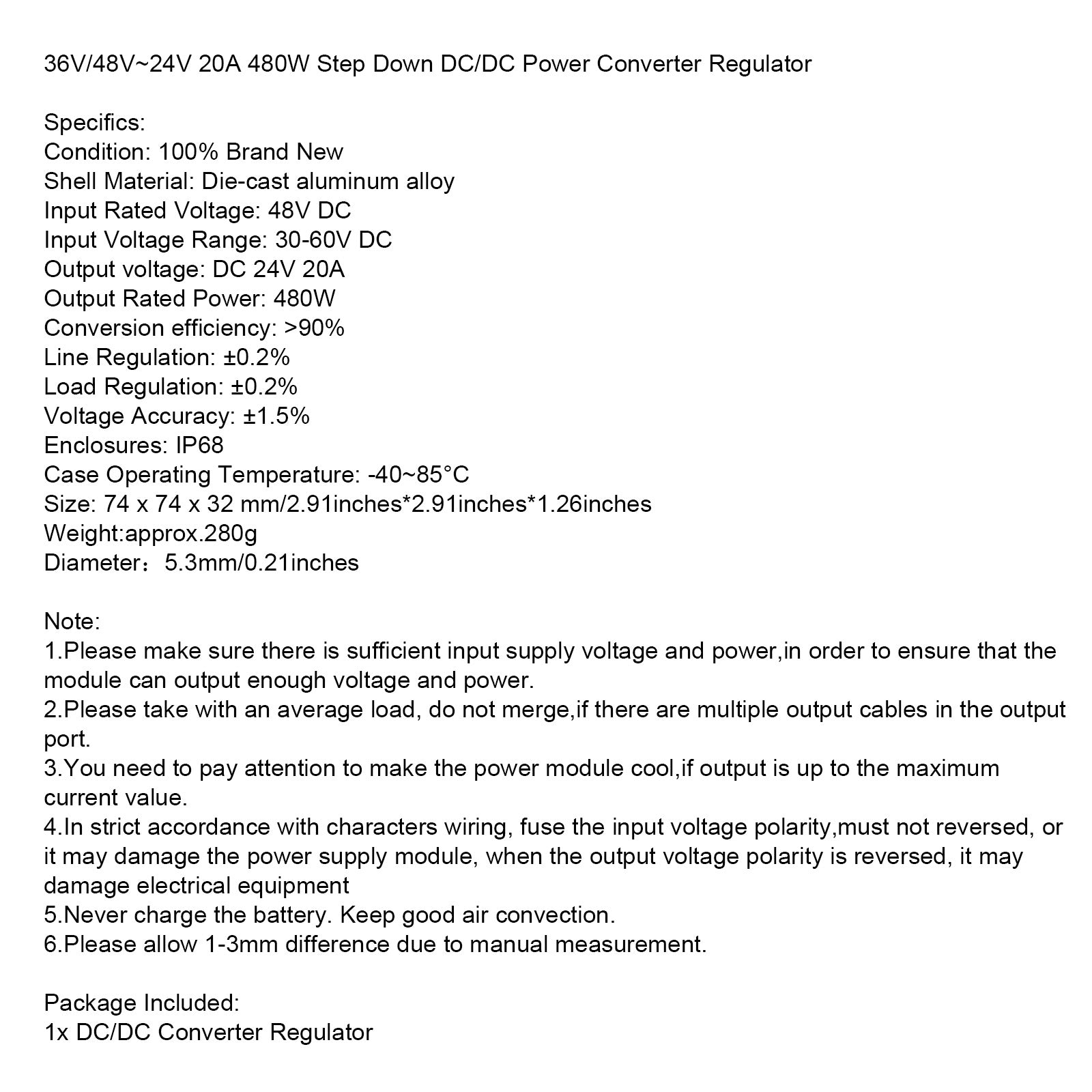

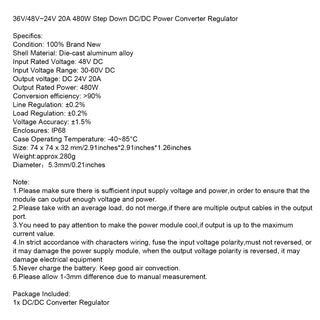

Specifics:
Condition: 100% Brand New
Shell Material: Die-cast aluminum alloy
Input Rated Voltage: 48V DC
Input Voltage Range: 30-60V DC
Output voltage: DC 24V 20A
Output Rated Power: 480W
Conversion efficiency: >90%
Line Regulation: ±0.2%
Load Regulation: ±0.2%
Voltage Accuracy: ±1.5%
Enclosures: IP68
Case Operating Temperature: -40~85°C

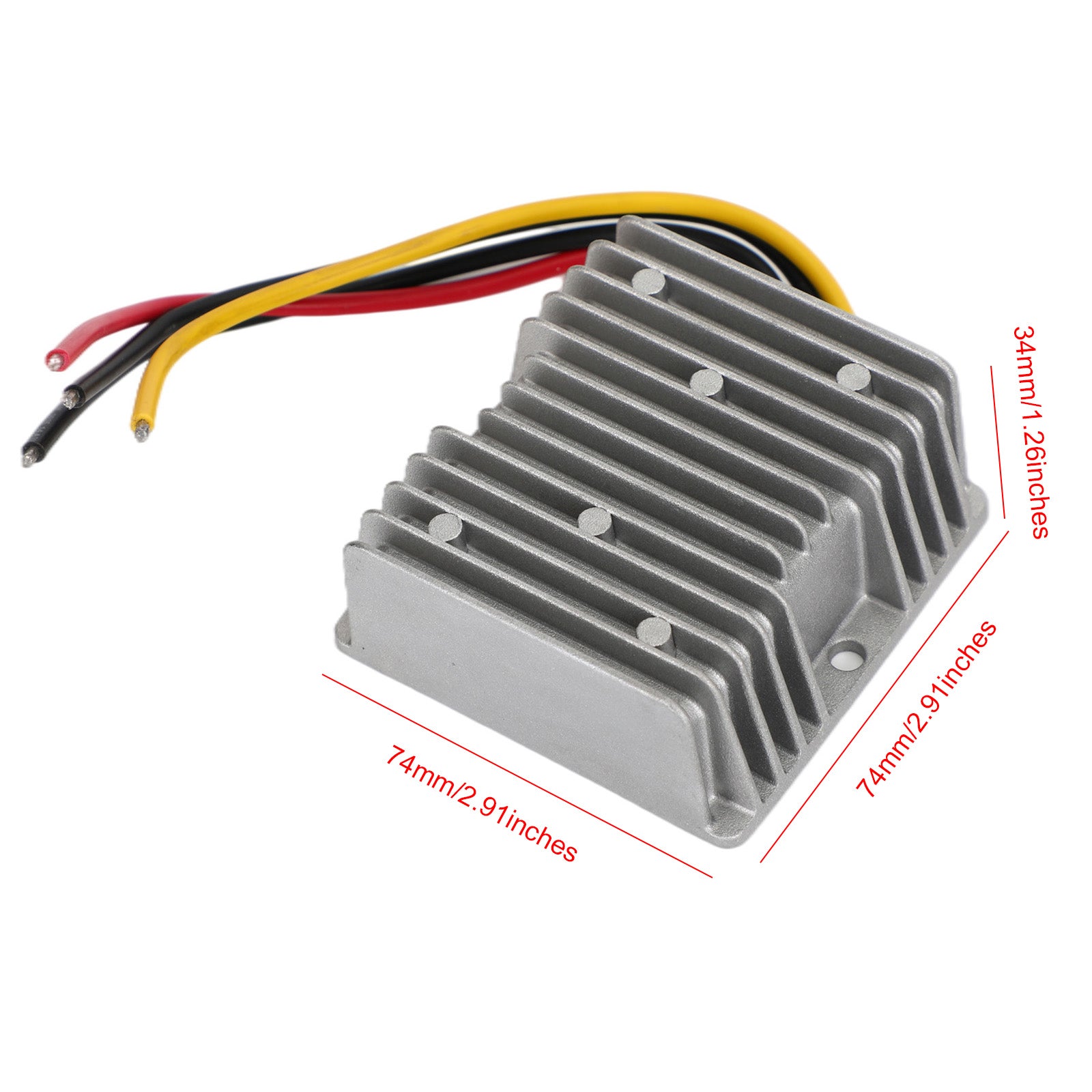

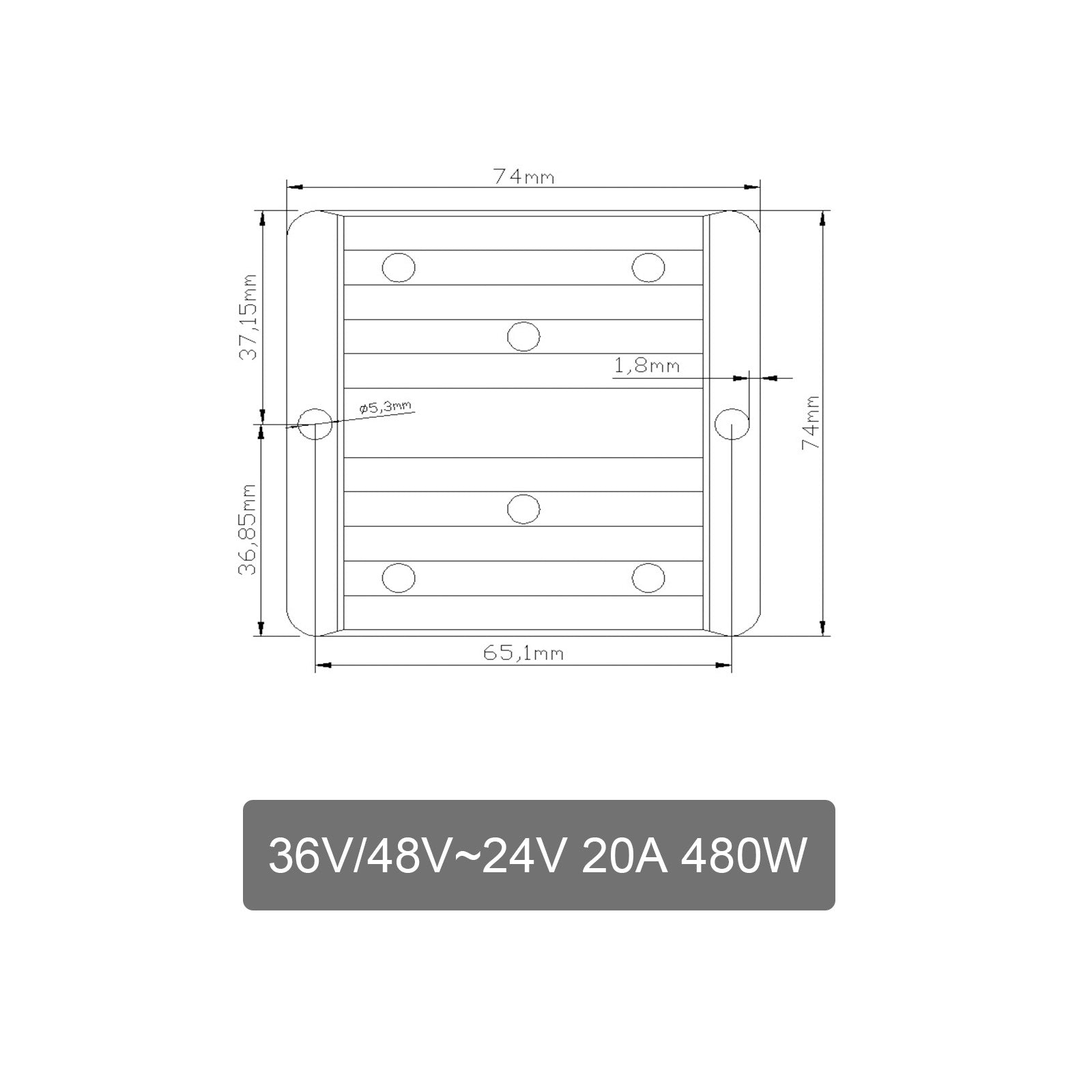

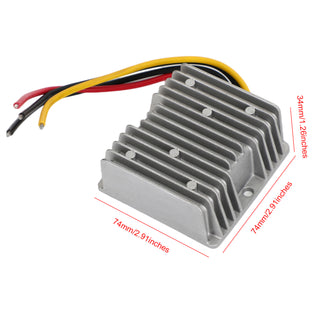

Size: 74 x 74 x 32 mm/2.91inches*2.91inches*1.26inches
Weight:approx.280g
Diameter：5.3mm/0.21inches

Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.

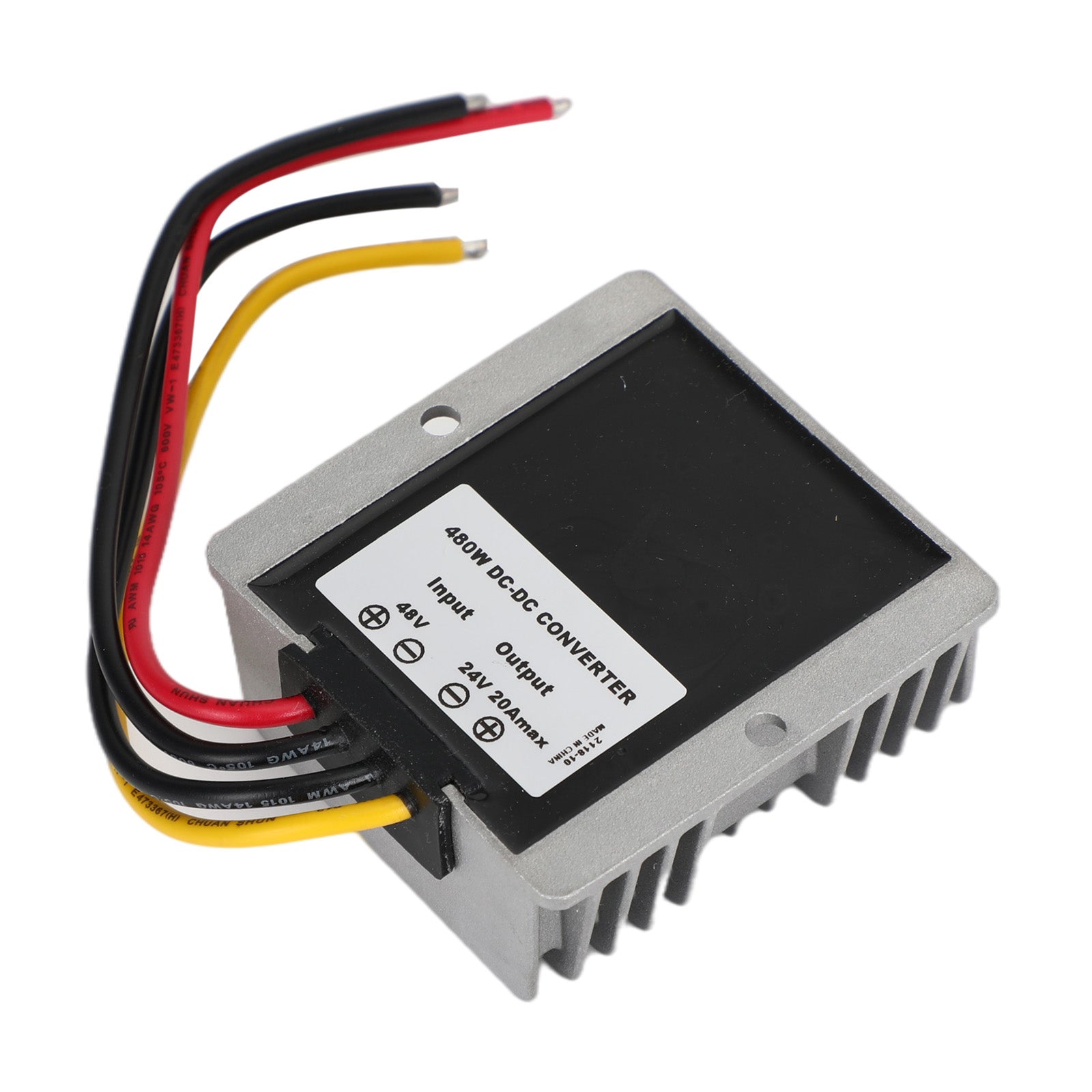

4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
5.Never charge the battery. Keep good air convection.
6.Please allow 1-3mm difference due to manual measurement.

Package Included:
1x DC/DC Converter Regulator
