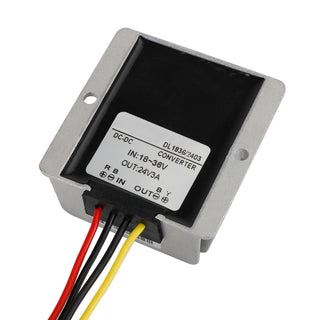

DC 18-36V Converter To DC 24V 3A Boost Buck Power Module Voltage Regulator
Feature:
1:Waterproof, dustproof, shockproof, small volume, simple installation.
2:Not isolation shape DC regulated power supply module, high stability of output.
3:Wide voltage input, built-in over current, over voltage, over temperature, short circuit, and automatic protection functions.
4:Great for on-board electrical appliances,LED displays, cable TV,outdoor environment,and widely used in automotive.posts and telecommunications,
communications, electricity, coal, aerospace, defense,surveillance systems,railway signals, medical equipment, instruments,meters and other fields.
Specifics:
Condition: 100% Brand New

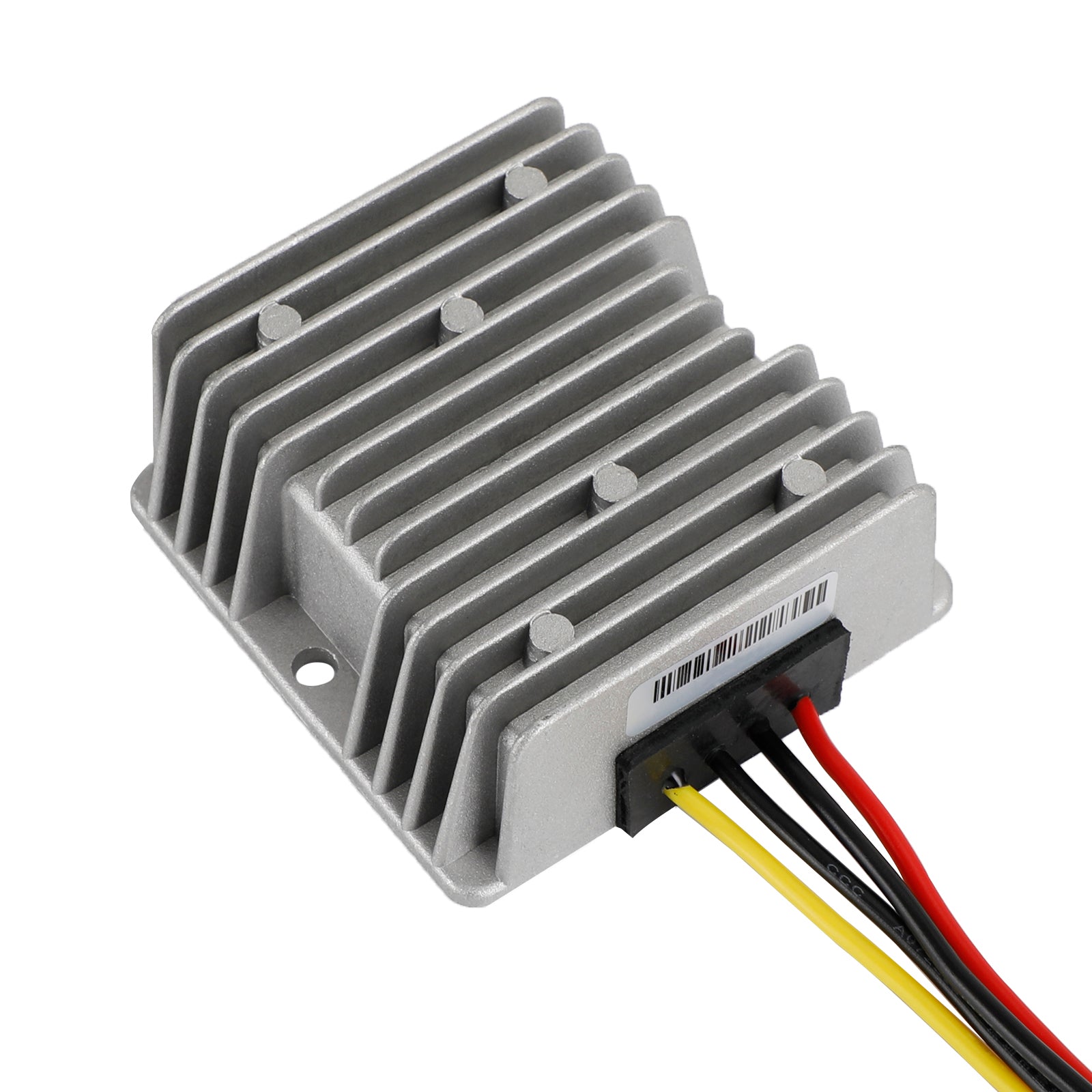

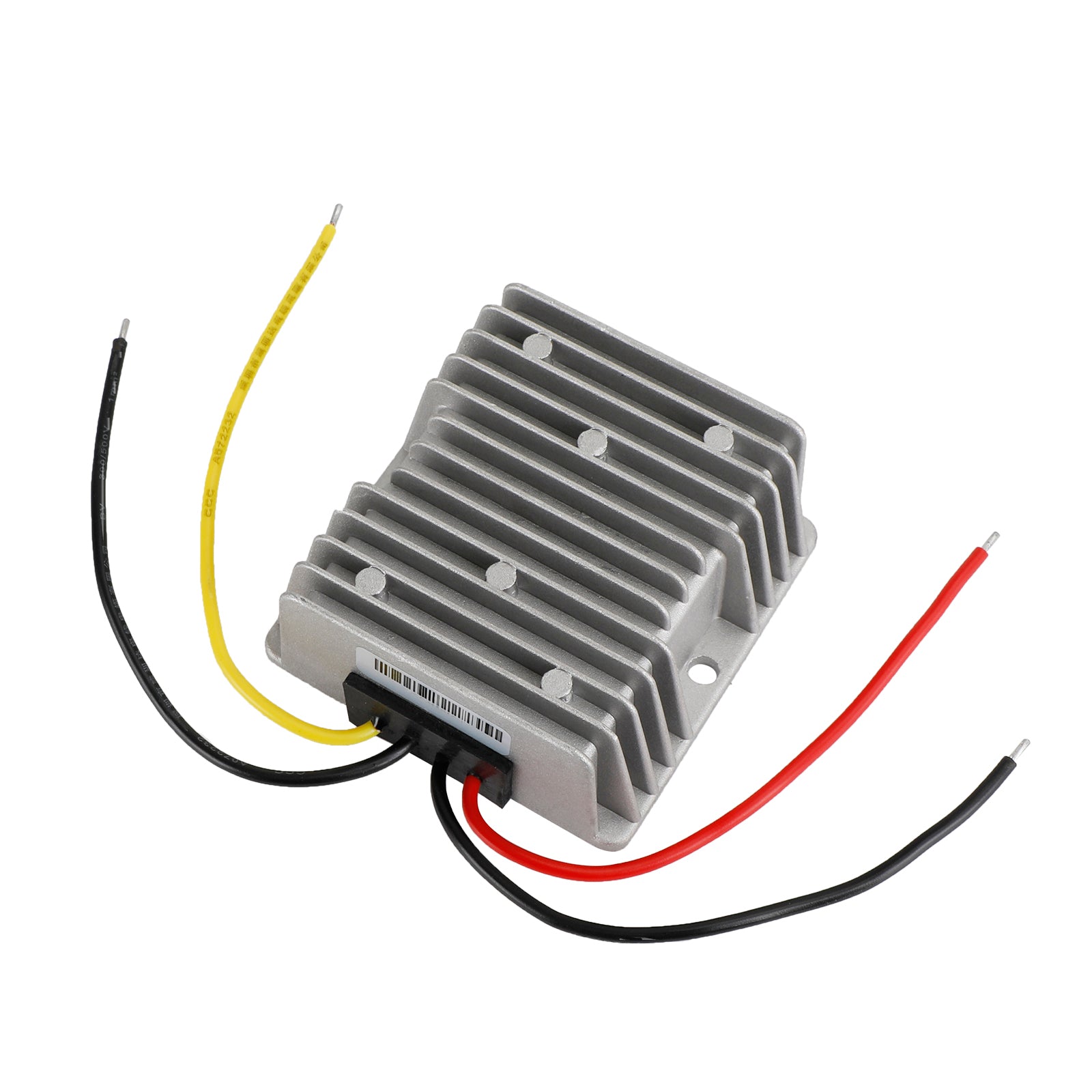

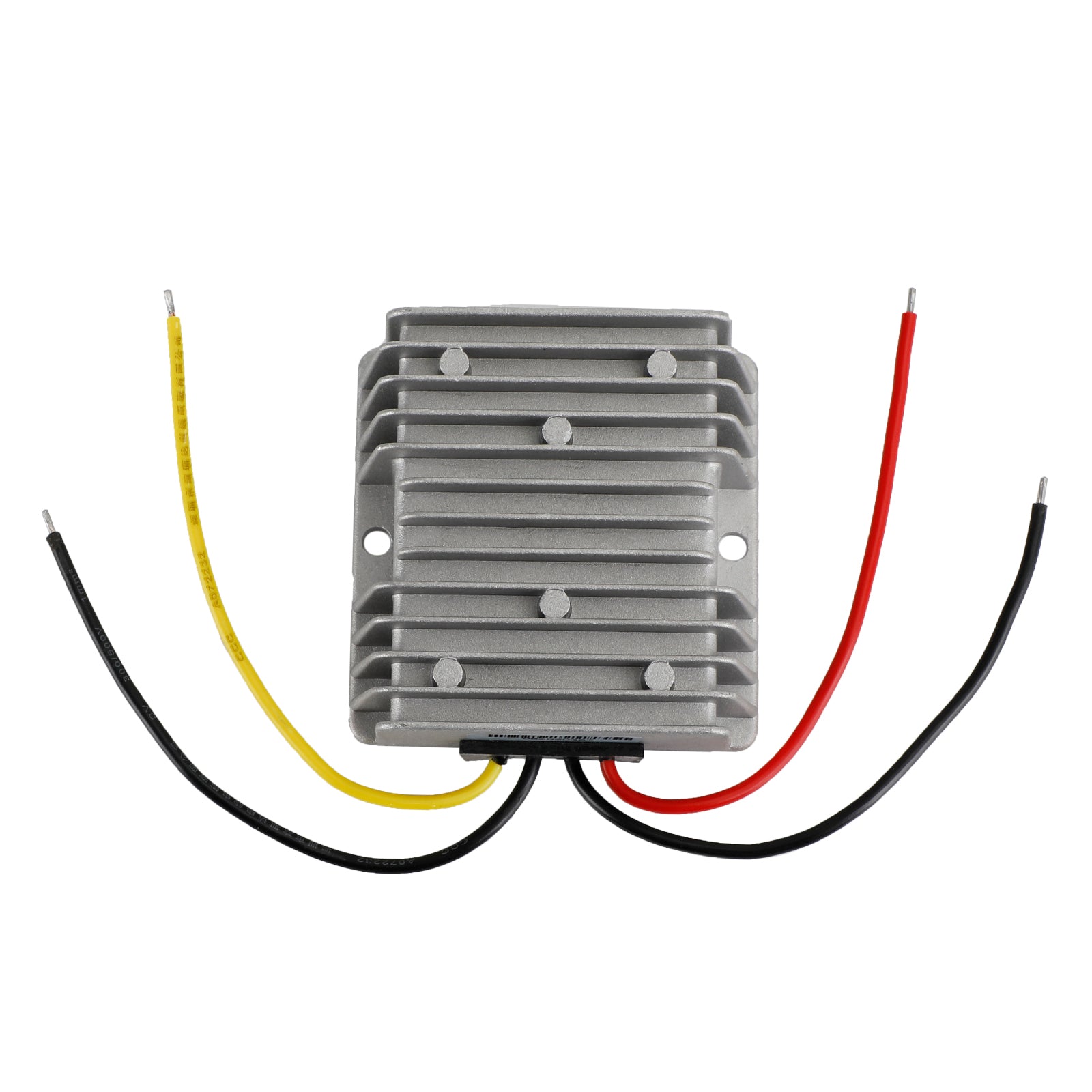

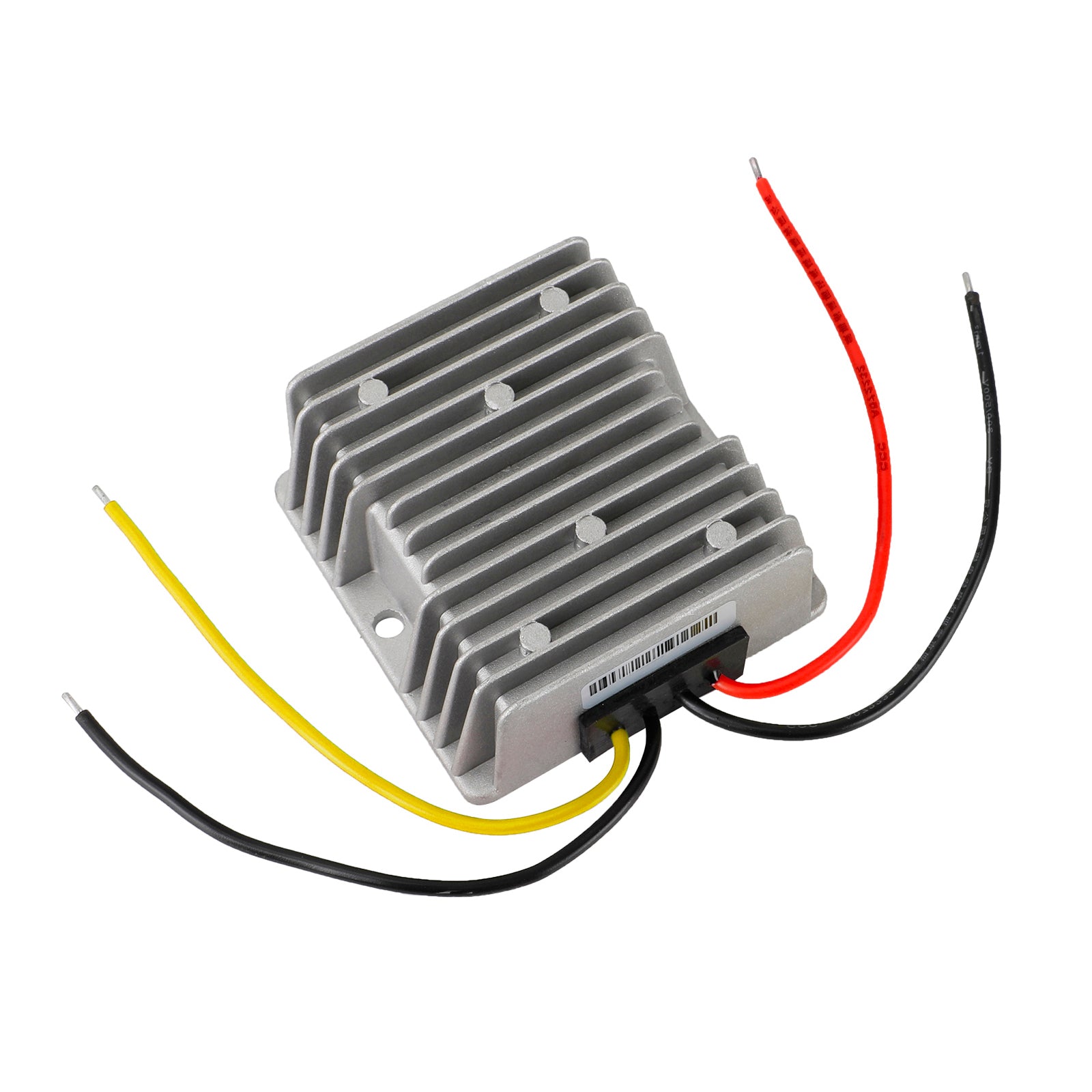

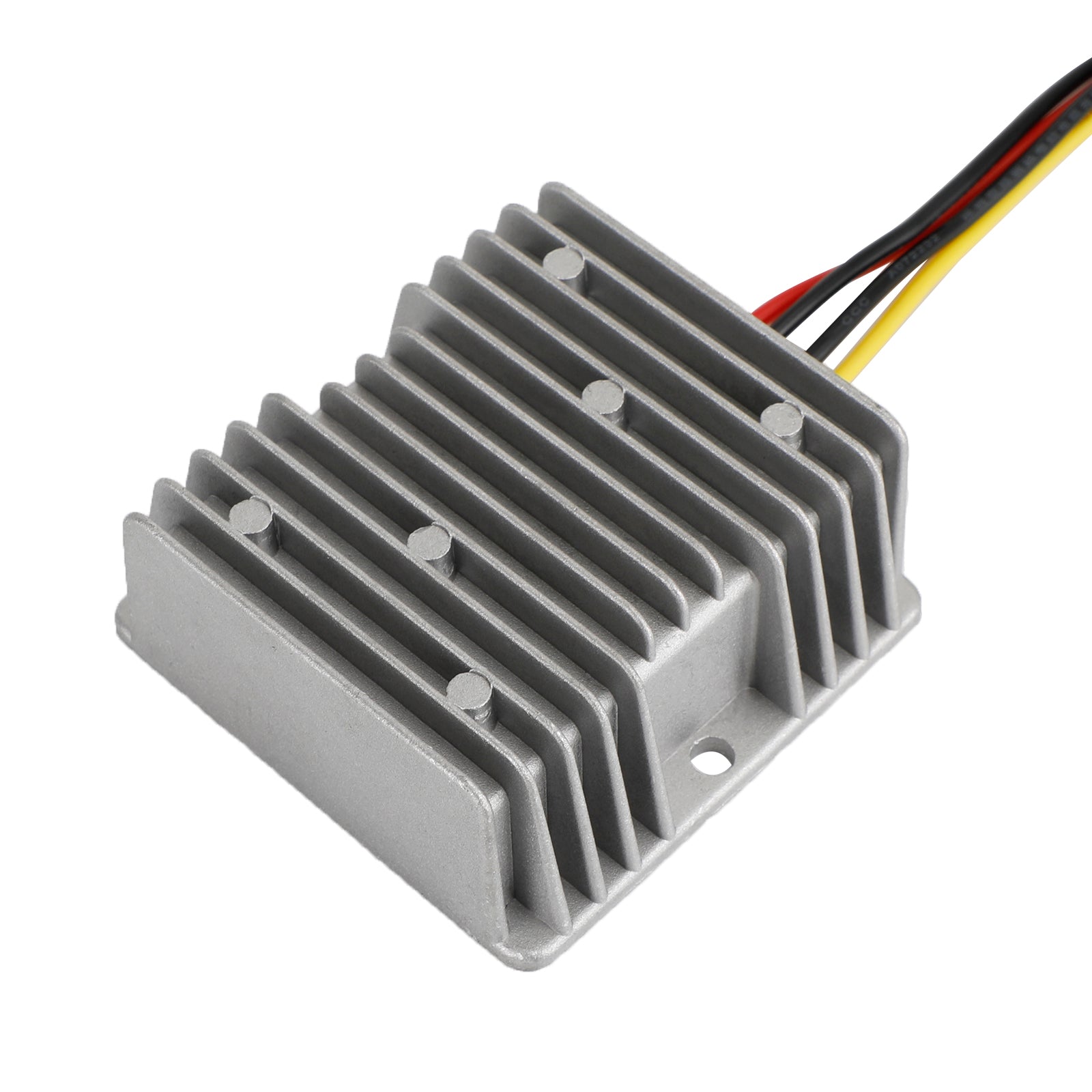

Shell Material: Die-cast aluminum alloy
Input voltage: 18 ~ 36V DC
Output voltage: 24V±0.2V DC
Output current: 3A (max), 72W
Operating temperature: -40°C ~ +80°C
Efficient conversion: 92%~96%
Waterproof Rating: Ip68
Static power consumption: 10~15ma

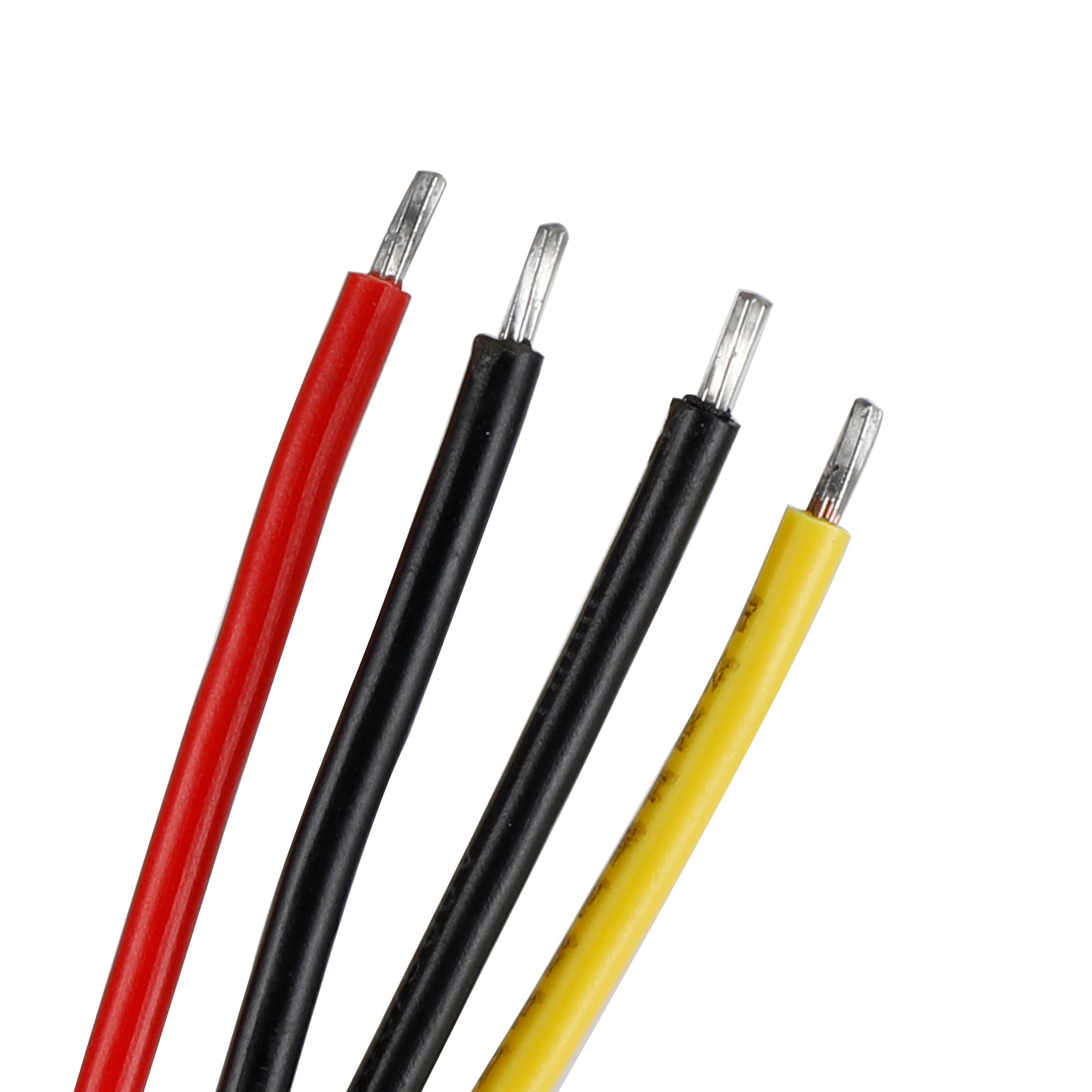

Wire lengths: 130mm/5.12inches
Size: 74 x 74 x 32 mm/2.91inches*2.91inches*1.26inches
Weight:approx.270g

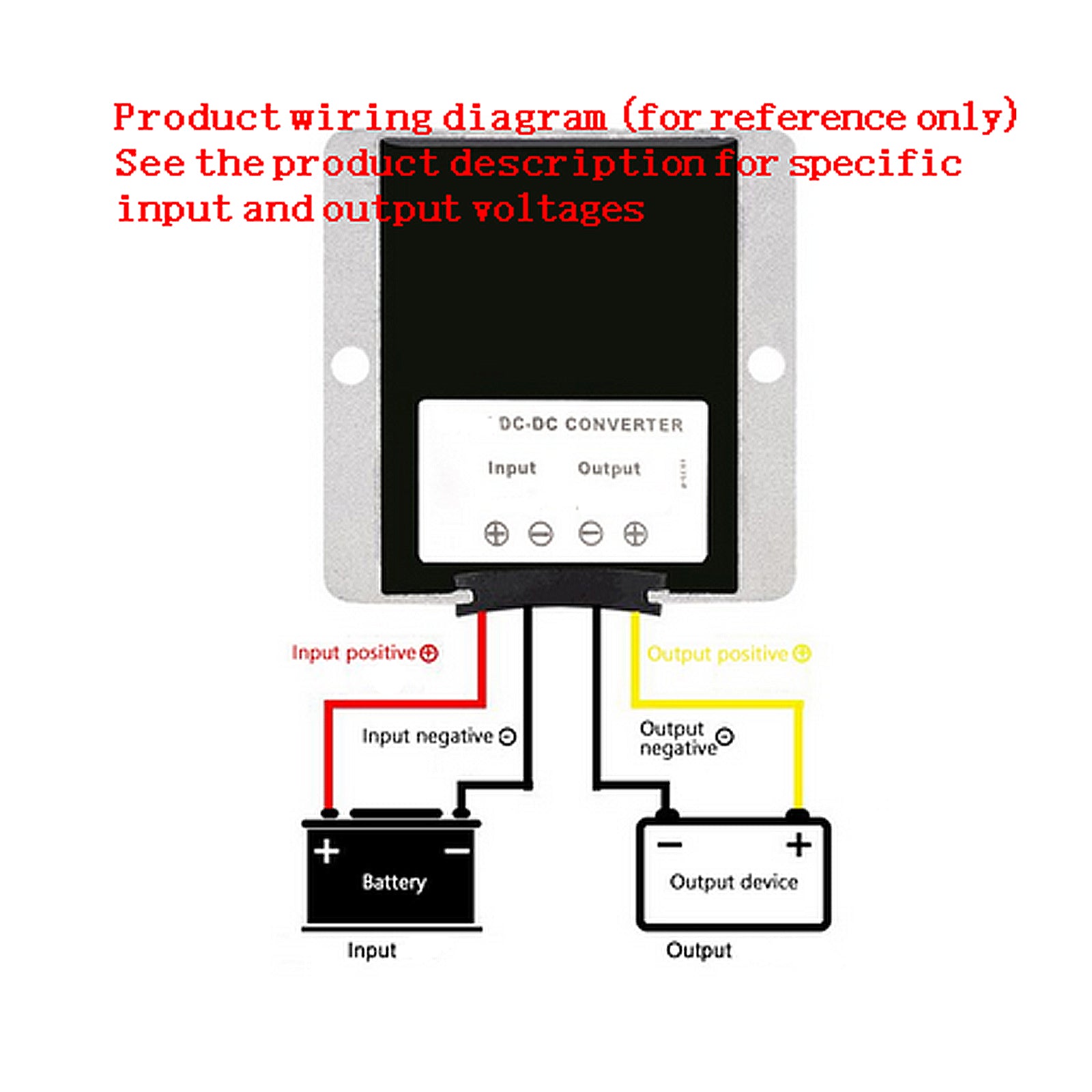

Input wire color : (+)Red, (-)Black.
Output wire color : (+)Yellow, (-)Black.
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC-DC Converter
Warranty:1 year
