Feature:
1:Waterproof, dustproof, shockproof, small volume, simple installation.
2:Not isolation shape DC regulated power supply module, high stability of output.
3:Wide voltage input, built-in over current, over voltage, over temperature, short circuit, and automatic protection functions.
4:Great for on-board electrical appliances,LED displays, cable TV,outdoor environment,and widely used in automotive.posts and telecommunications,
communications, electricity, coal, aerospace, defense,surveillance systems,railway signals, medical equipment, instruments,meters and other fields.
Specifics:
Condition: 100% Brand New
Model: There are 4 options as follows:

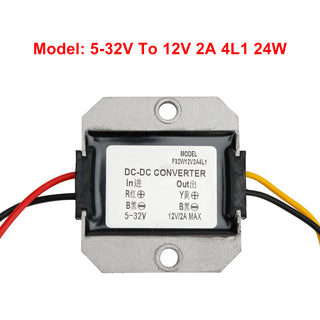

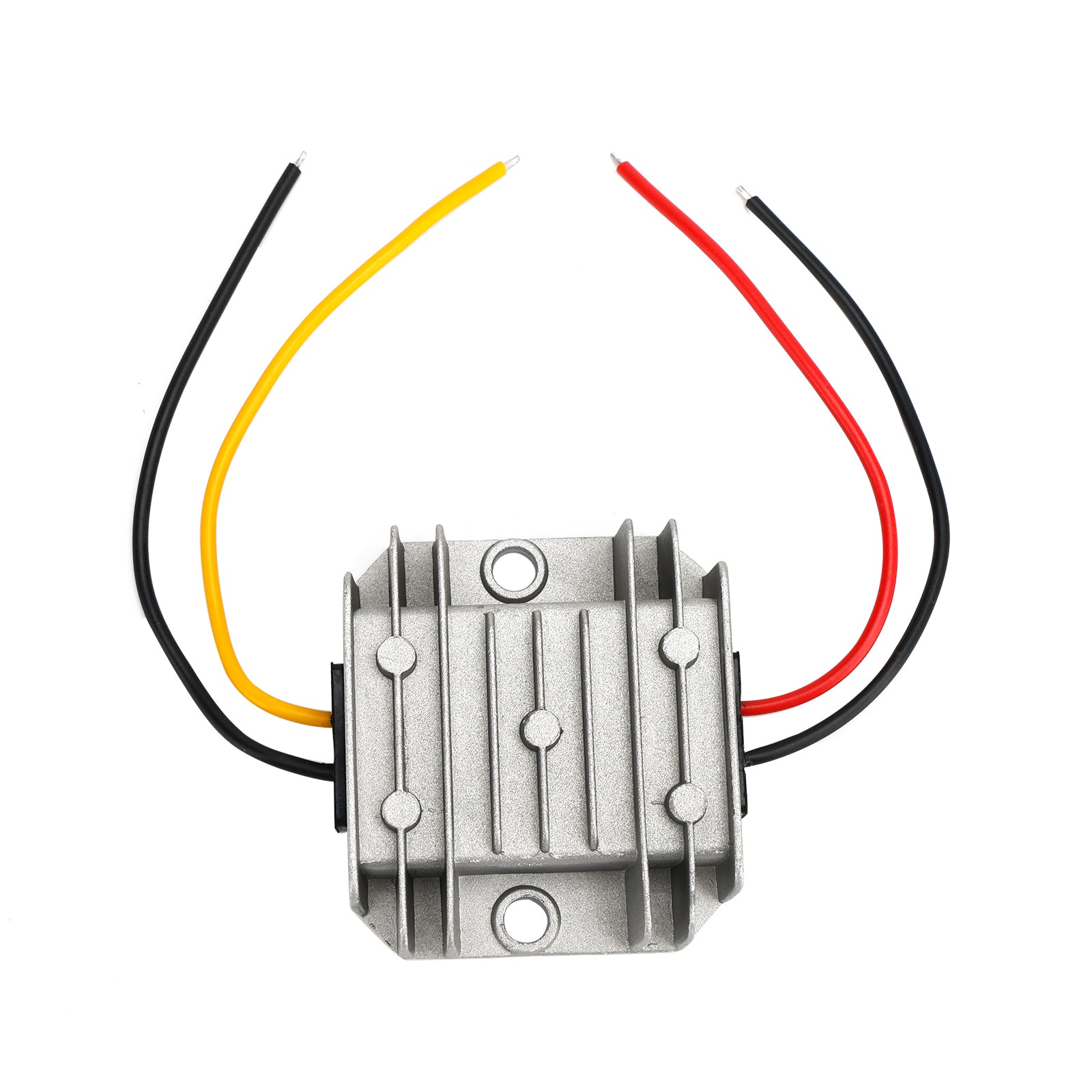

Option 1: 5-32V To 12V 2A 4L1(Outline from both sides)

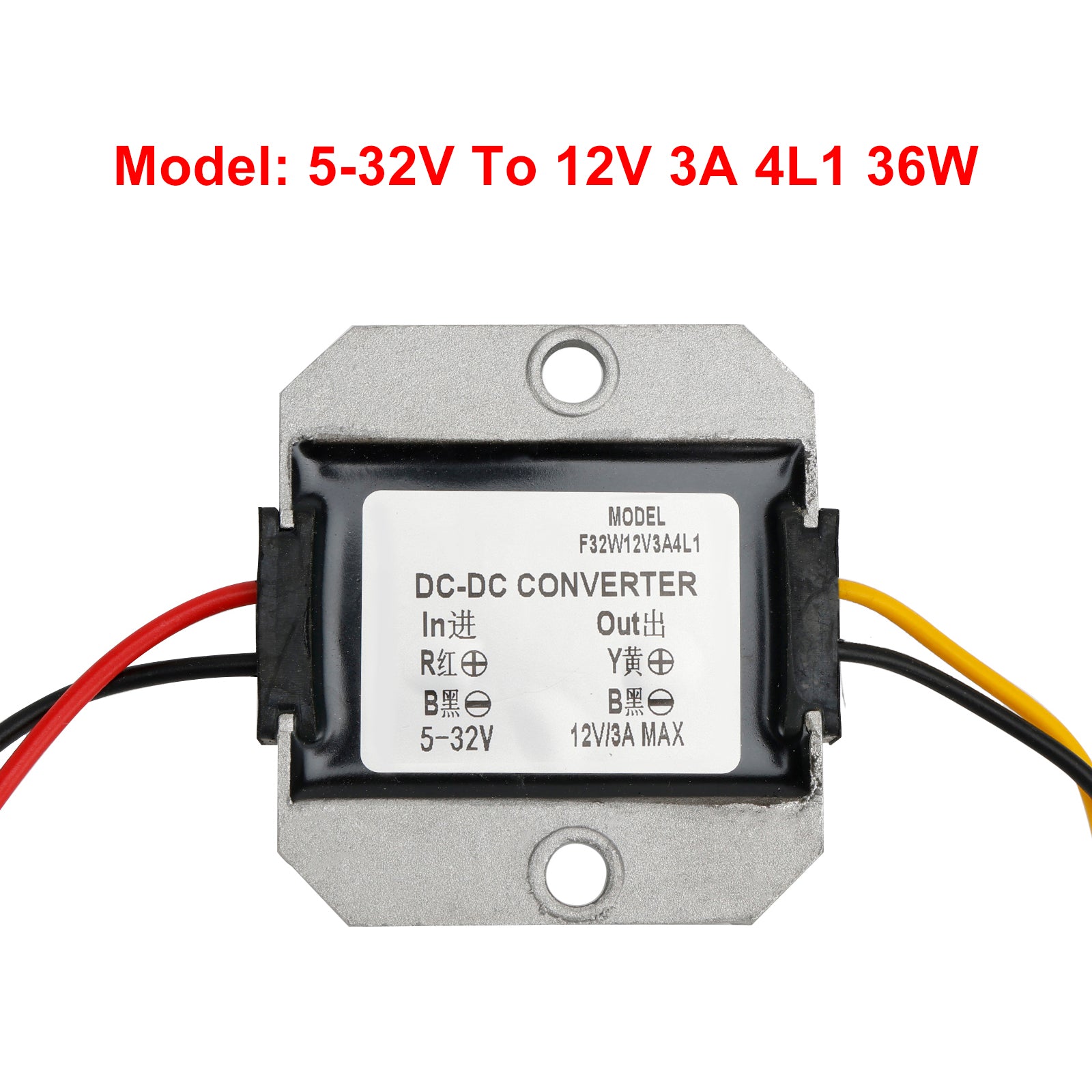

Option 2: 5-32V To 12V 3A 4L1(Outline from both sides)

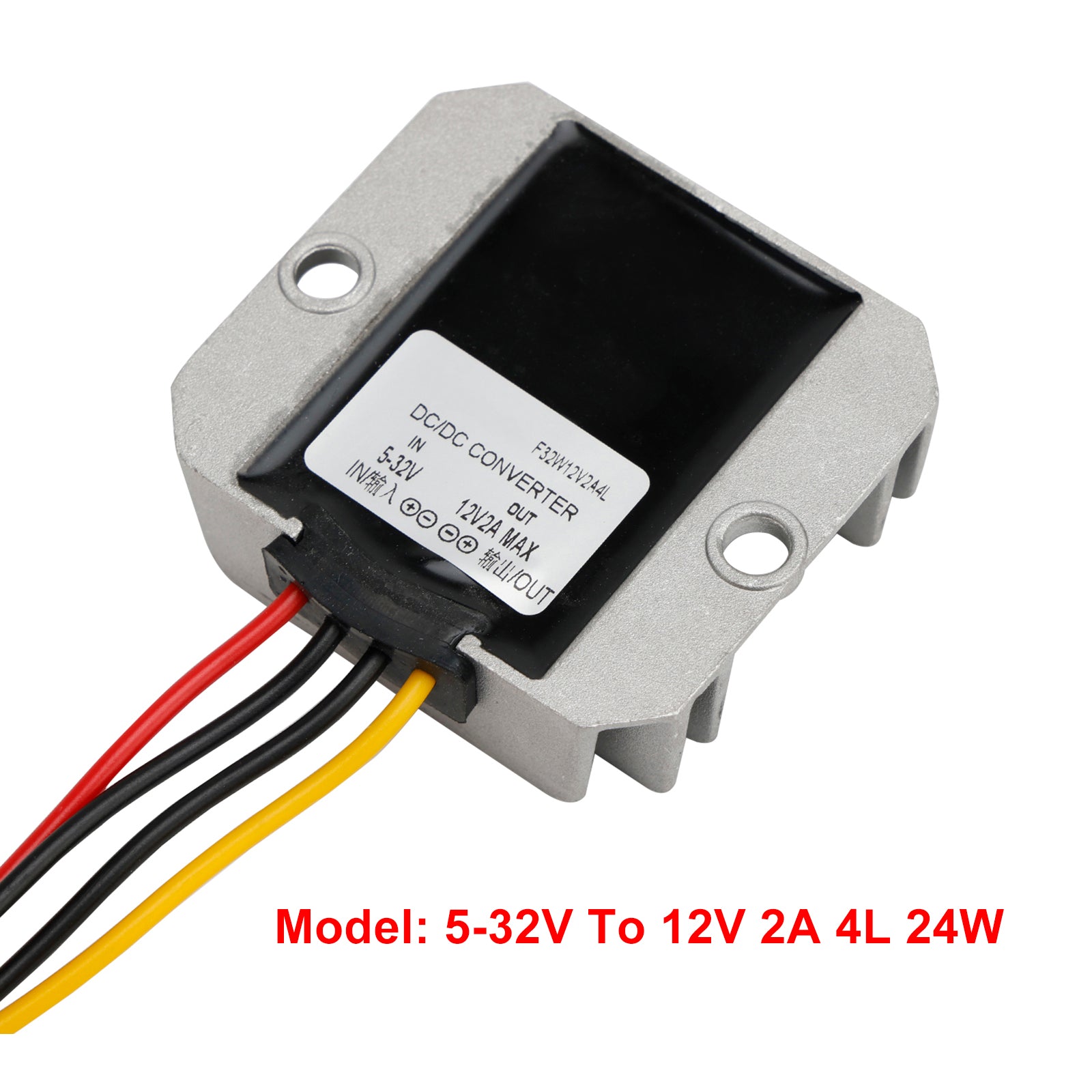

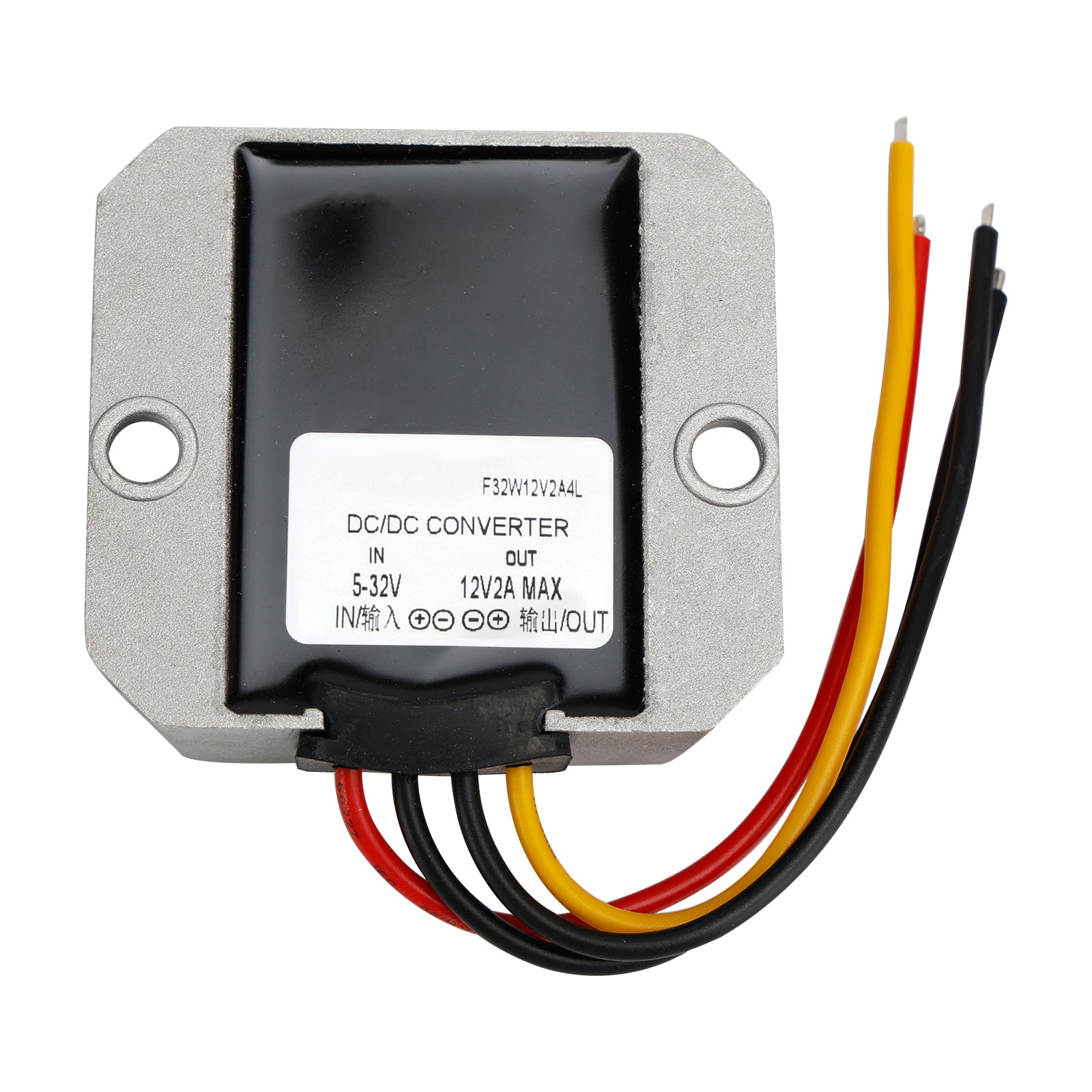

Option 3: 5-32V To 12V 2A 4L

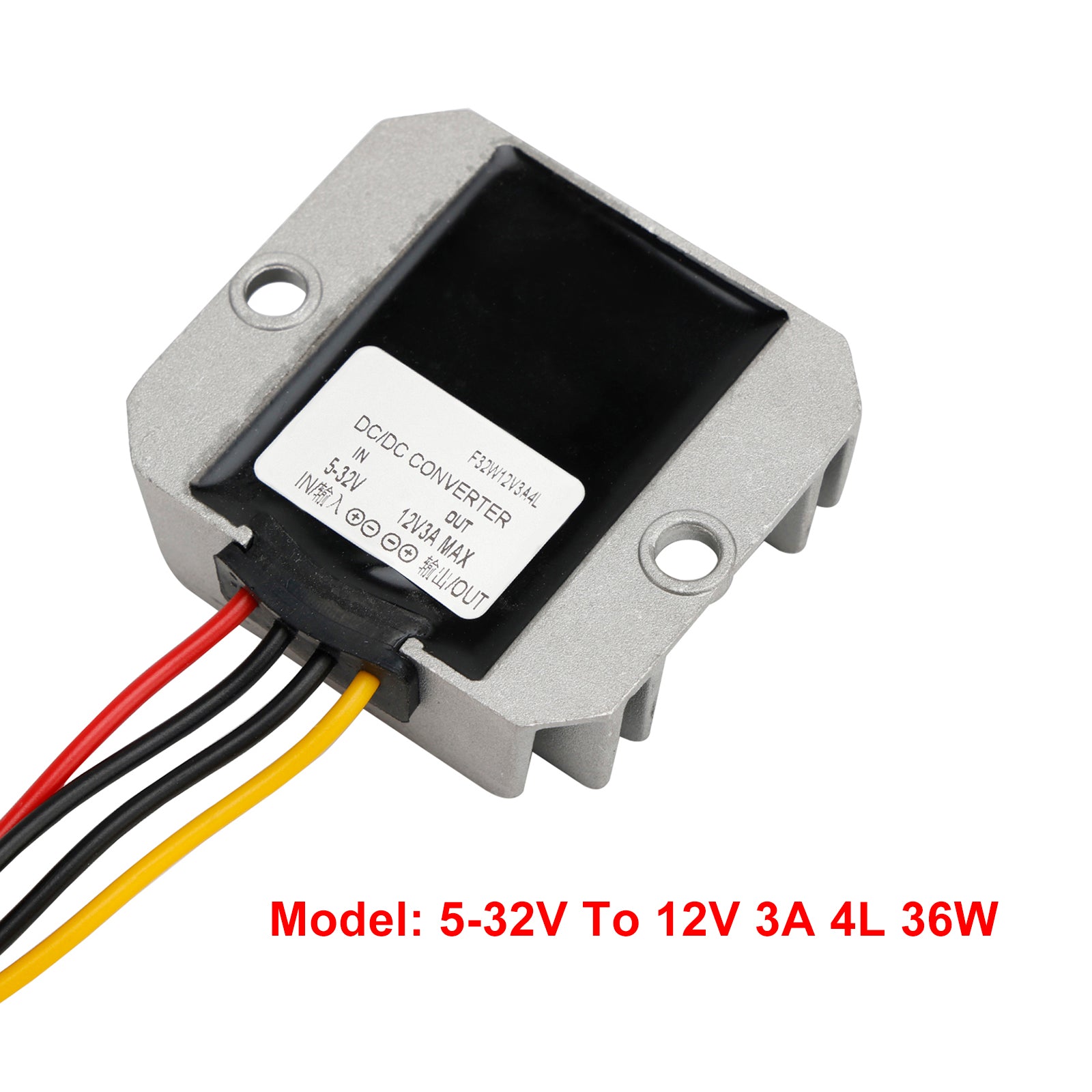

Option 4: 5-32V To 12V 3A 4L

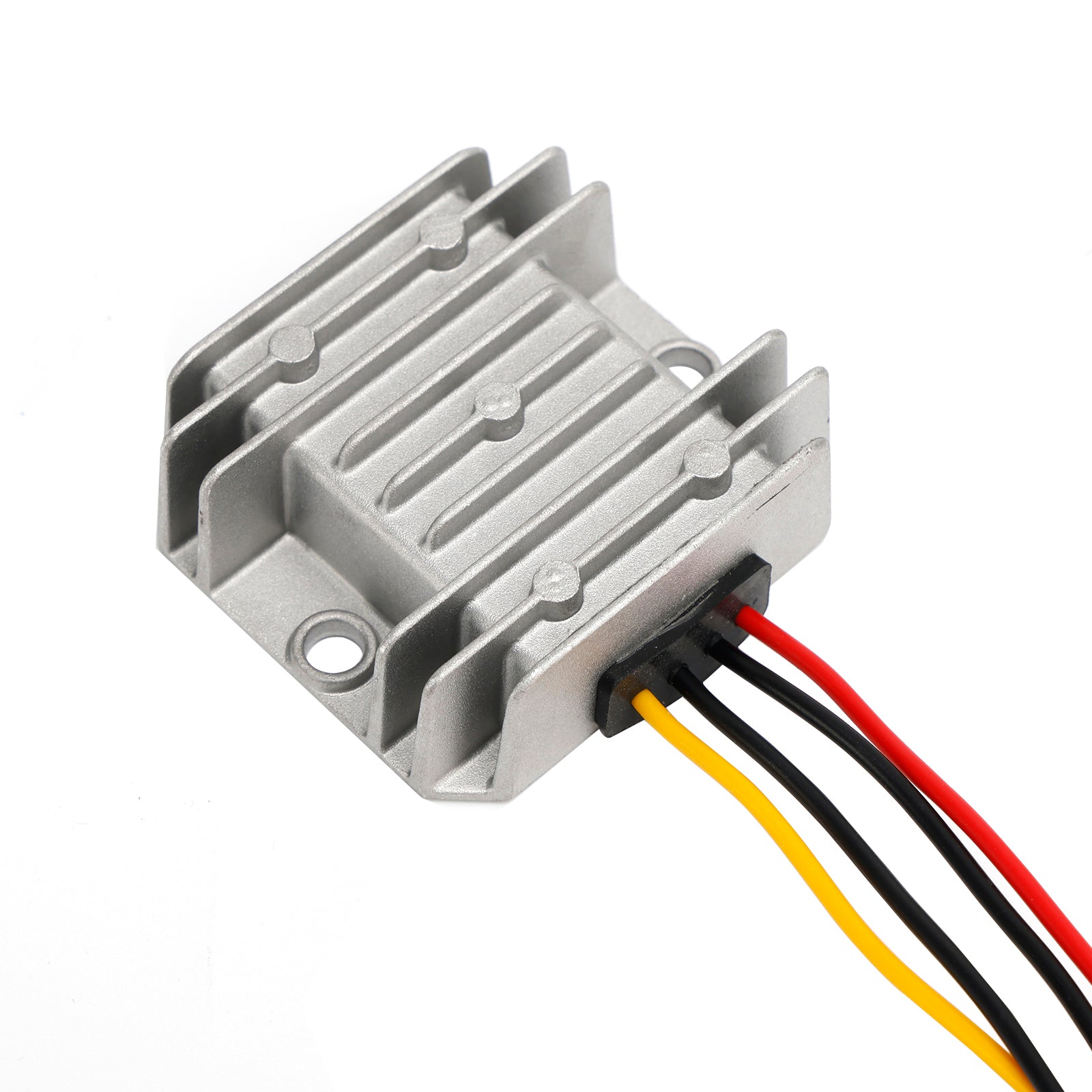

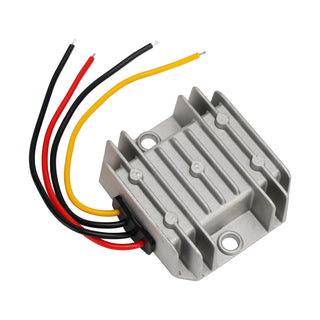

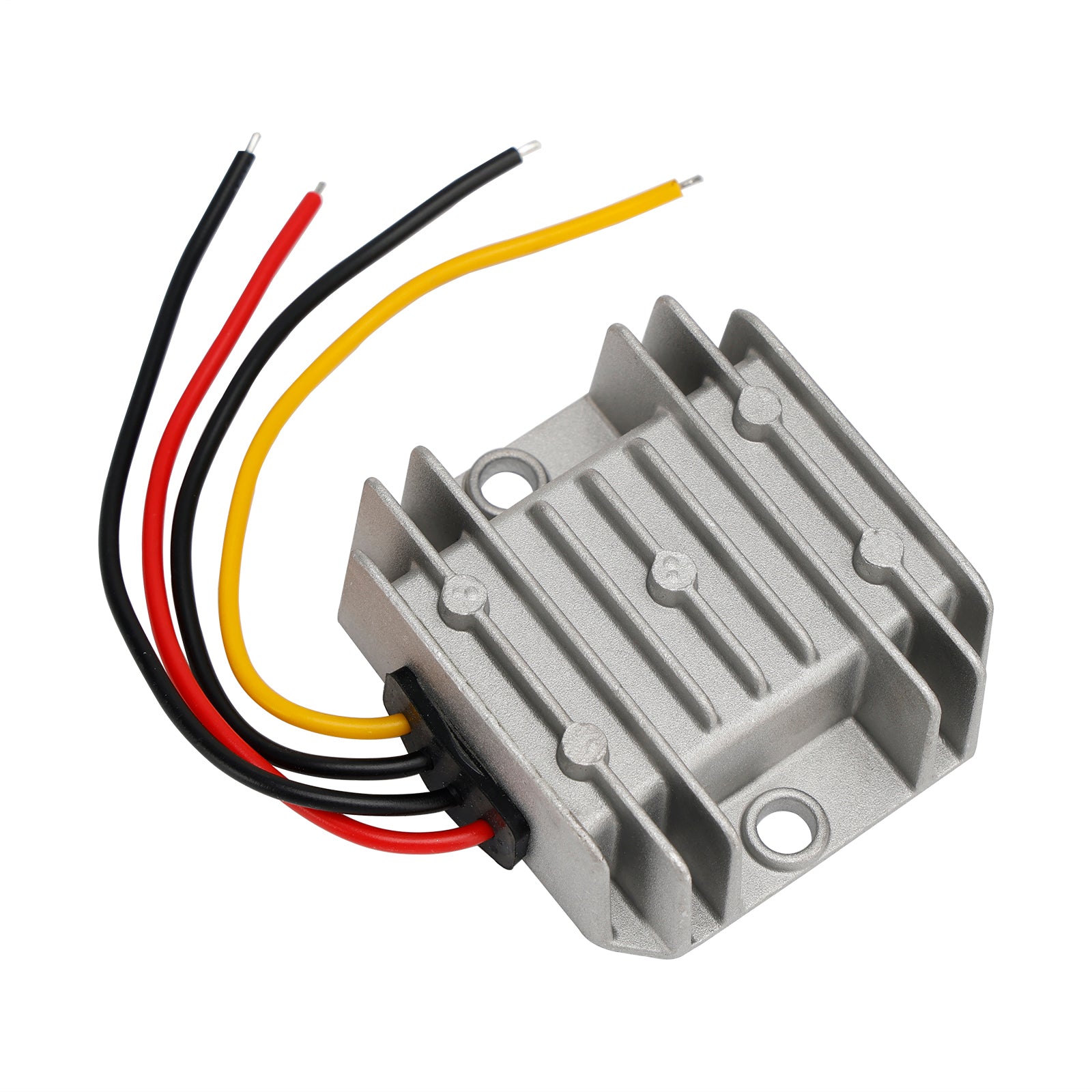

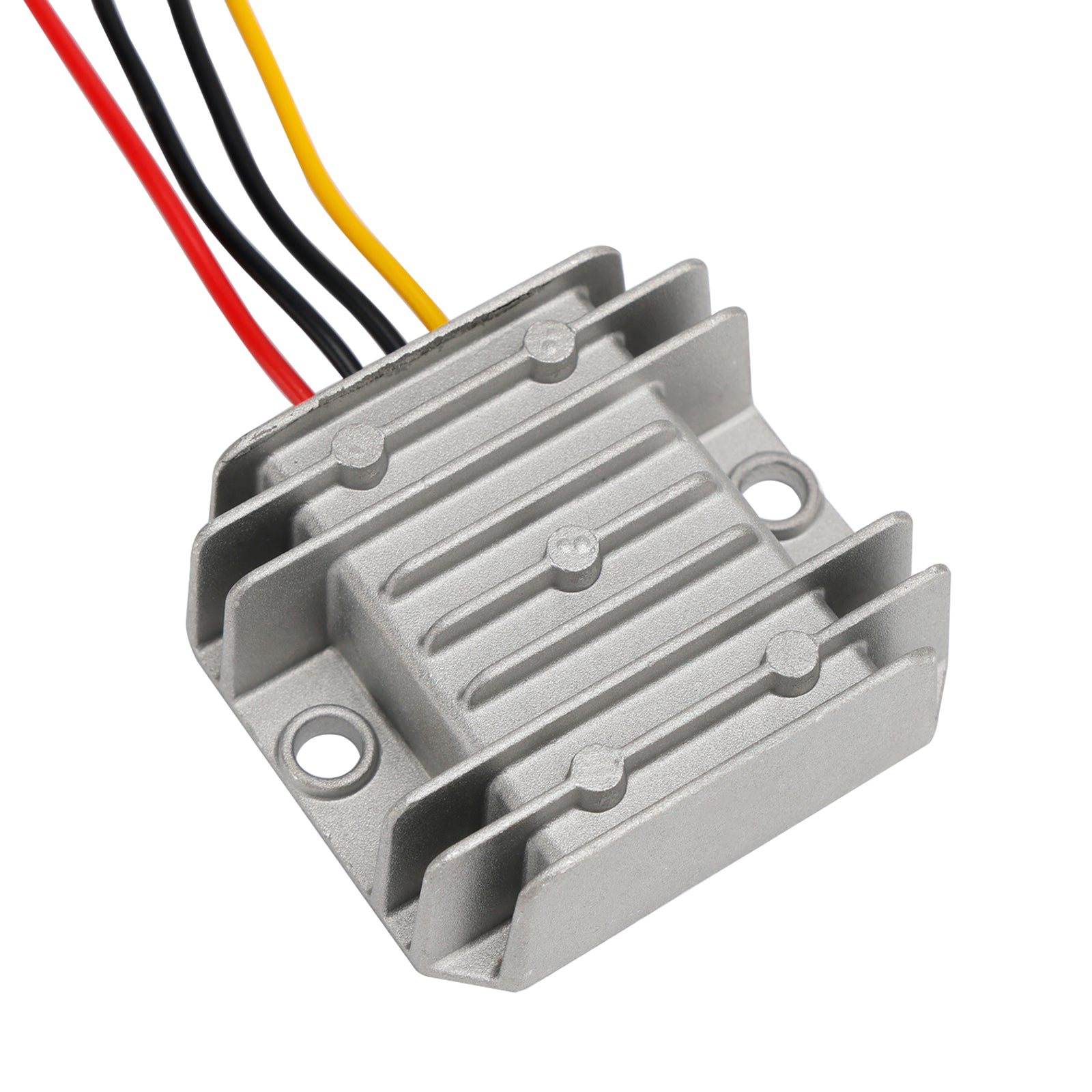

Shell Material: Die-cast aluminum alloy
Input voltage: 5 ~ 32V DC
Output voltage: 12V±0.2V DC
Output current: 2A (max), 24W 锛?A (max), 36W
Operating temperature: -25°C ~ +80°C
Efficient conversion: More than 90%

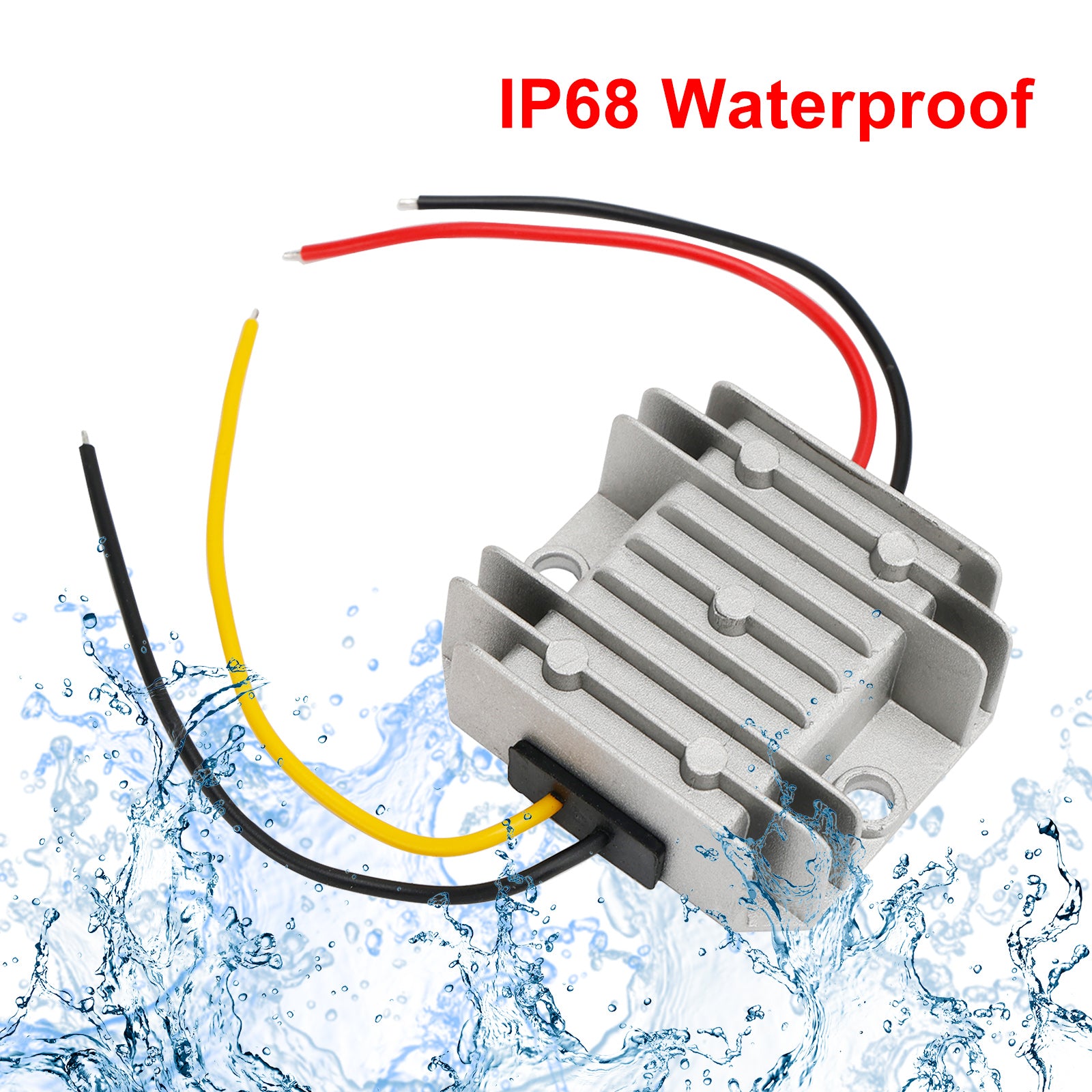

Waterproof Rating: Ip68
Static power consumption: 25Ma

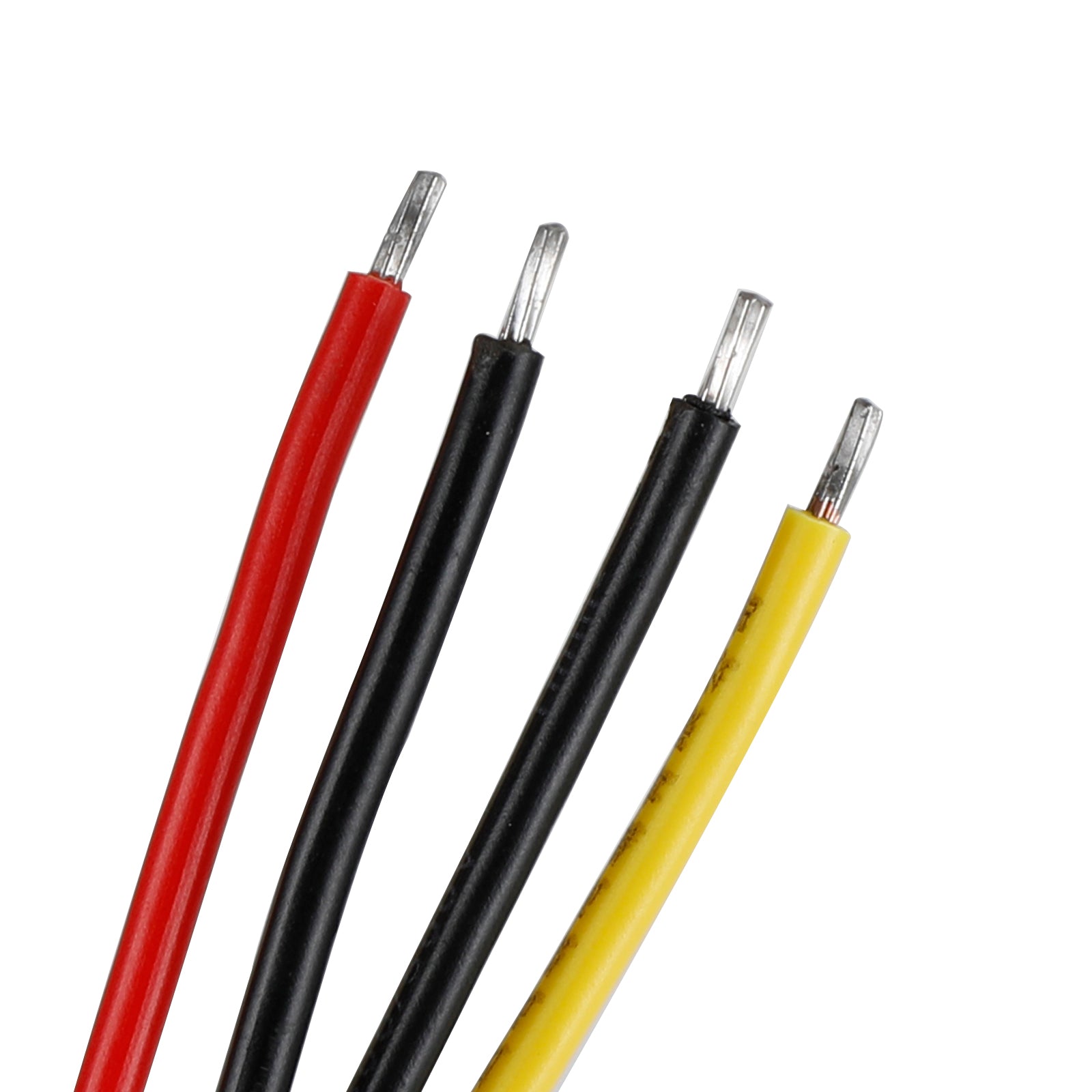

Wire lengths: 130mm/5.12inch
Size: 66*60*22mm/2.60*2.36*0.87inch
Weight:approx.100g

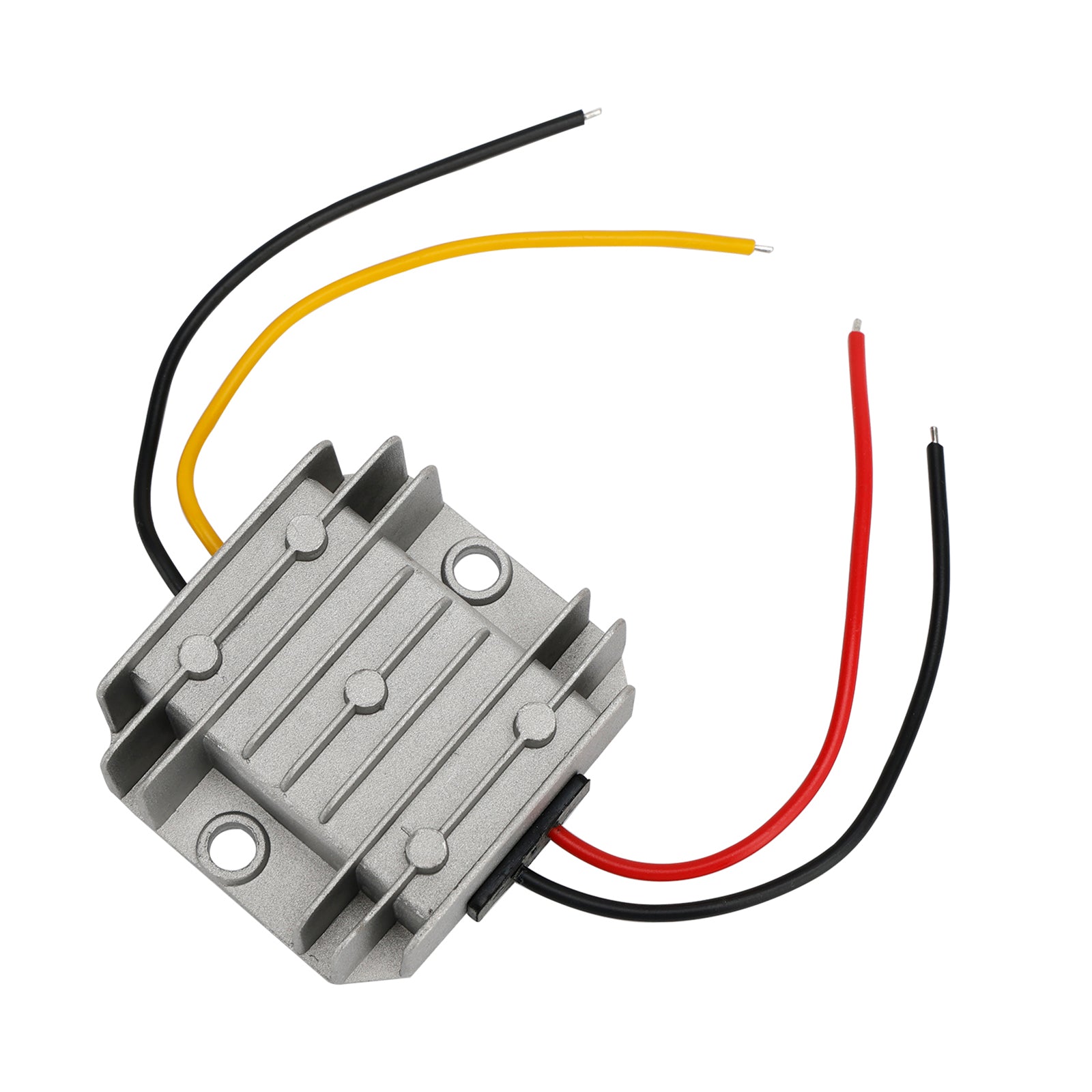

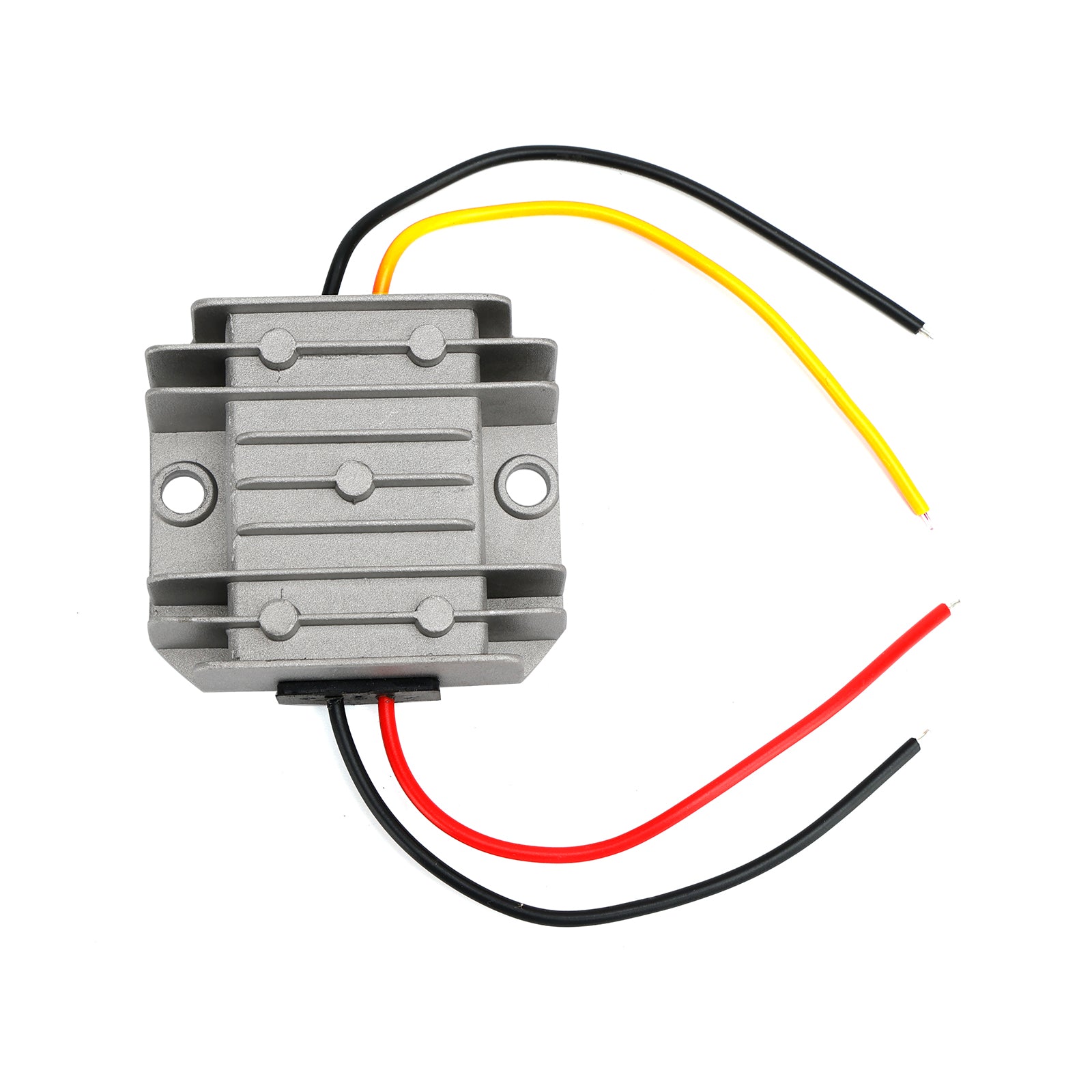

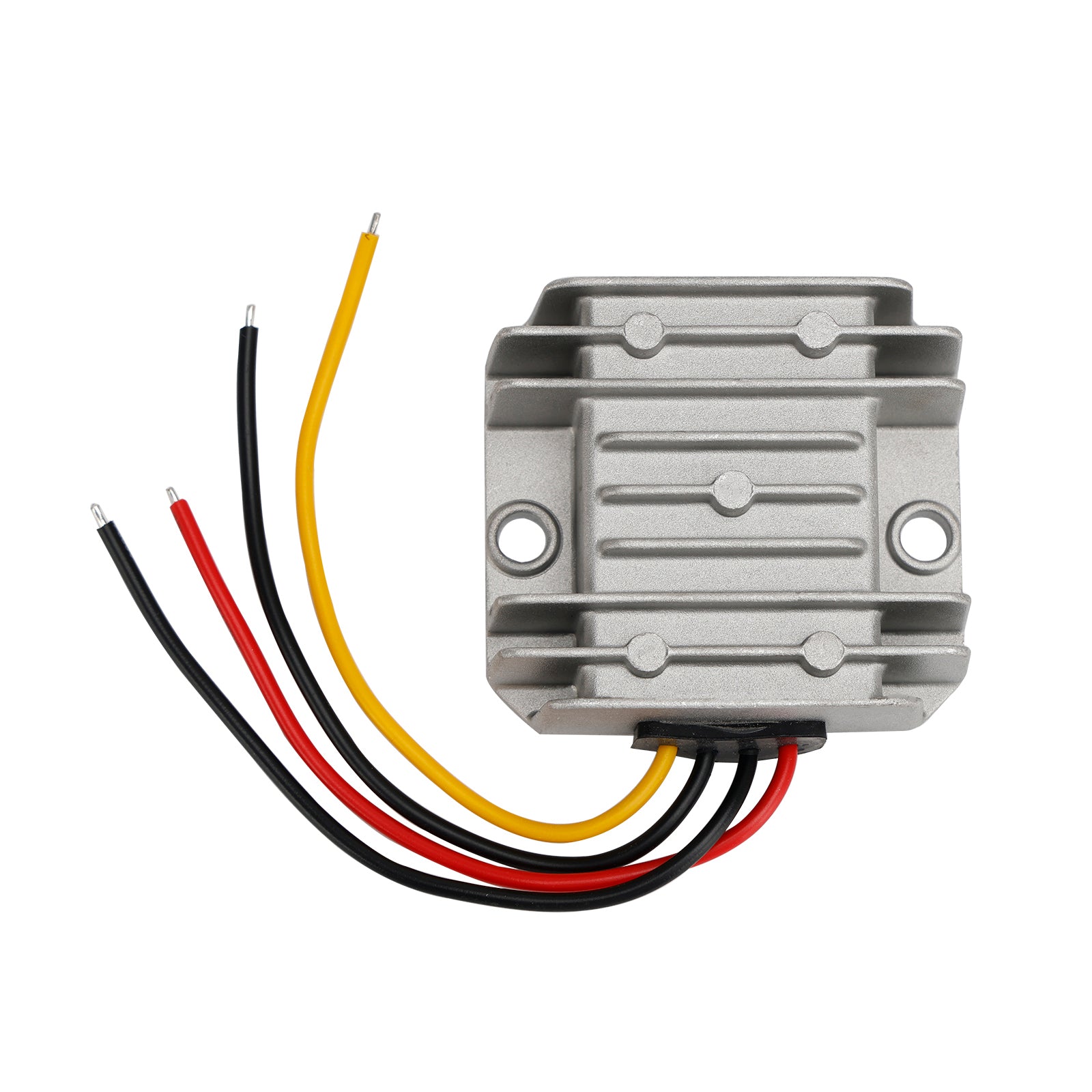

Input wire color : (+)Red, (-)Black.
Output wire color : (+)Yellow, (-)Black.
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC-DC Converter
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
Warranty:1 year
