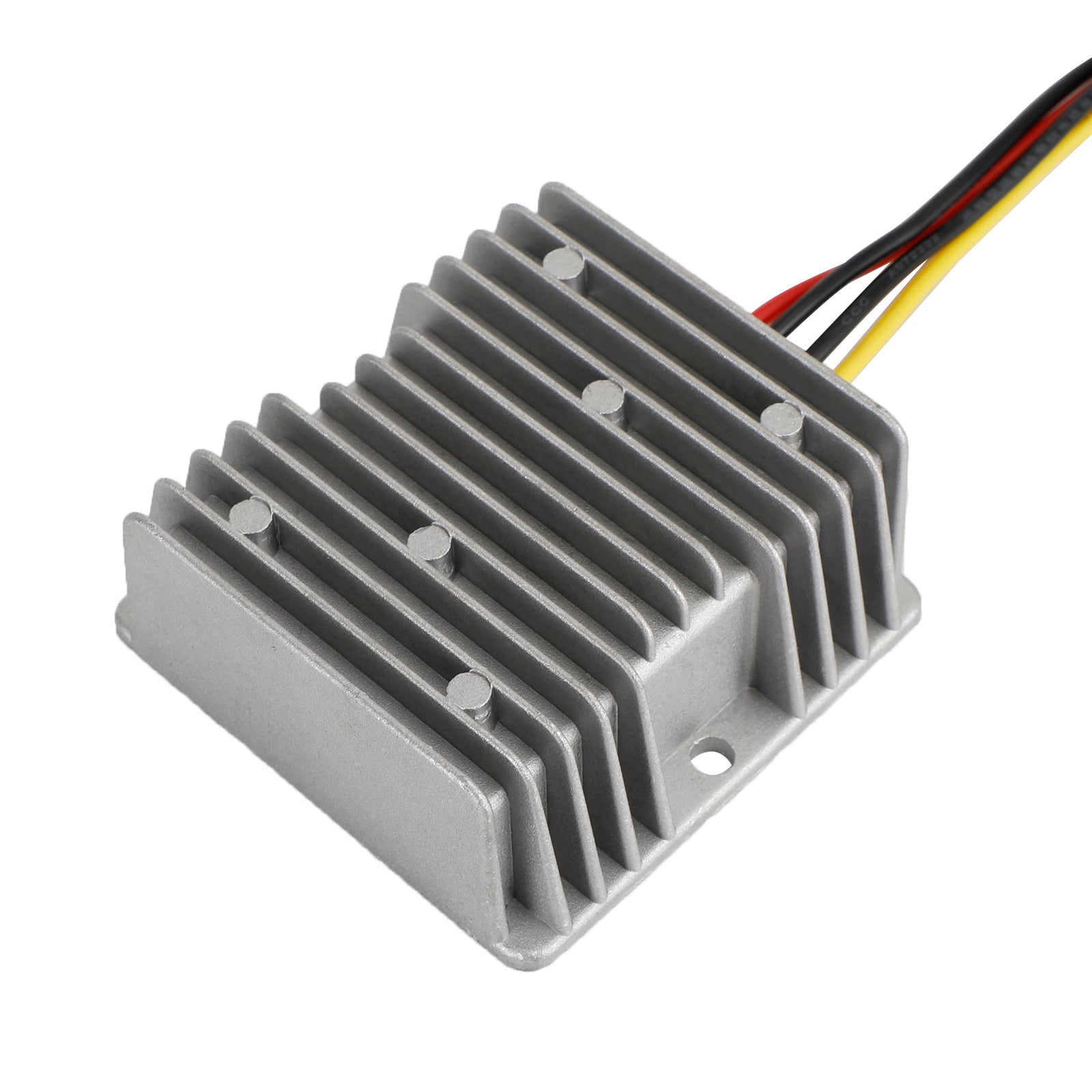

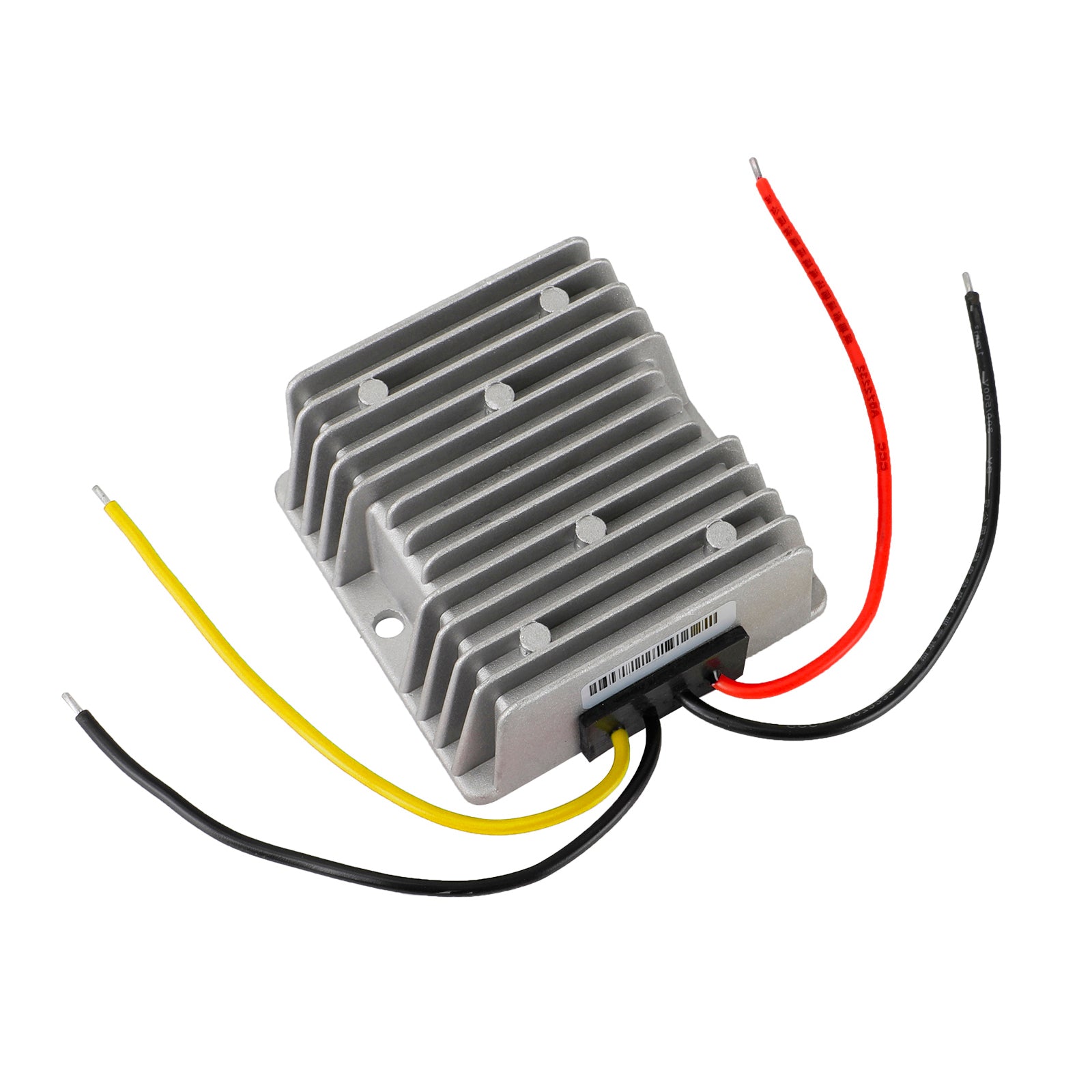

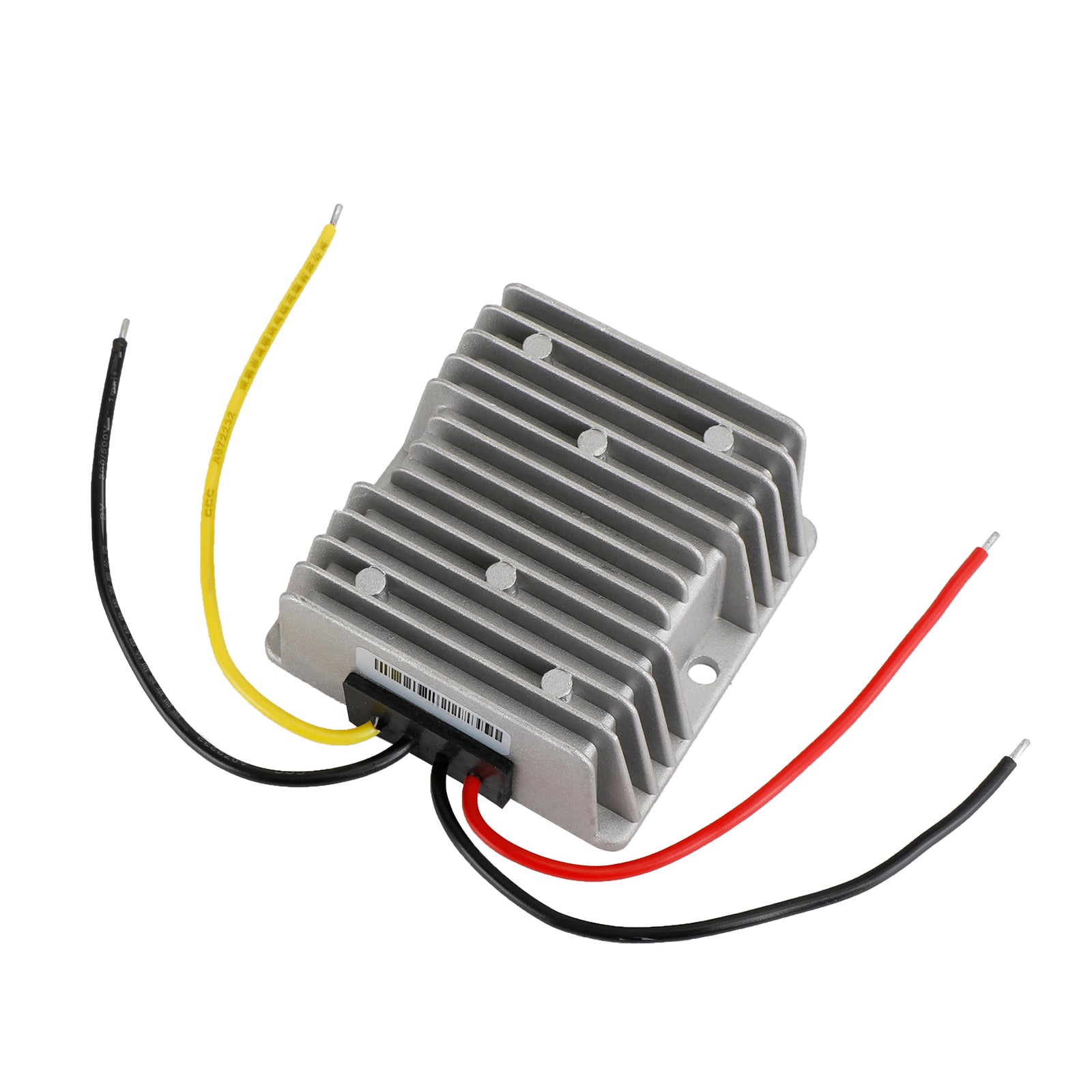

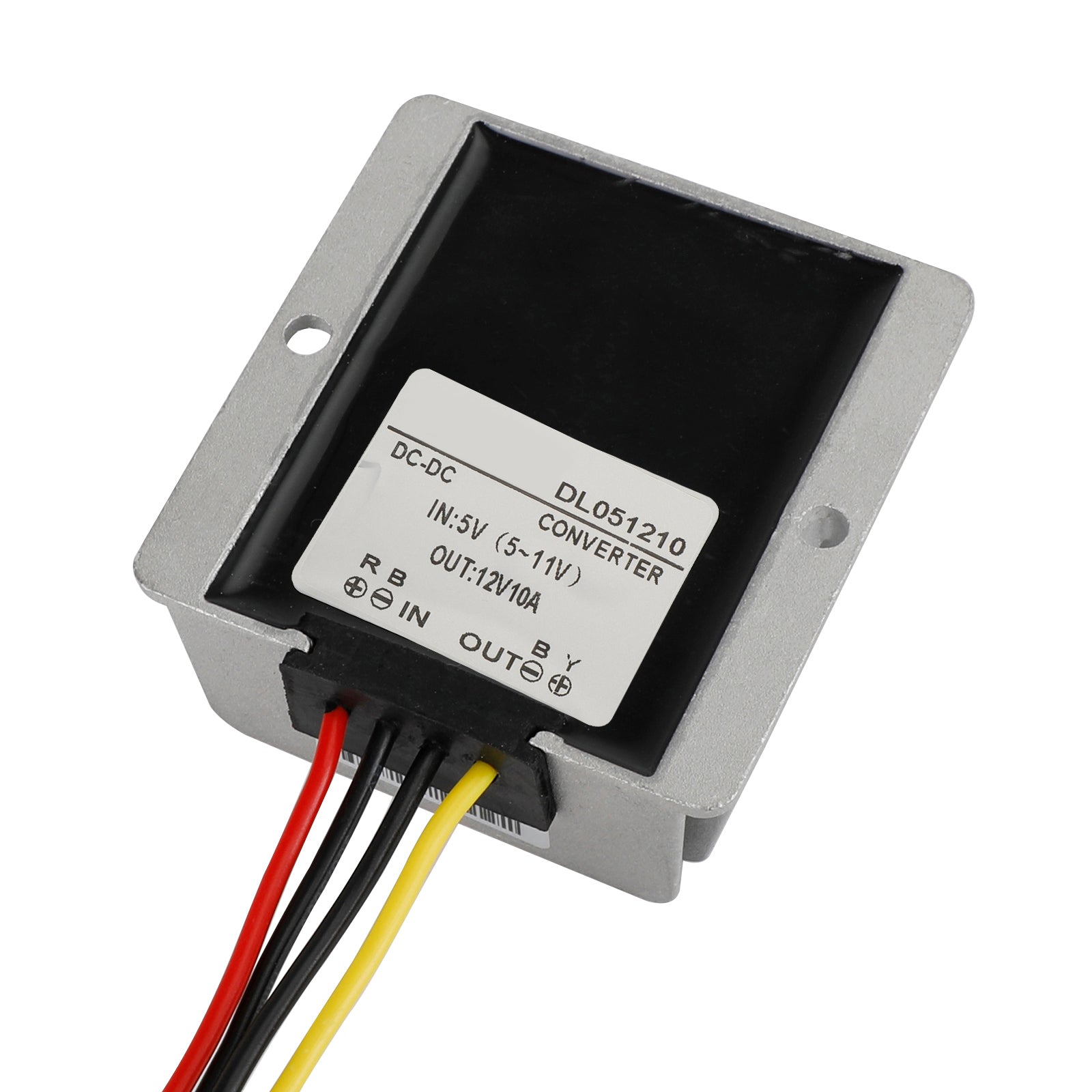

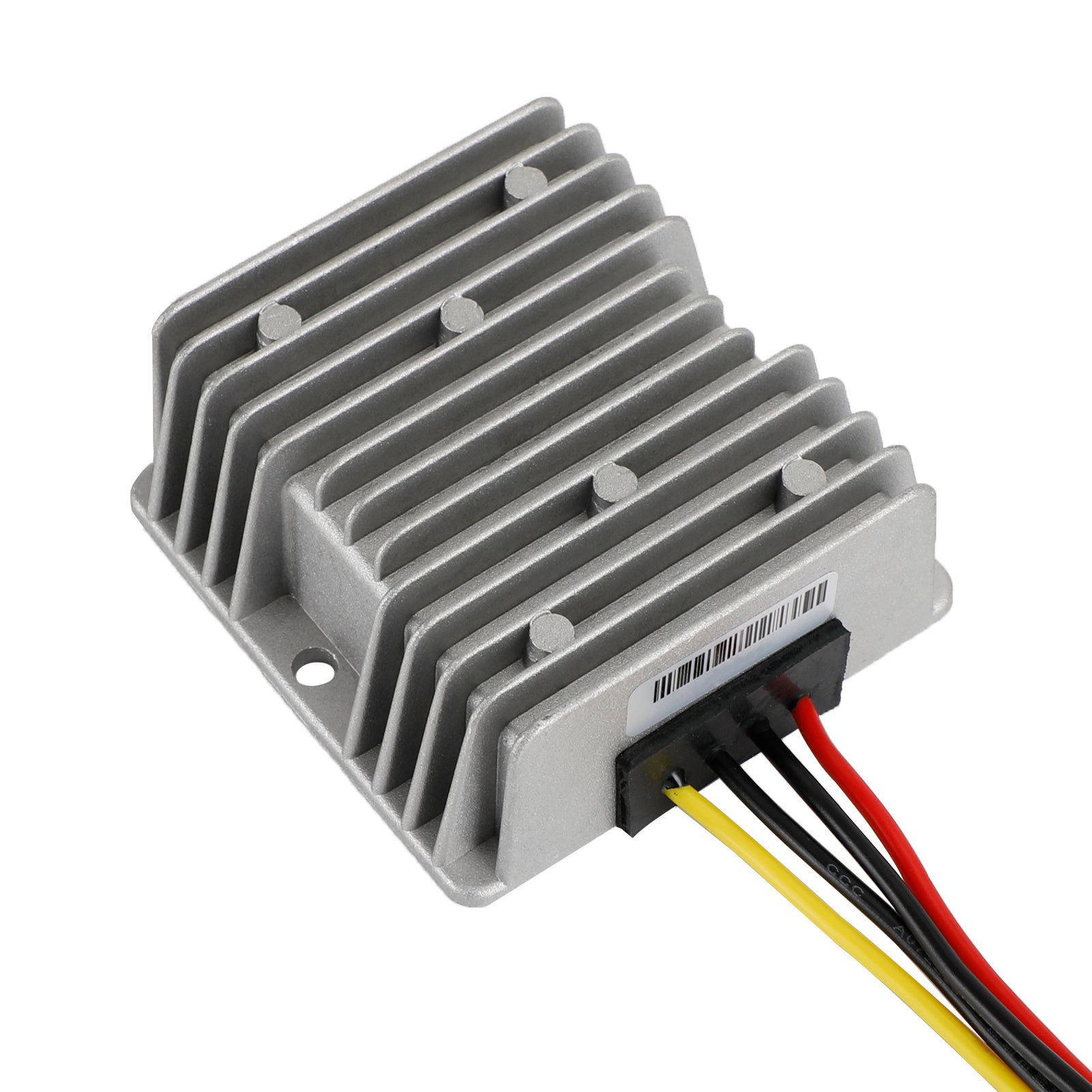

WaterProof 5V~11V to 12V 10A 120W Step Up DC/DC Power Converter Regulator
Feature: 1: High quality thermal silica potting, waterproof, dust-proof, shockproof effect. 2: Aluminum Outer Case material, long term stable and reliable. 3: Easy to install, anti-aging, good heat dissipation. 4: IP68 waterproof and shockproof design, suitable for different outdoor harsh environment. 5: With over-current, over-voltage, over-temperature and short circuit protection, reliable multi-protection design to enhance your using safety.

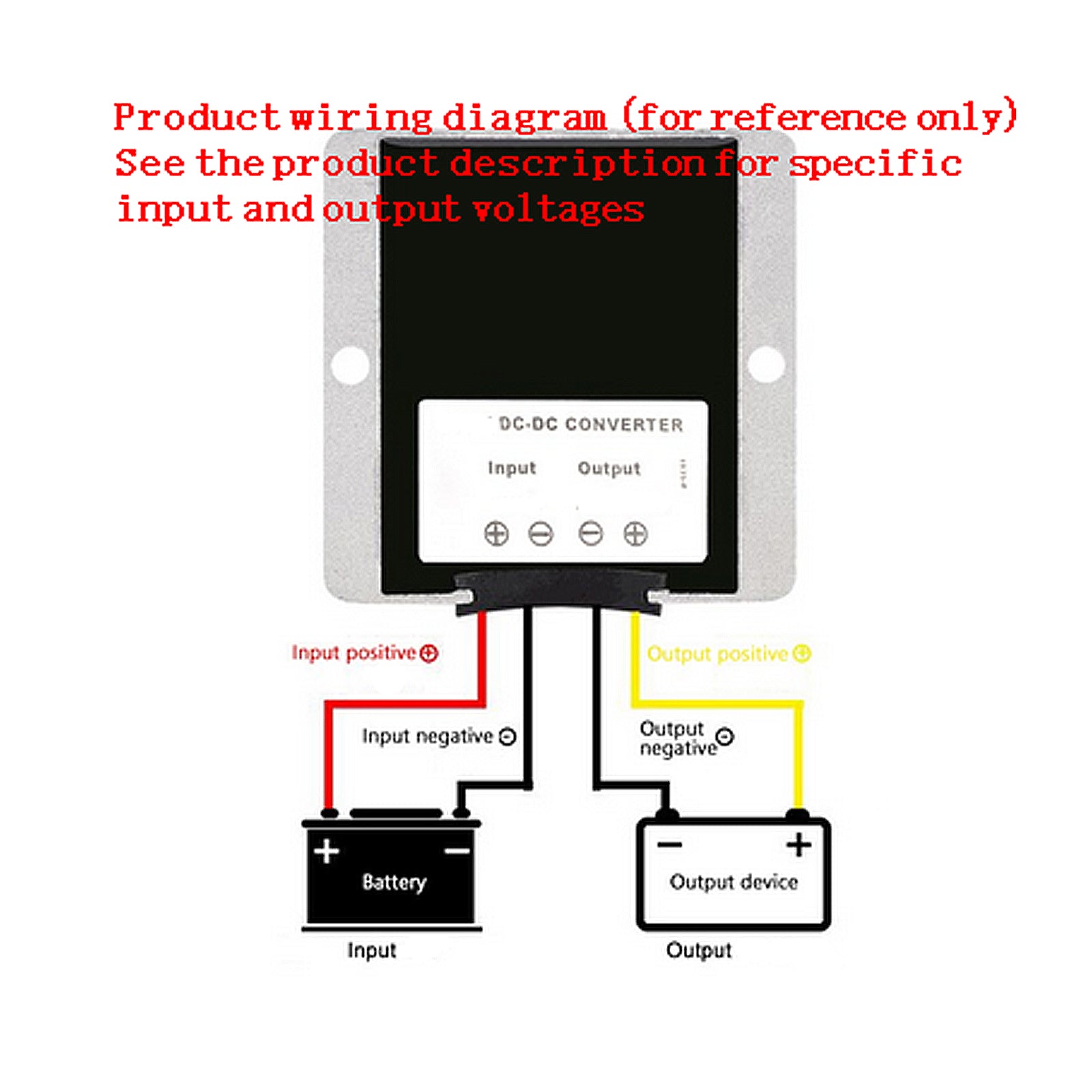

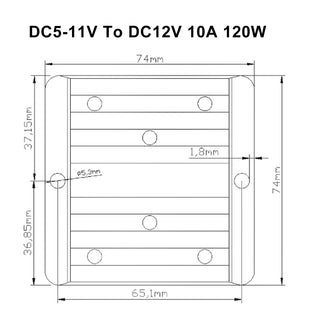

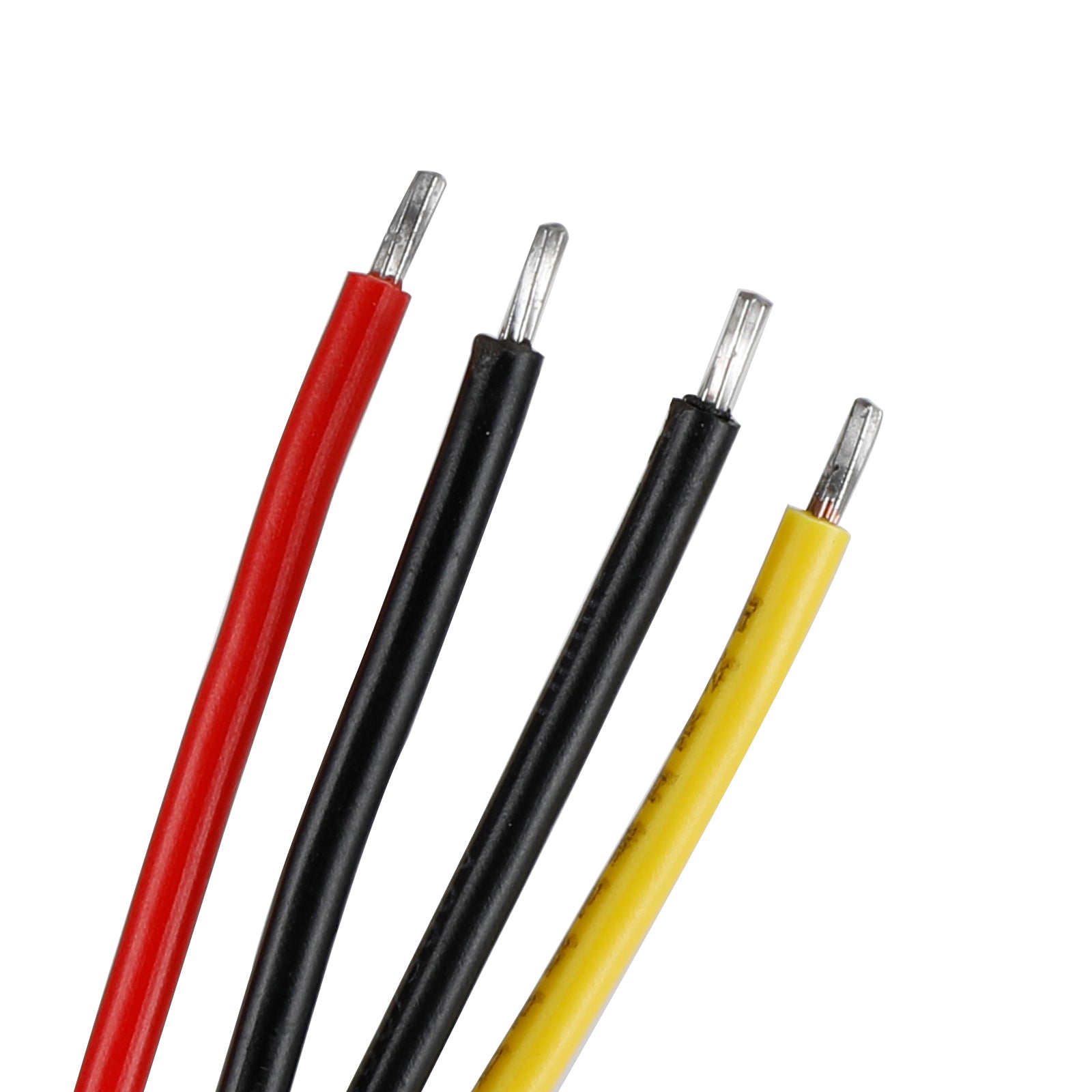

Specifics: Condition: 100% Brand New Shell Material: Die-cast aluminum alloy Input Voltage: 5V Input Voltage Range: 5-11V DC Output Voltage: 12V±0.2V Output Current: 10A Output Rated Power: 120W Conversion efficiency: 92%~96% Operating Temperature: -40℃ to +85℃ Waterproof Rating: Ip68 Static power consumption: 10~15ma Wire lengths: 130mm/5.12inches Size: 74 x 74 x 32 mm/2.91 x 2.91 x 1.26 inches Input wire color : (+)Red, (-)Black. Output wire color : (+)Yellow, (-)Black.
Note: 1. Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power. 2. Please take with an average load, do not merge,if there are multiple output cables in the output port. 3. You need to pay attention to make the power module cool,if output is up to the maximum current value. 4. In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
